Service the Correct Aeromotive Regulator
Aeromotive 13006 is a regulator diaphragm service kit for an existing compatible regulator. It replaces the diaphragm assembly during regulator service. Select it by the regulator part number rather than the vehicle application.
Key Features
- Manufacturer-listed regulator applications: 13202, 13113, 13209, 13214, 13212, 13132, 13133, 13137.
- Exact service instructions identify a replacement diaphragm assembly and new cover screws.
- Diaphragm installs with the valve poppet facing down; cover screws must not exceed 22 in-lb.
Fitment
| Component application | Requirement |
|---|---|
| Aeromotive regulators 13202, 13113, 13209, 13214, 13212, 13132, 13133, 13137 | Match the regulator's exact part number before disassembly. |
Service-part compatibility does not establish a new vehicle application. This product is not legal for sale or use on emission-controlled vehicles except as a direct replacement matching OEM specifications.
Specifications
| Detail | Value |
|---|---|
| Brand | Aeromotive |
| Manufacturer Part Number | 13006 |
| Component | regulator diaphragm service kit |
| Supported regulator part numbers | 13202, 13113, 13209, 13214, 13212, 13132, 13133, 13137 |
| Condition | New |
| Diaphragm orientation | valve poppet facing down |
| Cover screw torque limit | No more than 22 in-lb, per exact service-kit manual |
| Documented compatible fuels | Pump gasoline, race gasoline, E85 and alcohol/ethanol, as listed in the exact service-kit manual; the complete regulator and fuel system must also support the fuel. |

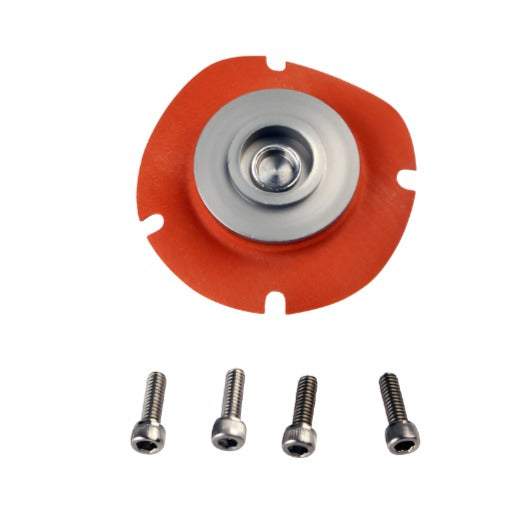

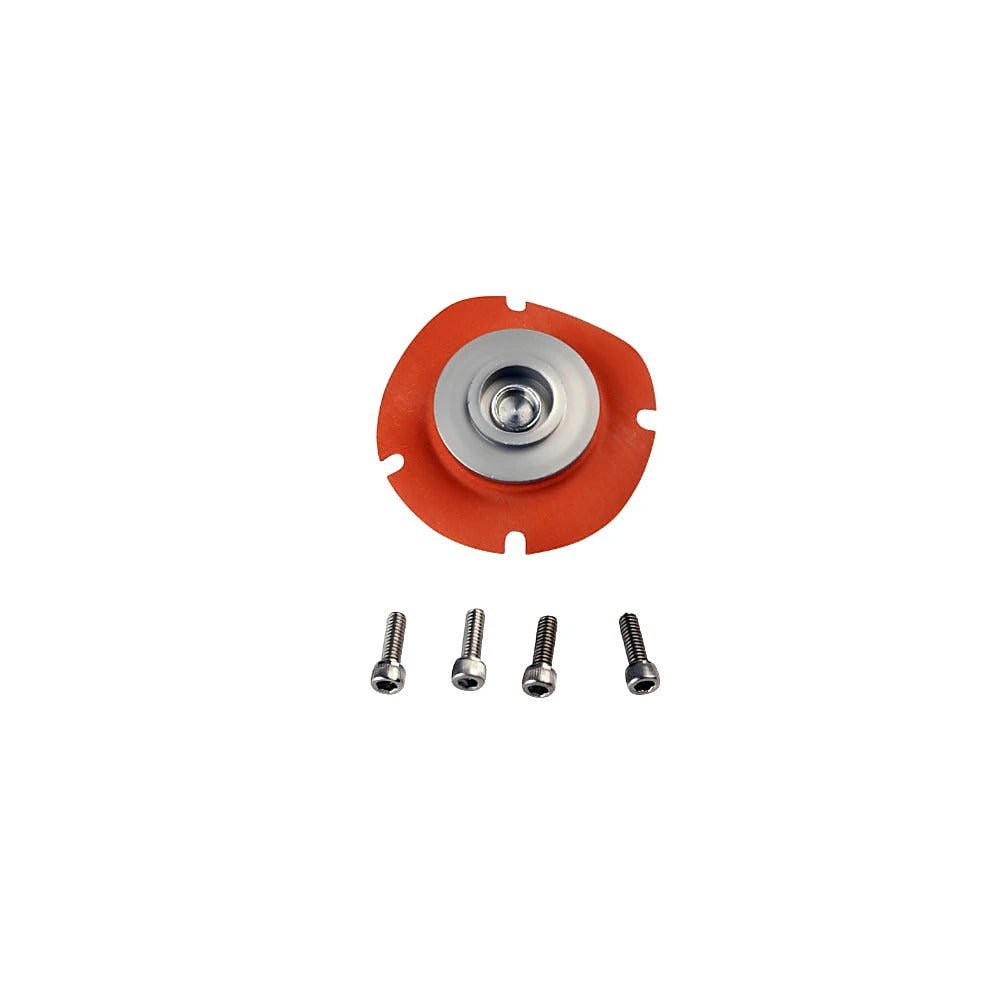

What's Included
- Replacement diaphragm assembly
- New regulator cover screws identified in the service procedure
The complete regulator, fuel plumbing and pressure gauge are separate. The exploded regulator drawing shows the service location, not a complete regulator supplied in the kit; replacement springs and unrelated hardware are not promised.
About Aeromotive
Aeromotive develops performance fuel pumps, regulators, filters, rails, tanks, fittings, controllers, and complete fuel-system components for street, racing, and custom applications. Black Ops Auto Works organizes each listing by exact part number and available application data to support accurate system planning.
Related Parts
- Aeromotive exact service-part details and application list
- Aeromotive exact diaphragm service instructions
- Browse Aeromotive fuel-system parts
Frequently Asked Questions
What is the 13006?
It is an Aeromotive regulator diaphragm service kit for the regulator part numbers listed above.
Does it include a complete regulator?
No. It services an existing regulator with a replacement diaphragm assembly and new cover screws.
How should I confirm compatibility?
Read the part number on the regulator and match it to 13202, 13113, 13209, 13214, 13212, 13132, 13133, 13137. Similar appearance or the same brand does not establish compatibility.
Can it be used in any return-style regulator?
No. Use the exact manufacturer-listed regulator applications rather than assuming all EFI or carbureted regulators share internal parts.
Does the kit set the fuel pressure automatically?
No. Removing the pressure adjustment screw requires checking and resetting fuel pressure using the serviced regulator's instructions.
Which fuel compatibility is documented?
Pump gasoline, race gasoline, E85 and alcohol/ethanol, as listed in the exact service-kit manual; the complete regulator and fuel system must also support the fuel.
What installation detail matters?
Install the diaphragm with its valve poppet facing down. The exact manual limits the cover screws to no more than 22 in-lb; this is not a fuel-port fitting torque.
Is this a vehicle-specific repair?
Selection is by the supported regulator, not by a vehicle year or model. Aeromotive restricts use on emission-controlled vehicles to direct replacements matching OEM specifications.
Installation Instructions
- Have a qualified technician confirm the existing regulator identity, relieve all fuel pressure and eliminate ignition sources before opening the regulator.
- Remove the pressure adjustment screw and four cover screws, following the exact service manual.
- Replace the diaphragm assembly with its valve poppet facing down.
- Use the supplied new cover screws and tighten them to no more than 22 in-lb.
- Reassemble the regulator, reset and verify fuel pressure according to its instructions, and inspect for leaks before operation.
