Aeromotive VaporWorx Ford Coyote Returnless Pulse Width Modulation Fuel Module Controller Kit

Returnless PWM Fuel Module Controller Kit for Ford Coyote Gen 1, Gen 2, and Gen 3 5.0L Engines

The Aeromotive VaporWorx 66137 Ford Coyote Returnless Pulse Width Modulation Fuel Module Controller Kit is purpose-built for the Ford 5.0L Coyote engine in Gen 1 (2011-2014), Gen 2 (2015-2017), and Gen 3 (2018+) configurations. The 66137 integrates directly with the factory Ford fuel module architecture, allowing PWM-based fuel pump speed control without converting to a return-type system or replacing the OEM fuel module. A boost-referenced MAP sensor monitors manifold pressure and scales pump duty cycle to match actual fuel demand at every operating point. The result is a factory-look installation with the pump speed intelligence needed for supercharged Coyote builds running upgraded high-flow fuel pumps.

Key Features

• Direct integration with Ford Coyote Gen 1, Gen 2, and Gen 3 factory returnless fuel module architecture
• Boost-referenced PWM control via MAP sensor for precise fuel demand matching on supercharged engines
• Eliminates fuel return line conversion while supporting high-flow pump upgrades
• Compatible with 2011+ Ford Mustang GT, F-150, and other Coyote-powered platforms
• Reduces fuel temperature and electrical load compared to full-time pump operation
• MAP sensor and Coyote-specific wiring harness included
• Designed and built by Aeromotive in partnership with VaporWorx

Specifications

What's Included

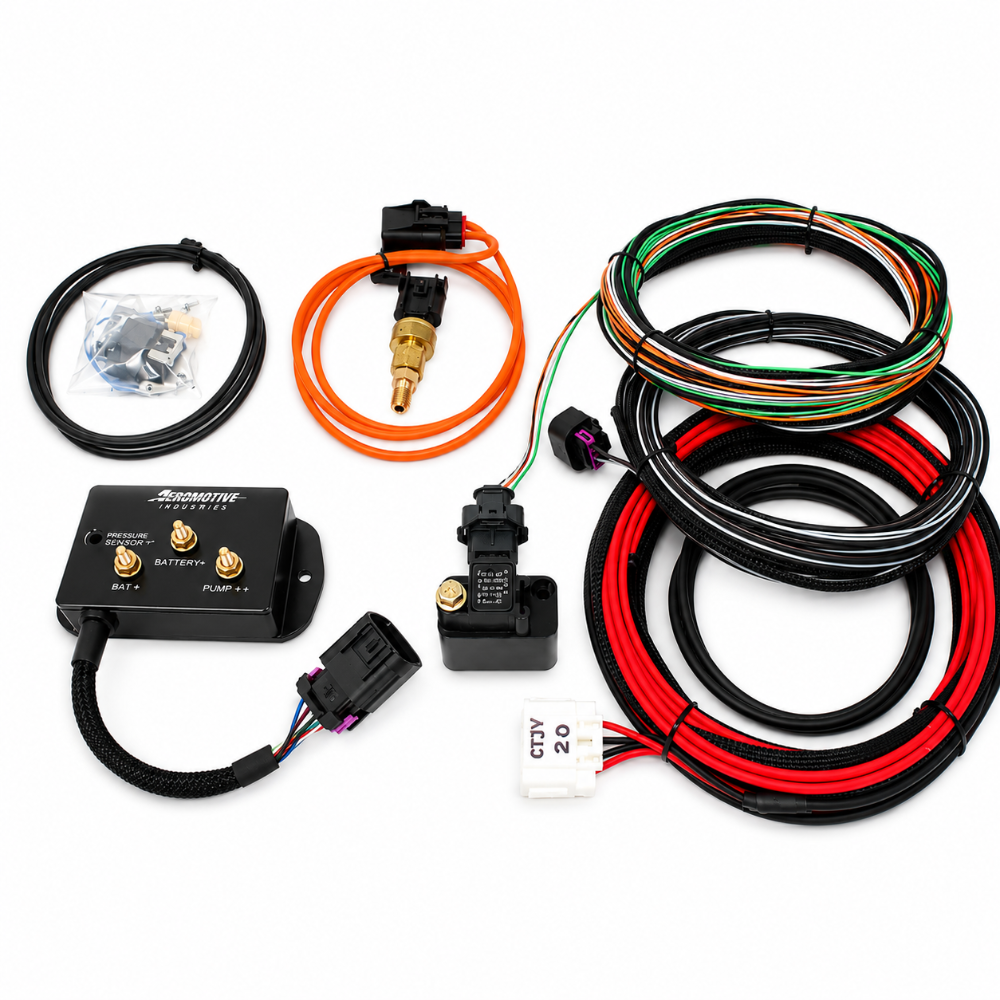

• 1x Aeromotive VaporWorx 66137 Coyote returnless PWM controller unit
• Ford Coyote-specific wiring harness
• Standalone MAP sensor
• Mounting hardware
• Installation documentation

Frequently Asked Questions

The 66137 supports Gen 1 (2011-2014), Gen 2 (2015-2017), and Gen 3 (2018 and later) Ford 5.0L Coyote engines. Each Coyote generation uses a slightly different fuel module and injector configuration, and the VaporWorx kit includes the appropriate Coyote-specific harness to integrate with the factory fuel module architecture across all three generations.

No. The 66137 is specifically engineered for returnless fuel systems, which is the factory configuration on all Coyote-powered vehicles. The controller interfaces directly with the OEM fuel module without requiring a return line to be added. This makes the installation cleaner and more compatible with factory fuel tank and rail configurations.

The Ford 5.0L Coyote engine is used in the Ford Mustang GT (2011 and later), Ford F-150 with the 5.0L V8 option (2011 and later), Ford Mustang Mach 1, and the Ford Mustang GT500 in certain years. The 66137 kit is designed for supercharged variants of these platforms where an upgraded fuel pump is required to support forced induction fuel demands.

On a supercharged Coyote, fuel demand increases significantly with boost. Without PWM control, the fuel pump runs at full voltage continuously, leading to elevated fuel temperatures, excess electrical load, and potential fuel pressure inconsistency. The 66137 ramps pump duty cycle proportionally with boost, so the pump delivers exactly what is needed at each operating point and runs at reduced speed during cruise and idle when demand is low.

Yes. The 66137 is designed specifically to work with upgraded high-flow fuel pumps installed in the factory Ford fuel module housing. The controller manages the pump's operating voltage via PWM regardless of the pump's specific brand or flow rating, as long as the pump is compatible with the Coyote module housing and operates within the controller's supported voltage range.

The GT500 uses a supercharged 5.2L Predator engine rather than the standard Coyote 5.0L. While both are Ford engines, the GT500's fuel system architecture differs. The 66137 is calibrated for the Coyote 5.0L Gen 1-3 fuel module. For GT500 applications, verify fitment with Aeromotive or VaporWorx directly before purchasing.

The kit includes the PWM controller unit, a Ford Coyote-specific wiring harness, a MAP sensor, and mounting hardware along with installation documentation. You will also need an upgraded high-flow fuel pump compatible with the Ford Coyote module housing. The pump itself is not included and must be sourced separately based on your horsepower target and fuel type.

At idle, where manifold vacuum is high and boost is zero, the controller reduces the pump duty cycle significantly. The pump operates at a fraction of its maximum voltage, reducing pump noise, heat generation in the fuel, and current draw on the electrical system. As soon as boost builds under acceleration, the controller ramps pump speed up proportionally to maintain the correct fuel pressure for the application.

Installation Notes

1. Confirm your vehicle has a Ford 5.0L Coyote Gen 1, Gen 2, or Gen 3 engine before installation.
2. Install an upgraded high-flow fuel pump into the factory Ford fuel module housing before connecting the controller.
3. Route and connect the Coyote-specific wiring harness between the controller and the fuel module per the included instructions.
4. Install the MAP sensor on the intake manifold at a location that accurately represents boost and vacuum conditions.
5. Connect power and ground to an appropriately fused switched power source and chassis ground.
6. Verify fuel pressure at idle and under boost before sustained full-throttle operation.
7. Data log fuel pressure during initial tuning sessions to confirm the controller is responding correctly to boost.
