Product Overview
Aeromotive 66162 is the ReturnX PWM controller kit for one brushed fuel pump in a naturally aspirated application. It varies pump speed from the supplied stand-alone manifold-pressure sensor while the fuel system retains its mechanical bypass/return pressure regulation.
Key Features
- Single-pump, naturally aspirated configuration; other ReturnX variants cover different pump counts or boosted applications.
- MAP-based control reduces pump effort at lower demand; actual heat, noise and power reduction depend on the pump and operating conditions.
- The current family page lists a 10–22 V operating range and over-temperature/short-circuit protection.
- Use the exact supplied sensor type and correct ECM enable strategy to retain priming and safety functions.
Fitment
| Detail | Value |
|---|---|
| Application | Specification-matched control of one brushed pump in a naturally aspirated return-regulated system. |
| Fuel-system layout | Carbureted or EFI, with a suitable bypass regulator and return path. Manual deadhead plumbing references still require the documented pressure-regulation arrangement. |
| Sensor input | Supplied stand-alone MAP sensor only; not a TPS-input controller. |
| Pump match | Verify electrical load, system voltage, wiring, regulation and calibration for the selected pump; no year/make/model direct-fit approval is implied. |
The product page includes dual-pump leader/follower descriptions and a family current-rating range. Those statements do not convert this single-pump kit into a dual-pump controller or establish one exact output-current limit for every revision. Do not apply it to a brushless pump requiring its own electronic controller.
Specifications
| Detail | Value |
|---|---|
| Brand | Aeromotive |
| Manufacturer Part Number | 66162 |
| Configuration | One brushed fuel pump; naturally aspirated |
| Control feedback | Stand-alone MAP sensor matched to the controller |
| Operating range | 10–22 V listed on the current family product page |
| Published family enclosure dimensions | 4 x 2.1 x 1.625 inches; verify actual mounting clearance |
| Brass terminal-nut torque | 10 in-lb maximum per Rev. C manual |
| Condition | New |
What's Included

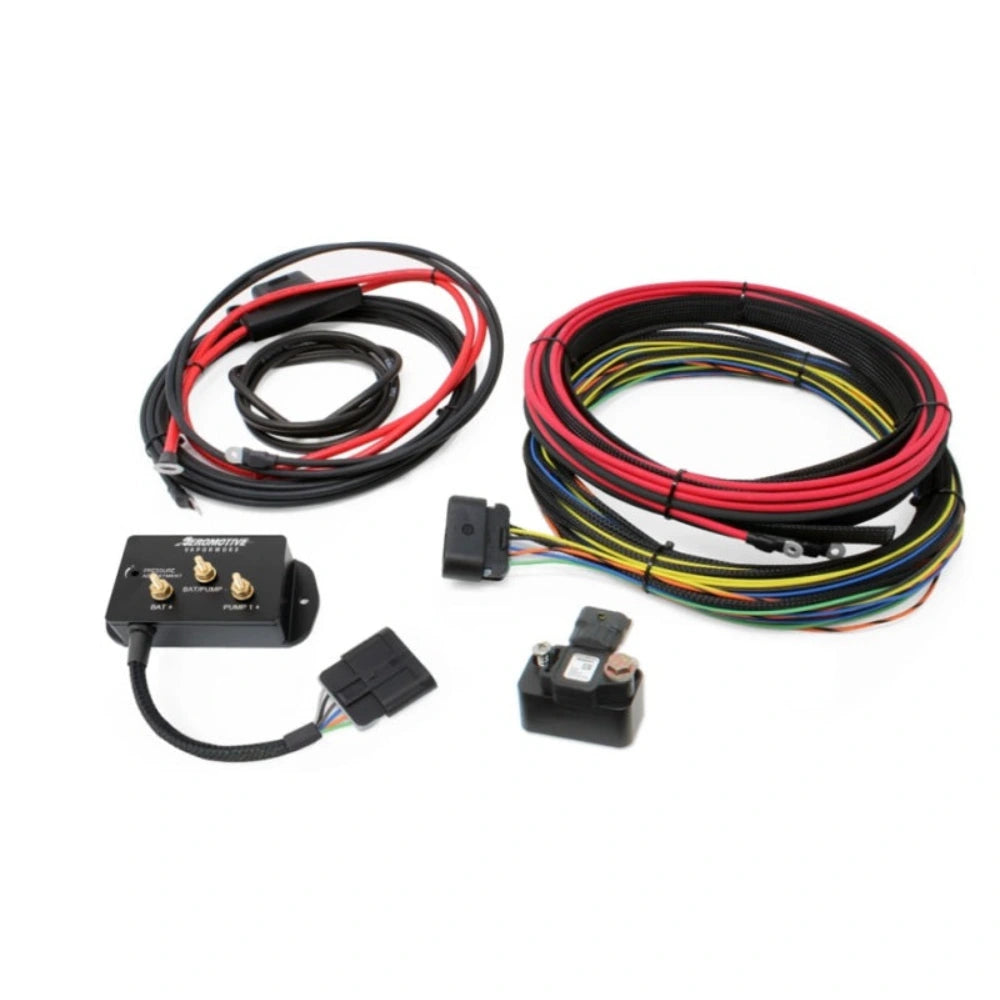

- ReturnX controller and matching stand-alone MAP sensor/mounting block.
- Sensor hose and barb, signal/pump wiring and fused battery link described in the exact instructions.
- Terminals, heat-shrink/protective braid and mounting screws described in the manual.
The manual describes both single- and dual-pump installations; only the single-pump wiring applies to this kit. It identifies a 4-foot battery-negative wire and 30 feet of signal wiring, rather than a guaranteed complete vehicle-length harness for every route. Fuel pump, tank, mechanical regulator, fuel hose and complete vehicle fuel system are separate selections.
About Aeromotive
Aeromotive develops performance fuel pumps, regulators, filters, rails, tanks, fittings, controllers, and complete fuel-system components for street, racing, and custom applications. Black Ops Auto Works organizes each listing by exact part number and available application data to support accurate system planning.
Related Parts
Frequently Asked Questions
What is the 66162?
The single-brushed-pump, naturally aspirated ReturnX controller kit with a matching stand-alone MAP sensor.
Can it use a throttle-position signal or a different MAP sensor?
No TPS input is permitted. The controller is calibrated for the supplied MAP sensor type; replace it only with the same specified type/model, following manufacturer instructions.
Does the adjustment screw set fuel pressure?
It changes pump speed/output voltage. Set fuel pressure with the mechanical regulator, then tune controller output with a voltmeter and pressure gauge using the manual’s pump-specific procedure.
Does it replace the fuel-pressure regulator?
No. A bypass/return pressure-regulation arrangement is required. A reference to deadhead plumbing is not approval to discard regulation or the documented return path.
How should battery power and ground be routed?
Connect directly to the battery as shown, through the supplied fused link, and return pump negative through the controller. The manual expressly warns against chassis-ground substitutions.
Can I connect both enable triggers?
No. Confirm the ECM’s enable polarity and use one appropriate trigger. The manual’s pinout/table and some negative-trigger prose are inconsistent; verify the actual controller revision and connector identification with the manufacturer before termination.
Which fuse rating and output setting apply?
The manual diagram shows 40 A for a single pump; its troubleshooting note qualifies that example for systems without voltage-increasing devices. Use the exact pump/circuit instructions and do not substitute the dual-pump 60 A example or infer an output-current limit from fuse size.
Is reduced fuel heating guaranteed to prevent starvation or vapor lock?
No. Pump immersion, tank fuel control, pressure, wiring and calibration remain essential. Verify fuel pressure through the operating range; protection features do not guarantee engine safety or a universal installation.
Installation Instructions
- Use the exact instructions and qualified fuel-system installation practices. Depressurize the system and disconnect battery power before wiring.
- Mount the controller near the battery on a flat metal surface that can conduct heat away; keep it clear of exhaust and radiator heat.
- Use the supplied MAP sensor, block and manifold-vacuum hose. Do not connect a TPS signal. Confirm the ECM enable polarity and resolve any pinout ambiguity before making connections.
- Route the fused battery supply, battery negative and pump wiring exactly as shown. Protect wiring from heat, abrasion and moving parts. Do not exceed 10 in-lb on the brass terminal nuts.
- Keep the pump submerged in adequate fuel. Check priming and leaks, set the mechanical regulator for the engine, and tune output voltage using the exact pump-specific table.
- Verify pressure and delivery under increasing demand. Stop and correct pressure loss or abnormal operation before using the vehicle.
Read the exact ReturnX installation and calibration manual. Its emissions notice restricts emissions-controlled applications except a direct replacement matching OEM specification; no unconditional street-use approval is asserted.
