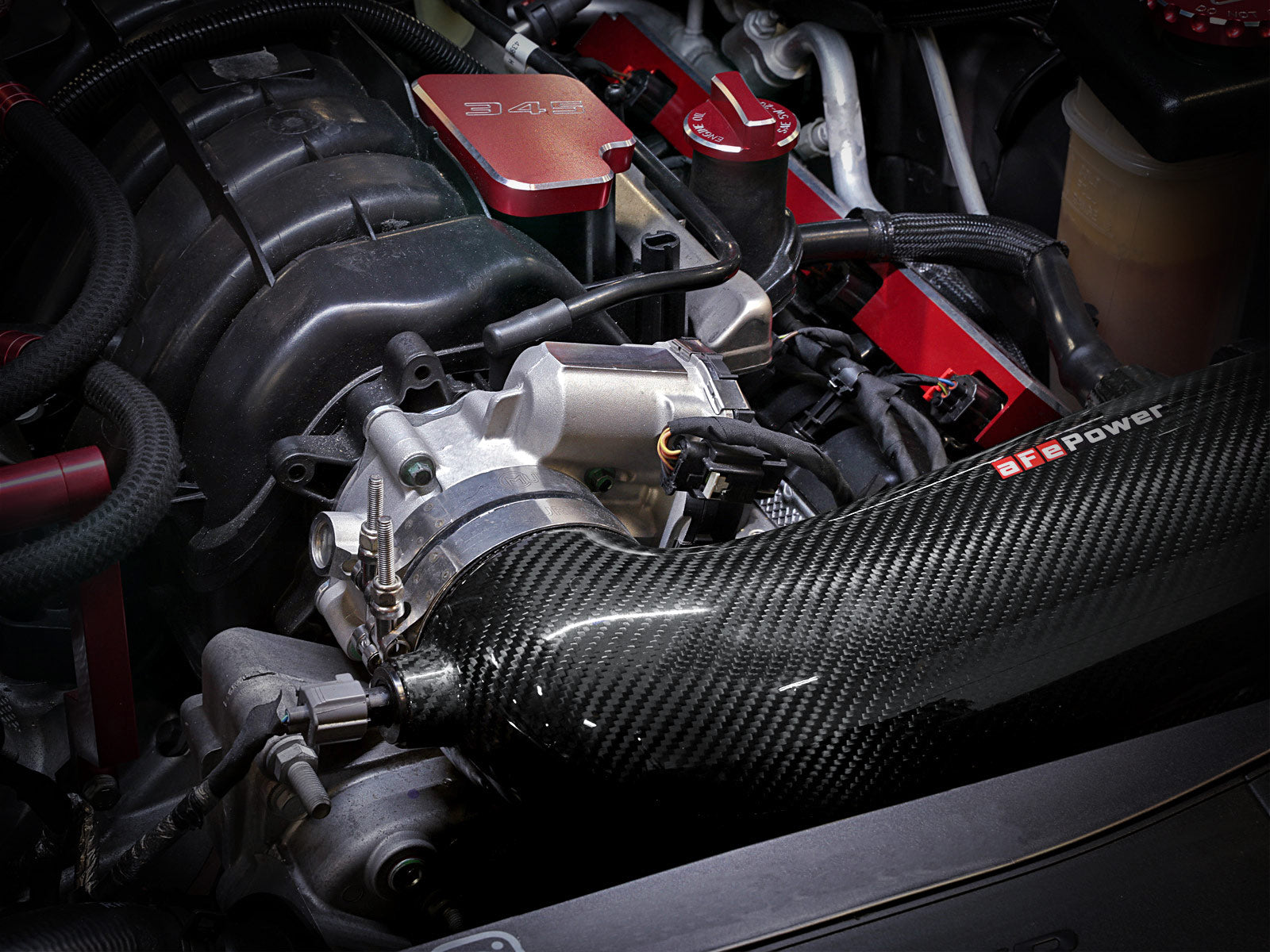

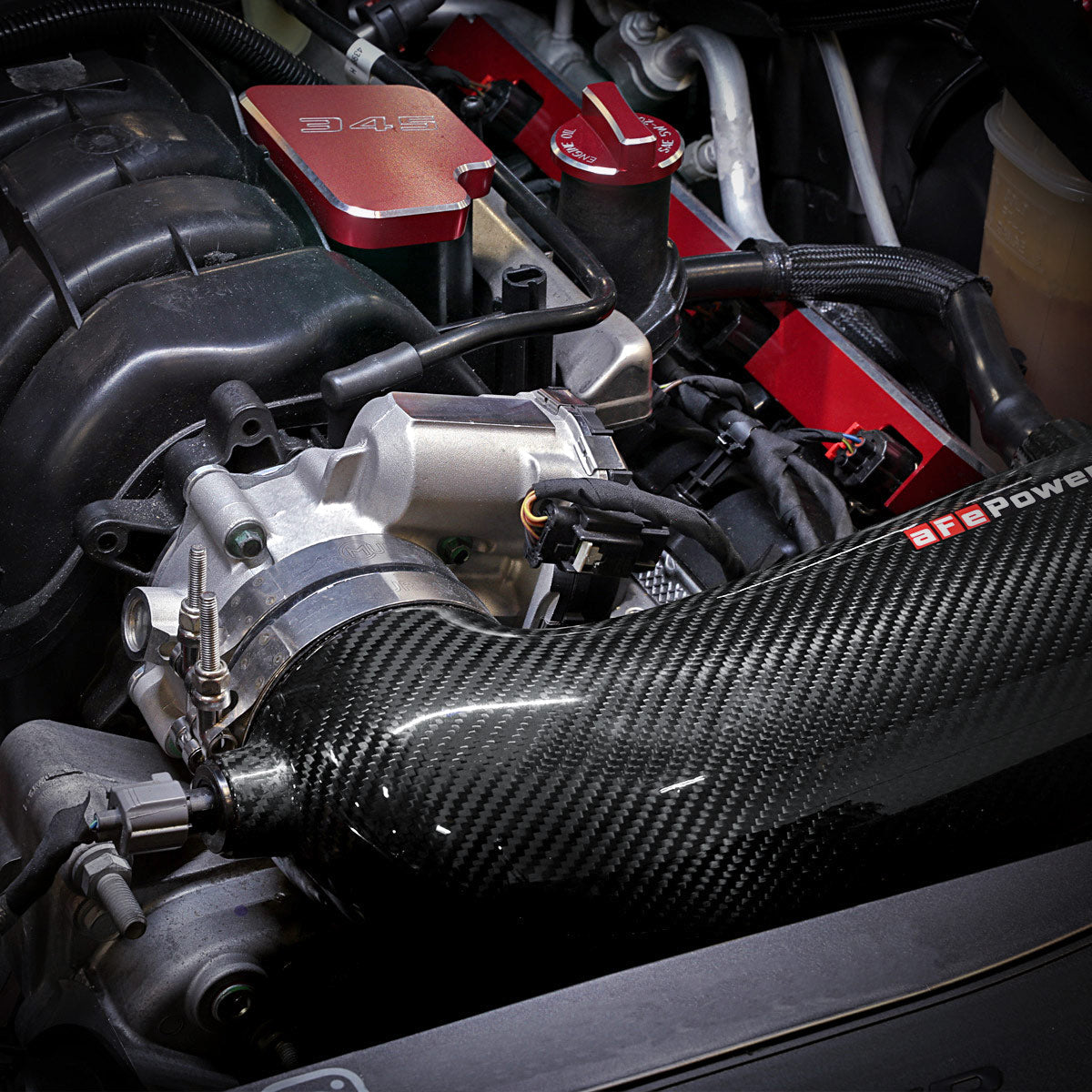

Intake installed on Jeep Grand Cherokee
aFe 13-23 Dodge Challenger / 13-23 Chrysler 300 V8 5.7L/6.4L 90mm Throttle Body aFe AFE46-39107
aFe 13-23 Dodge Challenger / 13-23 Chrysler 300 V8 5.7L/6.4L 90mm Throttle Body aFe AFE46-39107
aFe 13-23 Dodge Challenger / 13-23 Chrysler 300 V8 5.7L/6.4L 90mm Throttle Body aFe AFE46-39107
aFe 13-23 Dodge Challenger / 13-23 Chrysler 300 V8 5.7L/6.4L 90mm Throttle Body aFe AFE46-39107
aFe 13-23 Dodge Challenger / 13-23 Chrysler 300 V8 5.7L/6.4L 90mm Throttle Body aFe AFE46-39107
Click to zoom in

aFe 13-23 Dodge Challenger / 13-23 Chrysler 300 V8 5.7L/6.4L 90mm Throttle Body

aFe
AFE46-39107
802959410561
Throttle Bodies
20+ Units In Stock - Ships Next Business Day
$ 522.00
$ 522.00

More Air, Better Throttle Response for the 2013-2016 Ram 2500

The aFe Silver Bullet high-flow throttle body 46-39107 bored to 90mm for maximum unrestricted airflow into the intake manifold, eliminating the factory throttle bore as a bottleneck for the 2013-2016 Ram 2500. This throttle body is precision-machined from aluminum to direct-replacement specifications and connects to the factory throttle position sensor and IAC with no wiring modification. The 46-39107 works synergistically with a cold air intake or exhaust upgrade for maximum return.

Key Features

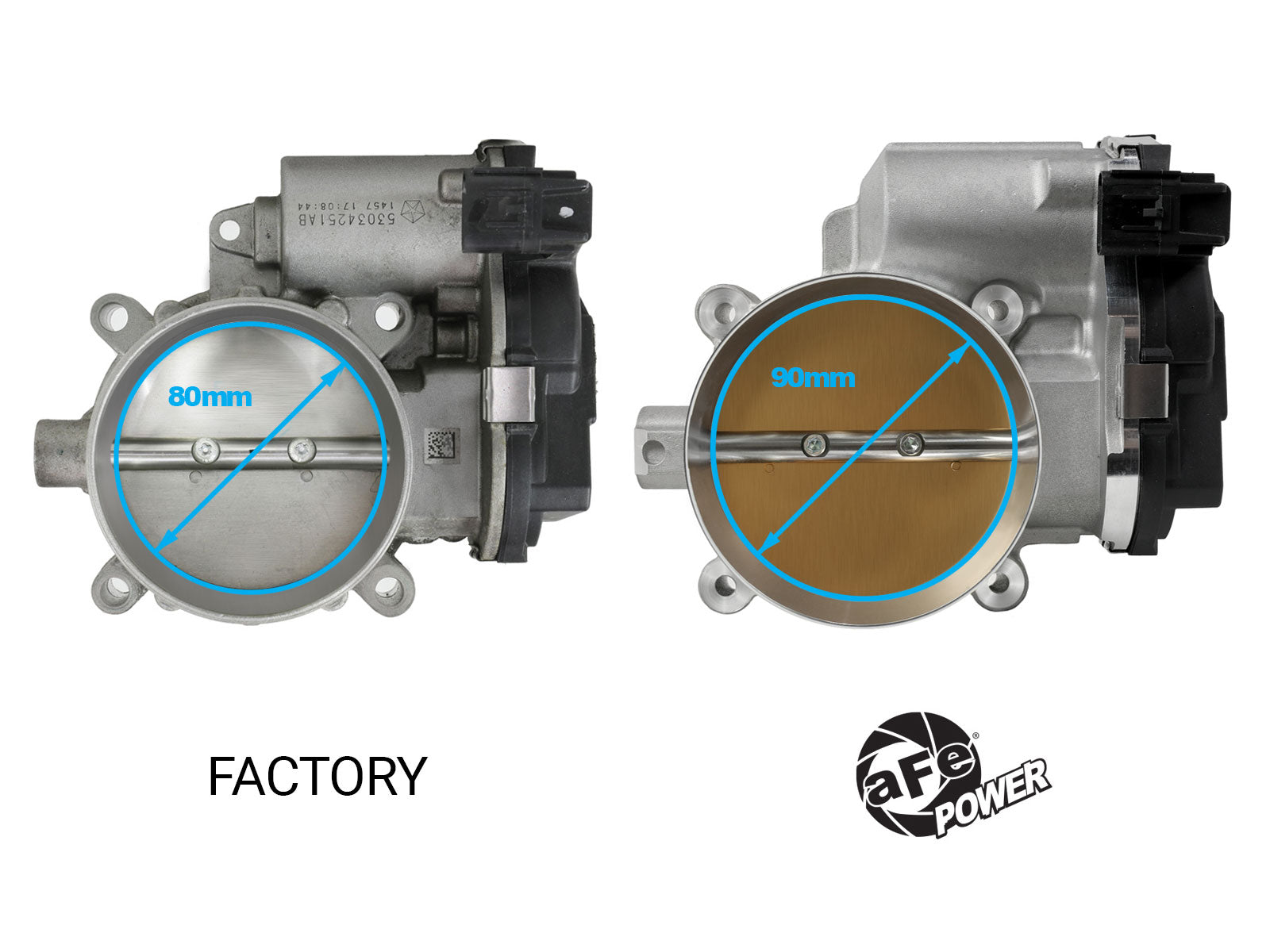

  • Bore size: 90mm for unrestricted flow
  • Precision-machined aluminum construction
  • Direct bolt-on installation using factory hardware
  • Factory TPS sensor and idle air controller compatible
  • Compatible with cold air intake and exhaust upgrades for compounding gains
  • Backed by aFe Power limited manufacturer warranty

Fitment

Year Range Make Model Trim
2013 Chrysler 300 SRT8 Core
2013 Dodge Charger SE
2013 Ram 1500 R/T
2013 Ram 2500 ST
2013 Ram 3500 ST
2013-2014 Chrysler 300 C Luxury
2013-2014 Chrysler 300 SRT8
2013-2014 Dodge Challenger SRT8
2013-2014 Dodge Charger SRT8
2013-2015 Ram 2500 Lone Star
2013-2015 Ram 3500 Lone Star
2013-2016 Ram 1500 Outdoorsman
2013-2016 Ram 2500 Outdoorsman
2013-2018 Ram 1500 Express
2013-2018 Ram 1500 SLT
2013-2018 Ram 1500 Sport
2013-2018 Ram 2500 SLT
2013-2020 Chrysler 300 C
2013-2020 Ram 3500 Laramie Longhorn
2013-2021 Ram 1500 Laramie Longhorn
2013-2021 Ram 2500 Laramie Longhorn
2013-2023 Chrysler 300 S
2013-2023 Dodge Challenger R/T
2013-2023 Dodge Charger Pursuit
2013-2023 Dodge Charger R/T
2013-2024 Ram 1500 Big Horn
2013-2024 Ram 1500 Laramie
2013-2024 Ram 1500 Tradesman
2013-2024 Ram 2500 Big Horn
2013-2024 Ram 2500 Laramie
2013-2024 Ram 2500 Power Wagon
2013-2024 Ram 2500 Tradesman
2013-2024 Ram 3500 Big Horn
2013-2024 Ram 3500 Laramie
2013-2024 Ram 3500 SLT
2013-2024 Ram 3500 Tradesman
2014 Ram 1500 HFE
2014-2015 Dodge Durango Limited
2014-2015 Ram 1500 Laramie Limited
2014-2015 Ram 2500 Laramie Limited
2014-2015 Ram 3500 Laramie Limited
2014-2018 Ram 1500 Special Service
2014-2021 Jeep Grand Cherokee Limited
2014-2021 Jeep Grand Cherokee SRT
2014-2024 Dodge Durango Citadel
2014-2024 Dodge Durango R/T
2014-2024 Dodge Durango Special Service
2014-2024 Jeep Grand Cherokee Overland
2014-2024 Jeep Grand Cherokee Summit
2014-2024 Ram 1500 Lone Star
2015 Dodge Challenger Scat Pack
2015-2016 Dodge Challenger R/T Plus
2015-2016 Dodge Charger R/T Road & Track
2015-2017 Chrysler 300 C Platinum
2015-2018 Dodge Challenger SRT 392
2015-2018 Dodge Charger R/T Scat Pack
2015-2018 Dodge Charger SRT 392
2015-2024 Ram 1500 Limited
2015-2024 Ram 1500 Rebel
2016 Dodge Challenger 392 Hemi Scat Pack Shaker
2016 Dodge Challenger R/T Plus Shaker
2016 Dodge Challenger R/T Shaker
2016-2023 Dodge Challenger R/T Scat Pack
2016-2024 Ram 2500 Limited
2016-2024 Ram 3500 Limited
2017 Ram 3500 Lone Star
2017-2018 Dodge Challenger T/A
2017-2018 Dodge Challenger T/A 392
2017-2018 Dodge Charger Daytona
2017-2018 Dodge Charger Daytona 392
2017-2018 Dodge Charger R/T 392
2017-2019 Dodge Challenger R/T 392
2017-2024 Jeep Grand Cherokee Trailhawk
2018 Dodge Durango GT
2018 Dodge Durango SXT
2018-2020 Jeep Grand Cherokee High Altitude
2018-2021 Dodge Durango SRT
2018-2024 Dodge Durango Pursuit
2019 Ram 1500 Classic Big Horn
2019 Ram 1500 Classic Lone Star
2019-2021 Jeep Grand Cherokee Limited X
2019-2022 Ram 1500 Classic Express
2019-2022 Ram 1500 Classic SLT
2019-2022 Ram 1500 Classic Special Service
2019-2022 Ram 1500 Classic Tradesman
2019-2022 Ram 1500 Classic Warlock
2019-2022 Ram 3500 Lone Star
2019-2023 Dodge Challenger R/T Scat Pack Widebody
2019-2023 Dodge Charger Scat Pack
2019-2024 Ram 2500 Lone Star
2020 Dodge Charger Scat Pack 392 Widebody
2021 Dodge Challenger R/T Scat Pack Shaker Widebody
2021 Dodge Challenger T/A 392 Widebody
2021 Ram 1500 Longhorn
2021-2022 Jeep Wrangler Unlimited Rubicon 392
2021-2024 Jeep Grand Cherokee L Overland
2021-2024 Jeep Grand Cherokee L Summit
2021-2024 Jeep Grand Cherokee L Summit Reserve
2021-2024 Ram 1500 Limited Longhorn
2021-2024 Ram 2500 Limited Longhorn
2021-2024 Ram 3500 Limited Longhorn
2022 Jeep Grand Wagoneer Series I
2022 Jeep Wagoneer Series I
2022 Jeep Wagoneer Series I Carbide
2022 Jeep Wagoneer Series II
2022 Jeep Wagoneer Series II Carbide
2022 Jeep Wagoneer Series III
2022 Jeep Wagoneer Series III Carbide
2022-2023 Dodge Charger Scat Pack Widebody
2022-2023 Dodge Durango R/T Hemi Orange
2022-2024 Dodge Durango R/T Plus
2022-2024 Dodge Durango SRT 392
2022-2024 Jeep Grand Cherokee Summit Reserve
2022-2024 Jeep Grand Wagoneer Obsidian
2022-2024 Jeep Grand Wagoneer Series II
2022-2024 Jeep Grand Wagoneer Series III
2023 Chrysler 300 C
2023 Jeep Grand Wagoneer Series III Obsidian
2023 Jeep Wagoneer
2023-2024 Dodge Durango R/T Premium
2023-2024 Dodge Durango SRT 392 Plus
2023-2024 Dodge Durango SRT 392 Premium
2023-2024 Jeep Grand Wagoneer
2023-2024 Ram 2500 Rebel
2024 Ram 2500 Special Service
2024 Ram 3500 Special Service

Specifications

Detail Value
Part Number 46-39107
Brand aFe Power
Product Type High-Flow Throttle Body
Bore Size 90mm
Material Aluminum
Mounting Direct bolt-on, factory hardware
UPC 802959410561

What's Included

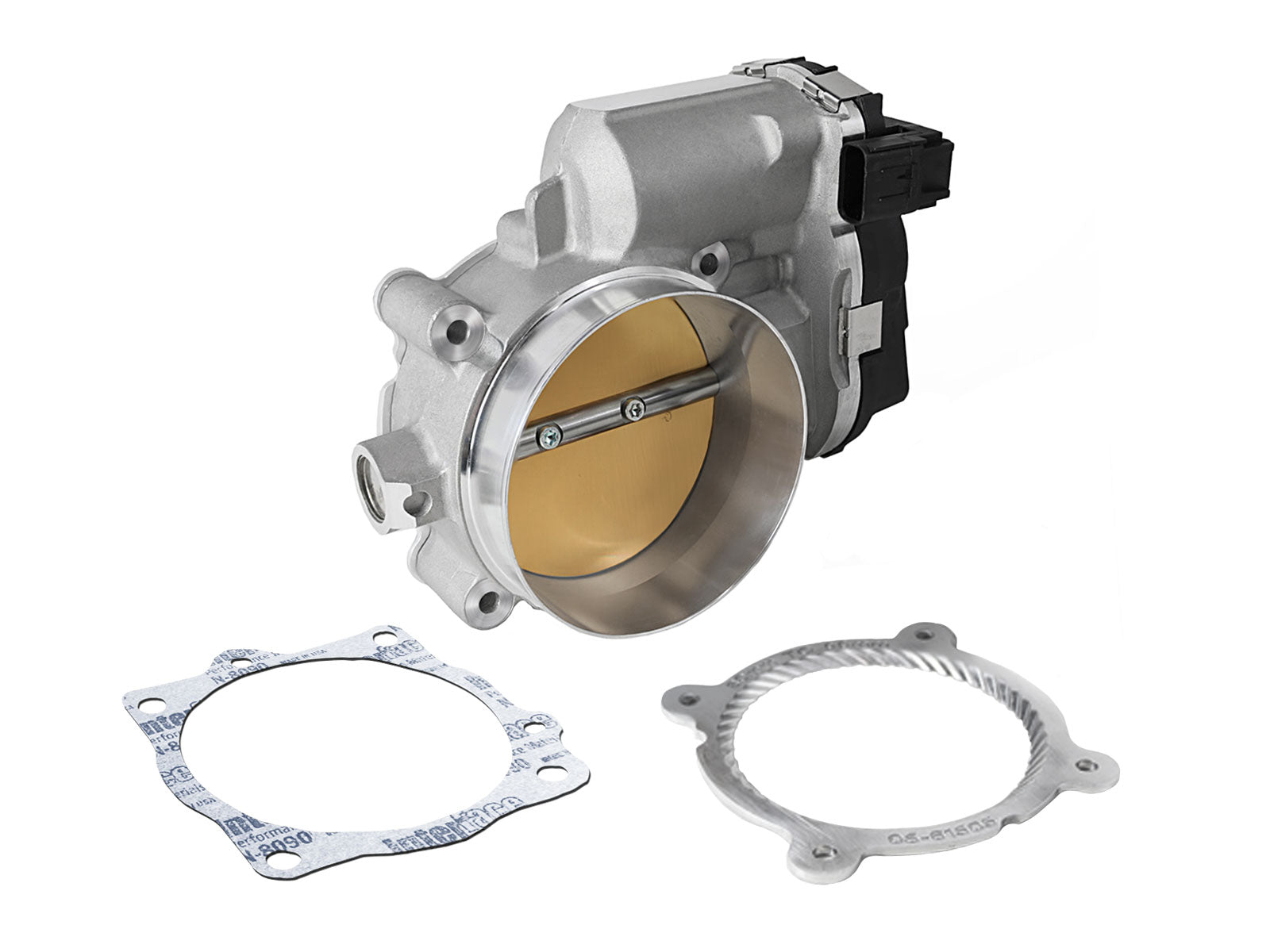

  • aFe Silver Bullet high-flow throttle body (46-39107)
  • Factory-compatible harness connectors and gasket

Frequently Asked Questions

Will this require a tune after installation?

A larger throttle body alone typically does not require a tune on naturally aspirated engines. On forced induction or highly modified engines, updating the throttle body airflow calibration with a tune will maximize gains.

How much power gain can I expect?

A larger bore throttle body removes a flow restriction that matters most at high RPM and under boost. Gains compounded with an intake and exhaust are more significant than any single component alone.

Does this affect idle quality?

In most cases, no. A direct-fit high-flow throttle body maintains the factory idle air control system. Allow the ECU time to relearn idle parameters after installation. If idle quality issues arise, check for vacuum leaks at all manifold and spacer joints before drawing other conclusions.

Is this reversible?

Yes. This throttle body reinstalls using the same mounting hardware as the factory unit. The original can be stored and reinstalled at any time.

Does this work with my cold air intake?

Yes. The 46-39107 is fully compatible with aftermarket cold air intakes and other intake system modifications. Running a complete intake system with this high-flow throttle body delivers compounding airflow improvements.

Will this void my factory warranty?

Under the Magnuson-Moss Warranty Act, a dealer cannot void your factory warranty solely because you installed an aftermarket high-flow throttle body. They must demonstrate a direct causal link to any specific failure. Remove the 46-39107 before any dealer service visit if you prefer not to discuss it.

What is the warranty on this product?

aFe Power provides a limited manufacturer warranty covering defects in materials and workmanship. Contact aFe Power or us for current warranty terms and coverage specifics.

Are any gaskets included?

A factory-compatible intake gasket is included with the throttle body. Always use a fresh gasket at installation to ensure a leak-free seal.

Installation Overview

  1. Disconnect the negative battery terminal and allow the engine to cool
  2. Remove the intake tube connected to the throttle body inlet
  3. Disconnect the TPS sensor connector and IAC connections from the factory throttle body
  4. Remove the four throttle body mounting bolts and set the factory unit aside
  5. Install the new throttle body with a fresh gasket and torque all bolts to factory specification
  6. Transfer the TPS sensor and IAC connectors to the new unit
  7. Reconnect all intake plumbing and vacuum lines
  8. Reconnect the battery and start the engine to confirm normal idle
  9. Allow the ECU to complete an idle relearn cycle before performing a WOT test

WARNING: This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
