The aFe 46-20417-R is the red-anodized billet turbo muffler delete for the separately required aFe charge-pipe kit, replacing the muffler at the turbo compressor outlet. It is not a turbocharger inlet pipe, a complete charge-pipe kit or a part for OE charge pipes.
| Years | Model | Exact engine / requirements |
|---|---|---|
| 2015–2021 | Volkswagen GTI MkVII | 2.0L turbo; exact original connections required; requires aFe charge-pipe kit 46-20414-B, not OE charge pipes. |
| 2015–2019 | Volkswagen Golf R | 2.0L turbo; requires aFe charge-pipe kit 46-20414-B, not OE charge pipes. |
| 2019–2020 | Volkswagen Jetta GLI | 2.0L turbo; requires aFe charge-pipe kit 46-20414-B, not OE charge pipes. |
| 2015–2020 | Audi A3 / S3 | 2.0L turbo; actual engine, turbo outlet and mounting layout must match; requires aFe charge-pipe kit 46-20414-B, not OE charge pipes. |
46-20417-R: The exact red page requires the aFe charge-pipe kit and excludes OE pipes. Its linked R-named PDF prints a B-suffix instruction cover, although it describes the same aFe-tube adapter/flange family. Confirm the actual red kit revision and hardware before installation; the boxed revision has not been inspected. That linked manual lists a 2.50-inch adapter-side clamp while the complete bundled kit manual lists 2.38 inches; do not assume the clamps interchange. Vehicle coverage remains conditional on the correct engine, turbo and already installed compatible charge pipes.
| Detail | Value |
|---|---|
| Manufacturer Part Number | 46-20417-R |

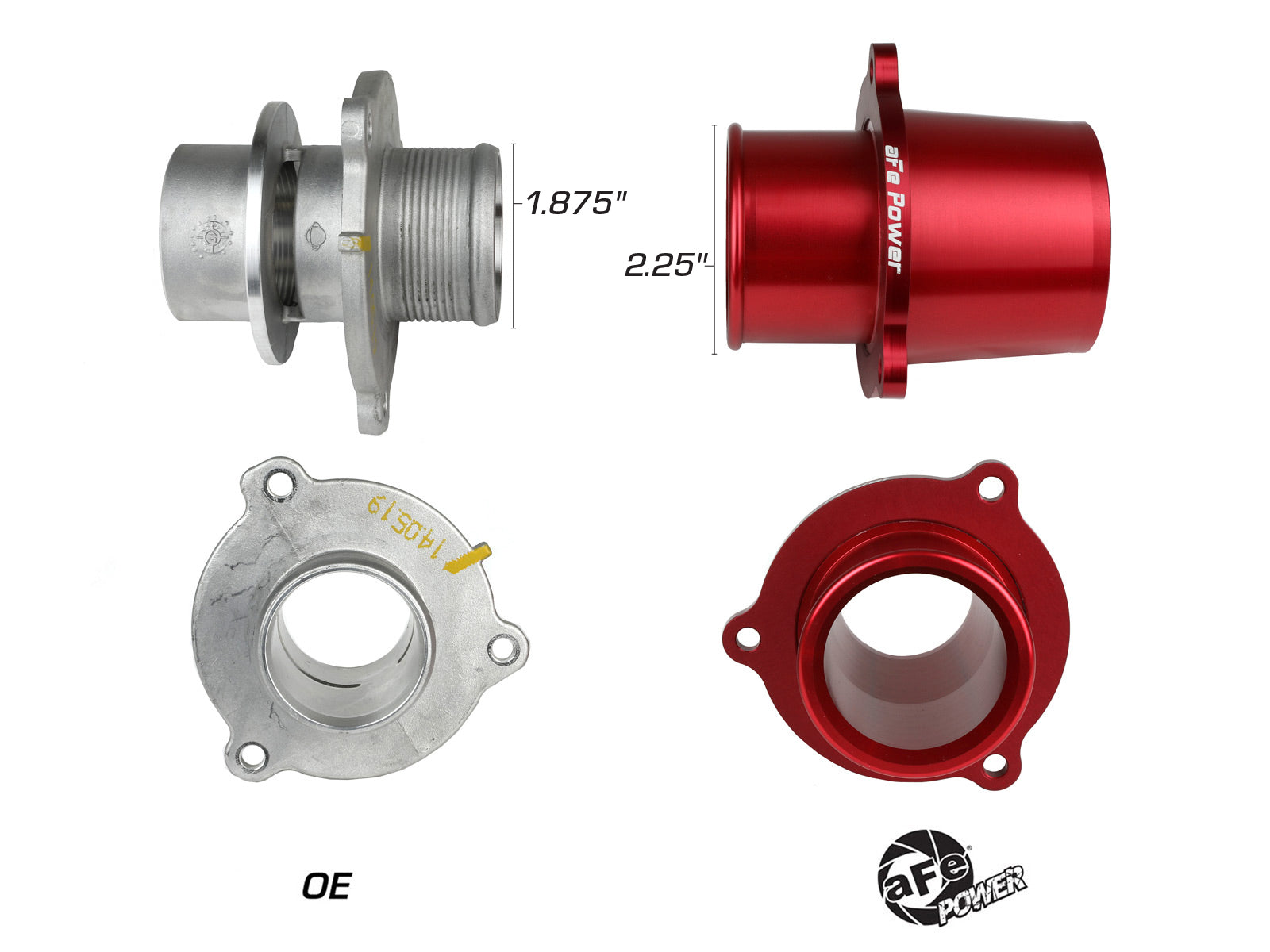

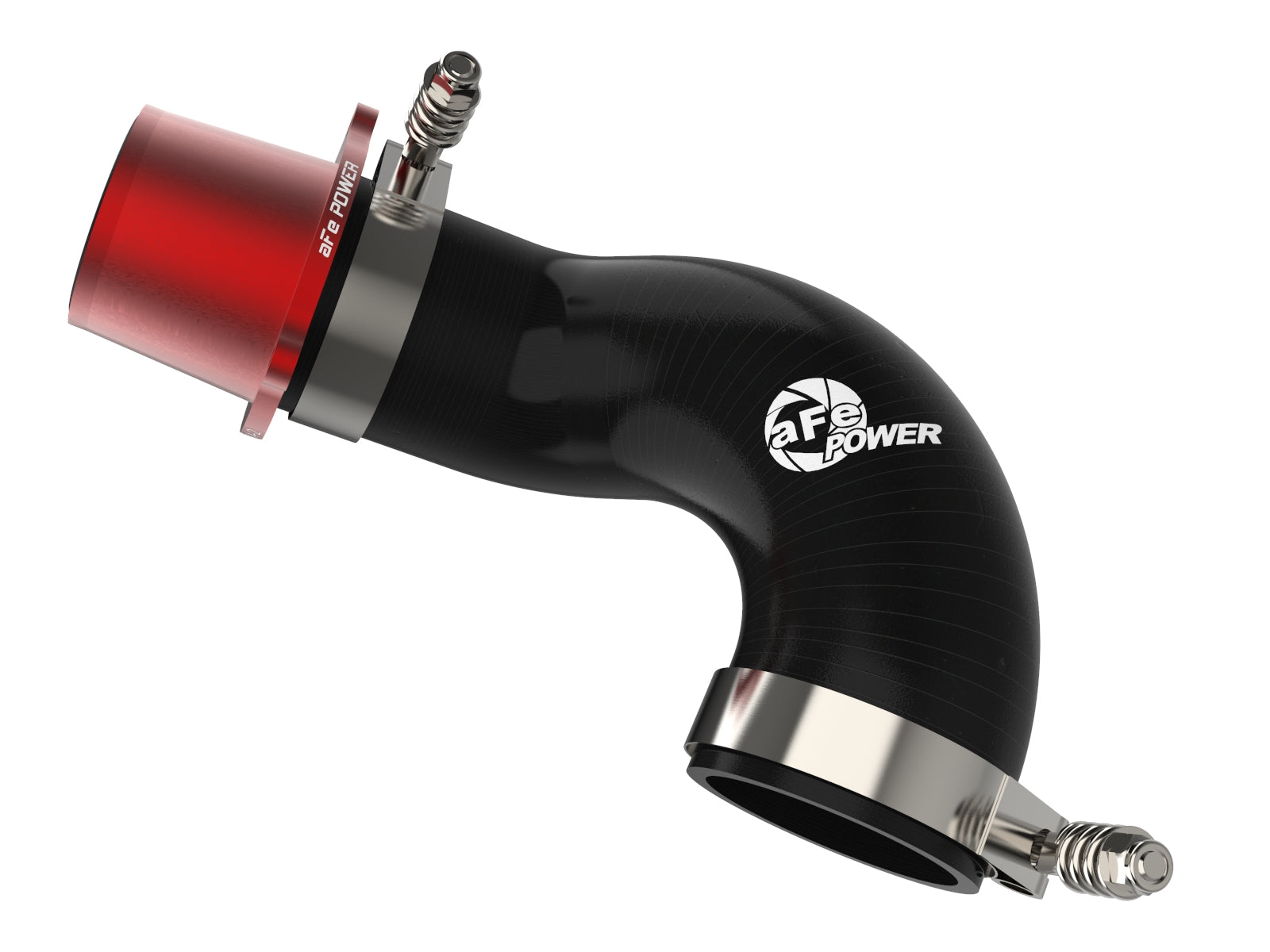

| Configuration | Two-piece 2.25-inch OD turbo-outlet muffler delete for the specified aFe hot-side charge pipe; no long hot/cold charge tubes or intercooler. |
| Tubing / flow path | Two-piece 2.25-inch OD turbo-outlet muffler delete for the specified aFe hot-side charge pipe; no long hot/cold charge tubes or intercooler. |

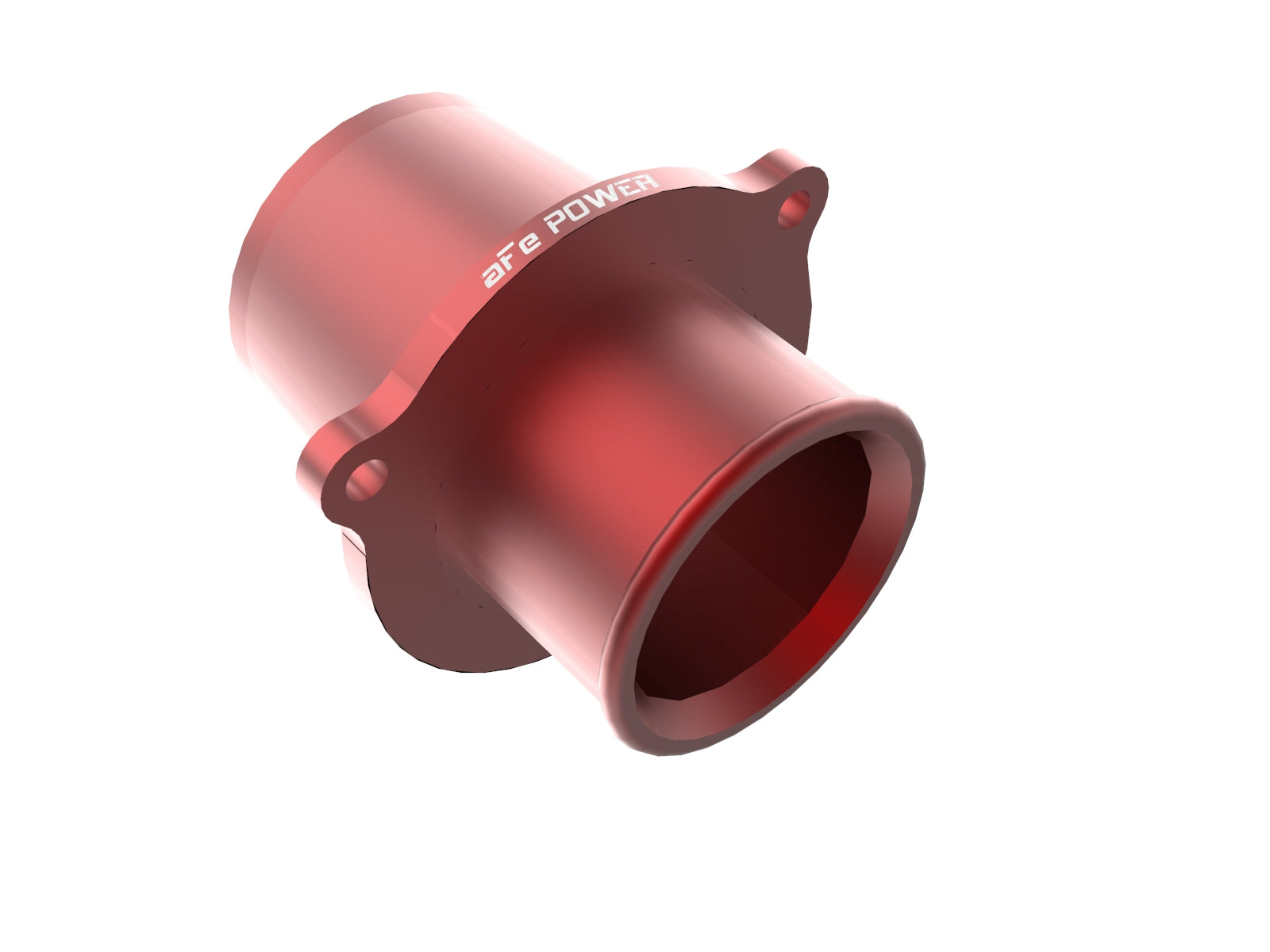

| Finish | Red-anodized 6061-T6 billet aluminum adapter/flange; silicone coupling and stainless spring-loaded clamps. |

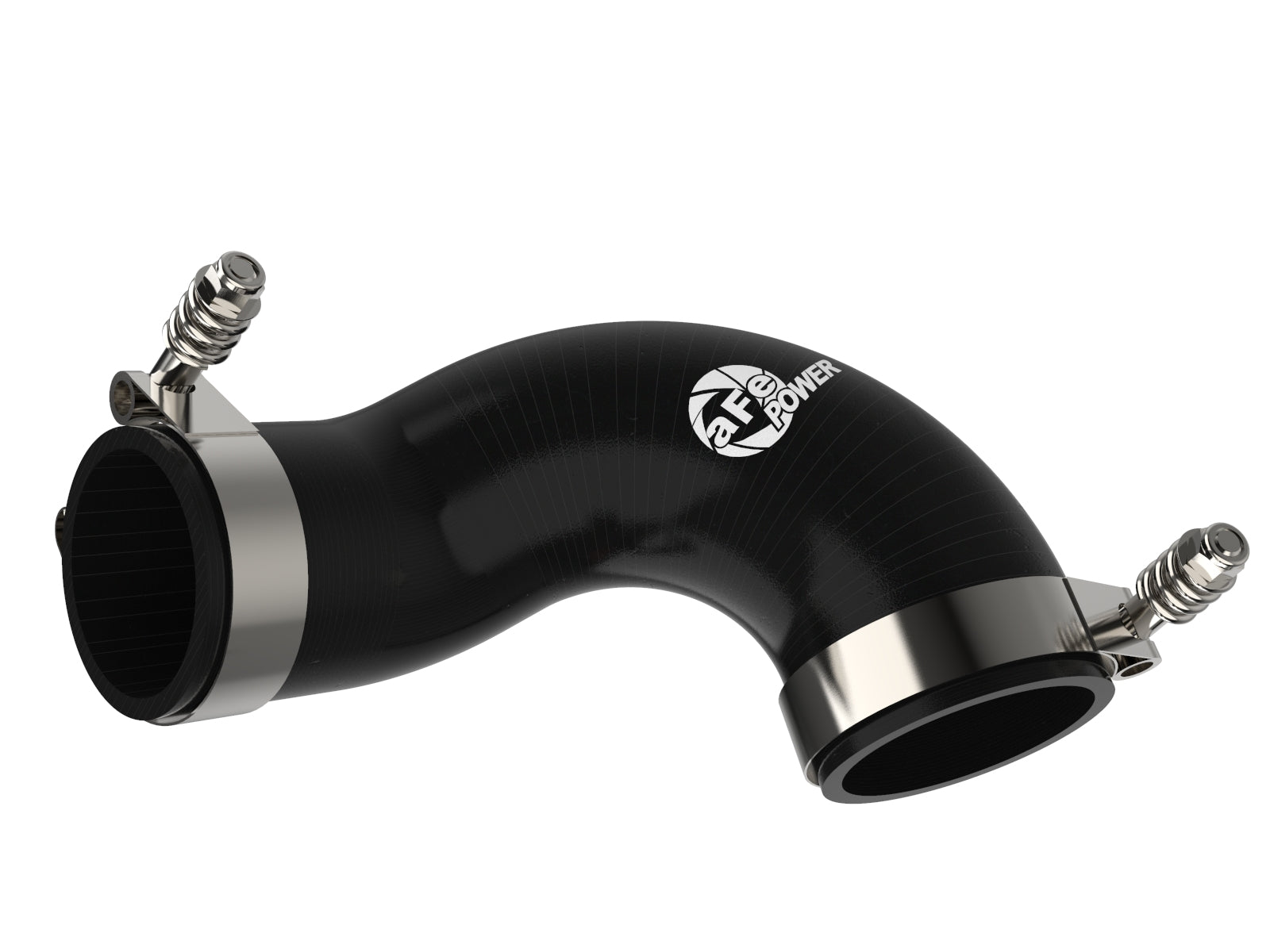

| Clamps / fastening | The linked aFe-tube instructions list two spring-loaded T-bolt clamps and no numerical torque. Recheck all connections after 50–100 miles; verify actual packaged clamp sizes. |

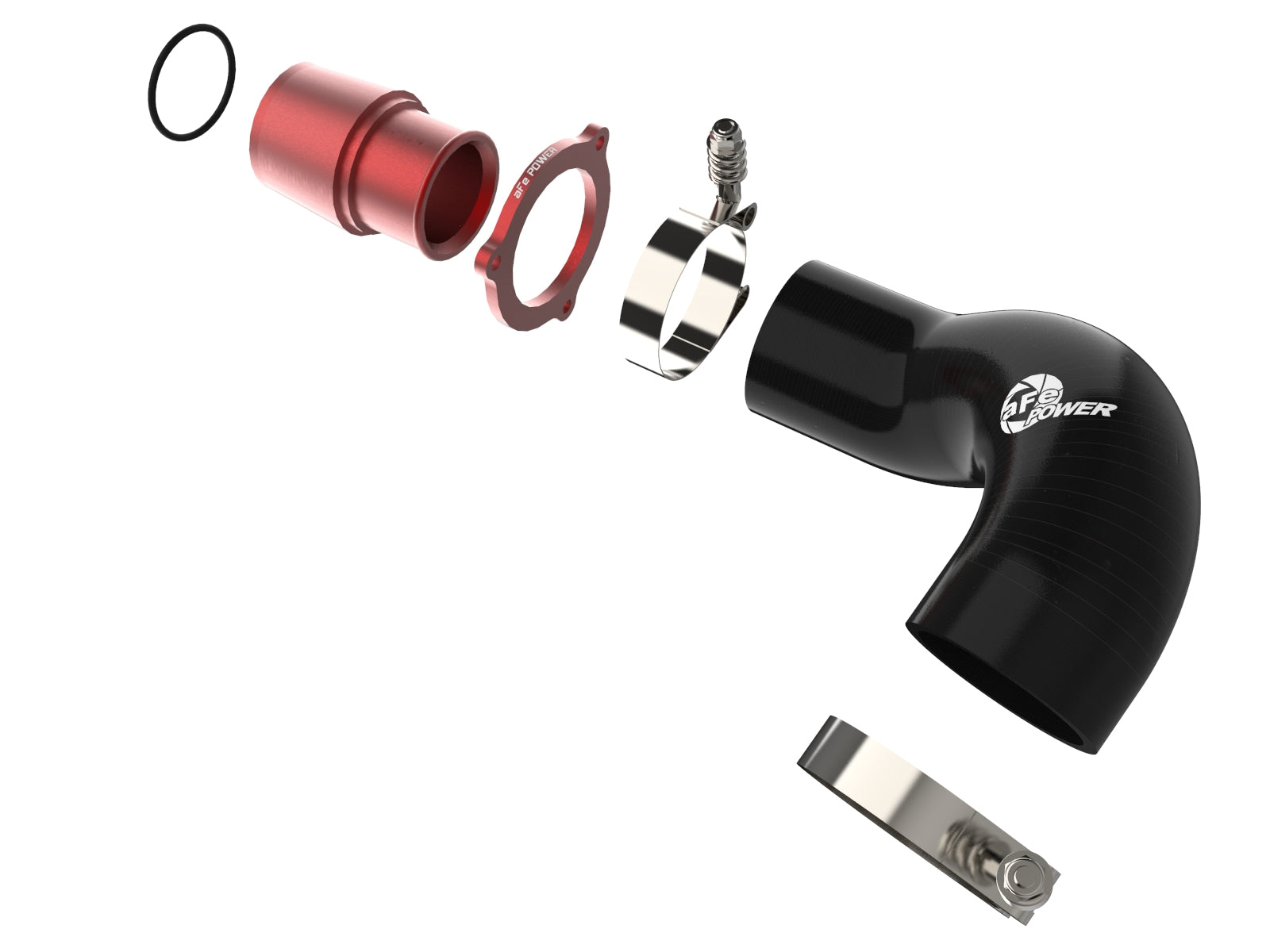

| Original sensors / seals | No new sensors or long charge pipes are supplied. Keep the original turbo-outlet O-ring correctly seated in addition to the supplied adapter seal; they have separate positions. |
| Emissions | The exact manufacturer pages and linked manuals state these products are not currently CARB exempt and are unavailable for purchase in California or use on vehicles registered with the California DMV. |
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
is the red-anodized billet turbo muffler delete for the separately required aFe charge-pipe kit, replacing the muffler at the turbo compressor outlet. It is not a turbocharger inlet pipe, a complete charge-pipe kit or a part for OE charge pipes.
What does this exact configuration replace?is the red-anodized billet turbo muffler delete for the separately required aFe charge-pipe kit, replacing the muffler at the turbo compressor outlet. It is not a turbocharger inlet pipe, a complete charge-pipe kit or a part for OE charge pipes.
Are the airflow claims guaranteed horsepower gains?No. The manufacturer reports side-specific flow comparisons; actual engine power, charge temperature and boost depend on the complete setup.
Are new sensors, seals or charge tubes included?No new sensors or long charge pipes are supplied. Keep the original turbo-outlet O-ring correctly seated in addition to the supplied adapter seal; they have separate positions.
What is the clamp torque?The linked aFe-tube instructions list two spring-loaded T-bolt clamps and no numerical torque. Recheck all connections after 50–100 miles; verify actual packaged clamp sizes.
Are all manual contents and installation steps consistent?The exact red page requires the aFe charge-pipe kit and excludes OE pipes. Its linked R-named PDF prints a B-suffix instruction cover, although it describes the same aFe-tube adapter/flange family. Confirm the actual red kit revision and hardware before installation; the boxed revision has not been inspected. That linked manual lists a 2.50-inch adapter-side clamp while the complete bundled kit manual lists 2.38 inches; do not assume the clamps interchange. Vehicle coverage remains conditional on the correct engine, turbo and already installed compatible charge pipes.
Does a threaded port include a water/methanol system?No. An accessory port does not include or universally approve a controller, nozzle, pump, sensor or injection system. Seal unused ports as instructed.
Is this kit CARB exempt?The exact manufacturer pages and linked manuals state these products are not currently CARB exempt and are unavailable for purchase in California or use on vehicles registered with the California DMV.
46-20417-R: inspect every connection and resolve the documented kit discrepancies before operation.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
