aFe BladeRunner Ford F-150 3.5L EcoBoost Hot Tube Kit 11–14

BladeRunner charge piping for the exact engine

The aFe 46-20128 is the three-tube hot-side kit for the 2011–2014 F-150 3.5L twin-turbo EcoBoost, not one complete hot/cold set. Its exact manual requires engine-cover trimming with the supplied template.

Key Features

• Designed for the exact 2011–2014 F-150 3.5L EcoBoost charge-air path.
• The primary page reports up to 18% increased flow and test gains of 9 hp / 11 lb-ft. These individual test figures are not additive or guaranteed engine, temperature or emissions results.
• Primary page lists compatibility with the original or appropriate aFe intercooler; this does not approve every aftermarket core or connection.
• No new air filter, intercooler core or sensor is listed. The factory engine cover must be trimmed to the supplied template.

Fitment

46-20128: The current page title calls the hot tube aluminum, while its detailed feature and overview call the tubing powder-coated stainless steel. This material conflict is unresolved; confirm actual supplied material with aFe before ordering and do not infer an alloy grade. The June 2014 manual requires engine-cover trimming despite the page calling this a bolt-on kit. Its three supplied couplings do not replace every hose: stock hump couplings and applicable hardware are reused.

Specifications

What's Included

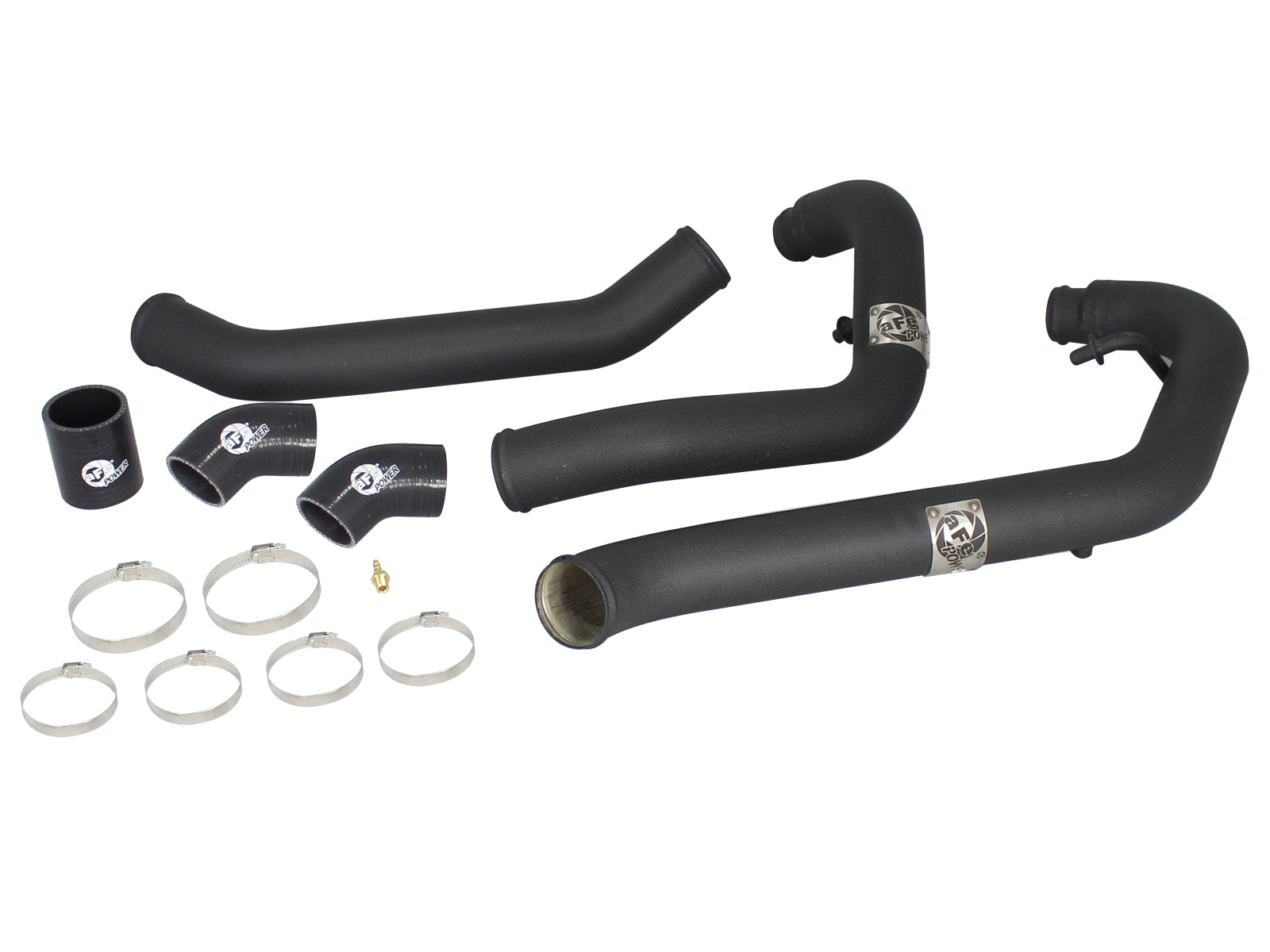

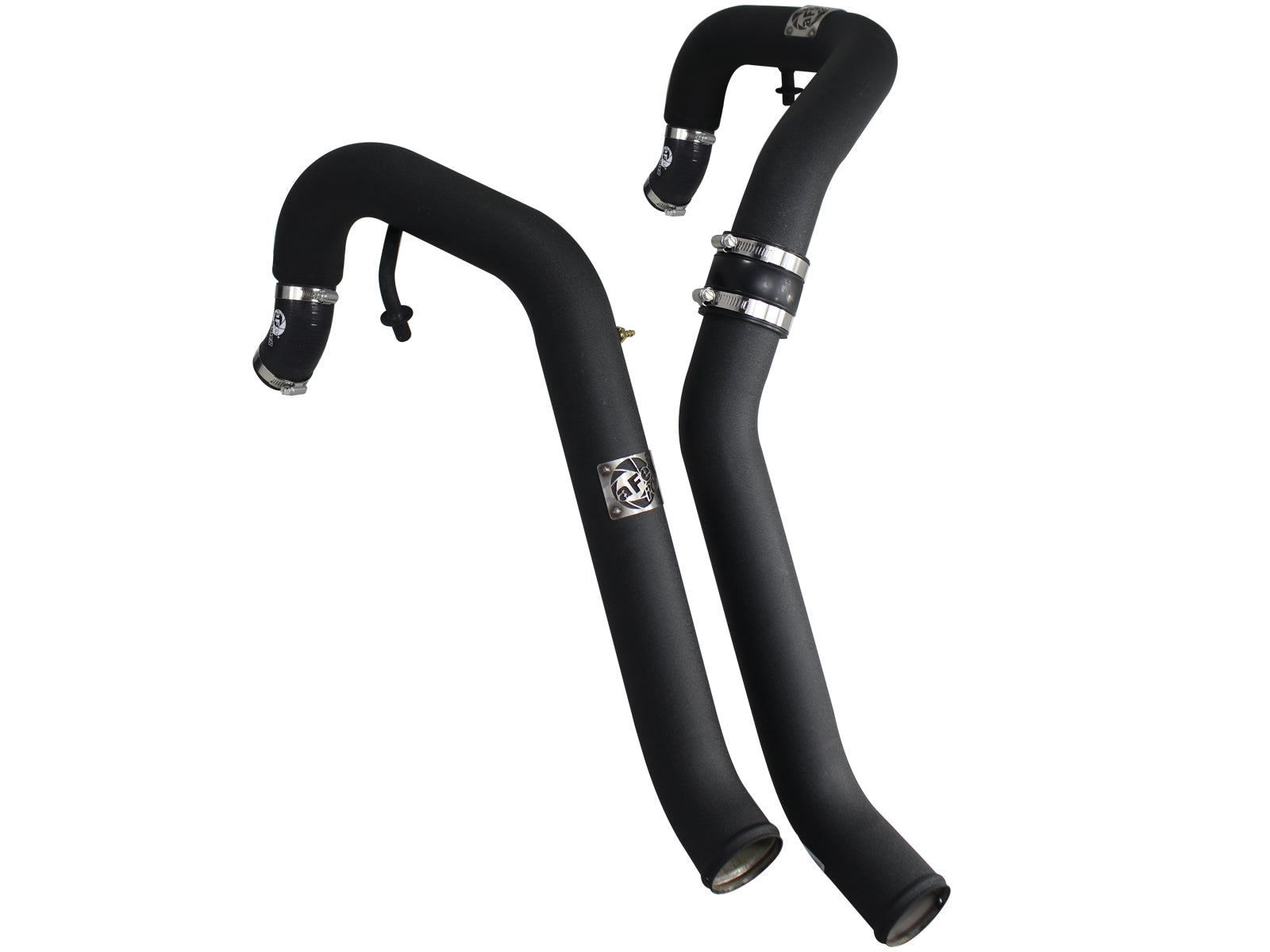

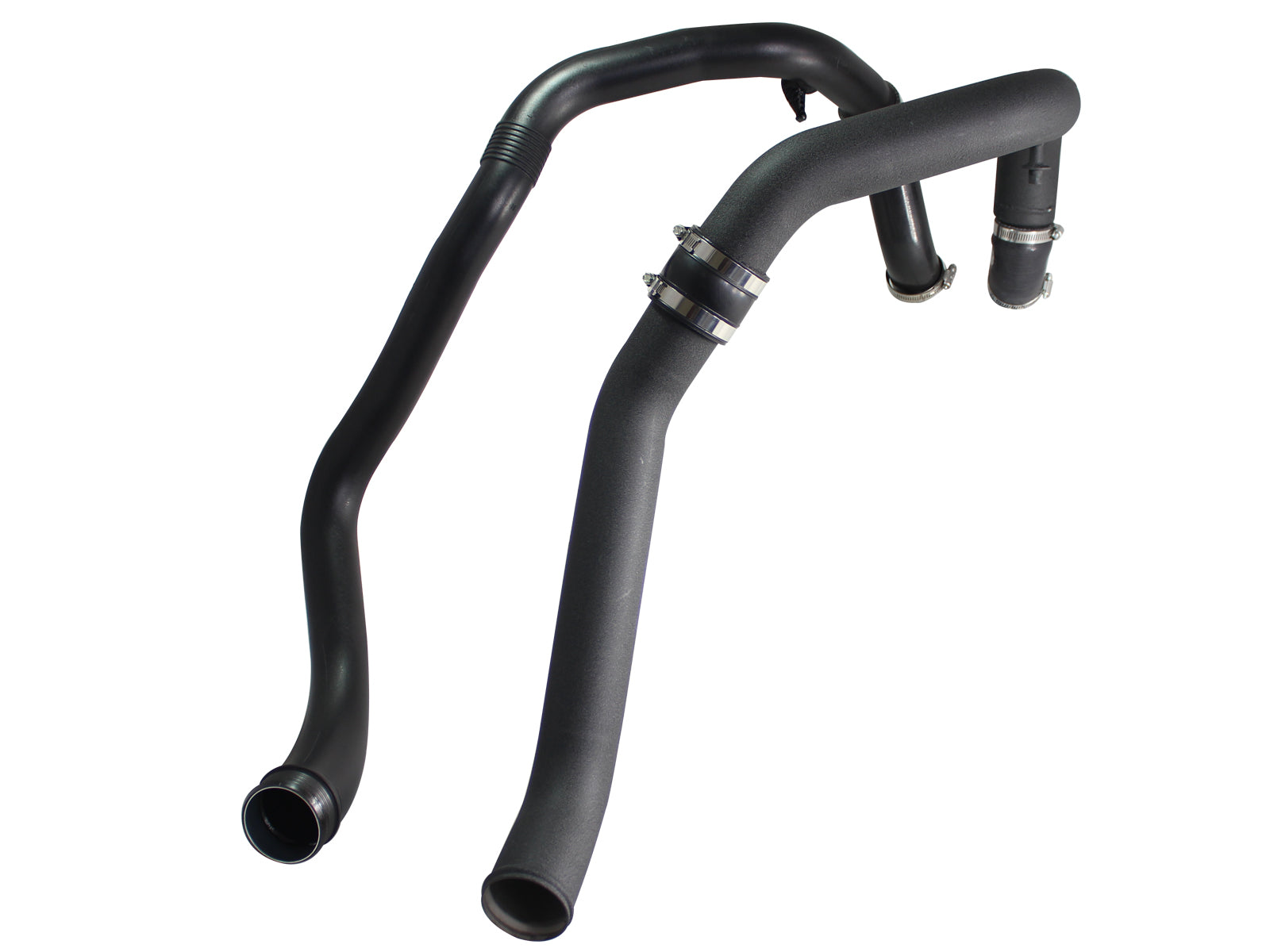

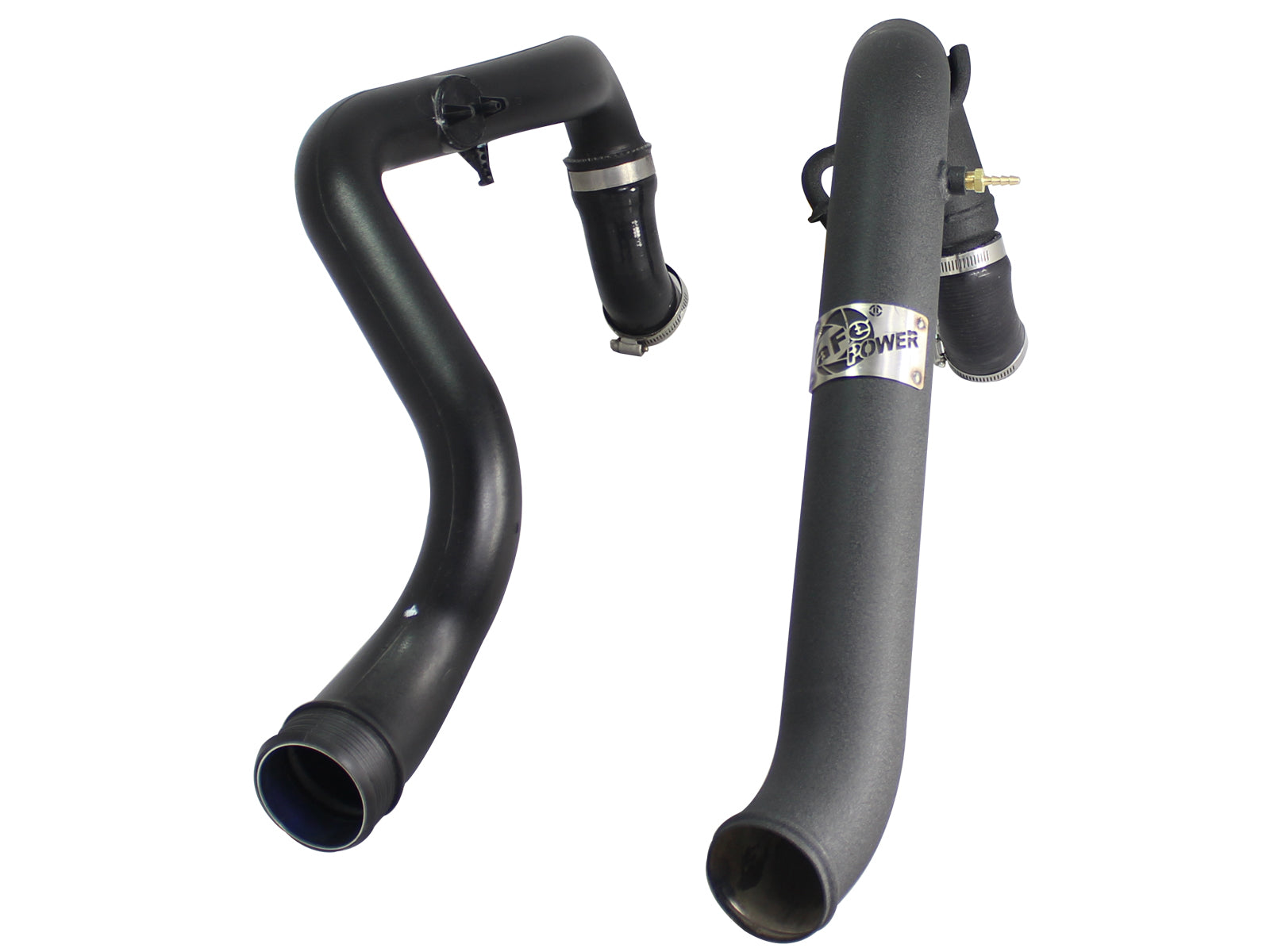

• Three hot-side intercooler tubes, per the exact parts list.

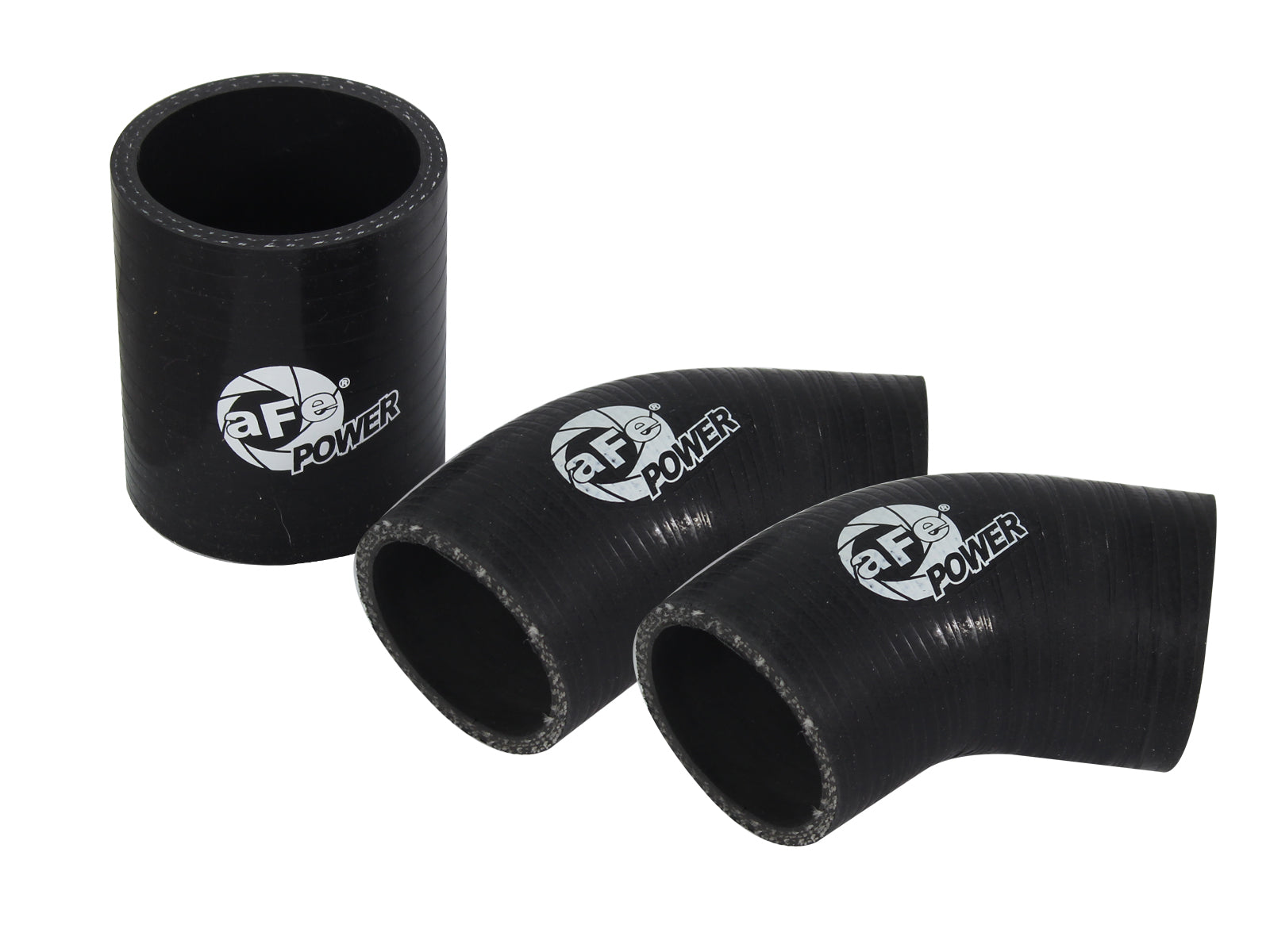

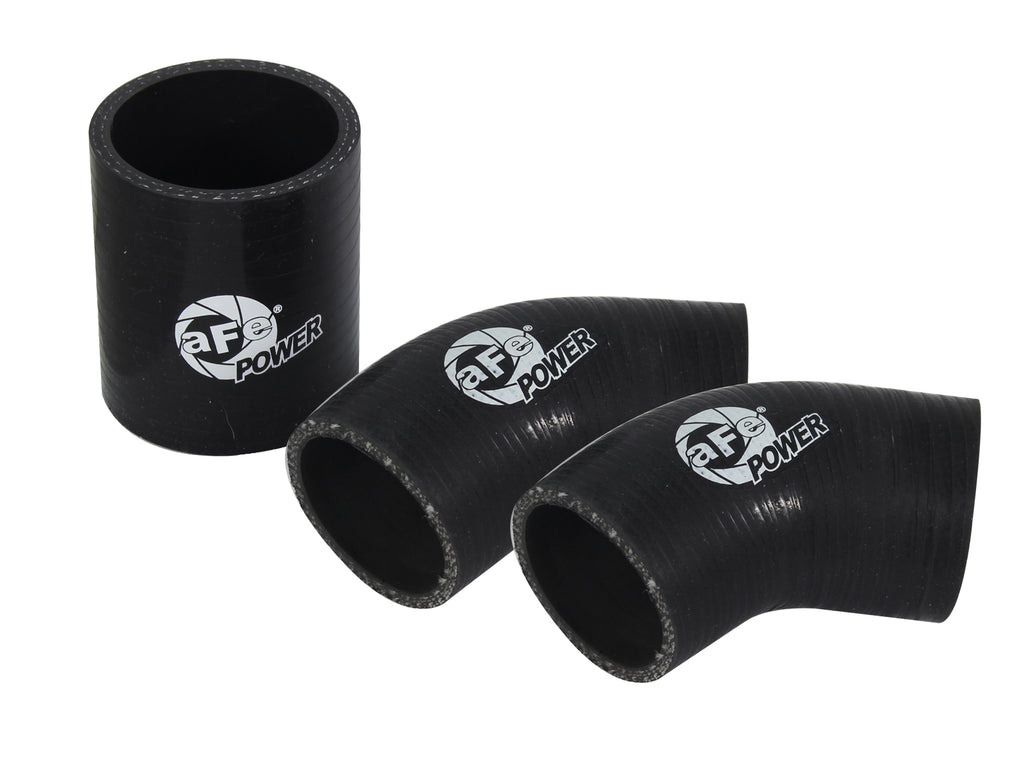

• Three supplied silicone couplings: one listed at 2.5 inches and two at 2 inches. The procedure identifies the two elbows and one straight coupling and also reuses the stock hump couplings.
• Four 032 clamps, two 044 clamps and one threaded hose nipple, per the manual. Original hump couplings and their applicable clamps are retained; no complete all-new coupling set is promised.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Matching cold-side pipe 46-20129-1, sold separately; confirm the same 2011–2014 3.5L EcoBoost engine and intercooler connections.
• Browse aFe Power by exact engine and charge-pipe configuration; the hot-only and hot/cold kits have different contents.
• Match actual inlet, turbo and intercooler connections. A shared engine size does not approve another model or year.

Frequently Asked Questions

An engine- and year-specific BladeRunner charge-pipe kit, not a complete intercooler, turbocharger or air intake.

is the three-tube hot-side kit for the 2011–2014 F-150 3.5L twin-turbo EcoBoost, not one complete hot/cold set. Its exact manual requires engine-cover trimming with the supplied template.

No. The manufacturer reports side-specific flow comparisons; actual engine power, charge temperature and boost depend on the complete setup.

Retain the stock hump couplings and applicable clamps, restore both disconnected vacuum lines and original intake Y-pipe, shields and engine cover after its required trimming. No new sensors or cold-side components are supplied.

No numerical clamp or fastener torque and no mileage-based recheck interval are given in this exact manual. Follow the applicable hardware instructions and inspect all connections after installation; do not borrow a later kit torque or mileage schedule.

The current page title calls the hot tube aluminum, while its detailed feature and overview call the tubing powder-coated stainless steel. This material conflict is unresolved; confirm actual supplied material with aFe before ordering and do not infer an alloy grade. The June 2014 manual requires engine-cover trimming despite the page calling this a bolt-on kit. Its three supplied couplings do not replace every hose: stock hump couplings and applicable hardware are reused.

No. An accessory port does not include or universally approve a controller, nozzle, pump, sensor or injection system. Seal unused ports as instructed.

The exact primary pages and manuals state these products are not currently CARB exempt and are unavailable for purchase in California or use on vehicles registered with the California DMV.

Installation Instructions

1. Read the exact manufacturer instructions for 46-20128, verify the actual engine, supplied parts and every unresolved source conflict before disassembly.
2. Park level, apply the parking brake, allow the engine to cool and read the complete exact instructions and engine-cover template. Retain all factory components the procedure reuses.
3. Remove the two nuts securing the lower plastic shield and the clips holding the rubber cover behind it. Loosen and remove the stock hump couplings connecting both hot-side tubes to the intercooler, retaining the couplings and applicable clamps for reuse.
4. Remove the engine cover and intake Y-pipe by releasing its three clamps and vacuum connection. Disconnect the passenger-side intercooler-tube vacuum line, release its turbo clamp through the passenger wheel-well access and remove that tube. Remove the driver-side tube mounting bolt, release its turbo clamp through the driver wheel-well access and remove that tube.
5. Seal the supplied hose-nipple threads with the instructed thread tape and install the nipple into the longer passenger-side tube. Fit its supplied elbow with the longer side on the tube, its retained stock hump coupling and applicable clamps, initially loose. Install the passenger tube; follow the manual grommet lubrication instruction.
6. Fit the supplied elbow with its longer side on the badged driver-side tube, then its straight coupling and applicable clamps. Install the driver tube and follow the same grommet lubrication instruction.
7. Fit the retained stock hump coupling and clamps to the more angled end of the third tube. Install that assembly between the intercooler and the straight coupling on the driver-side tube. Align every tube clear of surrounding metal before tightening clamps as directed.
8. Trim the engine cover using the manufacturer driver-side and passenger-side templates, with each side face up as shown. Verify the illustrated 11-inch template reference and correct placement before marking; remove only the indicated areas, without inventing a different universal cut size.
9. Reinstall the lower plastic shield, rubber cover, intake Y-pipe and trimmed engine cover. Restore both disconnected vacuum lines and inspect secure couplings, clearance and leaks. The exact instructions give no numerical torque or mileage recheck schedule.

46-20128: inspect every connection and resolve the documented kit discrepancies before operation.

California Proposition 65 Warning

California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
