aFe Corvette C5/C6 Control Arm Bushing Kit

aFe
AFE470-401001-B
802959000274
Suspension Arm Bushings
17 Units In Stock
$ 825.00 $ 660.00
$ 660.00

Frame-specific control-arm bushing and sleeve kit

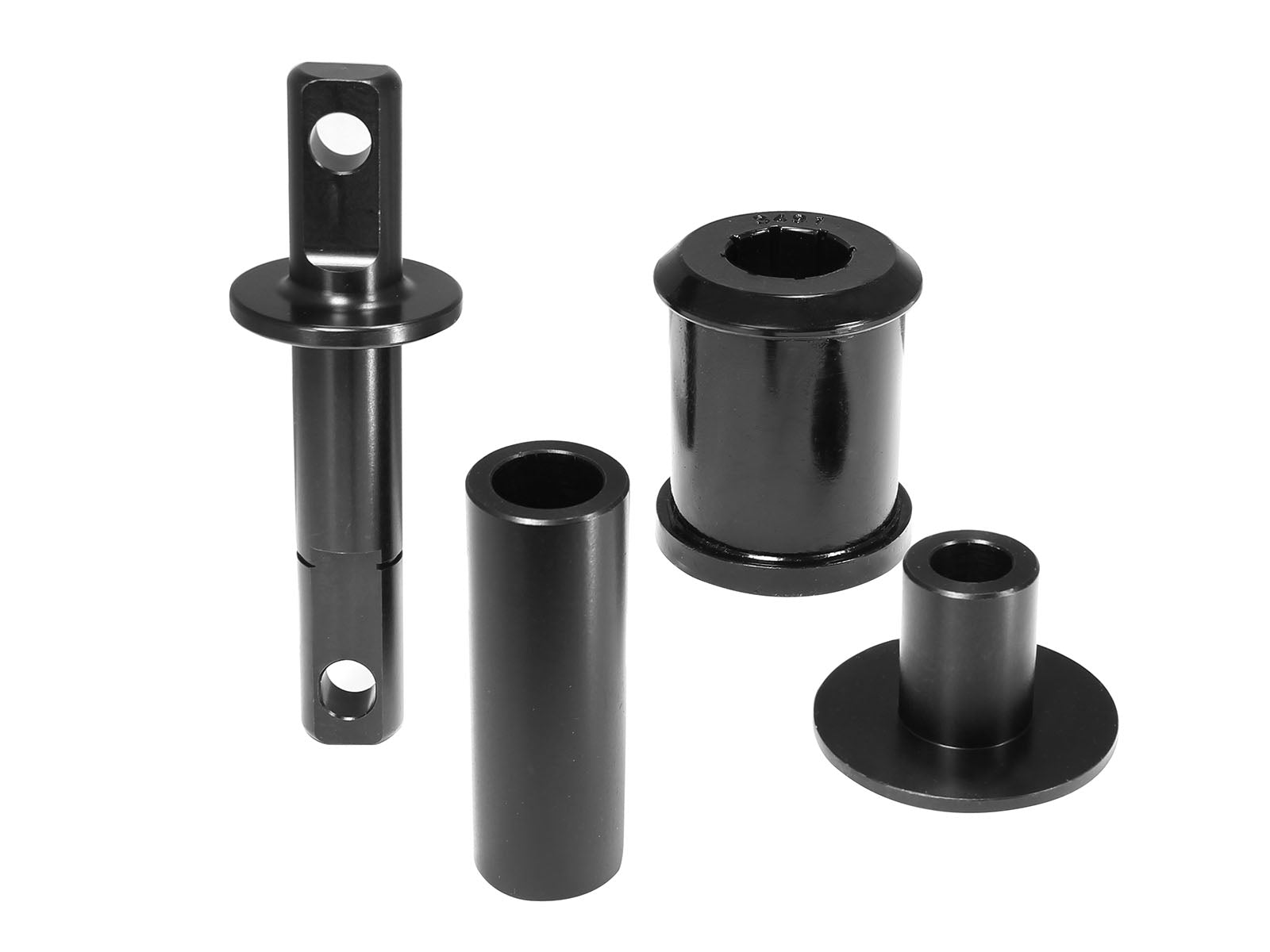

The aFe 470-401001-B PFADT control-arm bushing kit combines black, grooved graphite-impregnated polyurethane bushings with hard-anodized 6061-T6 aluminum sleeves and pins. It supplies the selected steel-frame chassis configuration, including rear lower shock-mount components and the front-upper washer/snap-ring retention system. This is a bushing/sleeve kit, not replacement control arms or a spherical-bearing package.

Key Features

  • Selected application-specific package: 470-401001-B.
  • Black graphite-impregnated polyurethane with grease-retention grooves.
  • Hard-anodized 6061-T6 aluminum sleeves/pins; manufacturer describes a microporous grease-retaining surface.
  • Front-upper washer and snap-ring retention; rear lower shock mounts included by the primary.
  • Two-piece bushing design; selected rear-upper parts differ by vehicle frame.
  • Manufacturer describes reduced deflection and quiet street/track use; this is not the race-only nylon pillow-mount product.

Fitment

The own selected manual explicitly covers 1997–2004 C5 and 2005–2013 C6 STEEL FRAME, EXCLUDING C6 Z06/ZR1. Its printed C6 end-year has a 20013 typo; the current exact primary specifies 1997–2013. C5 Z06 2001–2004 remains supported. The selected retailer table’s positive C6 Z06/ZR1 rows cannot override that explicit manufacturer exclusion: the legacy 2008 427 Limited Edition Z06 mapping is removed. The remaining original named scopes and independently positive Grand Sport 2010–2013 are shown below. Frame refers to the vehicle chassis, not a claim that the control arms or kit sleeves are steel.

Years Make Model Submodel
2013 Chevrolet Corvette 427
2003 Chevrolet Corvette 50th Anniversary Edition
2003 Chevrolet Corvette 50th Anniversary Edition Pace Car
1997-2013 Chevrolet Corvette Base
2010-2013 Chevrolet Corvette Grand Sport
1998 Chevrolet Corvette Indianapolis 500 Pace Car
2001-2004 Chevrolet Corvette Z06

Specifications

Detail Value
Manufacturer Part Number 470-401001-B
Product type Suspension Arm Bushings
Vehicle-frame application / source qualification The own selected manual explicitly covers 1997–2004 C5 and 2005–2013 C6 STEEL FRAME, EXCLUDING C6 Z06/ZR1. Its printed C6 end-year has a 20013 typo; the current exact primary specifies 1997–2013. C5 Z06 2001–2004 remains supported. The selected retailer table’s positive C6 Z06/ZR1 rows cannot override that explicit manufacturer exclusion: the legacy 2008 427 Limited Edition Z06 mapping is removed. The remaining original named scopes and independently positive Grand Sport 2010–2013 are shown below. Frame refers to the vehicle chassis, not a claim that the control arms or kit sleeves are steel.
Bushing material Graphite-impregnated polyurethane; black, grooved for grease retention
Sleeve / pin material Hard-anodized 6061-T6 aluminum; frame naming does not specify arm material
Frame-specific rear-upper bill Selected rear-upper sleeve bag 00P-0A1072-A: FOUR P1039 RU sleeves. Selected molded-part bag 00P-0A1024-A: P1030 / marking 2366 RU1, FOUR; P1031 / marking 2371 RU2, FOUR.
Common sleeve bill / repeated washer line Common sleeve bag 00P-0A1071-A lists P1038 RS TWO, P1036 RL2 TWO, P1034 FL1 FOUR, P1035 FL2/RL1 EIGHT, P1037 FU FOUR and P1041 FU washer FOUR. Both manuals also separately list FOUR 00P-0P1041-A FU washers, repeating the washer description/quantity; this is not treated as a verified extra set of four or a promise of eight washers. The selected native photo shows four washers.

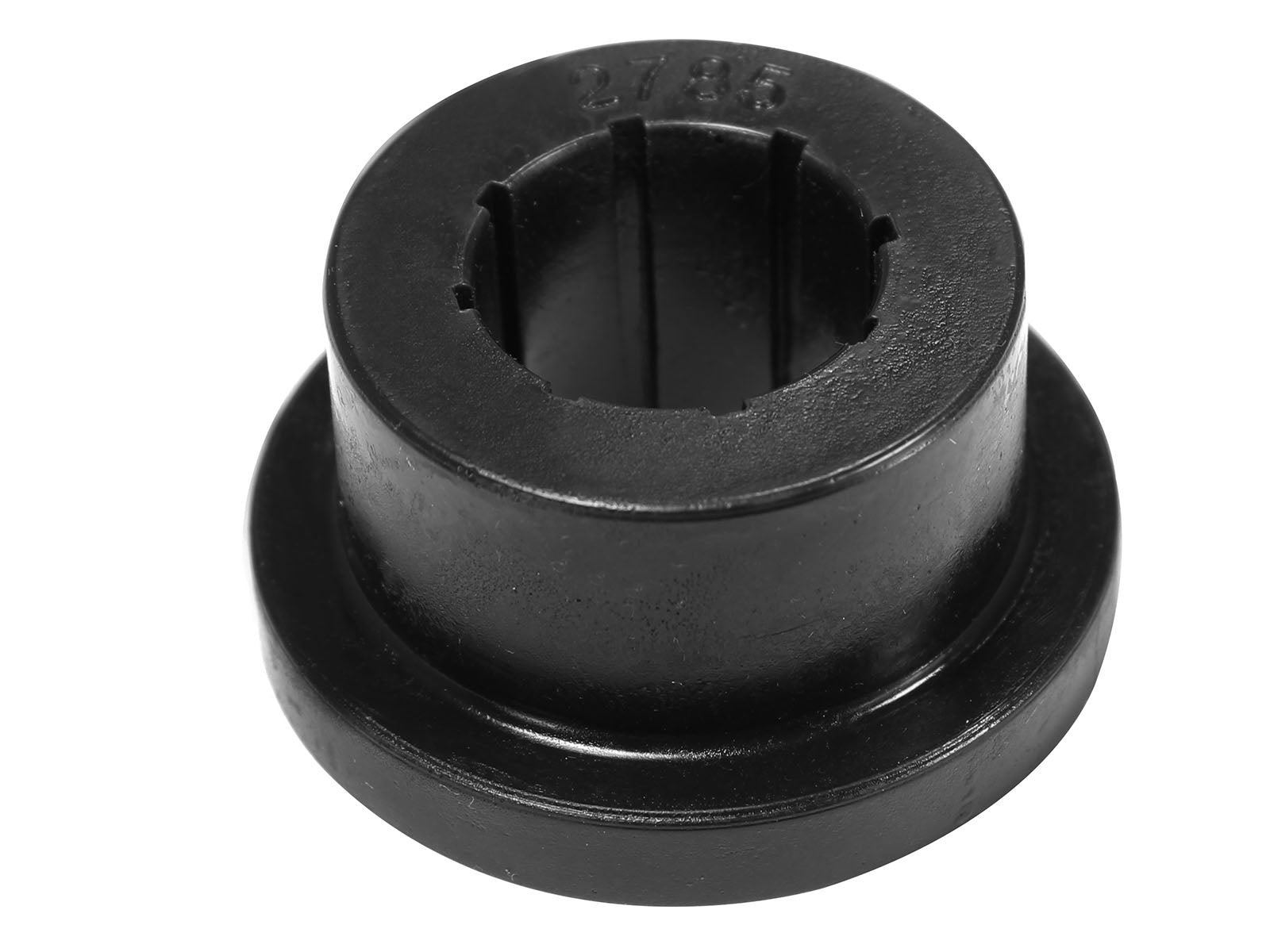

Molded-part identification Shared molded entries: P1021 / 2781 FL1-1 TWO; P1022 / 2782 FL1-2 TWO; P1023 / 2783 FL2-1 TWO; P1024 / 2784 FL2-2 TWO; P1025 / 2785 FU-1 FOUR; P1026 / 2786 FU-2 FOUR; P1027 / 3491 RL1 TWO; P1028 / 3331 RL2 TWO; P1029 / 3333 RS TWO. Read each molded marking against the selected final-page position diagram.
Lubrication interfaces Keep oil/grease OUT of the control-arm bore-to-bushing OUTER interface. The own manual permits a residue-free temporary assembly lubricant, giving water/rubbing alcohol as an example. Grease the bushing INNER diameter, grooves and internal space, the sleeve/pin outer surface, and bushing faces that contact the pin flange or washer using the supplied poly grease. The manual’s Grease quantity 1 line does not establish a container count: the selected package photograph shows three containers.
Front-upper fit and press support Dry-fit front-upper hat bushings by their molded markings. Their flanges must sit FLUSH with the arm bores while the INNER faces maintain a 1/8–3/16-inch gap. If the bore tolerance makes them touch, trim only the specified inner bushing face as the own cross-section directs, then recheck. While pressing the greased pin, SUPPORT inner bushing #2786 so it cannot push out. Both outer flanges must remain flush; a flange-to-arm gap indicates incorrect installation.
Washer / ring / camber-offset qualification The retaining washer must sit fully BELOW the snap-ring groove with little or no bushing compression, without hiding any groove. Grease its contact face, install the washer and snap ring, and verify the ring is FULLY ENGAGED. The own bill lists FOUR 00P-0C1187-A 13/16 snap rings. Upper pivot pins have a documented 2mm offset; flipping a pin changes camber approximately 0.8 degree, not a guaranteed overall alignment range or a complete alignment procedure.
Own manual scope EIGHT pages each, revised January 19, 2016; selected 00P-0T1008-A full bill, removal/installation text, fitment cross-section, failure/correct-install photos and full position diagram read/viewed. Bills and final diagrams additionally viewed at full resolution
Torque / follow-up limits No numeric mounting torque, recheck mileage or complete alignment procedure printed; do not borrow another suspension kit’s values
Performance qualification Primary cites OE deflection over 1/4 inch and almost 1 degree lost camber as background, not a measured selected-kit improvement or guaranteed camber recovery
Emissions Manufacturer states no CARB EO number required

What's Included

  • Selected 470-401001-B bushing/sleeve package; vehicle frame must match the own manual.
  • Common sleeve bag 00P-0A1071-A lists P1038 RS TWO, P1036 RL2 TWO, P1034 FL1 FOUR, P1035 FL2/RL1 EIGHT, P1037 FU FOUR and P1041 FU washer FOUR. Both manuals also separately list FOUR 00P-0P1041-A FU washers, repeating the washer description/quantity; this is not treated as a verified extra set of four or a promise of eight washers. The selected native photo shows four washers.
  • Selected rear-upper sleeve bag 00P-0A1072-A: FOUR P1039 RU sleeves. Selected molded-part bag 00P-0A1024-A: P1030 / marking 2366 RU1, FOUR; P1031 / marking 2371 RU2, FOUR.
  • Shared molded entries: P1021 / 2781 FL1-1 TWO; P1022 / 2782 FL1-2 TWO; P1023 / 2783 FL2-1 TWO; P1024 / 2784 FL2-2 TWO; P1025 / 2785 FU-1 FOUR; P1026 / 2786 FU-2 FOUR; P1027 / 3491 RL1 TWO; P1028 / 3331 RL2 TWO; P1029 / 3333 RS TWO. Read each molded marking against the selected final-page position diagram.
  • FOUR 00P-0C1187-A 13/16 snap rings; selected diagram shows washer/snap-ring retention at the front-upper pins.

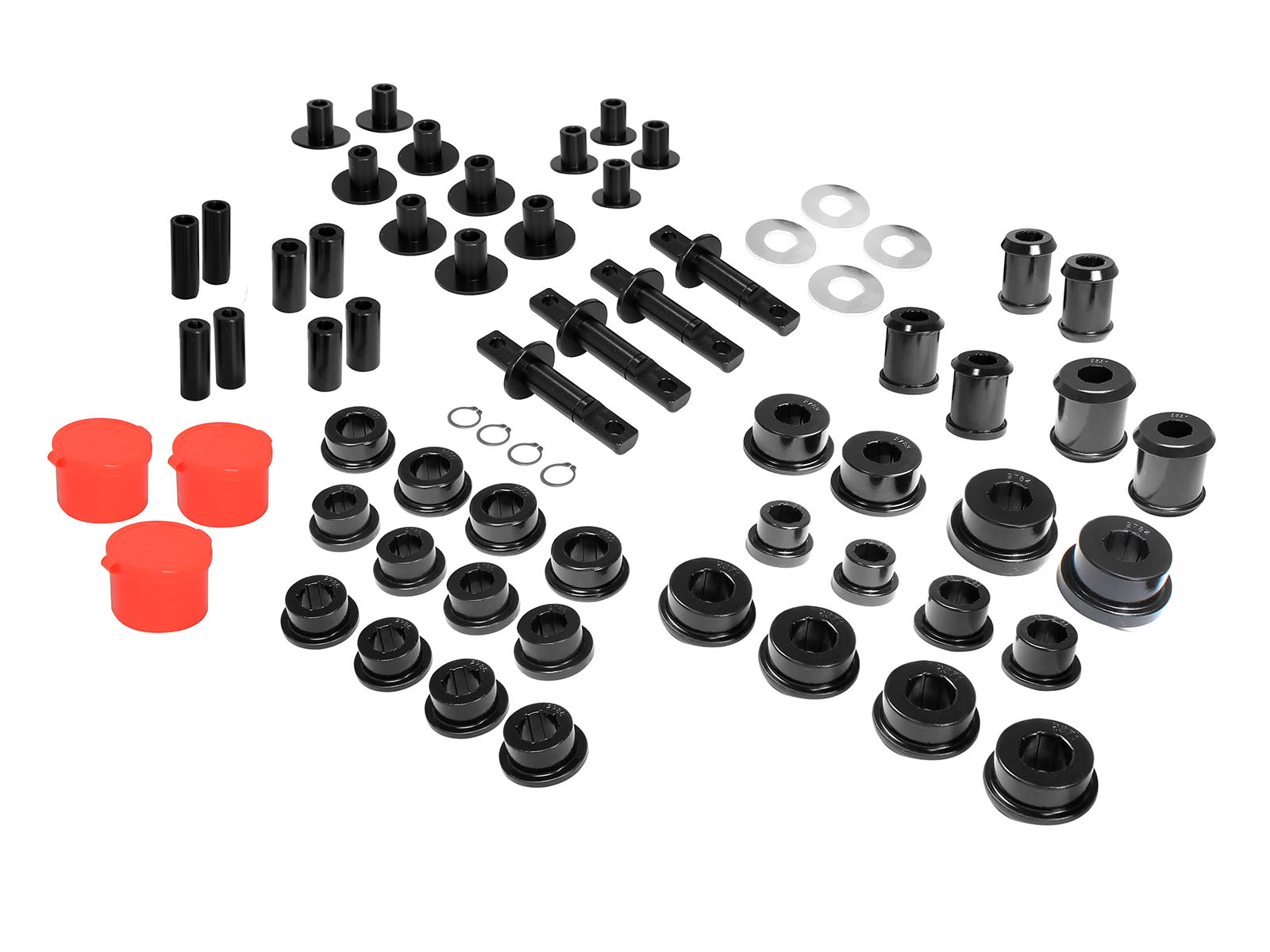

  • Grease is listed as quantity 1 in the bill while the native package photo shows three containers; packaging count is qualified, not silently resolved. No complete control arms, shock absorbers, filters or intake couplers are included.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

FAQ

What is the 470-401001-B?

The selected control-arm polyurethane bushing and aluminum sleeve/pin kit, with rear lower shock-mount components, front-upper washers/snap rings and grease. Complete control arms and shocks are not included.

Which vehicle frame and named submodels does this fit?

The own selected manual explicitly covers 1997–2004 C5 and 2005–2013 C6 STEEL FRAME, EXCLUDING C6 Z06/ZR1. Its printed C6 end-year has a 20013 typo; the current exact primary specifies 1997–2013. C5 Z06 2001–2004 remains supported. The selected retailer table’s positive C6 Z06/ZR1 rows cannot override that explicit manufacturer exclusion: the legacy 2008 427 Limited Edition Z06 mapping is removed. The remaining original named scopes and independently positive Grand Sport 2010–2013 are shown below. Frame refers to the vehicle chassis, not a claim that the control arms or kit sleeves are steel.

Are the bushings aluminum, nylon or spherical bearings?

The bushings are graphite-impregnated polyurethane. The hard-anodized 6061-T6 specification belongs to sleeves/pins; the chassis frame name is a separate application distinction. This is not the moly-nylon racing pillow-block kit, a metal spherical-bearing set or an inference that the control arms are steel.

How do the selected rear-upper parts and bill differ?

Selected rear-upper sleeve bag 00P-0A1072-A: FOUR P1039 RU sleeves. Selected molded-part bag 00P-0A1024-A: P1030 / marking 2366 RU1, FOUR; P1031 / marking 2371 RU2, FOUR. Common sleeve bag 00P-0A1071-A lists P1038 RS TWO, P1036 RL2 TWO, P1034 FL1 FOUR, P1035 FL2/RL1 EIGHT, P1037 FU FOUR and P1041 FU washer FOUR. Both manuals also separately list FOUR 00P-0P1041-A FU washers, repeating the washer description/quantity; this is not treated as a verified extra set of four or a promise of eight washers. The selected native photo shows four washers.

Where should grease be applied?

Keep oil/grease OUT of the control-arm bore-to-bushing OUTER interface. The own manual permits a residue-free temporary assembly lubricant, giving water/rubbing alcohol as an example. Grease the bushing INNER diameter, grooves and internal space, the sleeve/pin outer surface, and bushing faces that contact the pin flange or washer using the supplied poly grease. The manual’s Grease quantity 1 line does not establish a container count: the selected package photograph shows three containers.

What front-upper gap and press support are required?

Dry-fit front-upper hat bushings by their molded markings. Their flanges must sit FLUSH with the arm bores while the INNER faces maintain a 1/8–3/16-inch gap. If the bore tolerance makes them touch, trim only the specified inner bushing face as the own cross-section directs, then recheck. While pressing the greased pin, SUPPORT inner bushing #2786 so it cannot push out. Both outer flanges must remain flush; a flange-to-arm gap indicates incorrect installation.

How are the washer, snap ring and offset pin installed?

The retaining washer must sit fully BELOW the snap-ring groove with little or no bushing compression, without hiding any groove. Grease its contact face, install the washer and snap ring, and verify the ring is FULLY ENGAGED. The own bill lists FOUR 00P-0C1187-A 13/16 snap rings. Upper pivot pins have a documented 2mm offset; flipping a pin changes camber approximately 0.8 degree, not a guaranteed overall alignment range or a complete alignment procedure.

What removal, torque and alignment instructions are actually supplied?

The manual supports the car, removes control arms and uses a press/vice for bushing removal. For lower arms using eccentric bolts it describes knocking off washer plates with a chisel. It also documents a heat-assisted removal alternative, warning bushings and sleeves stay hot a long time; use the complete manual and appropriate equipment rather than treating that as routine on-vehicle heating. No numeric mounting torque, fixed recheck mileage, battery/coding step or complete alignment sequence is printed. Use current exact vehicle procedures for reassembly and alignment; do not import 100 ft-lb arm torque or settling-mileage instructions from another kit.

Installation Instructions

  1. Confirm aFe 470-401001-B and the actual steel-frame chassis application and complete selected bill/diagram. Read all eight pages of 00P-0T1008-A and current exact chassis/control-arm service instructions.
  2. Support the vehicle at the specified lift/stand points and remove the control arms. Follow the own manual’s press/vice removal procedure and eccentric washer-plate instructions where applicable. Its optional heat-assisted removal method warns of prolonged hot sleeves/bushings and burn risk; use the full instructions and proper equipment.
  3. Keep oil/grease OUT of the control-arm bore-to-bushing OUTER interface. The own manual permits a residue-free temporary assembly lubricant, giving water/rubbing alcohol as an example. Grease the bushing INNER diameter, grooves and internal space, the sleeve/pin outer surface, and bushing faces that contact the pin flange or washer using the supplied poly grease. The manual’s Grease quantity 1 line does not establish a container count: the selected package photograph shows three containers.
  4. Dry-fit front-upper hat bushings by their molded markings. Their flanges must sit FLUSH with the arm bores while the INNER faces maintain a 1/8–3/16-inch gap. If the bore tolerance makes them touch, trim only the specified inner bushing face as the own cross-section directs, then recheck. While pressing the greased pin, SUPPORT inner bushing #2786 so it cannot push out. Both outer flanges must remain flush; a flange-to-arm gap indicates incorrect installation.
  5. The retaining washer must sit fully BELOW the snap-ring groove with little or no bushing compression, without hiding any groove. Grease its contact face, install the washer and snap ring, and verify the ring is FULLY ENGAGED. The own bill lists FOUR 00P-0C1187-A 13/16 snap rings. Upper pivot pins have a documented 2mm offset; flipping a pin changes camber approximately 0.8 degree, not a guaranteed overall alignment range or a complete alignment procedure.
  6. Use the selected final-page part-marking diagram, including its frame-specific rear-upper pieces. Complete control-arm reinstallation and alignment using current exact vehicle procedures. The own manual supplies no numeric mounting torque, settling/recheck mileage, battery or coding procedure.
