aFe Jeep/Dodge 5.7L Pro DRY S Intake

Magnum FORCE intake for the specified WK2/Durango engine and hood

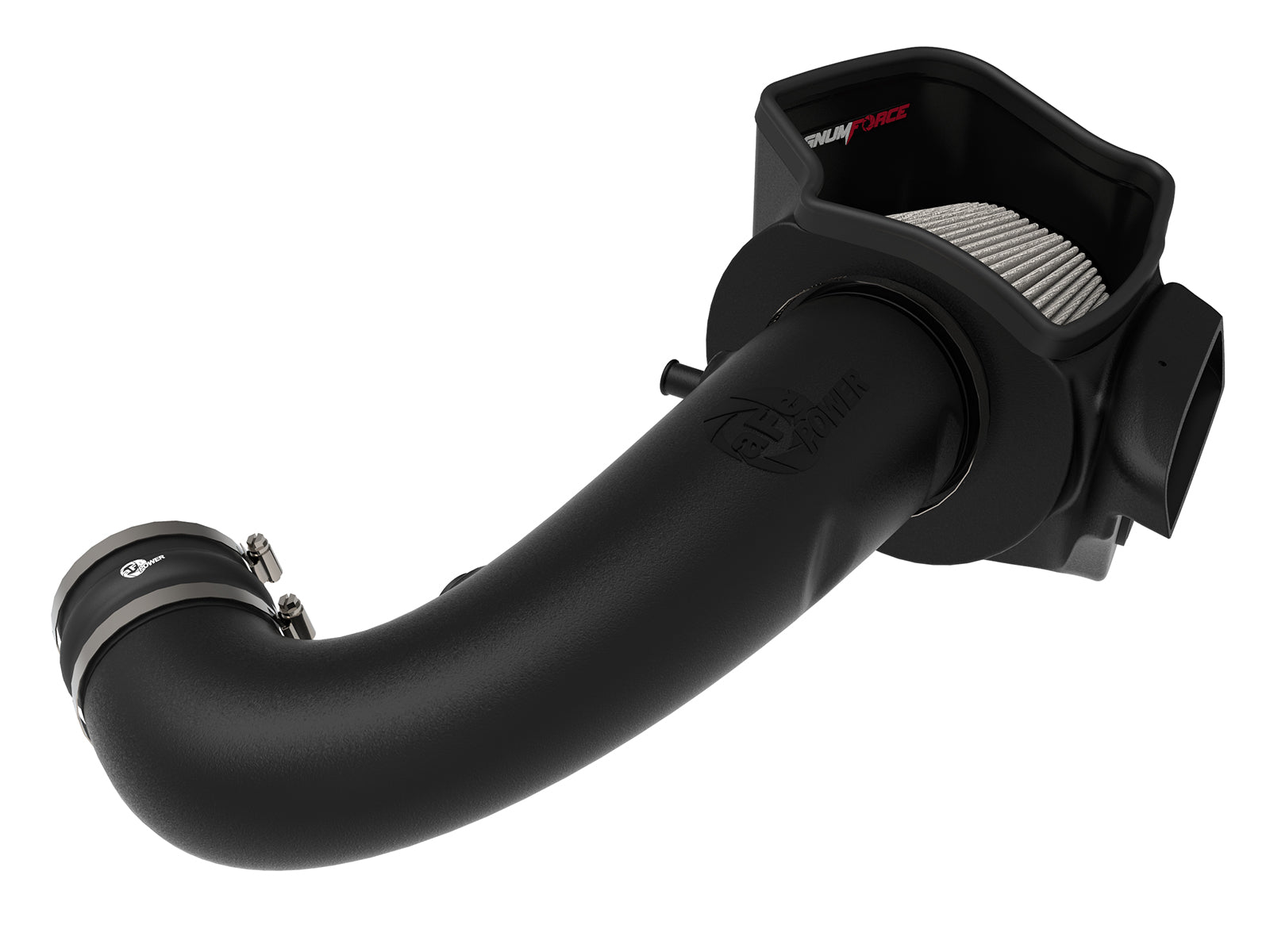

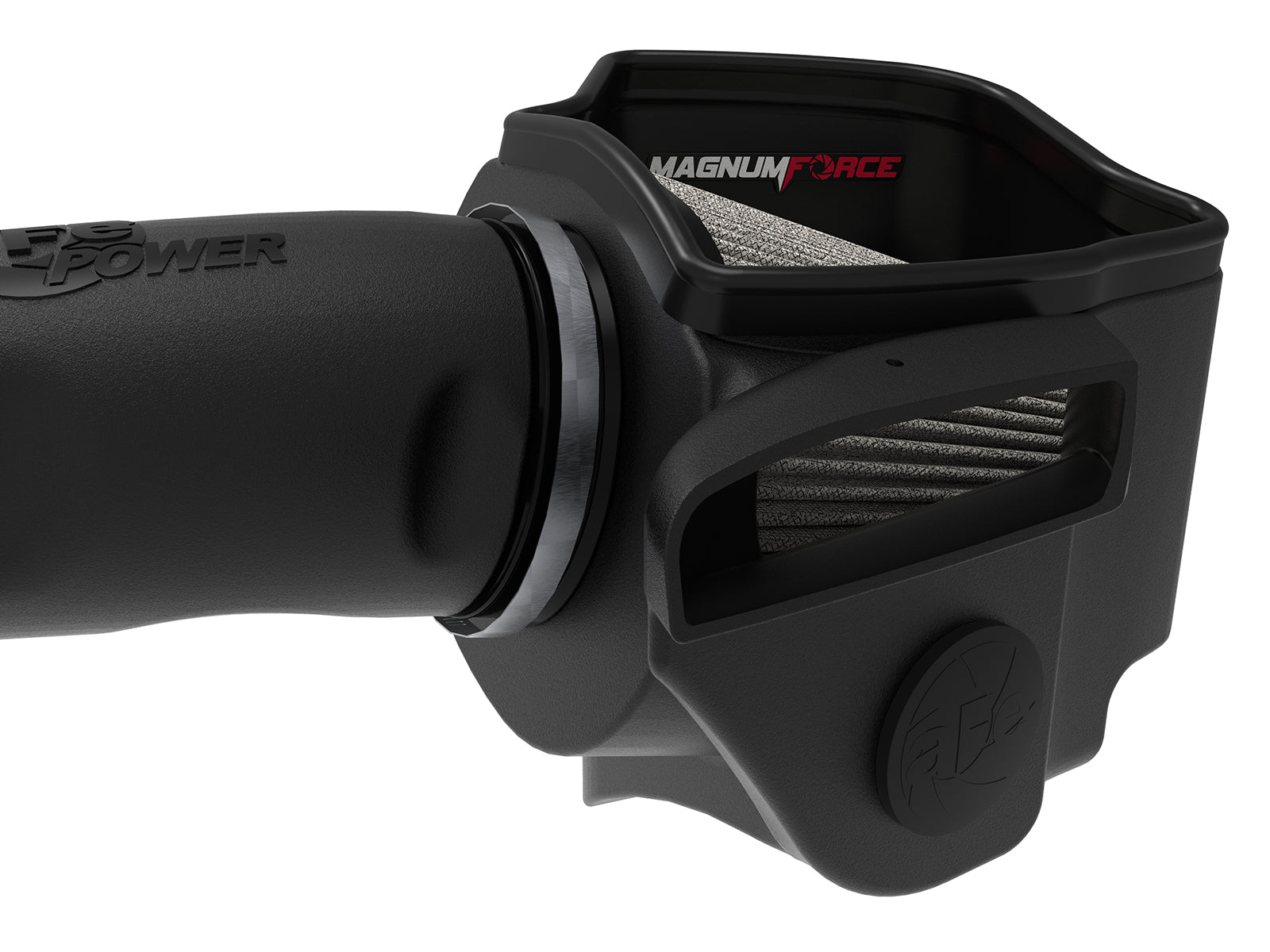

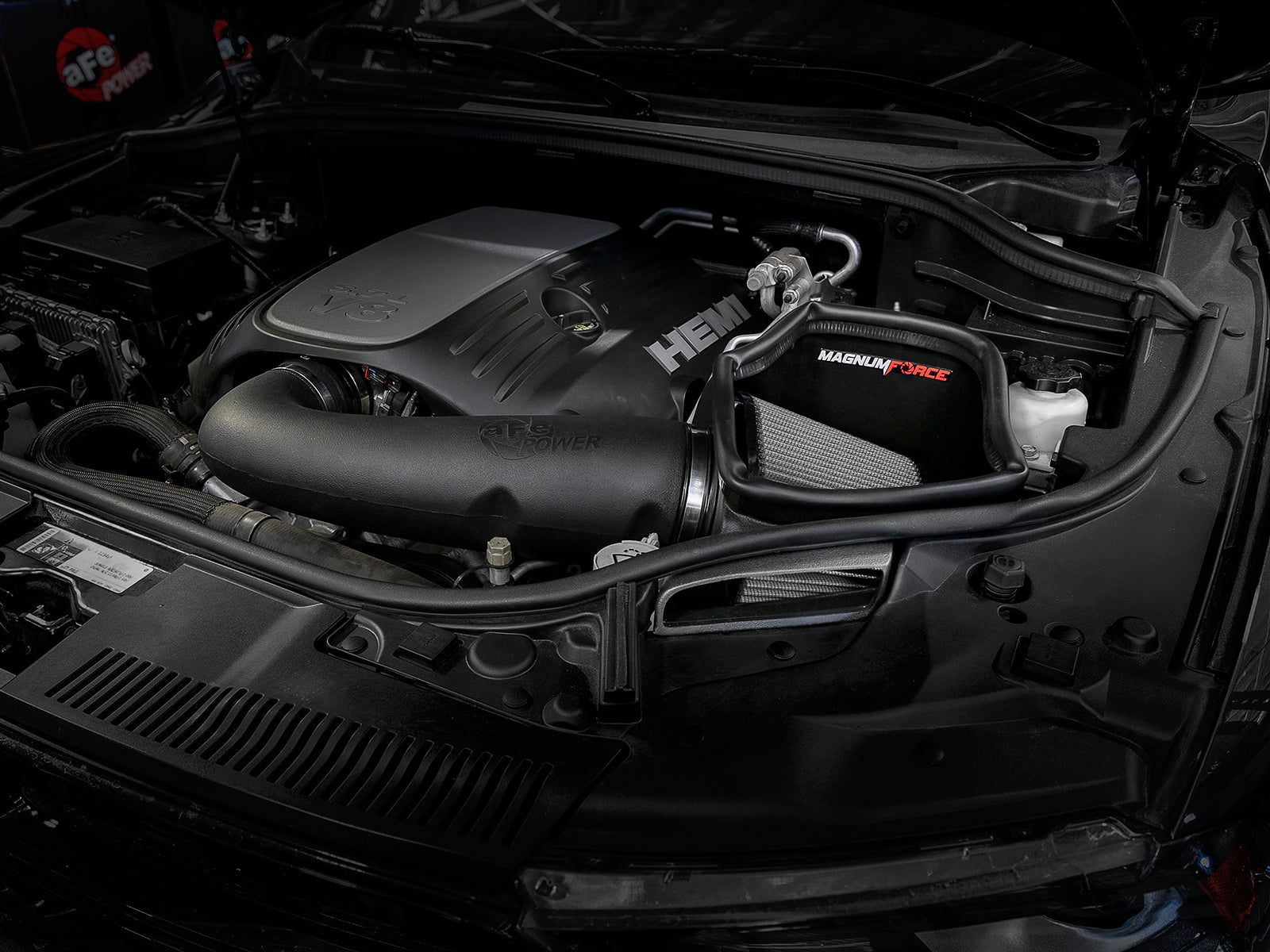

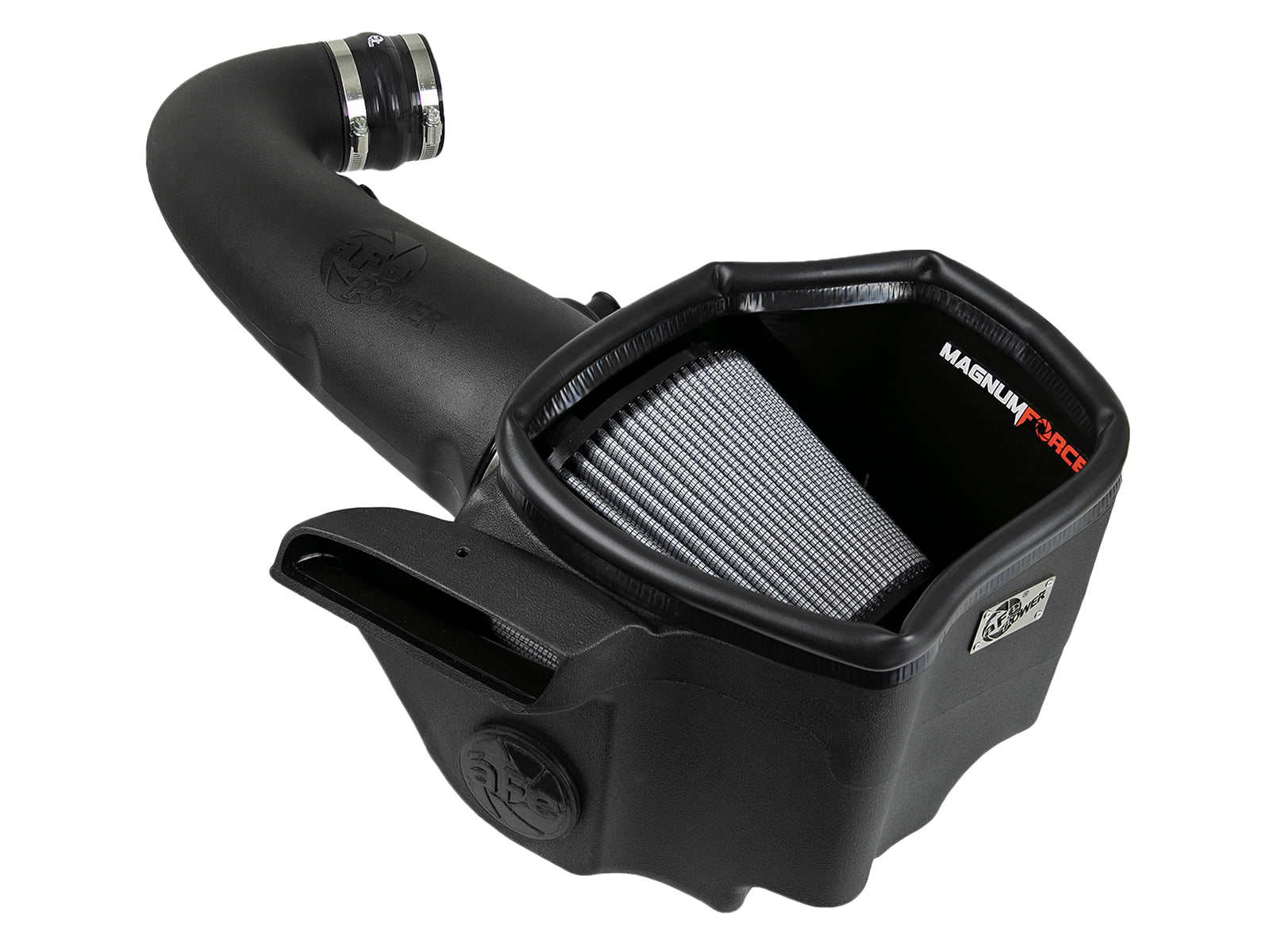

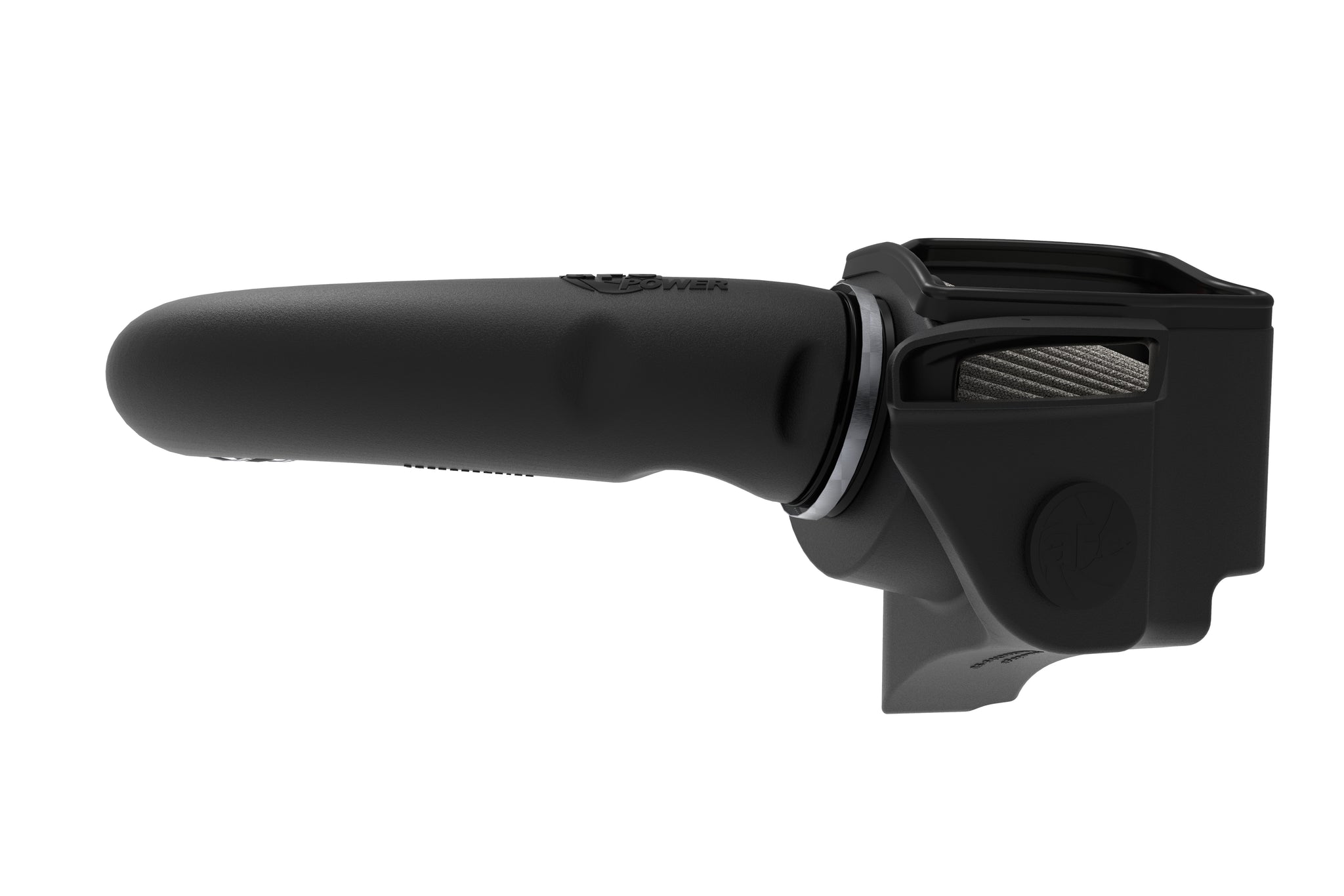

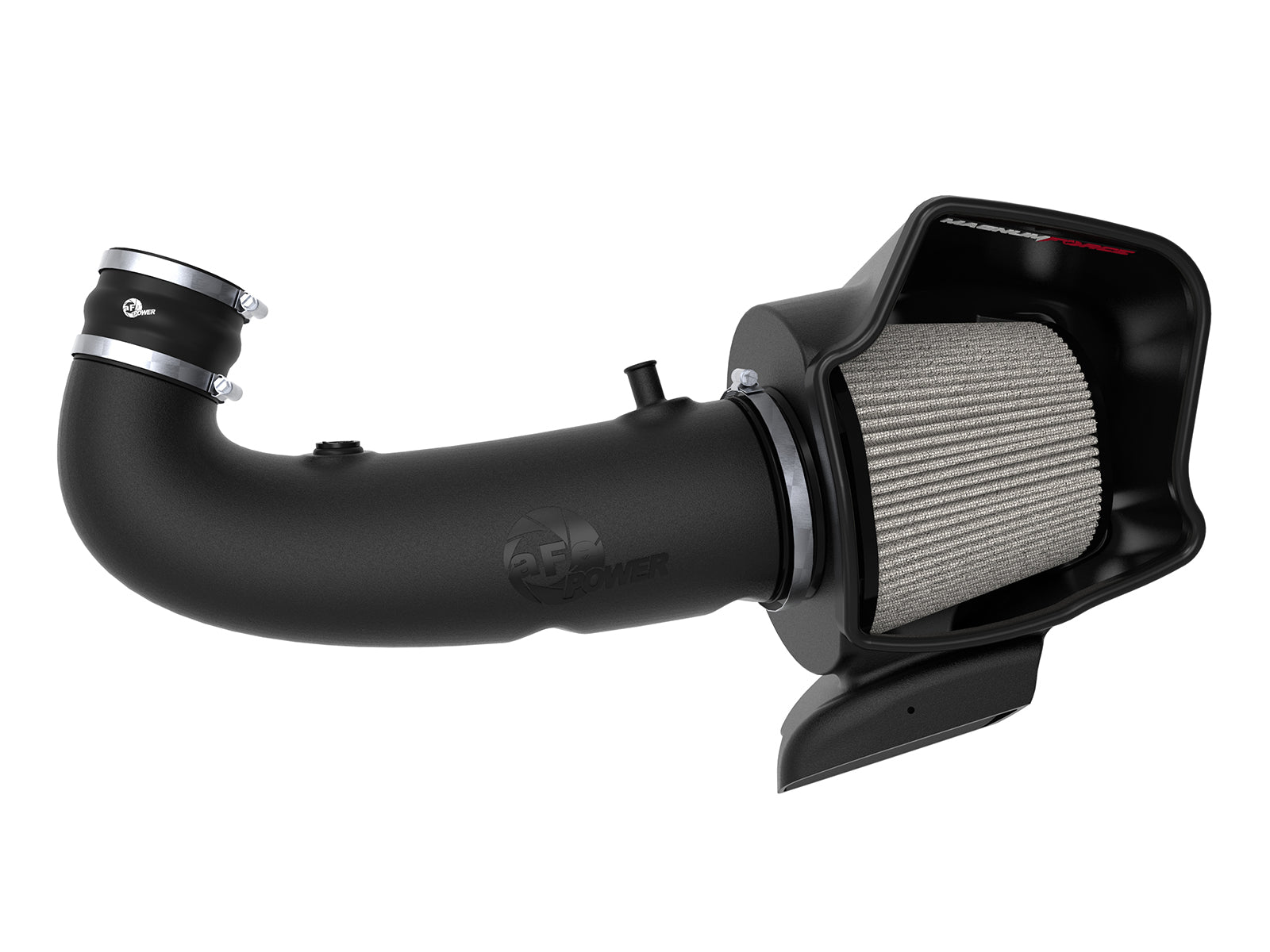

aFe 54-13023D Magnum FORCE Stage-2 open-element intake uses one Pro DRY S filter with an XLPE tube and XLPE housing for the specified 5.7L HEMI V8 Grand Cherokee WK2 and Dodge Durango. The housing uses the factory inlet and an optional auxiliary opening; it is not a sealed Momentum airbox.

Key Features

• One seven-inch-tall, five-inch-flange 21-91146 filter; three oil-free synthetic layers that must not be oiled.
• Both tube and OPEN-element housing are XLPE per the exact current manufacturer description.
• Three original housing grommets, original temperature sensor and original engine cover are reused; the supplied sensor grommet is a separate component.

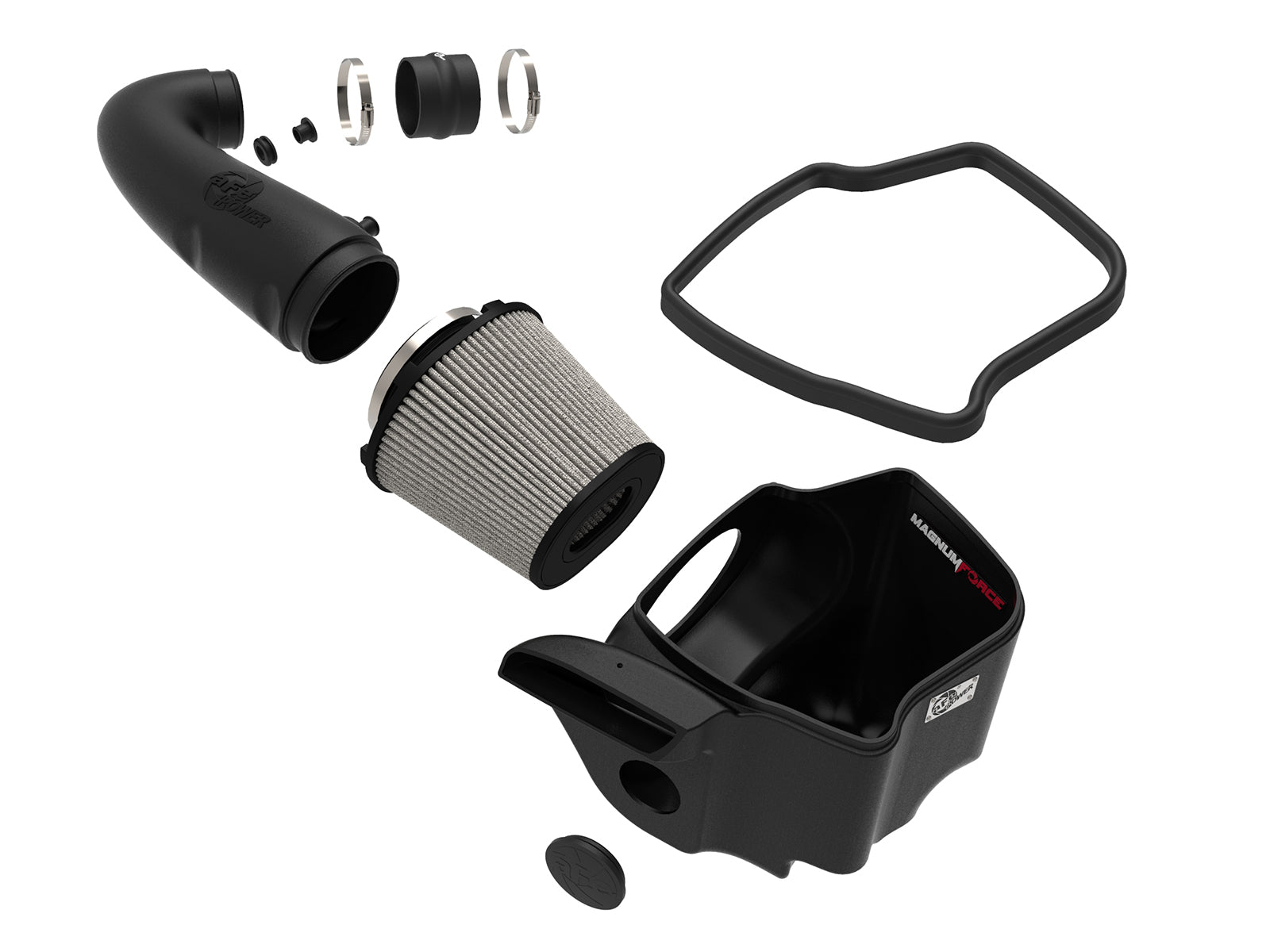

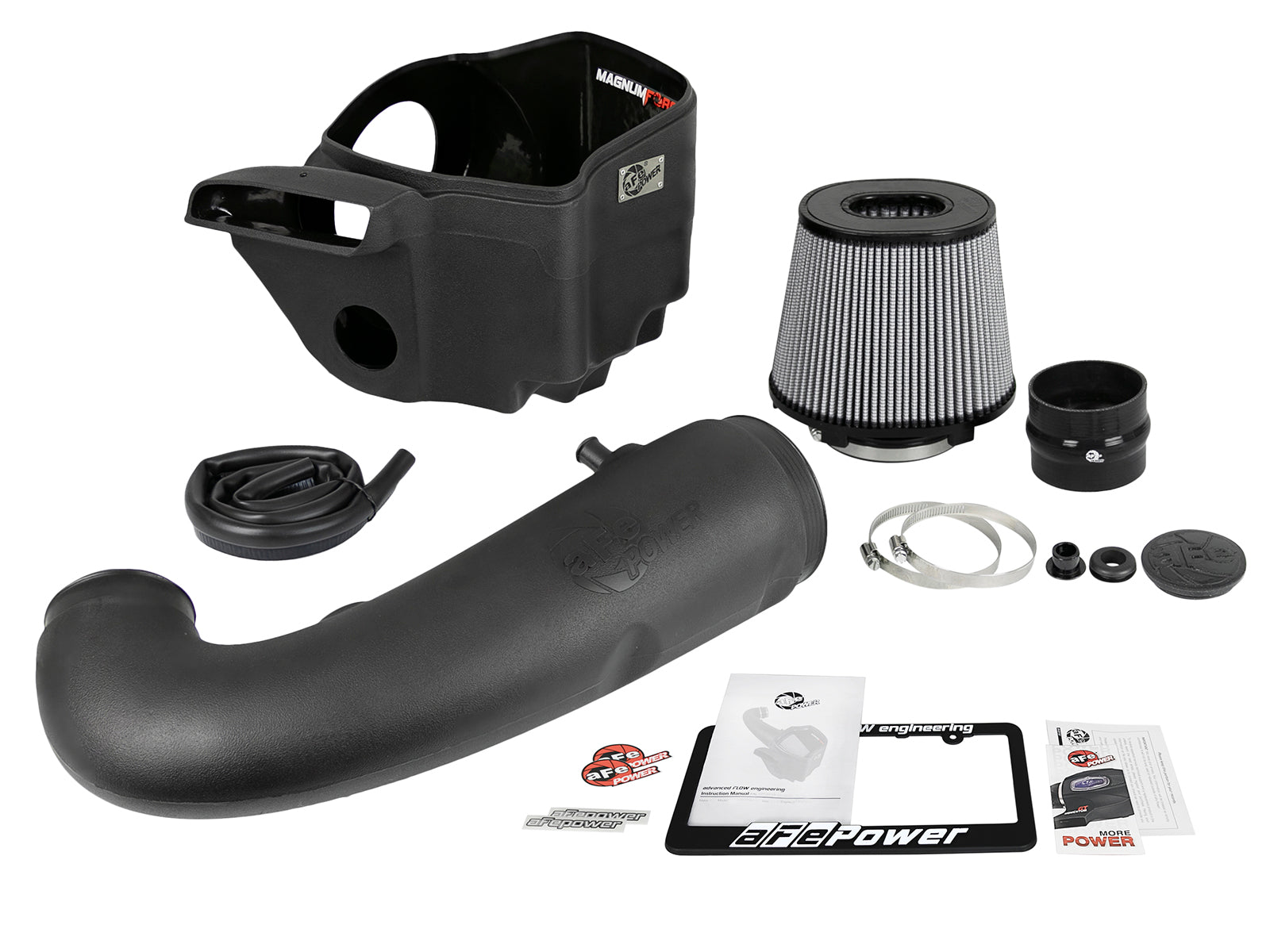

• V8-specific tube 05-5413023B1, housing 05-5413023B2, silicone hump coupling 05-01264 and two No. 056 coupling clamps. The original crankcase hose reconnects to the new tube. No separate threaded NPT vent fitting or V6 replacement hose is listed; do not borrow those from another intake.
• The current exact manufacturer page excludes Jeep Grand Cherokee models with a Jeep SRT hood. It separately ALLOWS the Dodge Durango SRT hood, with the filter below its vent: aFe recommends optional pre-filter 28-10033 and avoiding pressure washing around that vent and heavy-rain driving. The pre-filter is not listed in the kit BOM. This hood statement does not approve an SRT engine or another powertrain.
• 650 CFM versus stock 450 CFM at seven inches H2O, manufacturer labels 44% improvement. This flow percentage is not a power-gain percentage.

Fitment

Grand Cherokee WK2 2011–2021 and the specifically named Dodge Durango applications below with the 5.7L HEMI V8. The shared manual ends at 2020; the current exact page extends Durango to 2026. Each kit’s own full named table supports additional Grand Cherokee Laredo 2011–2013 and Limited X 2019–2021, and the listed later Durango groups. The 2026 GT/GT Plus/GT Premium entries require the ACTUAL 5.7L engine; OEM information confirms GT offers both V6 and V8 choices. R/T, R/T Plus and R/T Premium are held through 2025 because the newer OEM 2026 R/T announcement specifies 6.4L, despite the retailer’s blanket extension to 2026. Earlier positive 2018 GT/SXT retailer entries and 2026 5.7L police-package revisions need engine/housing reconciliation and are not newly mapped. No 6.4L, Hellcat, WL or Grand Cherokee L interchange is inferred. The current exact manufacturer page excludes Jeep Grand Cherokee models with a Jeep SRT hood. It separately ALLOWS the Dodge Durango SRT hood, with the filter below its vent: aFe recommends optional pre-filter 28-10033 and avoiding pressure washing around that vent and heavy-rain driving. The pre-filter is not listed in the kit BOM. This hood statement does not approve an SRT engine or another powertrain.

Verify 54-13023D against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.

Specifications

What's Included

Each purchased selection includes ONE filter; other media on the shared manual are alternatives. Three factory housing grommets and the original temperature sensor are transferred. The two separately listed main clamps serve the coupling; the filter connection also has its own clamp. The V8 kit reuses the original crankcase hose and lists no new vent hose or separate NPT fitting. Optional pre-filter 28-10033 is recommended for the permitted Dodge SRT hood but is not in the listed kit contents.

About aFe Power

aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.

Related Parts

• Manufacturer product specifications for 54-13023D
• Exact illustrated installation manual
• Manufacturer-linked dyno; read the test configuration and media qualification
• Manufacturer-linked selected-media bench-flow comparison
• Shop the complete aFe Power collection

Frequently Asked Questions

Grand Cherokee WK2 2011–2021 and the specifically named Dodge Durango applications below with the 5.7L HEMI V8. The shared manual ends at 2020; the current exact page extends Durango to 2026. Each kit’s own full named table supports additional Grand Cherokee Laredo 2011–2013 and Limited X 2019–2021, and the listed later Durango groups. The 2026 GT/GT Plus/GT Premium entries require the ACTUAL 5.7L engine; OEM information confirms GT offers both V6 and V8 choices. R/T, R/T Plus and R/T Premium are held through 2025 because the newer OEM 2026 R/T announcement specifies 6.4L, despite the retailer’s blanket extension to 2026. Earlier positive 2018 GT/SXT retailer entries and 2026 5.7L police-package revisions need engine/housing reconciliation and are not newly mapped. No 6.4L, Hellcat, WL or Grand Cherokee L interchange is inferred. The current exact manufacturer page excludes Jeep Grand Cherokee models with a Jeep SRT hood. It separately ALLOWS the Dodge Durango SRT hood, with the filter below its vent: aFe recommends optional pre-filter 28-10033 and avoiding pressure washing around that vent and heavy-rain driving. The pre-filter is not listed in the kit BOM. This hood statement does not approve an SRT engine or another powertrain.

No. Pro DRY S 21-91146 uses three synthetic layers and must remain oil-free.

The current exact manufacturer page excludes Jeep Grand Cherokee models with a Jeep SRT hood. It separately ALLOWS the Dodge Durango SRT hood, with the filter below its vent: aFe recommends optional pre-filter 28-10033 and avoiding pressure washing around that vent and heavy-rain driving. The pre-filter is not listed in the kit BOM. This hood statement does not approve an SRT engine or another powertrain.

V8-specific tube 05-5413023B1, housing 05-5413023B2, silicone hump coupling 05-01264 and two No. 056 coupling clamps. The original crankcase hose reconnects to the new tube. No separate threaded NPT vent fitting or V6 replacement hose is listed; do not borrow those from another intake.

Transfer all three original rubber housing grommets to the new housing. Install the separately supplied sensor grommet and adapter, transfer the original intake-temperature sensor and turn it clockwise until it locks. A new mass-airflow sensor is not supplied.

Yes. This exact manual directs restoring the original engine cover after the scoop/trim seal, sensor harness and crankcase connections are complete. Do not borrow another kit’s engine-cover restriction.

The actual selected-media chart identifies a 2015 Durango R/T 5.7L with OE headers, exhaust, ECU and suspension, 265/50R20 tires, automatic fourth gear, open hood, large fan and OBDII connection. Dry-media marked differences near 4,999 rpm are 16.80 HP and 17.68 lb-ft; peak-to-peak differences are 11.67 HP and 13.81 lb-ft. Test-point gains and peak-to-peak gains are different measurements, and no individual vehicle result is guaranteed.

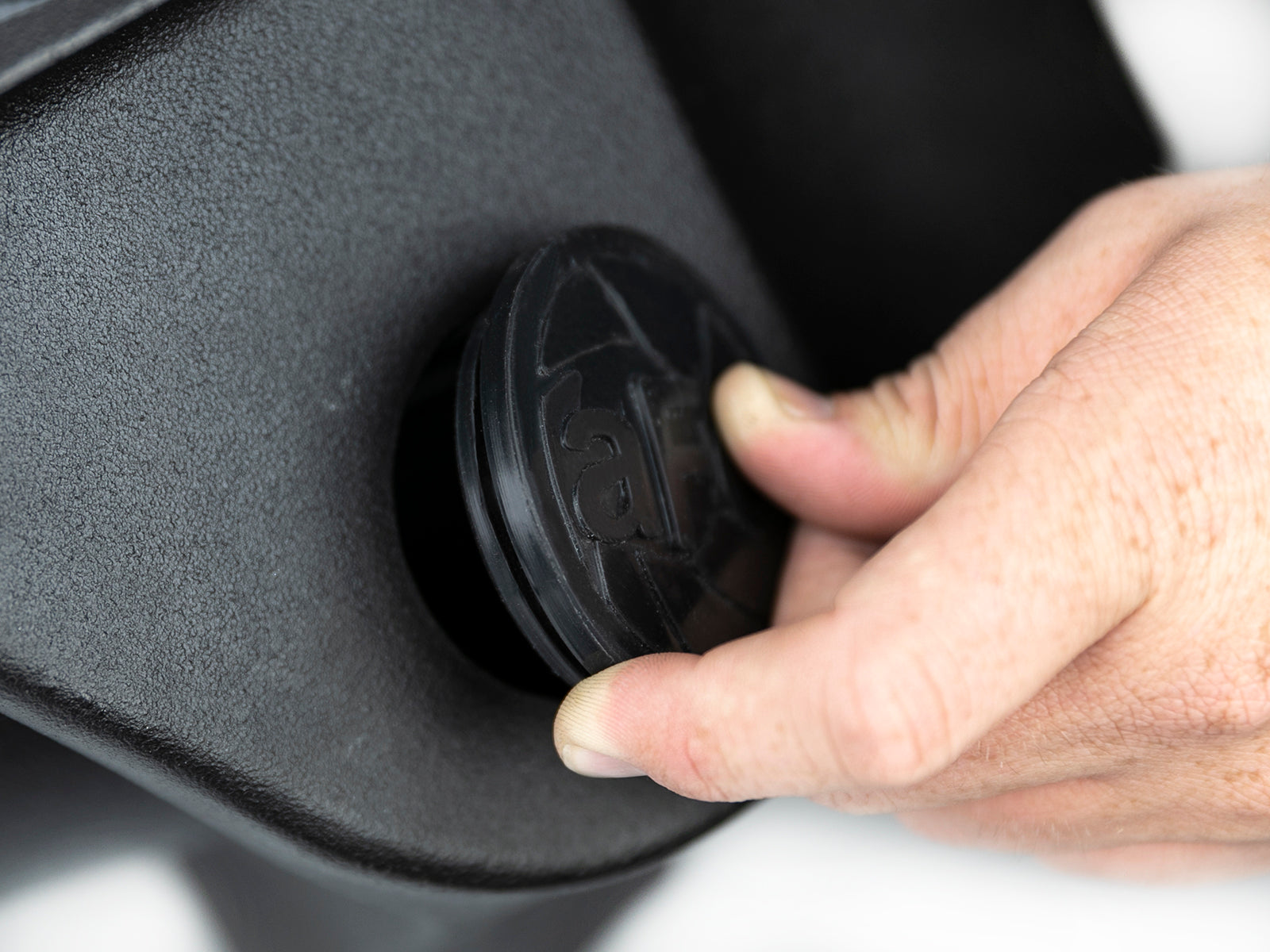

Removing the plug admits additional air that may include warmer engine-bay air. It closes only the auxiliary opening, not the whole open housing. Verify alignment, sensor lock and all original trim/clips, then recheck bolts, clamps and connections after 100–200 miles; no numeric clamp torque is specified.

Installation Instructions

Verify aFe 54-13023D. Read the complete manual on a cool engine, disconnect the negative battery terminal and retain original parts. Remove the engine cover using the illustrated pull-up removal. Disconnect the original intake-temperature sensor harness, release its retainers where shown, disconnect the crankcase line and loosen the throttle-body clamp. Release any rear airbox hose retainer if equipped. Lift the factory scoop trim seal and side clips as directed to clear the original airbox, then remove the stock tube and housing. Transfer ALL THREE factory rubber housing grommets to the new housing, seat the selected filter, install the supplied 34-inch trim seal and optional auxiliary plug, then align and seat the new housing. Fit the supplied sensor grommet and adapter and transfer the original temperature sensor, turning clockwise until it locks. Keep the original crankcase hose for reconnection to the new tube. Install the specified coupling at the throttle body and tighten only that end first. Insert the tube into the FILTER FIRST, then rotate its other end down into the coupling; align and secure all clamps. Reconnect the sensor harness and correct crankcase hose. Restore the factory scoop/trim seal and clips, and REINSTALL the original engine cover. V8-specific tube 05-5413023B1, housing 05-5413023B2, silicone hump coupling 05-01264 and two No. 056 coupling clamps. The original crankcase hose reconnects to the new tube. No separate threaded NPT vent fitting or V6 replacement hose is listed; do not borrow those from another intake. No numeric clamp or sensor-fitting torque is given. Verify every connection and recheck bolts, clamps and connectors after 100–200 miles.

Important Disclosures

The current exact page refers to CARB D-550-58 for some or all applications, while the older supplied manual still says non-CARB/California unavailable. This is a source/revision conflict: verify the current EO and actual labeled kit for the precise vehicle and year before California purchase or installation. The full current exhibit has not been independently verified; do not treat the current 2026 application headline as blanket emissions approval. Direct official D-550-58 access was previously stopped and is not retried here. The current exact manufacturer page excludes Jeep Grand Cherokee models with a Jeep SRT hood. It separately ALLOWS the Dodge Durango SRT hood, with the filter below its vent: aFe recommends optional pre-filter 28-10033 and avoiding pressure washing around that vent and heavy-rain driving. The pre-filter is not listed in the kit BOM. This hood statement does not approve an SRT engine or another powertrain. The actual selected-media chart identifies a 2015 Durango R/T 5.7L with OE headers, exhaust, ECU and suspension, 265/50R20 tires, automatic fourth gear, open hood, large fan and OBDII connection. Dry-media marked differences near 4,999 rpm are 16.80 HP and 17.68 lb-ft; peak-to-peak differences are 11.67 HP and 13.81 lb-ft. Test-point gains and peak-to-peak gains are different measurements, and no individual vehicle result is guaranteed. Removing the auxiliary plug can admit additional warmer underhood air; installing it closes only that auxiliary opening and does not turn the open housing into a waterproof or fully sealed airbox. The 2026 R/T engine change prevents automatically extending 5.7L R/T rows; a GT trim name alone also does not identify whether a vehicle has the V6 or V8.

California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
