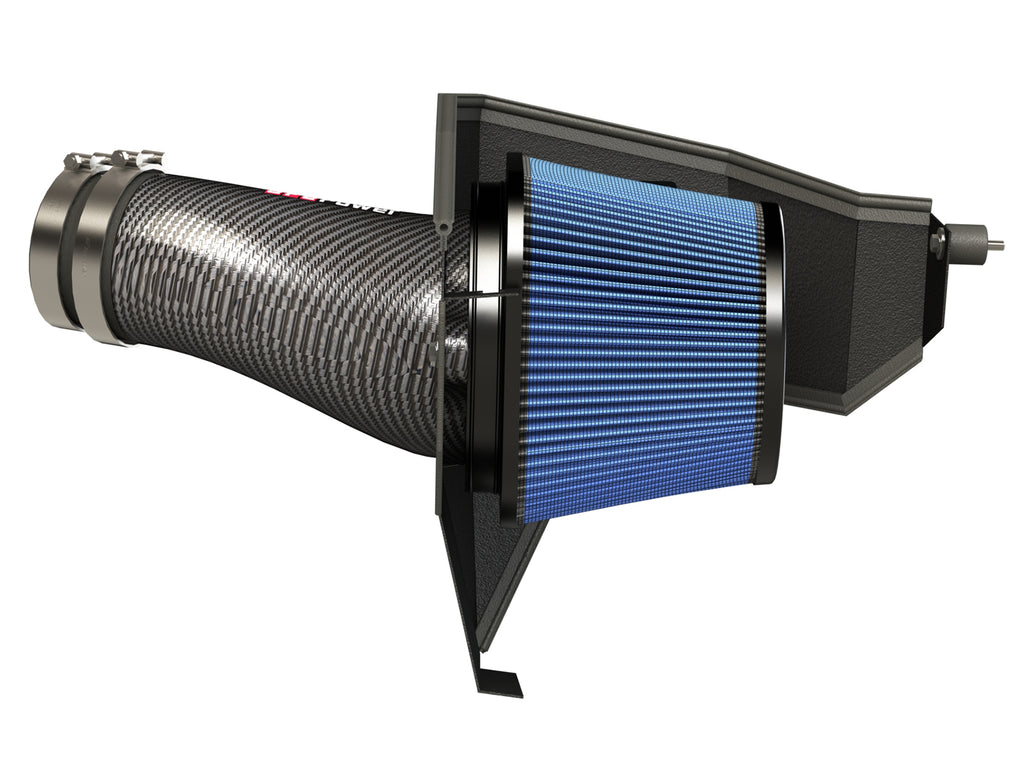

The aFe 54-12172-C carbon fiber intake uses one Pro 5R filter, a carbon fiber tube and a powder-coated aluminum heat shield for the listed 6.4L HEMI car applications. The current manufacturer page calls it Track Series, while its installation manual uses the earlier Cold Air Intake naming. Challenger/Charger Shaker-hood vehicles and aFe throttle-body spacer 46-32007 are expressly excluded.
| Years | Make | Model | Application |
|---|---|---|---|
| 2011–2023 | Dodge | Challenger / Charger | 6.4L HEMI; without Shaker hood |
| 2012–2014 | Chrysler | 300 SRT8 | 6.4L HEMI |
| 2023 | Chrysler | 300C | 6.4L HEMI; exact manual’s separate row |
54-12172-C: The 6.4L manual mislabels the 300/300C make as Dodge; the current exact product page identifies Chrysler. Its separate 2012–2014 300 and 2023 300C rows must not be turned into continuous 2012–2023 coverage. Existing model/trim search rows remain conditional on the correct HEMI engine and a non-Shaker hood. No Hellcat, V6 or other displacement is inferred.
| Detail | Value |
|---|---|
| Manufacturer Part Number | 54-12172-C |
| Filter | One 24-91035 Pro 5R; 6 in. flange. Current 6.4L page/service entry list 7 in. height. |
| Tube | Carbon fiber; 05-12172C1 |
| Surround | One-piece aluminum heat shield; 05-12172B3 |
| Reducer | 05-01555 for 6.4L |
| Exclusions | Shaker hood; aFe throttle-body spacer 46-32007 |
| Emissions | The current exact page refers to CARB EO D-550-51 for some or all applications. The exact EO document was unavailable for independent scope verification, so the entire current fitment range is not certified as exempt here. The manual requires the applicable enclosed EO identification label on or near the intake for inspection. |
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
A carbon fiber tube and Pro 5R filter intake with an aluminum heat shield for the exact 6.4L HEMI applications listed above.
Does it fit a Shaker hood?No. The current exact manufacturer page excludes Challenger/Charger vehicles equipped with the Shaker hood. A trim name alone does not establish hood clearance.
Can spacer 46-32007 be used with it?No. The exact intake page explicitly states that aFe spacer 46-32007 will not fit with this intake; that note takes priority over generic related-product suggestions.
Are both dry and oiled filters supplied?No. This kit supplies one Pro 5R oiled filter. The shared table’s Pro DRY S entry describes the alternative kit.
Is the housing entirely carbon fiber?No. The intake tube is carbon fiber and the one-piece heat shield is aluminum.
Which sensor is transferred?The original temperature sensor is transferred into the aluminum fitting on the new tube and reconnected. Do not substitute a MAF-transfer procedure from another intake.
Which crankcase hose procedure applies?The 6.4L manual replaces the original crankcase hose with the supplied hose. The 5.7L manual instead reuses the original hose for 2011–2019 and uses its supplied hose/clamp for 2020+; do not interchange these instructions.
Is the whole year range CARB exempt?The current exact page refers to CARB EO D-550-51 for some or all applications. The exact EO document was unavailable for independent scope verification, so the entire current fitment range is not certified as exempt here. The manual requires the applicable enclosed EO identification label on or near the intake for inspection.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
