BMW Dynamic Air Scoop details

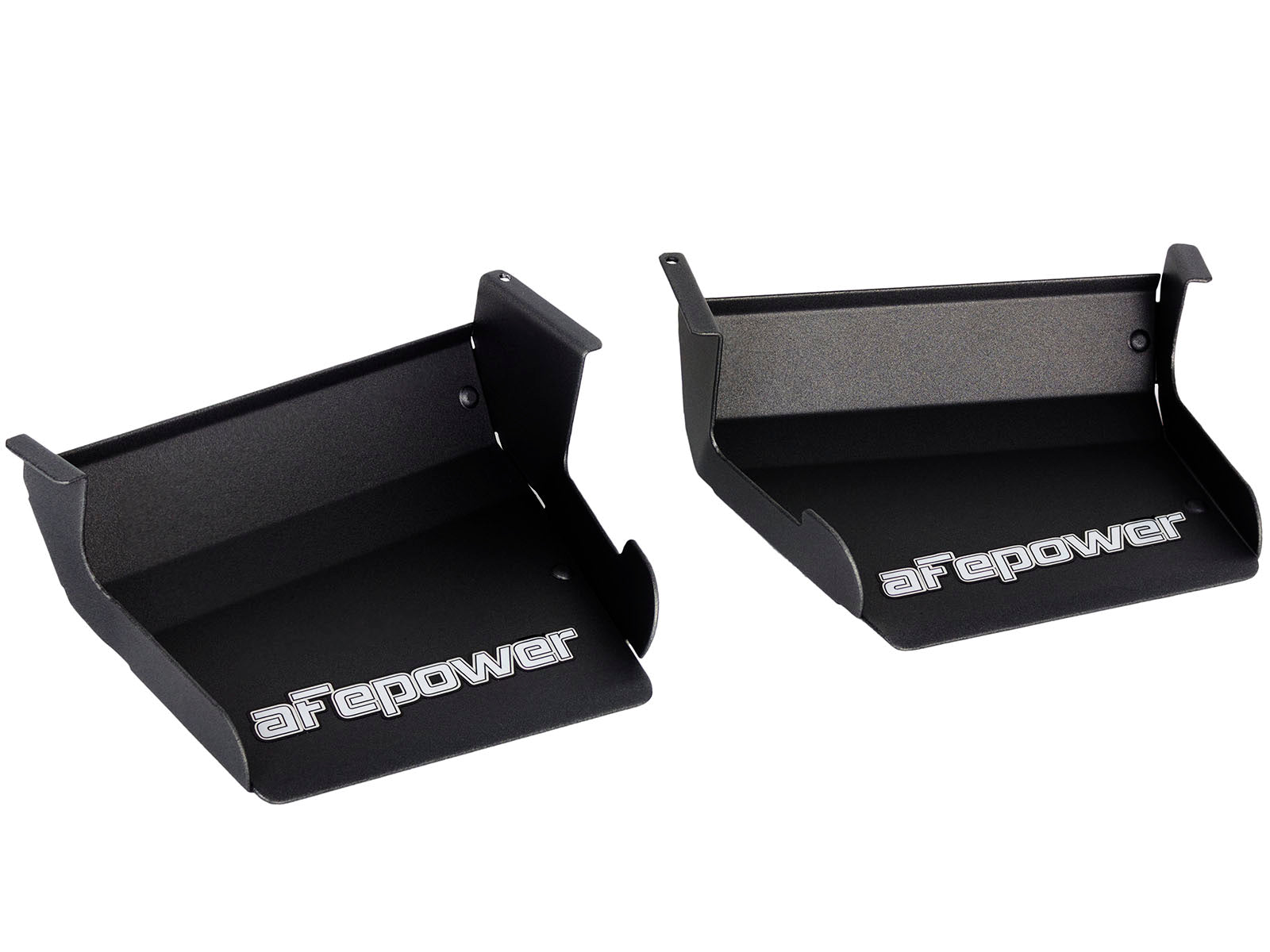

aFe 54-11648 is a pair of black powder-coated aluminum Dynamic Air Scoops for the specified BMW 1-Series frontal inlet arrangement. The driver and passenger scoops direct air from behind the factory kidney grilles toward the original intake snorkel. The exact package contains both scoops and a T20 bit; the factory duct, plastic pins and screws remain in use.
Key Features
- Two lightweight black powder-coated aluminum scoops, one for each side.
- Driver scoop 05-01033 and passenger scoop 05-01032 are supplied together.
- T20 Torx bit 03-50066 is included for the original duct screws.
- Scoop tabs rest on the plastic support; original pin clips must pass through the scoop holes.
- Installation uses an assistant to hold both scoops while the original cover and pins are restored.
- Current primary specifies no cutting or drilling on OEM parts.
- The factory air inlet, duct and airbox remain in service; no filter or coupler is supplied.
- Current manufacturer and manual state not CARB exempt and exclude California purchase and use on California-registered vehicles.
Fitment
Current manufacturer names E82/E88 128i, 135i and 1M applications within 2008-2013 with N52, N54 or N55 engines as appropriate. Exact-part retailer tables support 128i 2008-2013, 135i 2008-2013, 135is 2013 and 1 Series M 2011. These original model-year groups are preserved. The 135i engine changes from N54 in 2008-2010 to N55 in 2011-2013; the 135is uses N55, the 128i N52 and the 1M N54. Match the actual E82/E88 inlet and mounting arrangement, particularly on modified vehicles. The broad manual E8X/1M heading is not permission to add every 1-Series chassis, engine or model year.
| Years | Make | Model | Named trim; actual engine and hood requirements apply |
|---|---|---|---|
| 2011 | BMW | 1 Series M | Base |
| 2008-2013 | BMW | 128i | Base |
| 2008-2013 | BMW | 135i | Base |
| 2013 | BMW | 135is | Base |
Verify 54-11648 against the actual engine, sensor and vent connections, mounting locations and applicable emissions requirements before ordering.
Specifications
| Brand | aFe POWER |
| Manufacturer Part Number | 54-11648 |
| Product type | Dynamic Air Scoops; Air Intake Components |
| Quantity | Pair: one driver and one passenger scoop |
| Material / finish | Lightweight aluminum with black powder coating |
| Driver side | 05-01033 |
| Passenger side | 05-01032 |
| Included tool | T20 Torx bit 03-50066 |
| Mounting | Tabs on plastic support; original pin clips through scoop holes; original T20 screws reused |
| Retained components | Factory ram-air duct / cover, inlet, plastic pins, screws and airbox |
| Generic included-filter / coupler flags | Contradicted by exact bill: neither is supplied |
| Performance evidence | Airflow and cooler-air routing described by manufacturer; no linked numeric flow, dyno or measured temperature report |
| Installation limits | No OEM cutting or drilling per primary; no numeric torque or mileage recheck in manual |
| Emissions | Not currently CARB exempt; California purchase and California-registered use restriction |
| UPC | 802959502969 |
| WARNING | This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov. |
What's Included
| Quantity | Manufacturer service part | Component |
|---|---|---|
| 1 | 05-01033 | Driver-side scoop A |
| 1 | 05-01032 | Passenger-side scoop B |
| 1 | 03-50066 | T20 Torx bit C |
Reuse the original ram-air duct cover, plastic pins and T20 screws. No replacement fasteners, filter, coupler, intake tube, airbox or electronics appear in the exact bill. The generic primary Filter Included and Coupler Included flags do not describe this package.
About aFe Power
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
Related Parts
- Manufacturer product specifications for 54-11648
- Exact illustrated installation manual
- Shop the complete aFe Power collection
Frequently Asked Questions
What is the 54-11648?One driver-side aluminum scoop, one passenger-side aluminum scoop and a T20 Torx bit. The two scoops are supplied as a pair.
Does this include a filter or complete intake?No. The exact bill lists only the scoop pair and T20 bit, despite generic included-filter and coupler flags on the manufacturer page.
Which BMW models are listed?The preserved exact-part applications are 128i and 135i 2008-2013, 135is 2013 and 1 Series M 2011. Verify the actual E82/E88 inlet and mounting arrangement.
Are these aluminum or plastic?Current exact manufacturer identifies lightweight aluminum finished in black powder coating. These are not the plastic scoops used by other applications.
How do the scoops attach?Tabs sit on the plastic support. An assistant holds the scoops while the original cover is installed, with the original pin clips passing through the scoop holes; original T20 screws are then restored.
Does installation require cutting or drilling?The current manufacturer states no cutting or drilling on OEM parts. Save and reuse the factory duct screws and plastic pins.
Is a California exemption or measured performance gain provided?The exact primary and manual say not CARB exempt and restrict California purchase and California-registered use. No numeric flow, dyno or temperature report is linked.
What battery, torque and recheck instructions apply?The manual calls for negative battery disconnection. Restore the battery after work using the vehicle service procedure. It provides no numeric torque or mileage recheck interval.
Installation Instructions
Verify aFe 54-11648. Read the complete eight-page manual and confirm both scoops and the T20 bit are present. Allow the engine to cool and follow its negative-battery disconnection instruction. Remove and save the T20 screws from the ram-air duct. Carefully pry and push up the plastic pins on both sides using a flat-head screwdriver; save the pins, then remove the air inlet duct. Position driver scoop 05-01033 and passenger scoop 05-01032 with their tabs on the plastic support. Have an assistant hold the scoops while the other person reinstalls the original cover and plastic pins. The pin clips must pass through the holes in the scoops to secure them. Reinstall the original T20 screws. The illustrated sequence ends without separately stating battery restoration; reconnect after work is complete using the vehicle service procedure. No numeric torque or mileage recheck interval is supplied.
Important Disclosures
The current exact primary, complete eight-page manufacturer manual, all A-C bill components and every installation figure A, B, C and E were reviewed. This is a pair of aluminum scoops, not a complete intake, plastic scoop, dry filter or electronic component. Original fitment bounds, tags and vehicle memberships are preserved; model-specific retailer evidence qualifies the compressed primary headline. Generic filter and coupler flags conflict with the actual bill. Manufacturer routing and temperature benefits are qualitative; no numerical horsepower, airflow, pressure or temperature gain is certified. Do not substitute an exemption from another intake or scoop: the exact current manufacturer and manual state not CARB exempt and apply their California restriction. Turn14 authenticated exact-product information remains unavailable. Pricing and commercial fields remain unchanged.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
