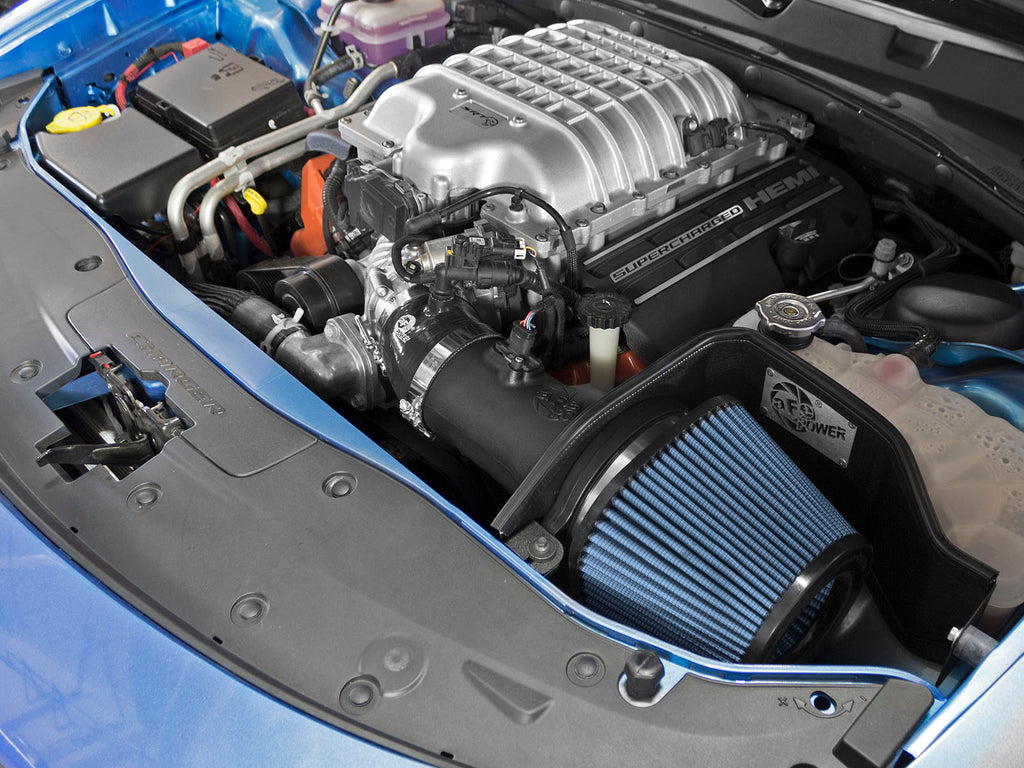

The aFe 54-12802 Magnum FORCE Stage-2 intake combines one Pro 5R filter, a molded plastic tube with an aluminum reinforcing sleeve and a one-piece powder-coated 18-gauge heat shield for 2015–2016 Challenger/Charger SRT Hellcat 6.2L supercharged applications. It is an open-element heat-shield intake, rather than the sealed Momentum housing or a carbon fiber system.
| Years | Make | Model | Engine |
|---|---|---|---|
| 2015–2016 | Dodge | Challenger / Charger SRT Hellcat | 6.2L supercharged HEMI V8 |
54-12802: the exact current page and shared manual both identify 2015–2016. Existing 2017 search rows are not supported by these exact sources and are not carried forward. The current page identifies the Challenger headlight inlet and Charger grille inlet separately; do not infer later Hellcat, Demon, Redeye or other-engine coverage.
| Detail | Value |
|---|---|
| Manufacturer Part Number | 54-12802 |
| Filter | One 24-91068 Pro 5R; 7 in. flange, 6-3/4 in. height per current exact page |
| Tube | 05-12802B1; molded plastic with aluminum reinforcing sleeve |

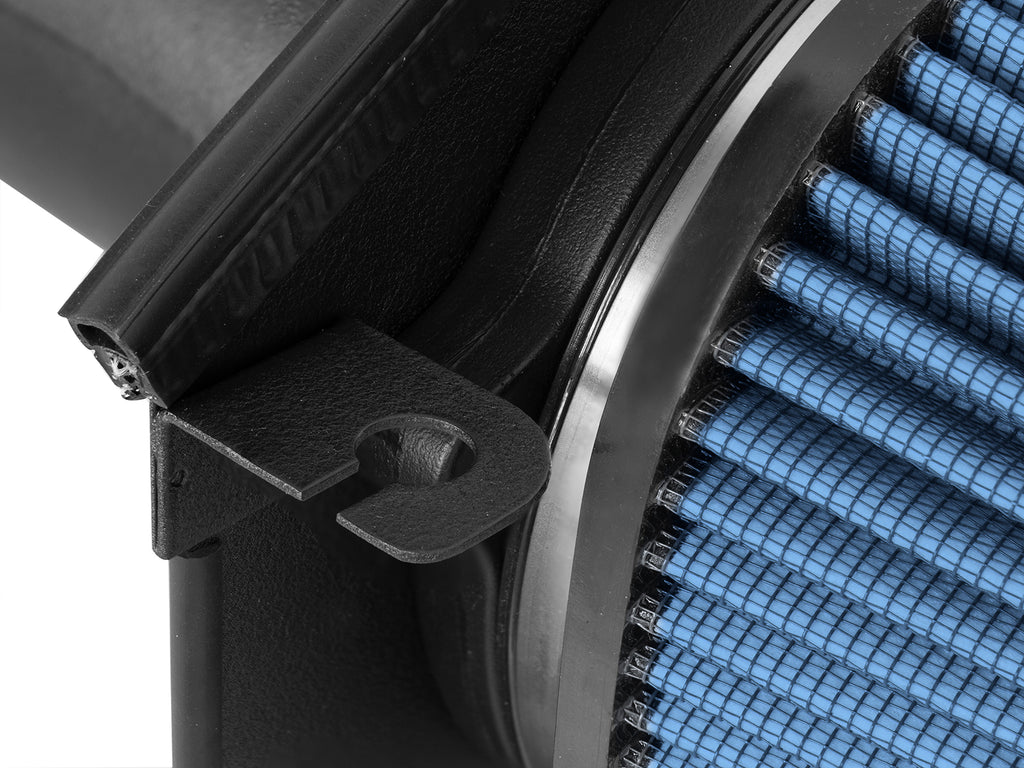

| Heat shield | 05-12802B2; one-piece powder-coated 18-gauge construction |

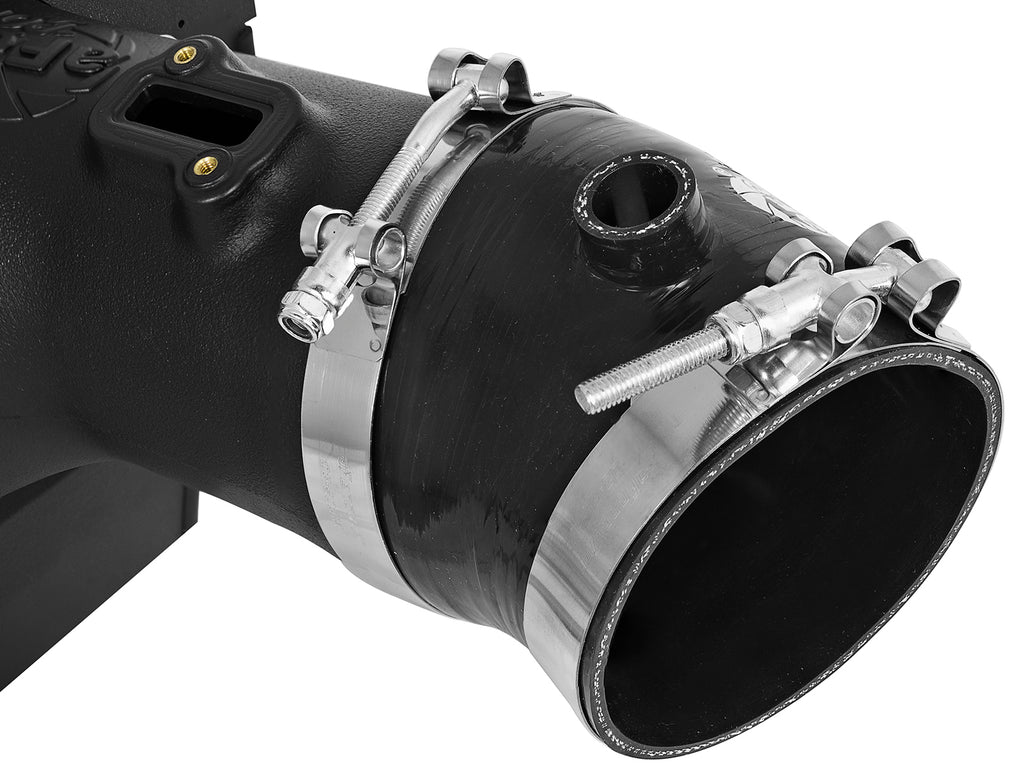

| Coupling | 05-01352 silicone; original supercharger breather fitting retained |
| Sensor | Original sensor called MAF in this exact manual; transferred using supplied slotted screws, called M4 in the installation step |
| Emissions | The current exact page describes this intake as 50-state legal under CARB EO D-550-19/22. Exact EO scope was unavailable for independent verification, so match the actual vehicle/engine and applicable EO rather than treating an existing emissions tag as certification. The manual requires the applicable EO label on or near the system. |
aFe Power develops application-specific intake, filtration, exhaust, cooling, tuning, suspension, drivetrain, and truck-performance components supported by product testing and documented installation requirements.
A Magnum FORCE Stage-2 intake with one Pro 5R filter, molded tube and one-piece heat shield for the listed 2015–2016 Hellcat vehicles.
Are both filter types included?No. This exact kit supplies one 24-91068 Pro 5R filter. The shared manual shows the alternate-media kit’s filter for reference.
Does it fit the 2017 Hellcat from the old search rows?The exact current page and manual identify 2015–2016 only. A separate later-kit application must be verified rather than extending this part from a related family.

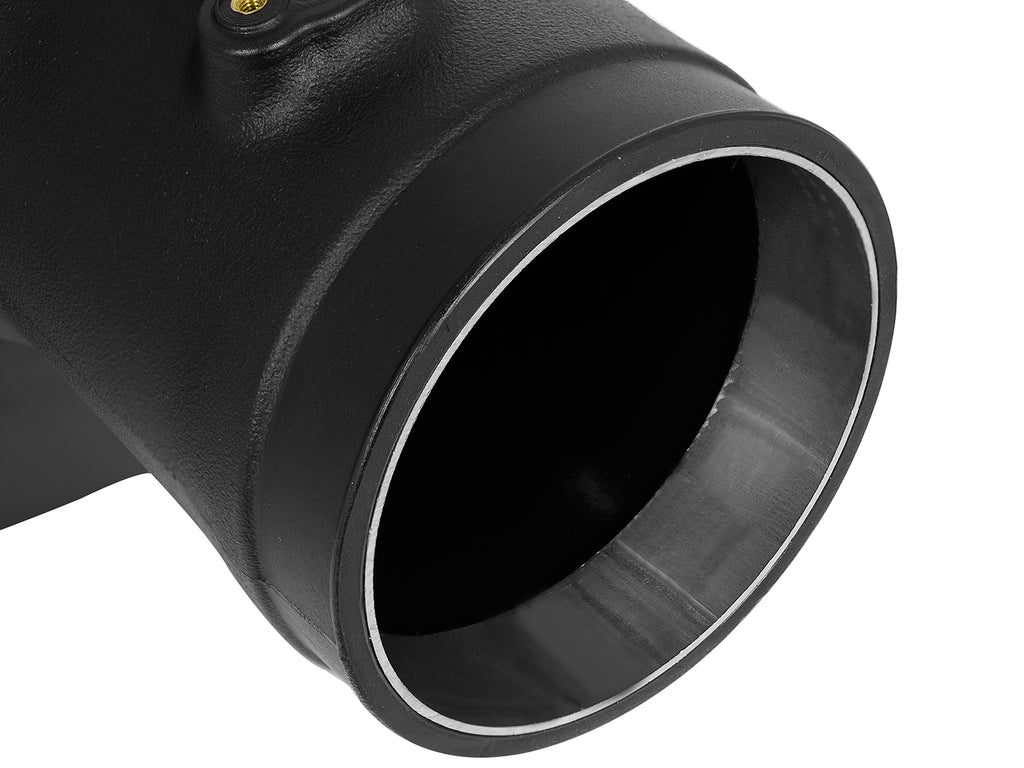

Is the tube entirely aluminum?No. The manufacturer identifies a molded plastic tube with an aluminum sleeve pressed into its end for reinforcement.
Is the rain shield included?No. A compatible filter-mounted rain shield is a separate accessory with its own exact parent-intake compatibility.
Does this early kit require the later MUA line cut?No such step is specified in this early manual, and its exact page says no OEM cutting or drilling. Do not import the later 2019+ MUA-line procedure.
Which factory sensor and inlet are retained?Follow the exact manual’s sensor transfer, which it labels MAF, and its supplied-screw mounting. The Challenger and Charger retain different original inlet arrangements; the Charger grille duct remains in the car.
Is every emissions configuration certified?The current exact page describes this intake as 50-state legal under CARB EO D-550-19/22. Exact EO scope was unavailable for independent verification, so match the actual vehicle/engine and applicable EO rather than treating an existing emissions tag as certification. The manual requires the applicable EO label on or near the system.
California Proposition 65 warning: this product can expose you to chemicals known to the State of California to cause cancer and reproductive harm.
