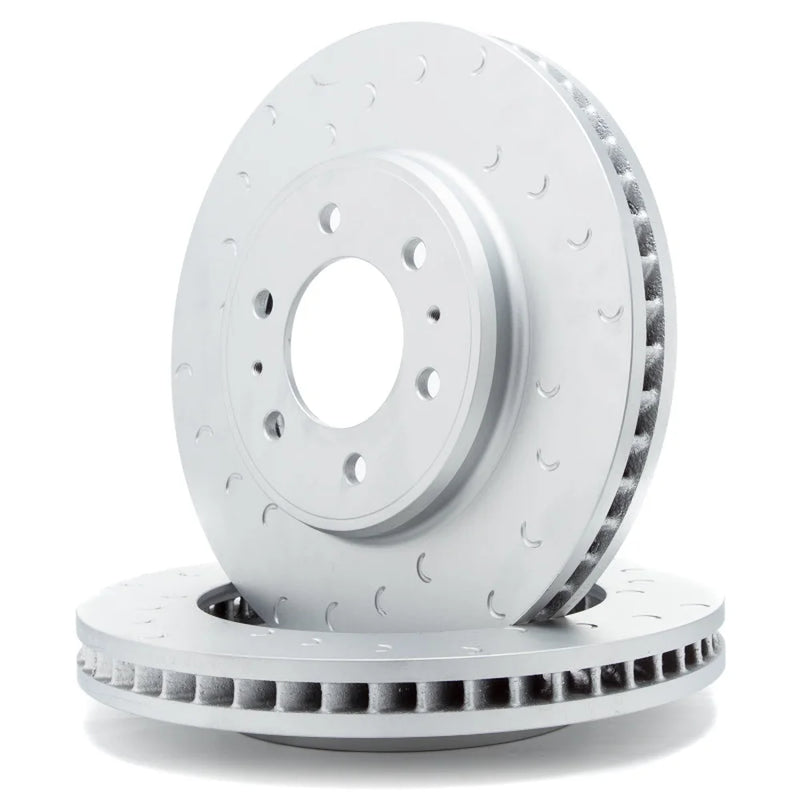

The Alcon ALCALADIV3430X986C24R is the right front replacement rotor for the ALCALABKF1559BE11 big brake kit fitted to the 2010-2021 Ford F-150 and Raptor. Larger rotors increase brake torque and thermal capacity, reducing potential for brake fade during repeated hard stops.
Key Features
- ALCALADIV3430X986C24R right front replacement rotor
- 347x36mm dimensions matching the original Alcon big brake kit
- One-piece design with high thermal mass for reduced fade
- Direct fit replacement for the ALCALABKF1559BE11 kit
Fitment
| Years | Make | Model | Submodel / Notes |
|---|---|---|---|
| 2010-2021 | Ford | F-150 |
Specifications
| Brand | Alcon |
|---|---|
| Manufacturer Part Number | ALADIV3430X986C24R |
| Product Type | Brake Rotors - Slotted |
| Condition | New |
| Rotor Diameter | 347mm |
| Rotor Thickness | 36mm |
| Position | Right Front |
| Design | One-piece |
What's Included
- One ALCALADIV3430X986C24R right front rotor
About Alcon
Alcon engineers performance brake systems and service components for road, off-road, motorsport, defense, and specialized vehicle applications. Exact caliper, rotor, pad, hardware, fitment, and clearance requirements vary by part number.
Related Parts
- Alcon 09-20 F-150/Raptor Gen1-2 347x36mm Rotors 6-Piston Red Front Brake Kit Requires alcAC011507NAN
- Alcon 2010+ Ford F-150 347x36mm Rotor Kit - Front
- Shop the complete Alcon collection
Frequently Asked Questions
Which position does Alcon ALADIV3430X986C24R fit?
This component is for Right Front. Confirm left versus right, front versus rear, rotor dimensions, and the compatible Alcon kit number before ordering.
Is this rotor interchangeable with a similar-looking Alcon rotor?
No assumption should be made from appearance or diameter alone. Match the exact MPN, side, offset, thickness, hat or ring interface, vane direction, and compatible brake kit.
What is included with Alcon ALADIV3430X986C24R?
The verified package includes One ALCALADIV3430X986C24R right front rotor. Hats, rings, fasteners, and opposite-side components are included only when expressly listed.
What should be checked before installing a replacement rotor?
Verify rotor thickness and condition, correct directional orientation, clean mounting surfaces, compatible pads and hardware, wheel clearance, fastener torque, runout, and the required bedding procedure.
Installation Instructions
- Raise the vehicle on a lift or axle stands and remove the right front wheel.
- Remove the caliper and support it aside without disconnecting the brake hose.
- Remove the worn rotor from the hub.
- Clean the hub face to ensure it is flat before installing the new rotor.
- Install the ALCALADIV3430X986C24R rotor, checking for a minimum 5mm clearance to the steering joint.
- Reposition the caliper over the rotor and torque the mounting bolts to specification.
- Reinstall the wheel and torque to factory specification.
- Bed in the new rotor with several gradual stops from low speed.
