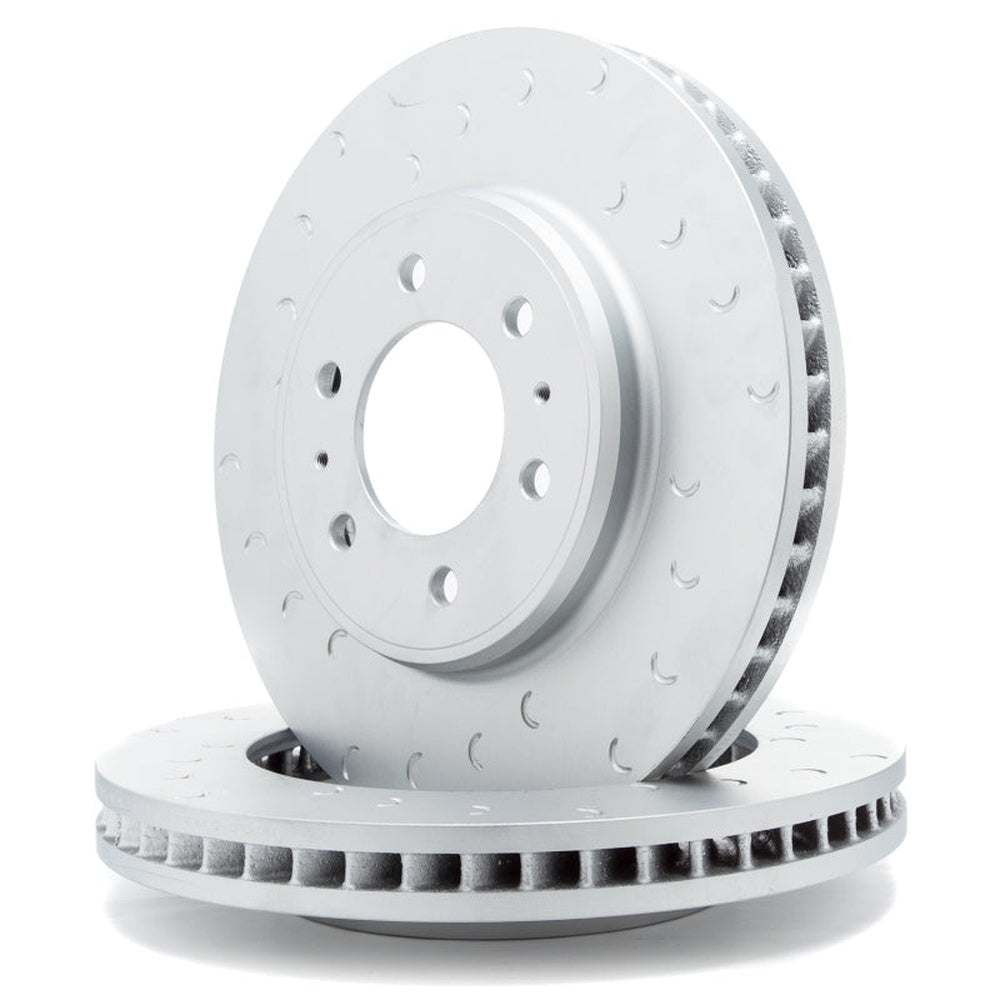

Alcon Ford F-150/Raptor 347mm Front Brake Rotor Pair
Alcon DKF3430X986C is ford f-150/raptor 347mm front brake rotor pair for Ford F-150/Raptor fitted with Alcon front kit BKF1559BE11. Match the service component to the installed brake system before disassembly to avoid ordering a similar-looking part with a different interface.
Key Features
- Rotor: 347 x 36 mm
- Package quantity: Two rotors; front axle pair
- Left rotor: DIV3430X986C24L
- Right rotor: DIV3430X986C24R
- Dedicated service component matched by size, position and brake-system interface.
Fitment
| Detail | Value |
|---|---|
| Application | Ford F-150/Raptor fitted with Alcon front kit BKF1559BE11 |
| Position | Front |
| Selection notes | For the matching Alcon big brake kit; confirm the existing rotor specification before ordering. |
Match DKF3430X986C to the complete brake configuration and the application notes above.
DKF3430X986C is the front service rotor axle pair for installed Alcon kit BKF1559BE11. The current exact manufacturer page and selected II009 service list identify one left DIV3430X986C24L and one right DIV3430X986C24R, using the specified 347 x 36 mm Alcon arrangement. It is not a factory F-150 rotor replacement. The original 2010–2021 raw ranges, including SVT Raptor/Roush labels, remain conditional legacy installed-system references; those labels are not blanket factory trim or 2021 chassis approval. Match the actual rotor number, side, dimensions and installed kit before ordering, and do not substitute a different Alcon rotor solely by diameter.
Specifications
| Detail | Value |
|---|---|
| Brand | Alcon |
| Manufacturer part number | DKF3430X986C |
| Product type | Brake Rotors - Slotted |
| Condition | New |
| Position | Front |
| Rotor | 347 x 36 mm |
| Package quantity | Two rotors; front axle pair |
| Left rotor | DIV3430X986C24L |
| Right rotor | DIV3430X986C24R |
What’s Included
- Two rotors; front axle pair
The components listed above describe DKF3430X986C. Separate service parts and other axle kits are not included unless expressly listed.
About Alcon
Alcon develops braking systems and replacement components for motorsport, performance road vehicles, trucks and specialized applications. Its Pro-System range pairs Alcon calipers with application-specific rotor and mounting packages. Service parts must be selected for the exact system.
Related Parts
- Alcon Ford F-150/Raptor 6-Piston Front Brake Pad Set
- Alcon 2009-2020 Ford F-150/Raptor Front Big Brake Kit
FAQ
What is the DKF3430X986C?It is an Alcon replacement brake rotor designed for Ford F-150/Raptor fitted with Alcon front kit BKF1559BE11.
What application does it fit?Ford F-150/Raptor fitted with Alcon front kit BKF1559BE11. For the matching Alcon big brake kit; confirm the existing rotor specification before ordering.
What is included?Two rotors; front axle pair. Package details apply to this listing.
Does it replace the factory brake component?It services the specified Alcon brake system. A matching vehicle name does not establish compatibility with factory calipers or rotors.
Which measurements should I check?Rotor: 347 x 36 mm; Package quantity: Two rotors; front axle pair; Left rotor: DIV3430X986C24L. Match all applicable dimensions and interfaces.
What else should I check before ordering?Check the position, quantity and exact installed brake-system configuration. Left and right directional components must be ordered for their designated sides.
Is professional installation recommended?Brake work should be performed by a qualified technician using the current vehicle and Alcon procedures. Fastener torque, routing, clearances and safe operation must be verified.
What procedure should I follow after installation?Follow the specified inspection and bedding procedure for the exact components. Bleed the system whenever the hydraulic circuit is opened, inspect for leaks and confirm pedal operation before driving.
Installation Instructions
- Verify the vehicle, existing brake system and all supplied DKF3430X986C components against the current instructions.
- Safely support the vehicle and remove the appropriate wheel or wheels.
- Remove the worn components using the brake-system service procedure; support any displaced caliper without straining its hose.
- Install the replacement components in the specified orientation, using required new hardware and the exact torque values from the current instructions.
- Inspect clearances and line routing, bleed the hydraulic system if opened, and verify fluid level, leak-free operation and a firm pedal.
- Refit the wheels, torque the wheel fasteners and complete the component-specific bedding and operational checks before normal use.
