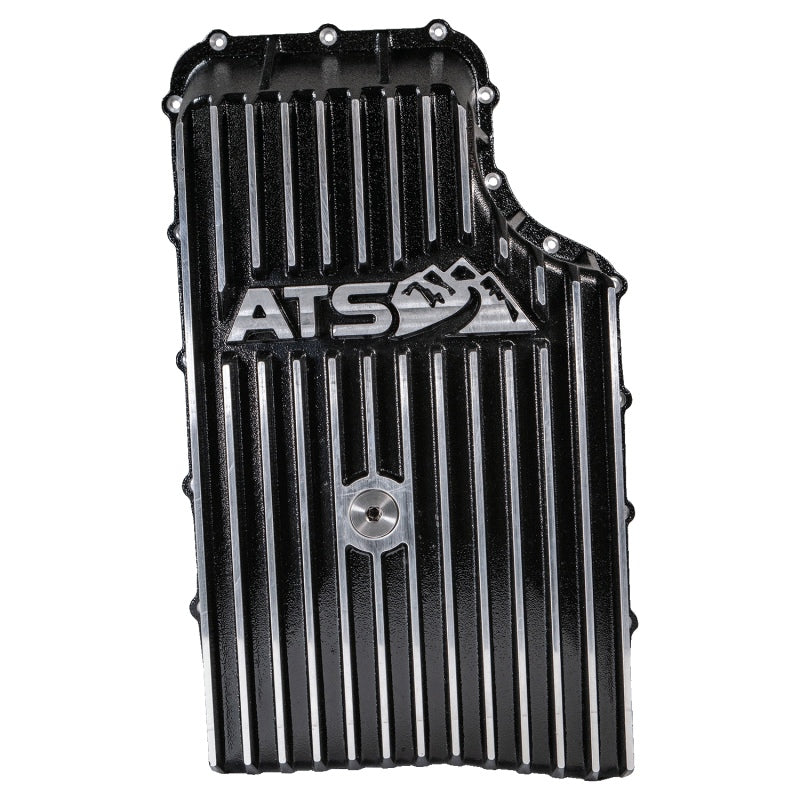

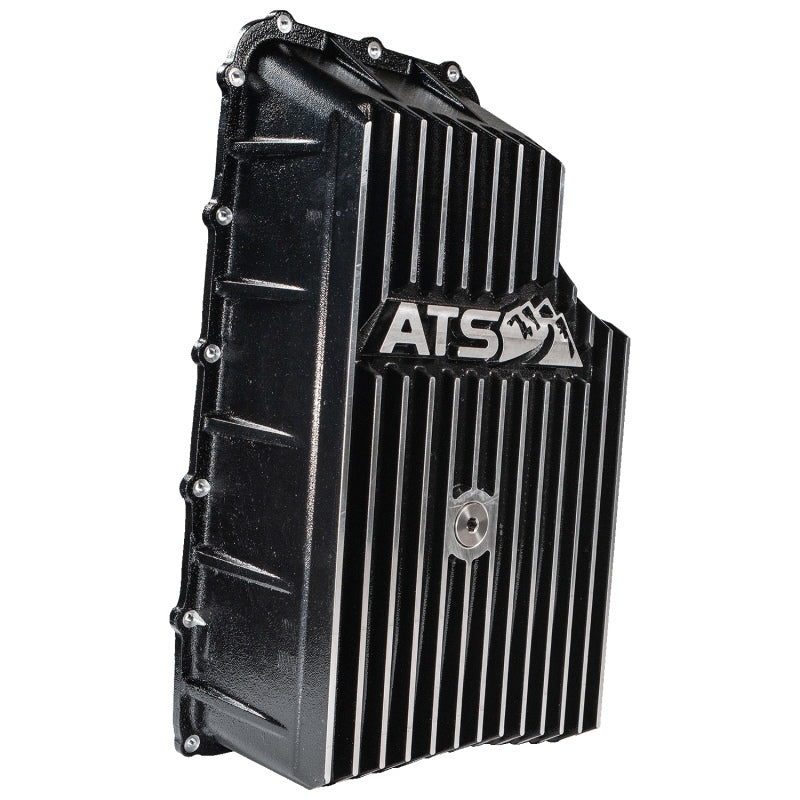

ATS Diesel High Capacity Aluminum Transmission Pan for 2011-2022 Ford F-250 F-350 F-450 F-550 Super Duty 6R140
The ATS Diesel High Capacity Aluminum Transmission Pan upgrades the stock pan on Ford 6R140 transmissions in 2011-2022 Super Duty trucks.
This cast aluminum pan increases fluid capacity by 4 quarts to maintain lower operating temperatures during towing and hauling. It traps debris with powerful magnets while fins enhance cooling for longer transmission life.
Key Features
- Cast A356-T6 Aluminum: Provides durable construction that resists cracking and efficiently dissipates heat compared to plastic stock pans.
- Extra Fluid Capacity: Holds 4 additional quarts of ATF to reduce heat buildup and improve lubrication under heavy loads.

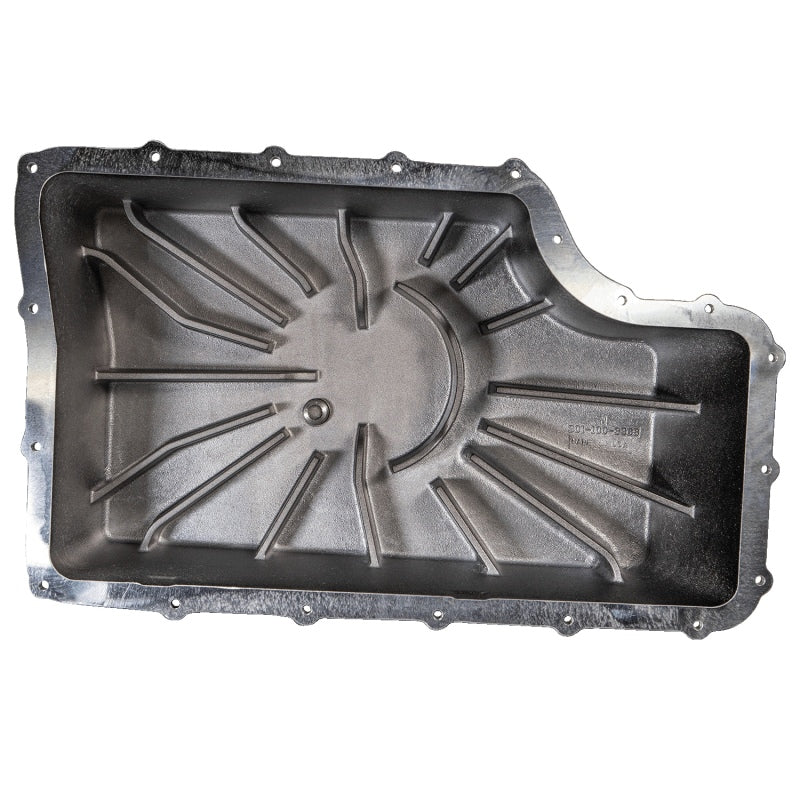

- Cooling Fins: 14 external and internal fins increase surface area for better heat transfer to improve transmission efficiency.
- Neodymium Magnets: Five large magnets capture ferrous wear particles to keep fluid clean and protect internal components.
- Complete Kit: Includes o-ring style gasket stainless steel drain plug hardware and transmission temperature sensor port for easy monitoring.
Product Notes
- Direct bolt-on replacement requires no vehicle modifications.
- Use with OEM or upgraded transmission filter for best results.
- Pan weighs 12 lbs empty lighter than steel alternatives yet stronger than stock.
Installation Notes
- Professional installation recommended.
- Drain fluid torque bolts to 10-12 ft-lbs in crisscross pattern.
- Uses existing mounting hardware includes new stainless drain plug.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011-2022 | Ford | F-250 Super Duty | 6.7L Diesel |
| 2011-2022 | Ford | F-350 Super Duty | 6.7L Diesel |
| 2011-2022 | Ford | F-450 Super Duty | 6.7L Diesel |
| 2011-2022 | Ford | F-550 Super Duty | 6.7L Diesel |
Why Choose ATS Diesel?
- Engineered and manufactured in the USA for diesel truck applications.
- Backed by decades of transmission expertise in towing and racing.
- Precision machined for exact fit and reliable long-term operation.
Frequently Asked Questions
- Q: Will this pan fit 2017-2022 Ford Super Duty trucks with 6R140?
- A: Yes it bolts directly to 2011-2022 F-250 through F-550 Super Duty models equipped with the 6R140 TorqShift transmission and 6.7L Power Stroke diesel engine.
- Q: What material and finish does the pan have?
- A: Made from cast A356-T6 aluminum with a durable black wrinkle powder coat finish for corrosion resistance and heat management.
- Q: What is the warranty and installation time?
- A: Covered by ATS Diesel standard warranty. Installation takes 1-2 hours with basic tools after dropping the stock pan.
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Securely boxed 28 x 20 x 6 inches
- Weight: 12 lbs product 15 lbs shipping
