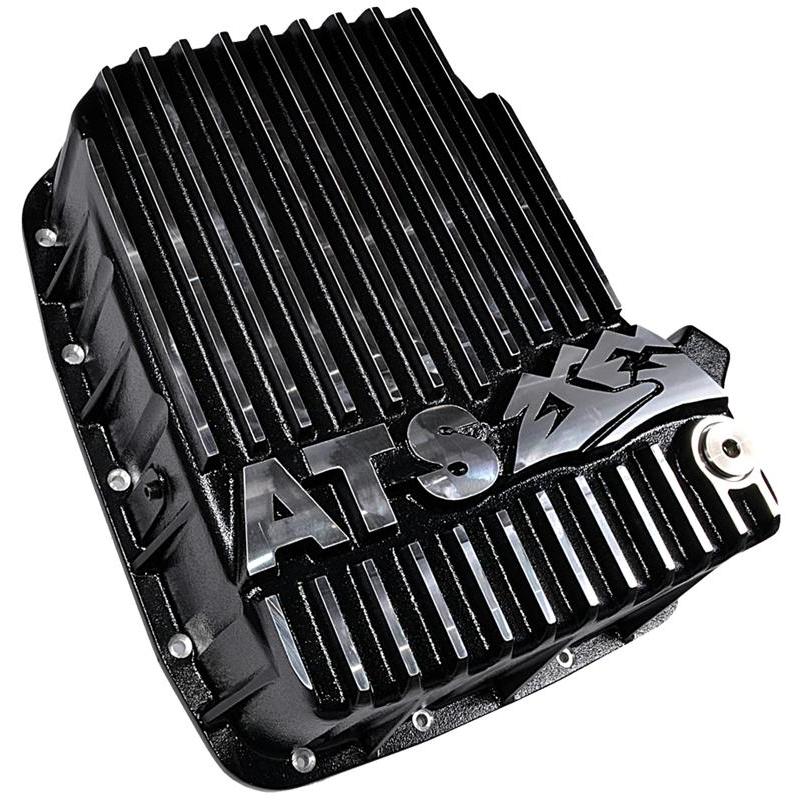

This ATS Diesel transmission pan adds fluid and cooling capacity for towing, hauling, and performance use. The filter pickup, chassis clearance, and fill procedure must match the exact transmission. Review the verified fitment, exact configuration, specifications, included components, and installation requirements below before ordering.
Key Features
- Cast Aluminum Build: A356-T6 aluminum construction sheds heat 20% faster than plastic pans while weighing 14 lbs.
- Increased Fluid Capacity: Adds 4 quarts over stock for sustained fluid temperatures and reduced wear during heavy loads.
- Pan includes magnetic drain plug and OEM-style temp sensor port for easy monitoring.
- Reuse OEM gasket with RTV or purchase ATS gasket kit. torque bolts to 12 ft-lbs in cross pattern.
- Made in USA with CNC-machined surfaces for perfect fit.
- A: Yes, heavy-duty A356-T6 cast aluminum with durable black wrinkle powder coat for rust protection.
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 1983-1991 | Ford | E-250 Econoline Club Wagon | |
| 1983-1998 | Ford | E-350 Econoline | |
| 1983-1994 | Ford | E-350 Econoline Club Wagon | |
| 2000-2003 | Ford | Excursion | |
| 1984 | Ford | F-150 | |
| 1983-1996 | Ford | F-250 | |
| 1999-2003 | Ford | F-250 | |
| 2008-2010 | Ford | F-250 | |
| 1983-1997 | Ford | F-350 | |
| 1999-2003 | Ford | F-350 | |
| 2008-2010 | Ford | F-350 |
Specifications
| Brand | ATS Diesel Performance |
|---|---|
| Manufacturer Part Number | 301-900-3104 |
| Product Type | Automatic Transmission Oil Pan |
| Condition | New |
| Engine Compatibility | 6.0L Power Stroke |
| Transmission Compatibility | E4OD, 4R100, 5R110 |
| Manufacturer GTIN | 00840440598398 |
| Manufacturer Reference | ATS E4OD 4R100 5R110 Deep Transmission Pan Fits 1989-2010 7.3L 6.0L Power Stroke |
What's Included
One new ATS Diesel component in the exact configuration shown. Gaskets, hardware, wiring, fittings, fluids, filters, tuning, and companion parts are included only when the manufacturer listing expressly states they are part of this exact configuration.
About ATS Diesel Performance
ATS Diesel Performance develops transmission, turbocharger, exhaust, fuel-system, and drivetrain components for Dodge, Ram, Ford, and GM diesel trucks. Product selection remains exact-application specific.
Related ATS Diesel Parts
- ATS Diesel High Capacity Aluminum Transmission Pan Ford 6R140
- ATS Diesel 46/7/8-RH/E Aluminum +5 Qt Transmission Pan
- ATS Diesel 68RFE Aluminum +5 Qt Transmission Pan
Browse the ATS Diesel collection for additional transmission, turbocharger, fuel-system, and drivetrain components.
Frequently Asked Questions
Does this transmission pan fit 1983-1991, 1983-1994, 1983-1996, 1983-1997, 1983-1998, 1984, 1999-2003, 2000-2003, 2008-2010 Ford E-250 Econoline Club Wagon, Ford E-350 Econoline, Ford E-350 Econoline Club Wagon, Ford Excursion, Ford F-150, Ford F-250, Ford F-350?
Those are the verified vehicle applications. Also confirm 6.0L Power Stroke, E4OD, 4R100, 5R110, production split, factory equipment, and every ATS application note before ordering.
Will this ATS pan increase transmission fluid capacity?
This is a deep-pan configuration. Confirm the exact added capacity and set the final level with the ATS and vehicle procedure rather than adding a fixed amount blindly.
Does this pan need a filter extension?
Use the filter pickup, extension, gasket, and hardware specified for the exact transmission. Verify chassis and crossmember clearance before filling the transmission.
Installation Instructions
Use the current ATS Diesel instructions and vehicle service information. Verify the exact application, required tools, fasteners, seals, fluids, calibration, torque values, clearances, and startup or relearn procedure. Professional installation is recommended for internal transmission, turbocharger, fuel-system, and driveline work.
