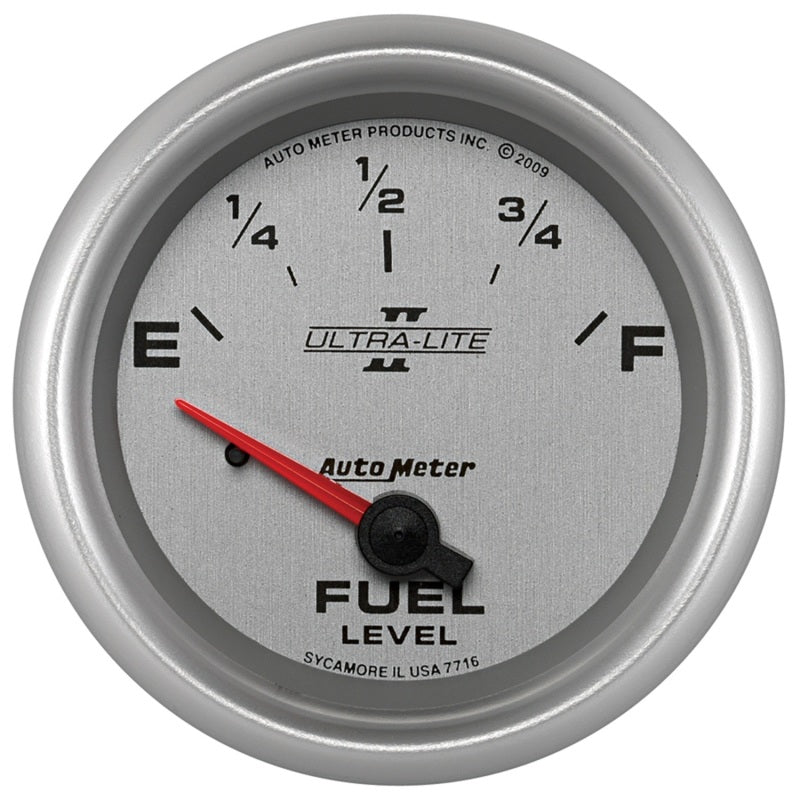

AutoMeter Gauge Fuel Level 2-5/8in. 240 Ohm(e) to 33 Ohm(f) Elec Ultra-Lite II AutoMeter ATM7716
Click to zoom in

AutoMeter Gauge Fuel Level 2-5/8in. 240 Ohm(e) to 33 Ohm(f) Elec Ultra-Lite II

AutoMeter
ATM7716
046074077166
Gauges
1 Units In Stock - Ships Next Business Day
$ 123.53
$ 123.53

SKU: 7716 | UPC: 046074077166

AutoMeter Gauge Fuel Level 2-5/8in. 240 Ohm(e) to 33 Ohm(f) Elec Ultra-Lite II - Universal

AutoMeter Ultra-Lite II fuel level gauge provides precise monitoring for setups with 240-33 Ohm sending units including aftermarket tanks and AutoMeter 3262 sender. This 2-5/8 inch electric gauge installs in custom performance cars race vehicles marine applications and non-baffled tanks. Patented air core movement with extra dampening delivers steady readings despite fuel slosh for dependable fuel management on track or street.

Key Features

  • 240-33 Ohm Sweep: Directly compatible with aftermarket senders like AutoMeter 3262 for tanks 5 to 28 inches deep providing exact empty to full calibration.
  • Air Core Movement: Patented design receives additional dampening to eliminate pointer bounce from fuel slosh in performance tanks.
  • Ultra-Lite II Construction: Weighs only 0.75 lbs with black anodized aluminum housing for reduced panel stress and clean aesthetics.
  • Illumination and Visibility: Incandescent white lighting with fluorescent red pointer and anti-reflective lens for clear day or night readings.
  • Compact Size: 2-5/8 inch diameter fits standard gauge panels with 12V operation and included mounting hardware.

Product Notes

  • Verify your fuel sender resistance range before purchase to ensure 240 Ohm empty and 33 Ohm full compatibility.
  • Designed for 12V electrical systems common in automotive and marine performance setups.
  • Ships ready to install with wiring harness and mounting brackets included.

Installation Notes

  • Professional installation recommended.
  • Connect to 12V switched ignition power black ground to chassis and sender signal wire per included diagram.
  • Drill 2-5/8 inch hole in panel U-bracket mounting hardware provided for secure fit.

This Part Fits

Year Make Model Submodel
Universal All All Vehicles with 240-33 Ohm Sender Incl. Custom Tanks AutoMeter 3262

Why Choose AutoMeter?

  • Trusted since 1957 across NHRA NASCAR and street performance worldwide.
  • Engineered for vibration resistance and long-term accuracy in harsh conditions.
  • Backed by precision manufacturing for consistent performance in every gauge.

Frequently Asked Questions

  • Q: What fuel senders work with this gauge?
    A: Any sender with 240 Ohm at empty and 33 Ohm at full such as AutoMeter 3262 or equivalent aftermarket marine and tank units.
  • Q: What materials and finish are used?
    A: Lightweight black anodized aluminum housing flat anti-reflective lens and durable polymer internals for corrosion resistance.
  • Q: What is the warranty and support?
    A: Covered by AutoMeter 12-month limited warranty with technical support available for installation and troubleshooting.

Shipping &amp. Handling

  • Method: UPS Ground or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Original AutoMeter box approximately 4 x 4 x 4 inches
  • Weight: 0.75 lbs
