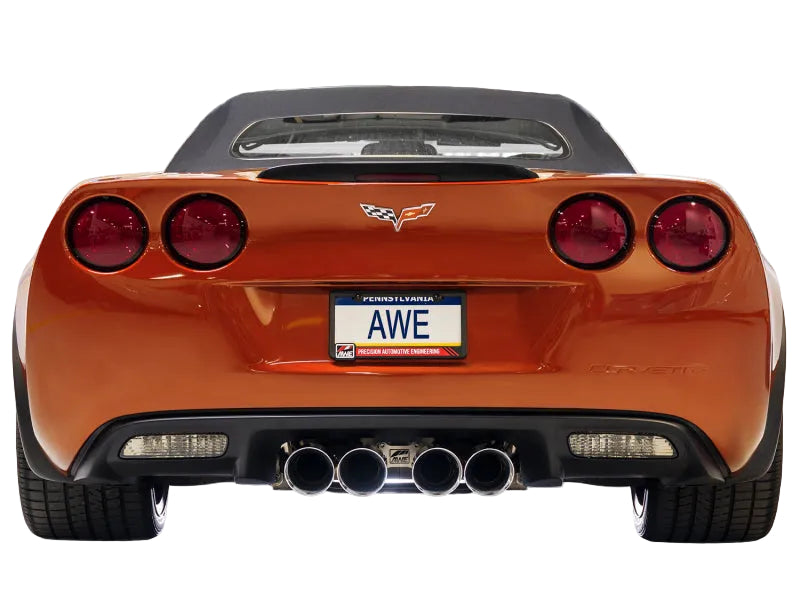

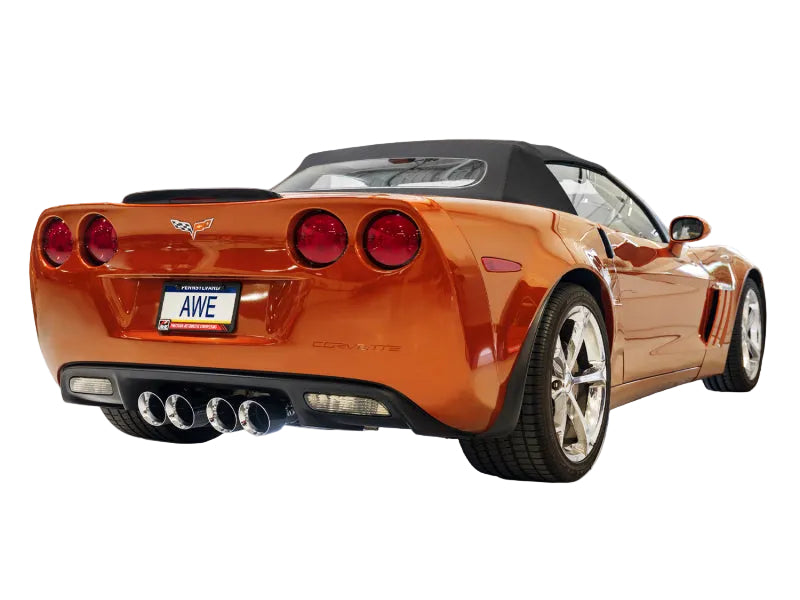

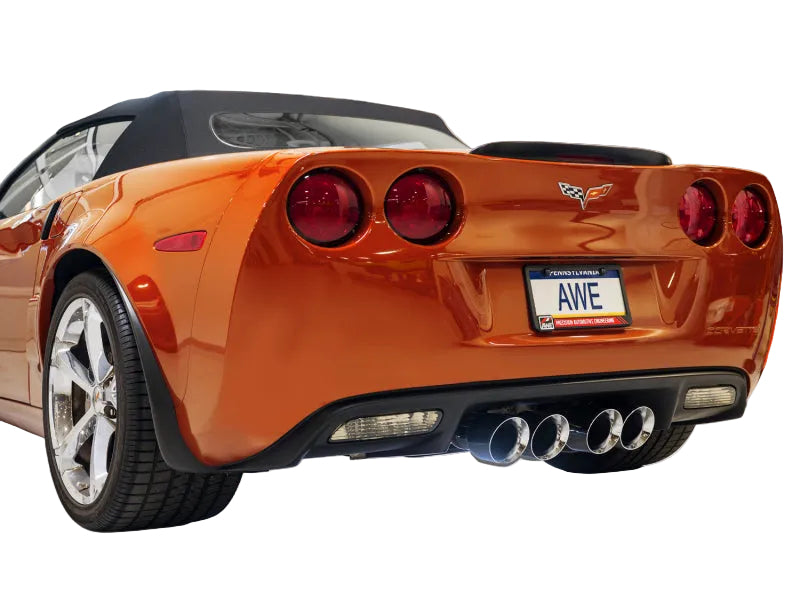

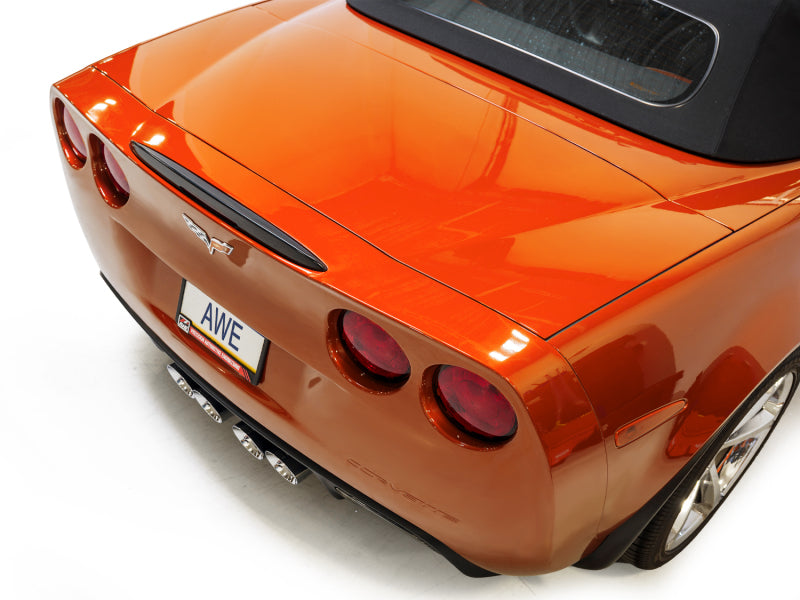

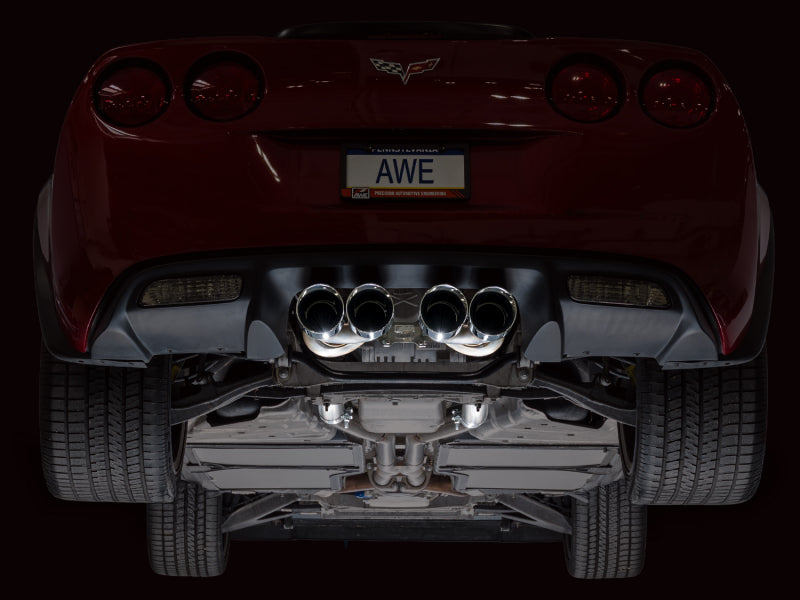

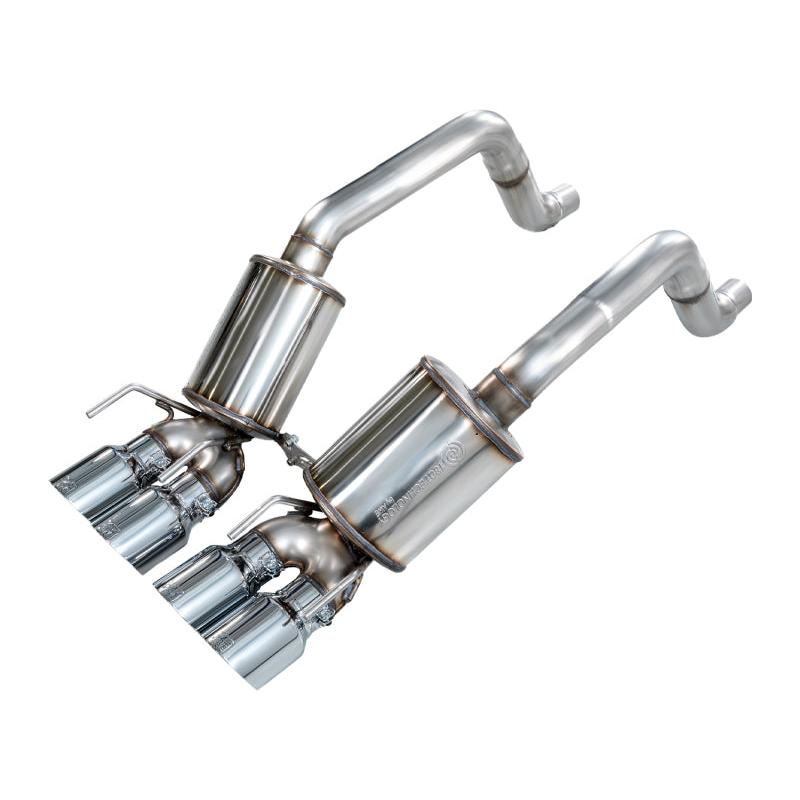

The AWE Tuning 3015-42660 Touring Edition Axle-Back Exhaust transforms the 2005, 2006, 2007, and 2008 C6 Corvette Base and Grand Sport with the aggressive LS tone you want under throttle, while AWE's patented 180 Technology keeps cabin drone completely out of the picture at highway speed. Built from 3" T304L stainless steel with precision CNC mandrel bends, 3015-42660 delivers measurable power gains, bold 4.5" double-walled chrome silver tips, and AWE's Lifetime Exhaust Warranty, all in a direct bolt-on fitment with no cutting required.
Fitment for AWE 3015-42660
AWE 3015-42660 is engineered for the following vehicles:
| Year |
Make |
Model |
Trim |
Engine |
| 2005 |
Chevrolet |
Corvette C6 |
Base |
6.0L LS2 V8 |
| 2005 |
Chevrolet |
Corvette C6 |
Grand Sport |
6.0L LS2 V8 |
| 2006 |
Chevrolet |
Corvette C6 |
Base |
6.0L LS2 V8 |
| 2006 |
Chevrolet |
Corvette C6 |
Grand Sport |
6.0L LS2 V8 |
| 2007 |
Chevrolet |
Corvette C6 |
Base |
6.0L LS2 V8 |
| 2007 |
Chevrolet |
Corvette C6 |
Grand Sport |
6.0L LS2 V8 |
| 2008 |
Chevrolet |
Corvette C6 |
Base |
6.2L LS3 V8 |
| 2008 |
Chevrolet |
Corvette C6 |
Grand Sport |
6.2L LS3 V8 |
Note: 3015-42660 is for C6 Base and Grand Sport models only. Z06 and ZR1 owners need AWE part number 3015-42606. Confirm your trim before ordering.

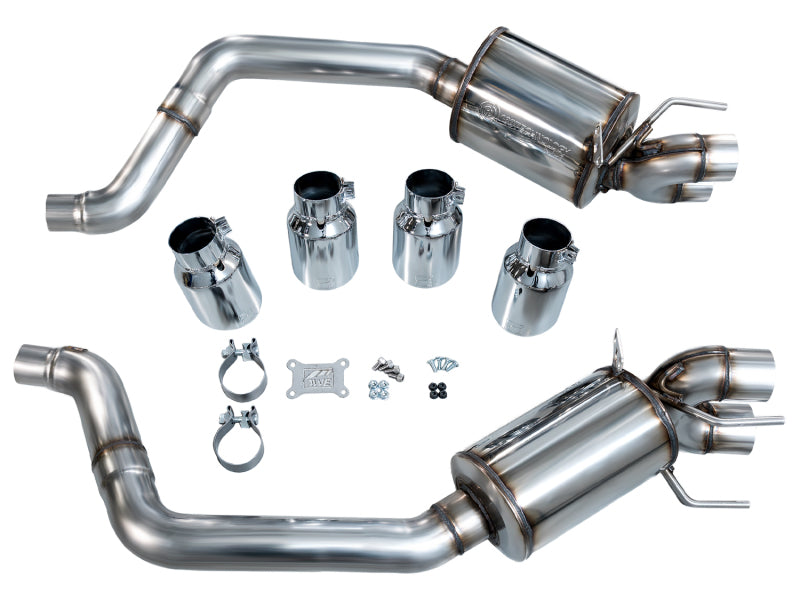

What's Included

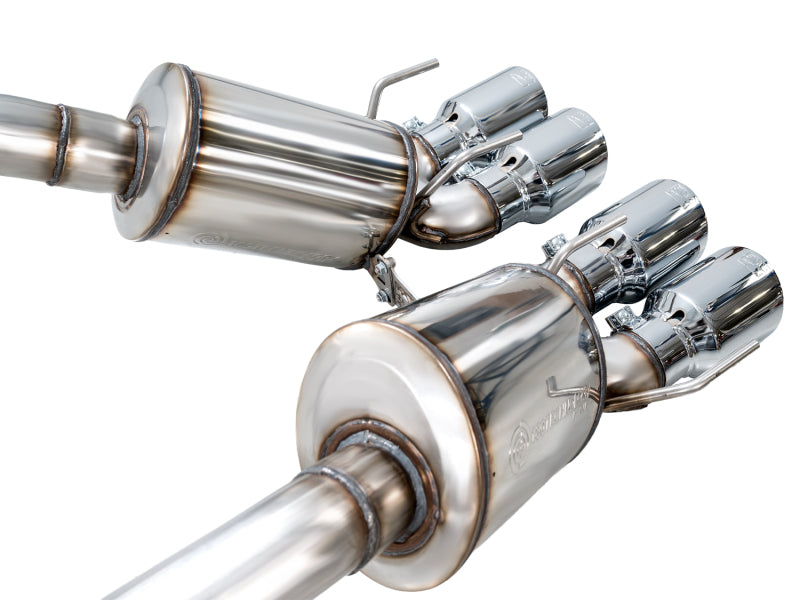

- 1x AWE 3015-42660 Touring Edition axle-back exhaust system

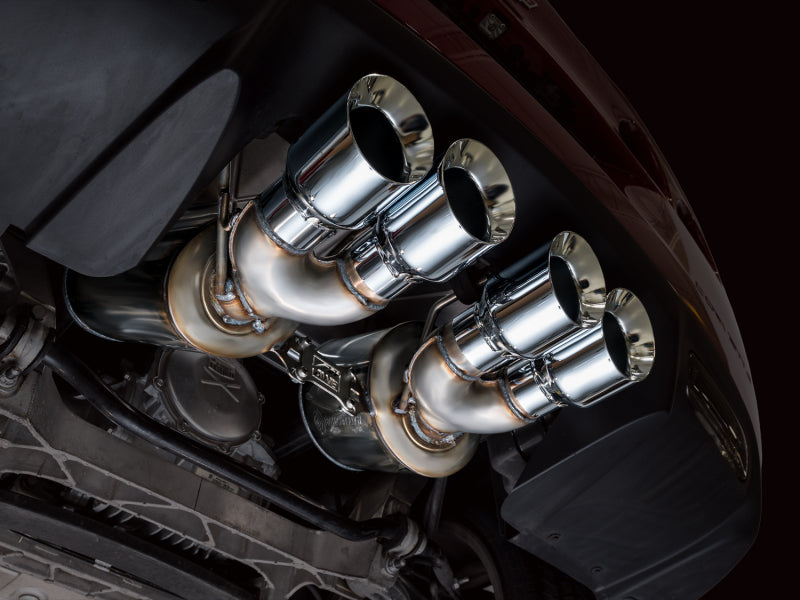

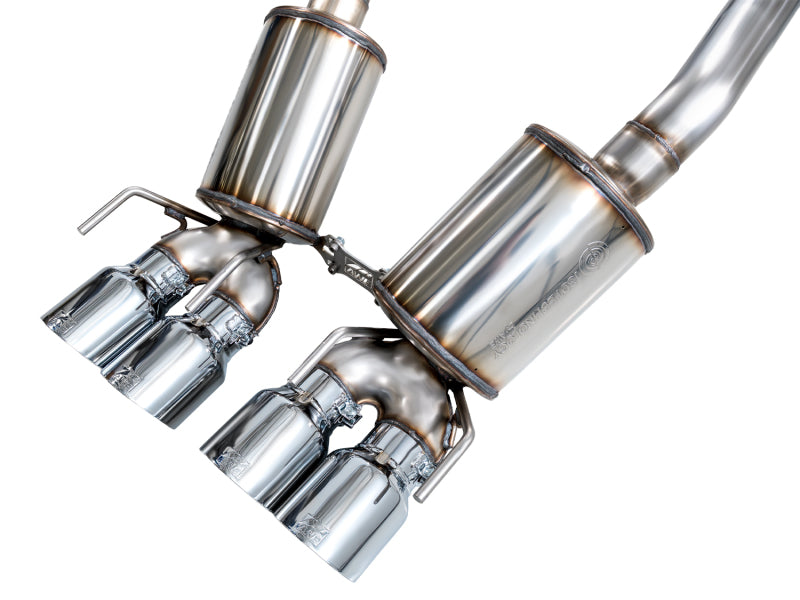

- 4x 4.5" double-walled slash-cut chrome silver tips (individually adjustable, AWE logo stamped)
- Hardware and Accu-Seal clamps for installation

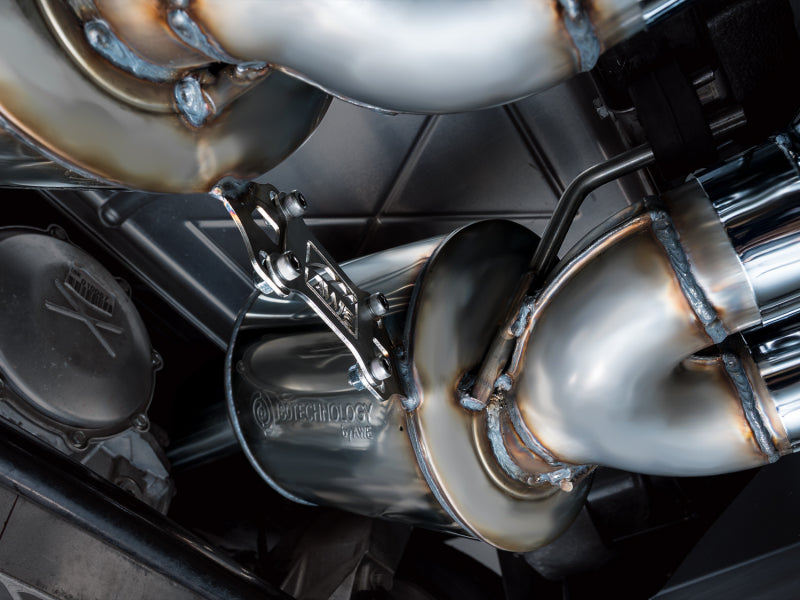

AWE 180 Technology: Drone-Free Sound
The single biggest frustration with high-flow exhaust systems on LS platforms is drone at highway cruise RPM. AWE's patented 180 Technology addresses this at the engineering level, using tuned reflection chambers inside the muffler body to cancel the specific frequency range that causes cabin resonance. The result is an exhaust that is aggressive at wide-open throttle and civilized at cruise, not a compromise between the two. 3015-42660 uses this same technology, making it genuinely daily-driver friendly on your C6.
Performance Gains
AWE 3015-42660 delivers dyno-proven power improvements over the factory exhaust system. Gains vary based on the mid-pipe used:
| Mid-Pipe Configuration |
Peak HP Gain |
Peak Torque Gain |
| Stock factory H-pipe |
Up to +16 HP |
Up to +17 lb-ft |
| AWE X-Pipe (sold separately) |
Up to +21 HP |
Up to +22 lb-ft |
The AWE X-Pipe is a separate purchase. 3015-42660 is compatible with the factory H-pipe out of the box and delivers meaningful gains without any additional modifications.
Product Specifications
| Specification |
Detail |
| Part Number (MPN) |
3015-42660 |
| Brand |
AWE Tuning |
| Edition |
Touring Edition |
| System Type |
Axle-Back Exhaust |
| Tip Finish |
Chrome Silver (polished) |
| Tip Size |
4.5" double-walled slash-cut (AWE logo stamped) |
| Pipe Diameter |
3" (2.5" inlet to factory mid-pipe, expands to 3" through system) |
| Material |
T304L stainless steel, 0.065" wall thickness, CNC mandrel bent |
| Drone Technology |
AWE 180 Technology (patented) |
| Mid-Pipe Compatibility |
Factory H-pipe or AWE X-pipe |
| Installation |
Direct bolt-on, no cutting or welding required |
| CEL (Check Engine Light) |
No CEL Guaranteed |
| Emissions |
Emission-friendly, does not affect factory emissions equipment |
| Manufactured |
In-house by AWE in Pennsylvania, USA |
| Package Dimensions |
53.5 x 25.5 x 15.7 in |
| Fitment |
2005-2008 C6 Corvette Base and Grand Sport |
Construction and Build Quality

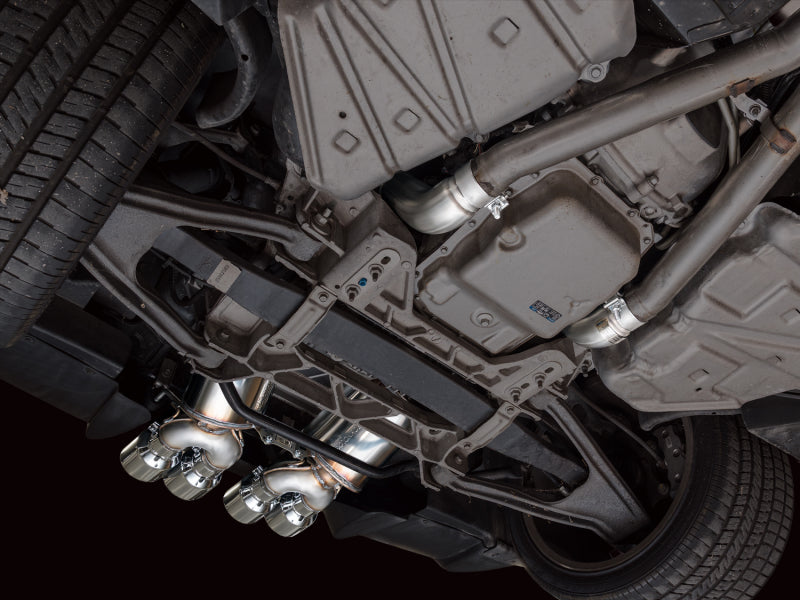

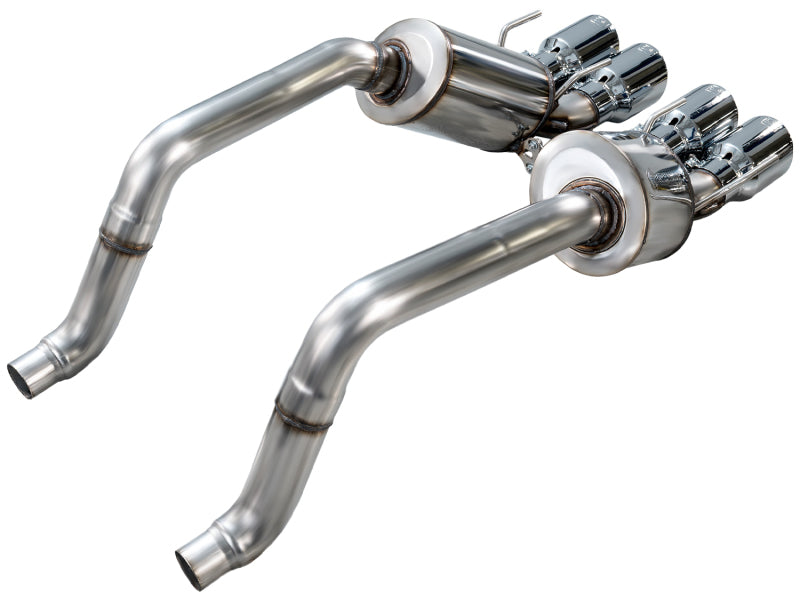

AWE hand-builds 3015-42660 in-house at their facility in Pennsylvania, USA, using American-sourced T304L stainless steel tubing at 0.065" wall thickness. CNC mandrel bending ensures tight, consistent bends without flow-restricting kinks. The over-axle pipes feature a 2.5" inlet to mate with the factory C6 mid-pipe, then step up to 3" diameter through the rest of the system, giving you a measurable flow improvement over the stock 2.5" axle-back. Tips are individually adjustable to allow precise centering in the rear bumper cutouts.
Installation Overview

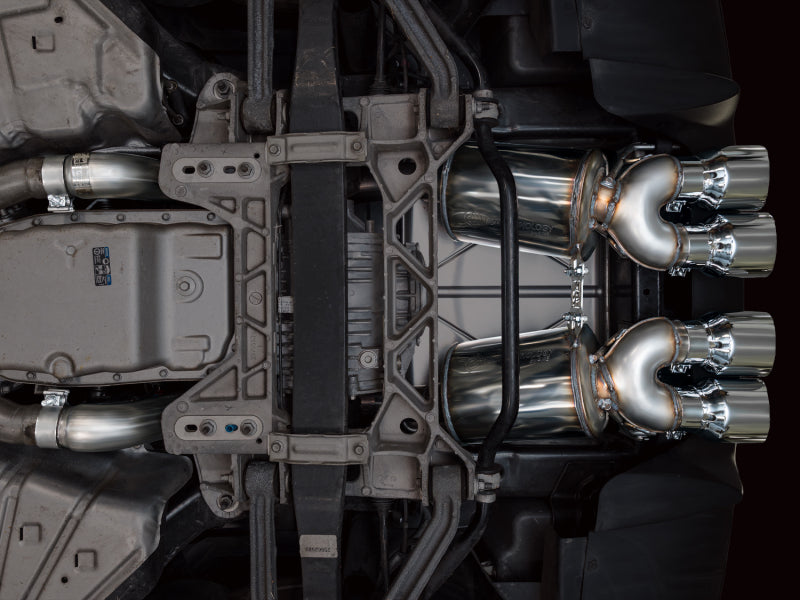

AWE 3015-42660 is a direct bolt-on installation requiring no cutting, welding, or tuning. Installation time is approximately 1.5 hours on a lift with basic hand tools. The system uses Accu-Seal clamps for leak-free connections. Anti-seize is recommended on all clamp bolts. A professional alignment of tips in the rear bumper cutouts is recommended before final torque. All factory hangers are reused. No Check Engine Light is guaranteed with correct installation on the compatible models.
Warranty
AWE backs 3015-42660 with their Lifetime Exhaust Warranty and a Perfect Fitment Guarantee. The Lifetime Warranty covers defects in materials and workmanship for the life of the product on the original vehicle. As an exhaust and performance component, this warranty is also subject to the disclosure requirements of the Magnuson-Moss Warranty Act, which ensures consumers receive clear warranty terms for automotive parts sold in the United States. Contact AWE directly for full warranty claim procedures.
Frequently Asked Questions
What vehicles does AWE 3015-42660 fit?
AWE 3015-42660 fits the 2005, 2006, and 2007 C6 Corvette Base and Grand Sport with the 6.0L LS2 V8, and the 2008 C6 Corvette Base and Grand Sport with the 6.2L LS3 V8. It does not fit the Z06 or ZR1.
Will 3015-42660 fit a C6 Z06 or ZR1?
No. AWE 3015-42660 is for Base and Grand Sport models only. The correct part for C6 Z06 and ZR1 is AWE 3015-42606. Confirm your trim level before ordering.
Does AWE 3015-42660 drone at highway speed?
No. The 3015-42660 uses AWE's patented 180 Technology, which tunes the muffler internals to cancel the frequency range responsible for cabin drone. It is designed to be aggressive under throttle and calm at cruise.
How much power does AWE 3015-42660 add?
With the factory H-pipe, 3015-42660 is dyno-proven to add up to +16 HP and +17 lb-ft of torque. When paired with the AWE X-Pipe (sold separately), gains increase to up to +21 HP and +22 lb-ft at the wheels.
Does 3015-42660 require any tuning after installation?
No. AWE 3015-42660 is a direct bolt-on axle-back that does not require a tune. AWE also guarantees no Check Engine Light when installed correctly on the compatible vehicles.
Is AWE 3015-42660 compatible with the factory H-pipe?
Yes. 3015-42660 connects directly to the factory C6 H-pipe mid-section. It is also compatible with the AWE X-Pipe if you choose to upgrade the mid-pipe separately.
What tips come with AWE 3015-42660?

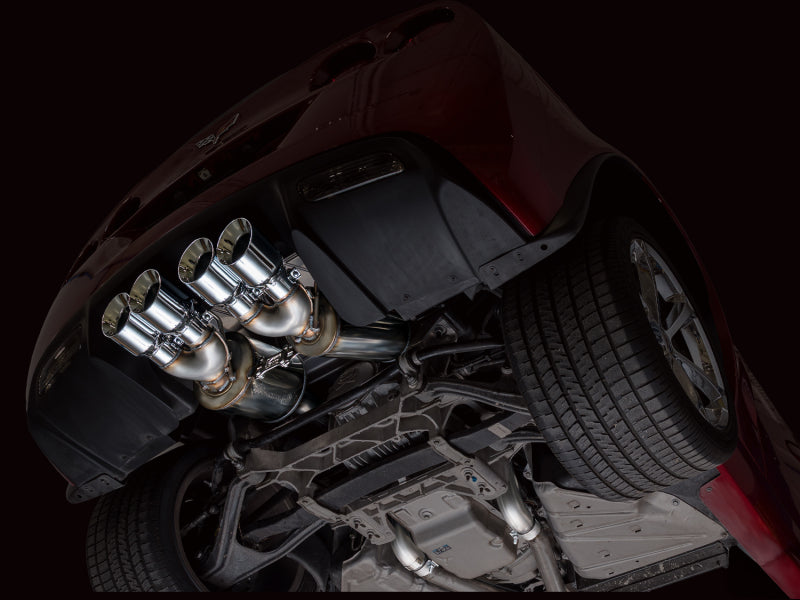

3015-42660 includes four 4.5" double-walled slash-cut chrome silver tips stamped with the AWE logo. The tips are individually adjustable to allow precise centering in the factory rear bumper cutouts.
How long does installation take?
AWE estimates approximately 1.5 hours on a lift with basic hand tools. No cutting, welding, or modification of the vehicle is required. All factory hardware is reused.
Where is AWE 3015-42660 manufactured?
AWE 3015-42660 is engineered, designed, and manufactured in-house by AWE at their facility in Pennsylvania, USA, using American-sourced stainless steel tubing.
What warranty does AWE 3015-42660 carry?
AWE covers 3015-42660 with their Lifetime Exhaust Warranty and a Perfect Fitment Guarantee. Coverage applies for the life of the product on the original vehicle against defects in materials and workmanship.
Does AWE 3015-42660 require a Prop 65 warning?
Yes. California Residents: WARNING: This product can expose you to chemicals including those known to the State of California to cause cancer and reproductive harm. For more information, visit www.P65Warnings.ca.gov.
