Baja Designs 2025+ Toyota 4Runner Squadron Sport 2.0 A-Pillar Kit (Driving/Combo) - Clear

A-Pillar LED Light Kit with 3,200 Lumen Squadron Sport 2.0 Pods and Selectable Backlight for the 2025-2026 Toyota 4Runner

The Baja Designs 440010 Squadron Sport 2.0 A-Pillar Kit provides a vehicle-specific two-light auxiliary lighting solution for the 2025-2026 Toyota 4Runner. Each of the two Squadron Sport 2.0 pods in the 440010 produces 3,200 lumens at 30W, a 26 percent output increase over the previous generation, with the same compact housing that mounts directly to the 4Runner's A-pillars using the included vehicle-specific brackets. The Driving/Combo beam pattern projects both a focused beam for forward distance and a wider spread for side coverage. The 2.0 generation adds a selectable 9-color backlight, redesigned 4-pin Deutsch connector, clip-in uService reflectors, updated IP69K-rated gasket, and a new mounting bracket with greater vertical adjustability.

Key Features

• 3,200 lumens per light at 30W, 26 percent more output than the previous Squadron Sport generation
• Driving/Combo beam pattern for long-range and wide side coverage
• 9-color selectable backlight for styling and camp use
• IP69K rated for dust, water, and submersion protection
• 4-pin Deutsch connector for secure wiring connections
• uService clip-in reflectors for tool-free field lens swaps
• Vehicle-specific 2025-2026 Toyota 4Runner A-pillar mounting brackets included
• Toggle switch harness included
• 12-32V operational voltage range
• Baja Designs Limited Lifetime Warranty and 30-Day Satisfaction Guarantee

Fitment

Specifications

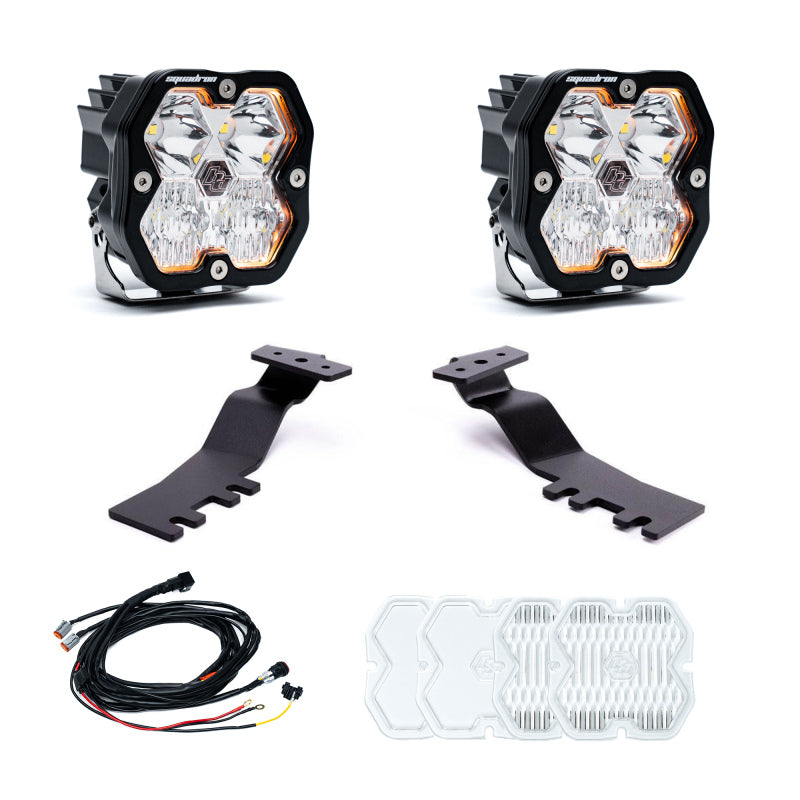

What's Included

• 2x Squadron Sport 2.0 LED light pods (Clear/Driving Combo)
• 2x Vehicle-specific 2025-2026 Toyota 4Runner A-pillar mounting brackets
• 1x Toggle switch 4-pin harness
• 2x Squadron 2.0 Lens Kit (Clear/Spot)
• 2x Squadron 2.0 Lens Kit (Clear/Wide Cornering)
• All necessary mounting hardware

Frequently Asked Questions

The 440010 Squadron Sport 2.0 produces 3,200 lumens per light at 30W. The 440011 Squadron Pro 2.0 produces 5,921 lumens per light at 65W. Both kits use identical vehicle-specific A-pillar brackets for the 2025-2026 4Runner and include the same Driving/Combo beam pattern. The Sport draws roughly half the current of the Pro, making it a practical choice for owners who want capable auxiliary lighting without the higher electrical demand of the Pro pods.

Yes. The 440010 is compatible with all 2025-2026 Toyota 4Runner trims including the TRD Pro. The vehicle-specific brackets mount to the 4Runner's A-pillar structure without permanent modification. Confirm that no factory lighting accessories installed on TRD Pro trim conflict with the bracket mounting positions before installation.

The 2.0 generation delivers 26 percent more output at the same 30W power draw compared to the previous generation. New features include the updated 4-pin Deutsch connector replacing the older 3-pin, a selectable 9-color backlight, clip-in uService reflectors for easier tool-free lens swaps, a redesigned IP69K gasket for better weather sealing, and a new adjustable mounting bracket with greater vertical adjustability.

The 440010 is designed and fitment-confirmed for the 2025-2026 Toyota 4Runner, which represents the 6th generation platform. The 2024 4Runner is the outgoing 5th generation with a different A-pillar profile. Vehicle-specific bracket kits for the 5th generation 4Runner use different bracket part numbers. Using the 440010 brackets on a 2024 5th gen 4Runner is not recommended and may not fit correctly.

The 9-color selectable backlight on each Squadron Sport 2.0 pod produces a low-level ambient glow around the pod housing. It can be used for vehicle styling, campsite lighting, or to keep the light pods visible in the dark without activating the main forward-facing LED output. The backlight is controlled independently from the main output through the included 4-pin harness.

No. Each Squadron Sport 2.0 pod draws approximately 2.3A at 13.8V for a combined draw of about 4.6A for both pods. The included toggle switch harness is relay-based and is more than adequate for this current draw. No additional relay or upgraded harness is needed for the standard two-pod installation.

Yes. The included box contains two additional lens kits: Clear/Spot and Clear/Wide Cornering. Using the uService clip-in reflector system, lenses can be swapped in the field without tools. This allows you to change from the standard Driving/Combo pattern to a tighter Spot for maximum forward distance or a Wide Cornering pattern for lower-speed trail and camp use.

The 440010 is backed by Baja Designs' Limited Lifetime Warranty, which covers manufacturing defects for the life of the product. Baja Designs also offers a 30-Day Satisfaction Guarantee allowing returns within 30 days of purchase if the product does not meet expectations. The uService design means individual lens and reflector components can be replaced if damaged without requiring the entire pod to be returned for warranty service.

Installation Notes

1. Test-fit both A-pillar brackets on the 2025-2026 4Runner A-pillars before routing any wiring.
2. Route the relay harness from the engine bay through the firewall to the toggle switch location per the included instructions.
3. Connect the relay harness to the battery with the provided hardware and fuse the power lead per the harness instructions.
4. Attach each Squadron Sport 2.0 pod to its A-pillar bracket and torque all fasteners to specification.
5. Connect the 4-pin Deutsch connectors from each pod to the harness leads.
6. Mount the toggle switch in a convenient, accessible in-cab location.
7. Aim both pods at 25 feet from a level wall per Baja Designs' standard aiming procedure.
8. Verify both main output and backlight function before use.
