Next-Generation A-Pillar LED Light Kit with 5,921 Lumen Squadron Pro 2.0 Pods and RGBW Backlight for the 2025-2026 Toyota 4Runner
The Baja Designs 440011 Squadron Pro 2.0 A-Pillar Kit delivers a complete, vehicle-specific auxiliary lighting solution for the 2025-2026 Toyota 4Runner. The 440011 includes two Squadron Pro 2.0 LED light pods producing 5,921 lumens each at 65W, a 21 percent improvement over the previous generation, with the same compact form factor engineered to mount cleanly on the 4Runner's A-pillars. The Driving/Combo beam pattern provides both long-range throw and wide side coverage simultaneously. Each pod features an RGBW backlight with nine selectable colors, a redesigned 4-pin Deutsch connector, clip-in uService reflectors for tool-free lens swaps, and an updated gasket for IP69K weather sealing. Vehicle-specific A-pillar brackets and a toggle switch harness are included for a complete installation.
Key Features
- 5,921 lumens per light at 65W, 21 percent more output than the previous Squadron Pro generation
- Driving/Combo beam pattern for simultaneous long-range throw and wide side coverage
- RGBW backlight with 9 selectable colors
- IP69K rated for dust, water, and submersion protection
- 4-pin Deutsch connector for durable, weather-resistant wiring connection
- uService clip-in reflectors allow tool-free lens swaps in the field
- Redesigned gasket for superior long-term weather sealing
- Vehicle-specific 2025-2026 Toyota 4Runner A-pillar mounting brackets included
- Toggle switch harness included for simple in-cab control
- 12-32V operational voltage range
- Baja Designs Limited Lifetime Warranty and 30-Day Satisfaction Guarantee
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2025-2026 | Toyota | 4Runner | SR5 |
| 2025-2026 | Toyota | 4Runner | TRD Sport |
| 2025-2026 | Toyota | 4Runner | TRD Off-Road |
| 2025-2026 | Toyota | 4Runner | TRD Pro |
| 2025-2026 | Toyota | 4Runner | Limited |
| 2025-2026 | Toyota | 4Runner | Trailhunter |
Specifications
| Detail | Value |
|---|---|
| MPN | 440011 |
| UPC | N/A - verify with supplier |
| Brand | Baja Designs |
| Series | Squadron Pro 2.0 |
| Lumens (per light) | 5,921 |
| Watts (per light) | 65W |
| Amps (per light) | 5.2A at 13.8V |
| Operational Voltage | 12-32V |
| Beam Pattern | Driving/Combo (Clear) |
| Backlight | RGBW, 9 selectable colors |
| Connector | 4-pin Deutsch |
| Weather Rating | IP69K |
| Lens Serviceability | uService clip-in reflectors |
| Warranty | Baja Designs Limited Lifetime |

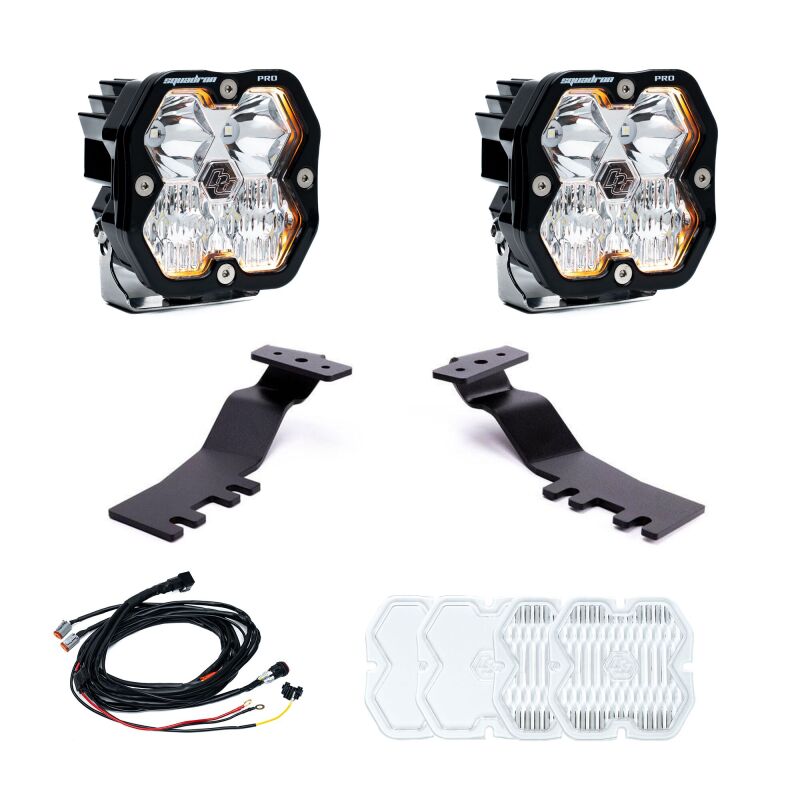

What's Included
- 2x Squadron Pro 2.0 LED light pods (Clear/Driving Combo)
- 2x Vehicle-specific 2025-2026 Toyota 4Runner A-pillar mounting brackets
- 1x Toggle switch 4-pin harness
- 2x Squadron 2.0 Lens Kit (Clear/Spot)
- 2x Squadron 2.0 Lens Kit (Clear/Wide Cornering)
- All necessary mounting hardware
Frequently Asked Questions
What is the difference between the Baja Designs 440011 Squadron Pro 2.0 and the 440010 Squadron Sport 2.0 for the 2025-2026 Toyota 4Runner?The 440011 Squadron Pro 2.0 produces 5,921 lumens per light at 65W, while the 440010 Squadron Sport 2.0 produces 3,200 lumens per light at 30W. Both use the same A-pillar bracket system and Driving/Combo beam pattern for the 2025-2026 4Runner. The Pro is the higher-output option for owners who want maximum illumination at speed on trails or in the desert. The Sport is a more economical choice for trail and camp use where extreme throw distance is less critical.
Does the Baja Designs 440011 fit the 2025 Toyota 4Runner Trailhunter?Yes. The 440011 A-pillar kit is designed for the 2025-2026 Toyota 4Runner and is compatible with the Trailhunter trim. The vehicle-specific A-pillar brackets are engineered to fit the 6th generation 4Runner's A-pillar profile across all trim levels. Verify that no factory trim or factory light accessories conflict with the mounting bracket positions before installation.
What is the uService feature on the Baja Designs Squadron Pro 2.0?uService is Baja Designs' proprietary serviceability system that allows the light's lens and reflector to be swapped in the field without tools. The clip-in reflector design in the 2.0 generation improves on the previous version by holding the reflector more securely during lens changes. This allows owners to change beam patterns, replace damaged lenses, or convert between Clear and Baja Amber outputs without sending the light in for service.
What beam pattern does the 440011 A-Pillar Kit produce?The 440011 uses a Driving/Combo beam pattern, which combines a focused driving beam for long-range forward projection with a wider combo spread for side illumination. This dual-pattern output from each pod maximizes useful coverage in a single light, making it effective for both high-speed desert use and tighter trail navigation where side illumination matters.
Is the Baja Designs 440011 legal for road use?SAE and DOT compliance for auxiliary lighting depends on how the lights are wired and used. The 440011 is designed for off-road use and trail environments. Many states prohibit the use of auxiliary forward-facing lights on public roads above a certain light output threshold. Check your local regulations before driving with the lights activated on public roads. The toggle switch harness allows easy in-cab control for switching the lights off when not on the trail.
How much current does the Baja Designs 440011 draw from the vehicle electrical system?Each Squadron Pro 2.0 pod draws 5.2 amps at 13.8V for a total of approximately 10.4 amps for both pods combined. This is well within the capacity of the included toggle switch harness, which is relay-based and routes power directly from the battery rather than through the factory switch circuits. No additional relay or relay harness is required for the standard two-light installation.
Can the RGBW backlight on the 440011 Squadron Pro 2.0 be turned on independently from the main light output?Yes. The RGBW backlight is independently controlled from the main forward-facing LED output. The backlight can remain on for ambient lighting and styling use while the main pods are off, and vice versa. The included harness supports independent control of both functions. Wiring for the backlight control is routed through the 4-pin Deutsch connector on each pod.
Does the Baja Designs 440011 require any modification to the 2025 Toyota 4Runner A-pillars?No permanent modification is required. The vehicle-specific A-pillar brackets are designed to mount to the factory 4Runner A-pillar structure without drilling or cutting. The mounting brackets use existing attachment points or clamp to the A-pillar profile. Follow the included instructions for bracket placement and torque specifications to ensure the lights are held securely at high speed and on rough terrain.
Installation Notes
- Test-fit both A-pillar brackets against the 2025-2026 Toyota 4Runner A-pillars before beginning the wiring installation.
- Route the wiring harness from the engine bay through the firewall to the desired switch location per the included instructions.
- Connect the relay harness to the battery with the included hardware and fuse the power wire per the harness instructions.
- Mount the toggle switch in a convenient in-cab location.
- Attach each Squadron Pro 2.0 pod to its A-pillar bracket and secure all fasteners to the specified torque.
- Connect each pod's 4-pin Deutsch connector to the harness leads.
- Aim the pods with the vehicle on level ground at a distance of 25 feet from a wall per Baja Designs' aiming instructions.
- Test both pods and the RGBW backlight function before the first trail run.
