Lock Your Differential Housing in Place Under Full Power on 2015-2023 Hellcat, Scat Pack, and V8 Mopar Platforms

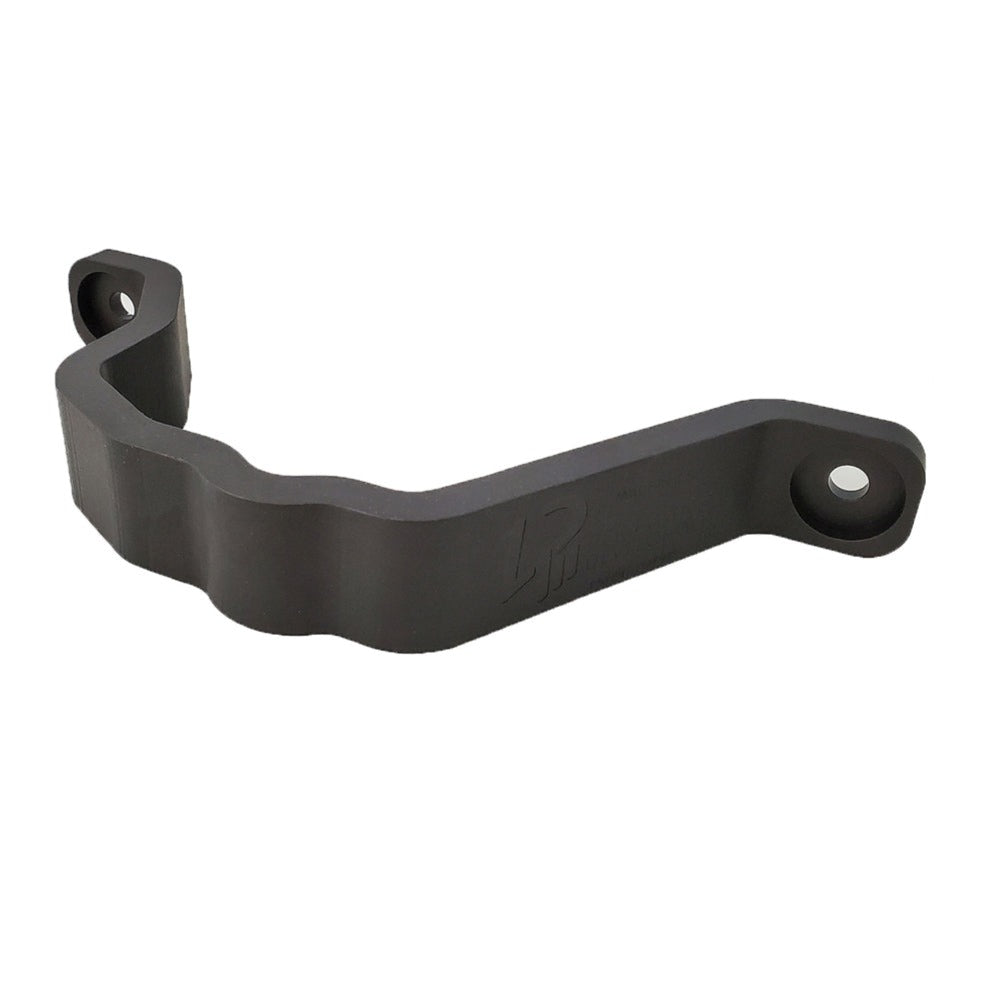

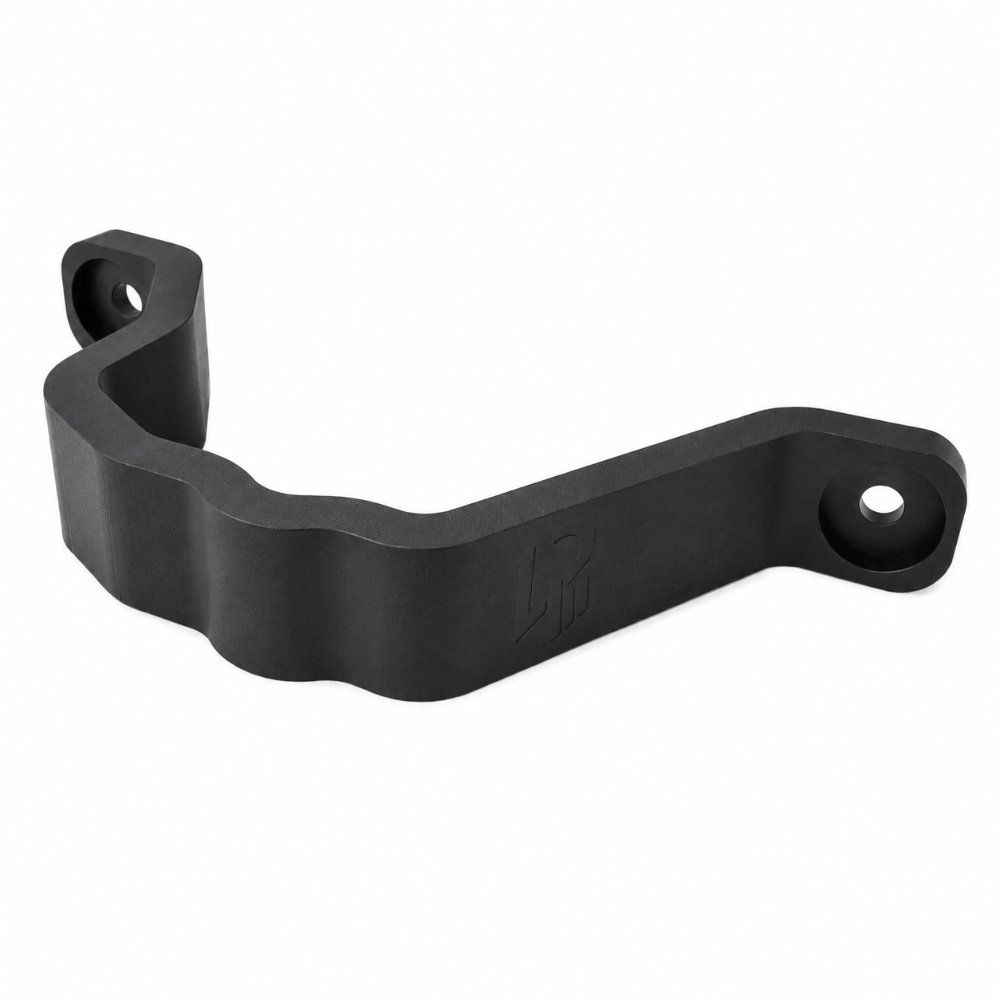

The Per4mance Development BRB-PD Billet Race Brace is a phase-two differential protection component machined from a 12-inch by 6-inch by 1.5-inch solid block of T-6061 billet aluminum. It functions as an additional brace layer that works alongside Per4mance Development's other differential reinforcement systems, contacting the differential housing and reducing the movement that leads to pinion misalignment, wheel hop, and secondary damage from driveshaft failure events. This brace is waterjet cut and CNC machined, covered in satin black powdercoat, and updated in its current revision with a redesigned neoprene pad and automotive-grade chemical-resistant shrink tubing around the pad area for improved durability and heat tolerance. It is US-made, US-patented, and includes all hardware required for installation.
Exhaust Compatibility Warning
The BRB-PD will not fit with Borla exhaust systems or aFe exhaust systems due to physical clearance conflicts near the differential mounting area. It also will not fit with aftermarket exhaust valve bypass devices that are physically mounted in the differential region. If your vehicle has any of these installed, choose the Per4mance Development DIRS or Standard Billet Brace instead, which are designed for compatibility with those setups.
Confirmed incompatible exhaust systems and devices:
- Borla axle-back and cat-back exhaust systems
- aFe (Advanced Flow Engineering) exhaust systems
- Aftermarket active exhaust valve bypass devices mounted near the differential
This brace is compatible with the factory exhaust system and most other aftermarket exhaust systems that do not run pipes or hardware through the differential brace zone.
Key Features
- T-6061 Billet Aluminum Construction: Machined from a 12 x 6 x 1.5-inch solid billet block using waterjet cutting and CNC machining for precision fit and high structural rigidity
- Revised Pad Design: Updated neoprene pad with automotive-grade chemical-resistant shrink tubing for improved durability, heat resistance, and contact surface protection
- Satin Black Powdercoat: Corrosion-resistant finish suited for the undercar environment

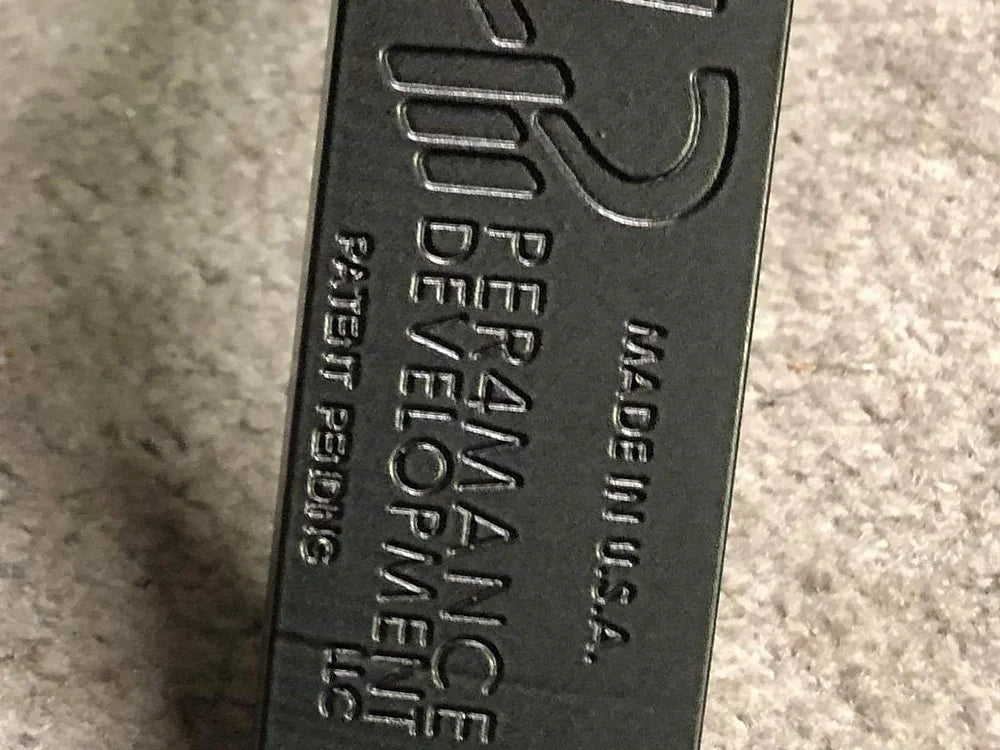

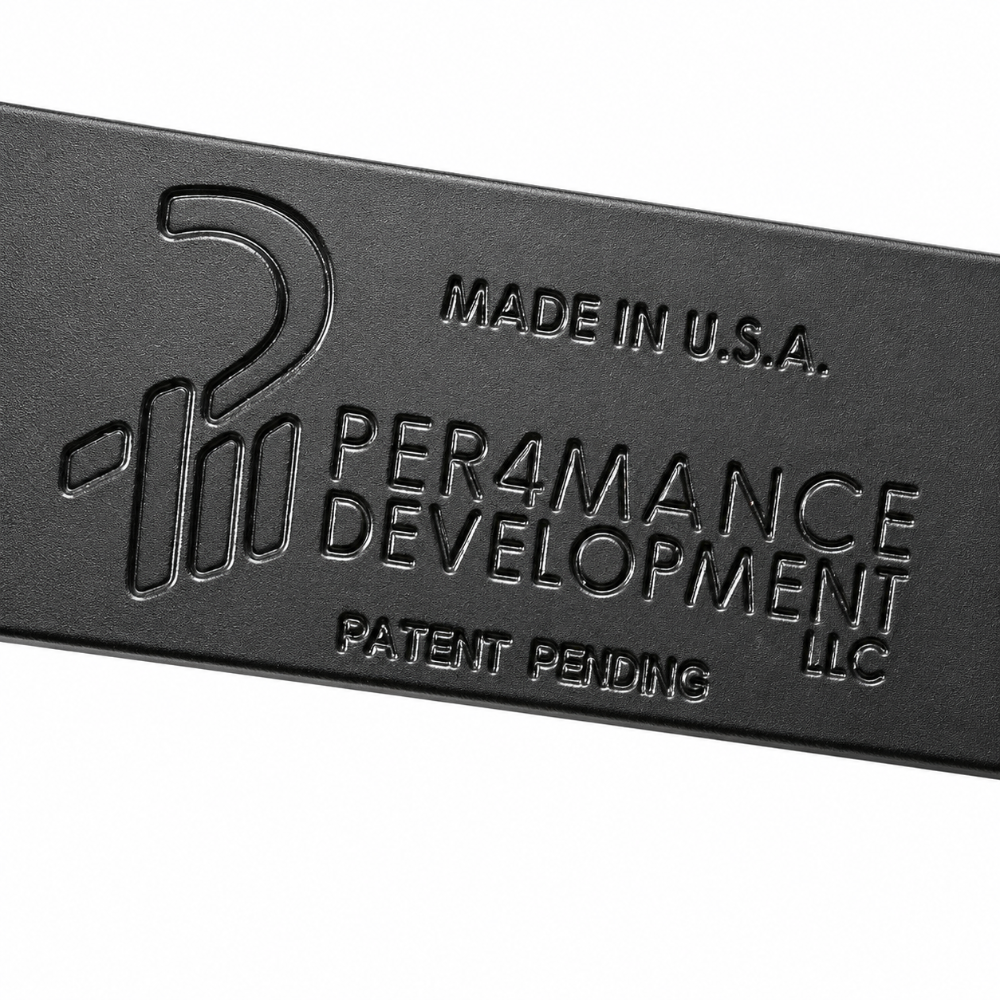

- US Design Patent: Awarded a US Design Patent for the proprietary differential contact geometry
- Phase 2 Protection: Designed to stack with the Per4mance Development DIRS brace and other differential reinforcement components for a complete protection system
- American Made: Waterjet cut and CNC machined in the United States
- All Hardware Included: Neoprene pad, heat-resistant tape, Loctite, and all required Grade 10.9 fasteners
- 30-Day Return Policy: 100 percent satisfaction guaranteed with a full refund within 30 days of receipt
This Part Fits
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2015-2023 | Dodge | Charger | SRT Hellcat, SRT 392, Scat Pack, R/T (5.7L, 6.2L, 6.4L HEMI V8) |
| 2015-2023 | Dodge | Challenger | SRT Hellcat, SRT Hellcat Redeye, SRT Demon, SRT 392, Scat Pack, R/T (5.7L, 6.2L, 6.4L HEMI V8) |
| 2015-2023 | Chrysler | 300 | S, 300S (5.7L, 6.4L HEMI V8) |
Specifications
| Detail | Value |
|---|---|
| Part Number | BRB-PD |
| Brand | Per4mance Development |
| Material | T-6061 Billet Aluminum |
| Starting Stock Dimensions | 12 in x 6 in x 1.5 in solid block |
| Manufacturing Process | Waterjet cut and CNC machined |
| Finish | Satin black powdercoat |
| Pad Material | Neoprene with chemical-resistant automotive shrink tubing |
| Fastener Grade | Grade 10.9 |
| Patent | US Design Patent |
| Country of Origin | USA |
| UPC | N/A |
What's Included
- 1x Per4mance Development BRB-PD Billet Race Brace (satin black powdercoat)
- Neoprene contact pad
- Heat-resistant tape
- Loctite threadlocker
- All required Grade 10.9 fasteners
About Per4mance Development
Per4mance Development is a US-based engineering company that designs and manufactures differential reinforcement and drivetrain protection components specifically for the Dodge Charger, Challenger, and Chrysler 300 V8 RWD platform. Their product lineup is developed from real-world track and drag strip experience and holds multiple US patents for differential brace geometry. Every component is machined in the United States from aerospace-grade aluminum stock.
Related Parts on Our Site
Frequently Asked Questions
What is the BRB-PD?
The BRB-PD is the Per4mance Development Billet Race Brace, a phase-two differential protection component machined from T-6061 billet aluminum for 2015-2023 Dodge Charger, Challenger, and Chrysler 300 V8 RWD vehicles. It braces the differential housing to maintain pinion alignment under high-torque launches and spirited driving conditions.
What exhaust systems is this brace not compatible with?
This brace will not fit with Borla exhaust systems or aFe exhaust systems due to physical clearance conflicts near the differential. It also will not fit with aftermarket active exhaust valve bypass devices that are physically mounted in the differential region. If you run any of these, choose the Per4mance Development DIRS or Standard Billet Brace instead.
Does this brace work with the factory exhaust on a Hellcat, Scat Pack, or SRT 392?
Yes. It is fully compatible with the factory active exhaust system on 2015-2023 Charger, Challenger, and Chrysler 300 V8 RWD models. The exhaust restriction applies specifically to Borla and aFe aftermarket exhaust systems and to physical exhaust valve bypass devices mounted near the differential.
Can this brace be used alone or does it require the DIRS?
It can be used as a standalone component, but Per4mance Development designed it as a phase-two addition to their DIRS (Differential Integration and Reinforcement System) brace. Running both provides a more complete protection system than either alone.
Does this fit both wide body and narrow body Challenger and Charger models?
Yes. It fits both wide body and narrow body configurations of the 2015-2023 Dodge Challenger and Charger V8 RWD platforms. The differential housing and mounting geometry are the same across wide body and narrow body variants on these chassis.
Does installing this brace affect my factory differential warranty?
Per4mance Development states that installation may impact the manufacturer's warranty on the differential. The purchaser assumes all responsibility for installation and use. Review your warranty terms before installation if this is a concern.
What problem does this brace solve on the Hellcat and Scat Pack platform?
On 2015-2023 V8 Charger, Challenger, and 300 RWD platforms, the IRS differential housing can flex and shift under hard acceleration and high-torque launches, causing pinion angle changes, wheel hop, and in extreme cases, secondary drivetrain damage following a driveshaft failure. This brace limits differential housing movement, helping maintain consistent pinion alignment and reducing the risk of cascading damage.
Is this compatible with the Chrysler 300 SRT8 or pre-2015 models?
No. This brace is designed for 2015-2023 V8 RWD models only. The pre-2015 platform uses a different differential mounting configuration that is not compatible with this brace geometry.
What torque spec should I use for the mounting hardware?
Torque the two lower 16mm fasteners to 90 ft-lbs. The upper fasteners do not have a specific torque specification; tighten them until the neoprene pad compression is uniform around the perimeter of the brace. Use the included Loctite on all fasteners per the installation instructions.
Installation Instructions
- Safely lift and support the vehicle on jack stands or ramps. Never work under a vehicle supported only by a floor jack.
- Allow the exhaust system to cool completely before beginning work in the differential area.
- Locate the differential housing on the underside of the rear of the vehicle.
- If the vehicle is equipped with a passenger-side active exhaust motor, removal of that component may be required to access the upper mounting bolt positions. Refer to the included instructions for model-specific guidance.
- Clean the differential housing contact area with a clean cloth to remove dirt, grease, or undercoating that could prevent the neoprene pad from seating correctly.
- Apply the included heat-resistant tape to the designated pad area on the brace.

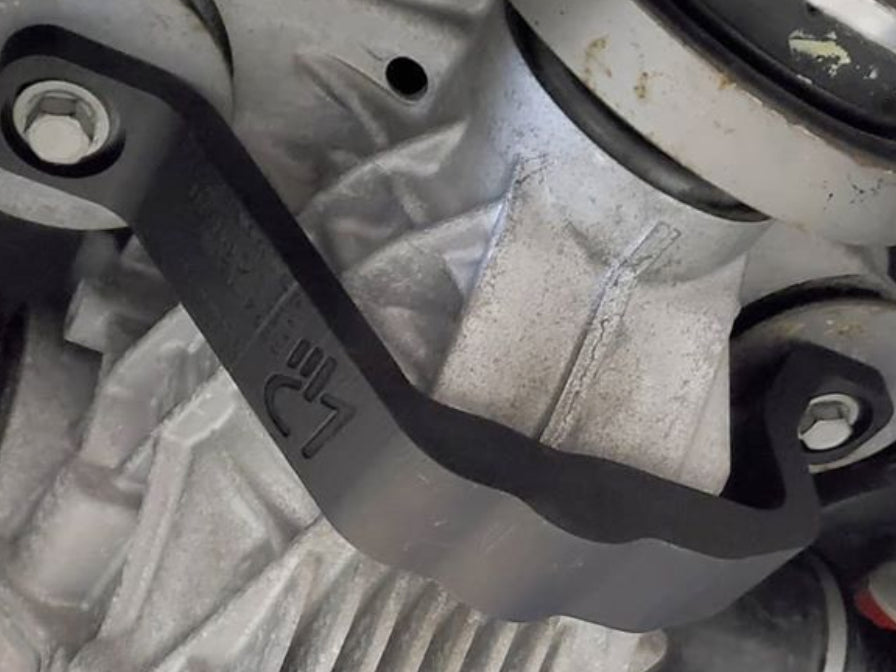

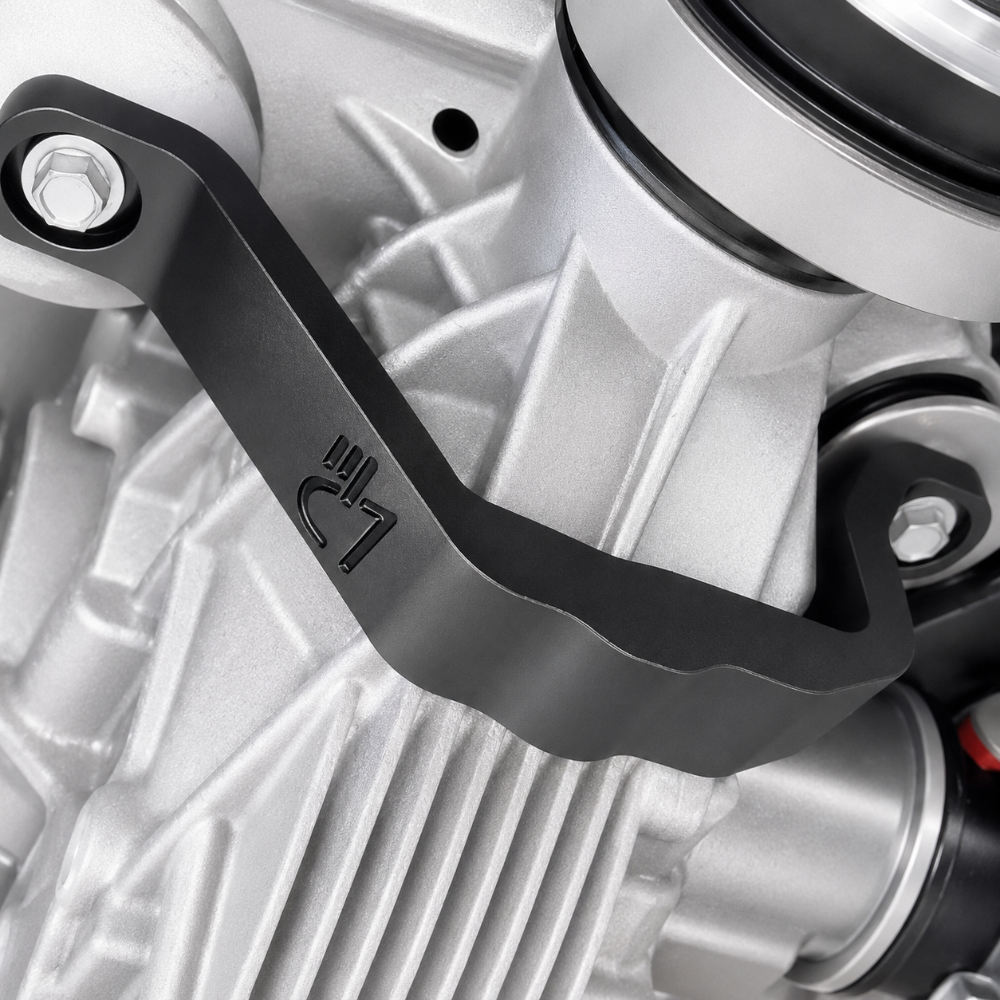

- Position the brace against the differential housing with the neoprene pad making full contact with the housing surface.
- Thread the included Grade 10.9 fasteners by hand to confirm alignment, then apply Loctite to all fastener threads.
- Torque the two lower 16mm bolts to 90 ft-lbs. Tighten the upper fasteners until the neoprene pad compression is even across the full contact surface.
- Reinstall the active exhaust motor if removed in step 4.
- Lower the vehicle and test drive to confirm no noise, contact, or vibration from the installed brace.
