SKU: 177194 | UPC: 840232707595

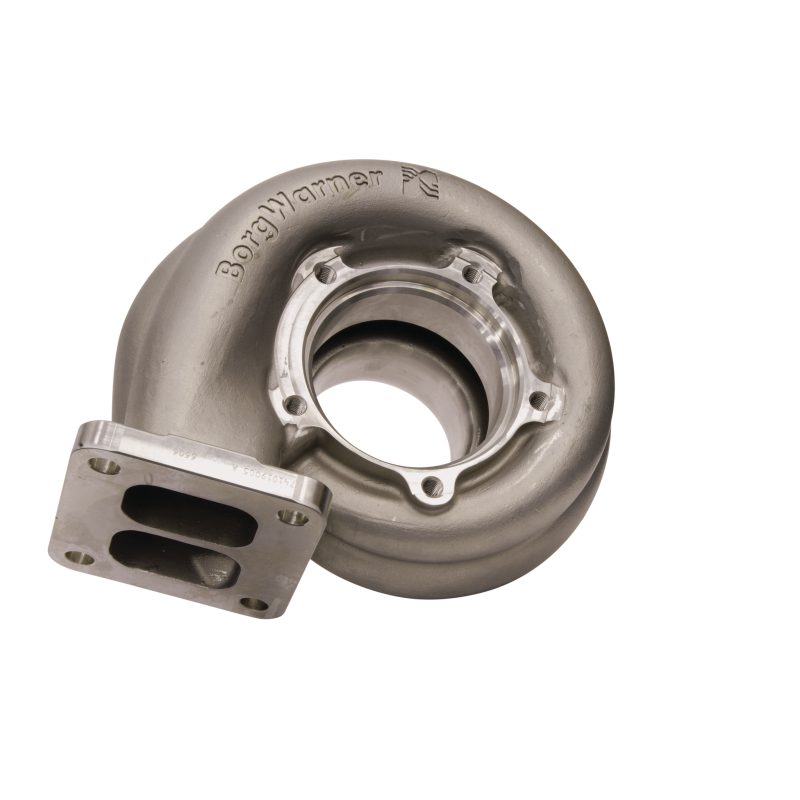

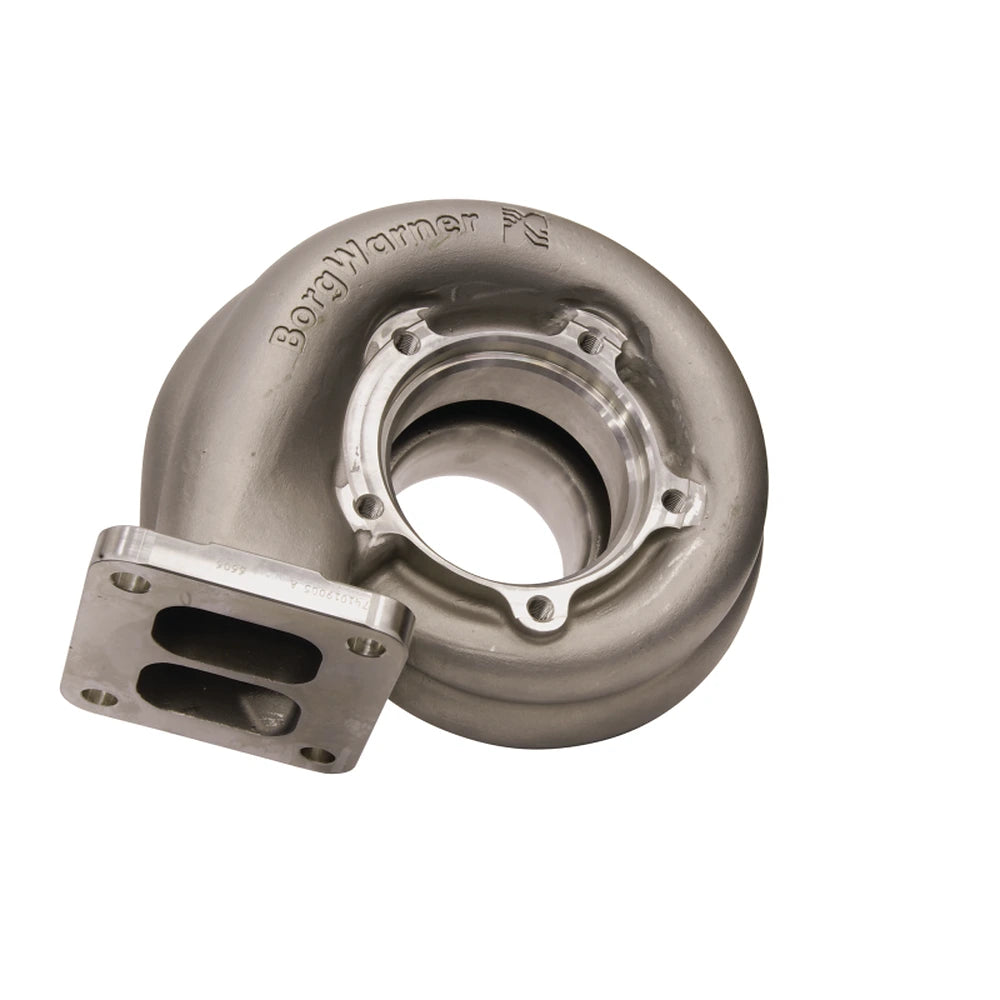

BorgWarner Turbine Housing SX S200 T4 Twin Volute A/R 1.22 61mm 1986-2023 2JZ RB26 Cummins
BorgWarner SX S200 turbine housing features T4 twin volute inlet A/R 1.22 and 61mm sizing for S200SX turbochargers. Designed for custom performance builds on Toyota 2JZ-GTE engines Nissan RB26DETT and Dodge Cummins 5.9L 6.7L applications. Twin scroll design separates exhaust pulses to cut backpressure and support 800-1200hp setups with balanced spool and top-end flow.
Key Features
- Twin Volute T4 Inlet: Divided scrolls maintain exhaust pulse energy for 15-25% faster spool-up across RPM range versus single scroll housings
- A/R 1.22 Ratio: Large area delivers unrestricted high-RPM exhaust flow ideal for 2.0L-7.0L engines pushing over 40psi boost
- 61mm Turbine Match: Precision-sized for S200SX 61mm exducer turbine wheels ensuring efficient energy transfer without restriction
- NiResist Iron Casting: High-nickel alloy handles 1700°F+ EGTs resists cracking in sustained high-boost drag strip or diesel competition use
- V-Band Outlet: Secure 3-inch V-band flange allows 360-degree rotation and simple clamp attachment to downpipe
Product Notes
- Requires matching S200SX-E CHRA with T4 center housing non-VGT configuration
- Center housing rotation options clockwise or counterclockwise available separately
- Standard ground shipping in contiguous US oversize packaging applies
Installation Notes
- Professional installation recommended.
- Bolt to CHRA with M8x1.25 bolts torqued to 23-27 ft-lbs in crisscross pattern
- Uses standard T4 divided manifold flange V-band clamp and gasket sold separately
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1986-2005 | Toyota | Supra | 2JZ-GTE |
| 1989-2002 | Nissan | Skyline | RB26DETT GT-R |
| 2003-2018 | Dodge | Ram 2500/3500 | 5.9L Cummins |
| 2007-2023 | Dodge | Ram 2500/3500 | 6.7L Cummins |
| Universal | Custom | S200SX Builds | LS1 4.8L-7.0L |
Why Choose BorgWarner?
- Direct OEM turbo supplier to Ford GM Volkswagen and heavy-duty diesel markets
- Proven S200SX platform dominates PDRA NHRA diesel drag racing classes
- Investment cast housings machined to micron tolerances for leak-free seals
Frequently Asked Questions
-
Q: Which S200SX CHRA models pair with this housing
A: Fits SX-E 200-225hp to 450-500hp compressor covers with 60-62mm turbine wheels and T4 CHRA part numbers 179270-179310 series -
Q: What material composition and heat rating
A: NiResist 6 high-nickel ductile iron formulation rated for continuous 1650°F intermittent 1800°F operation -
Q: What warranty coverage applies
A: 12-month unlimited mileage defect warranty when installed by certified shop with proof of purchase excludes abuse or improper tuning
Shipping & Handling
- Method: Standard Ground
- Availability: In stock - ships same or next business day
- Packaging: Foam-protected double-wall cardboard box 14x12x12 inches
- Weight: 18.5 lbs
