SKU: 177191 | UPC: 840232707328

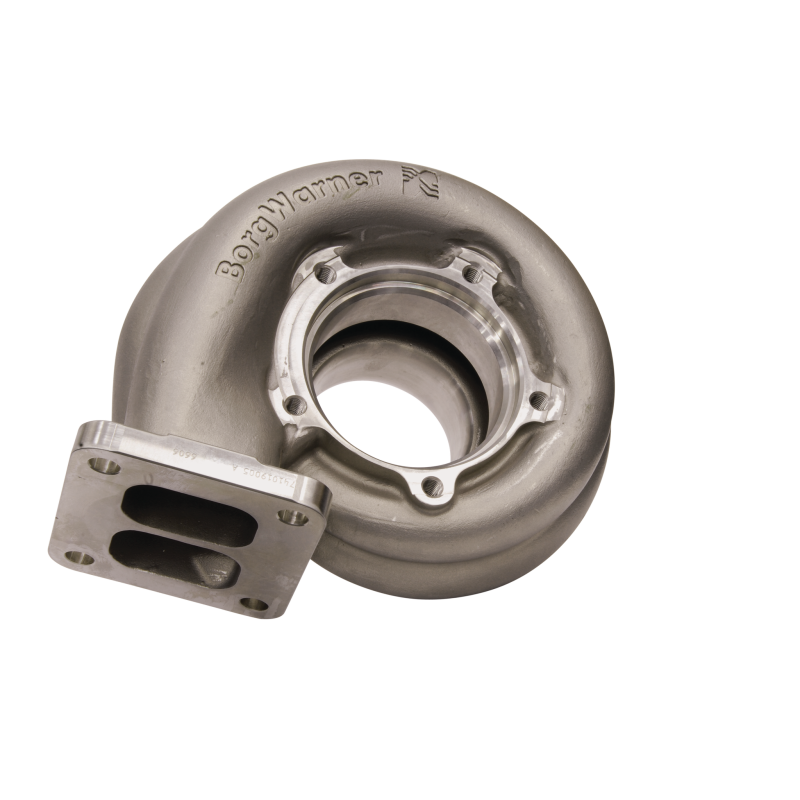

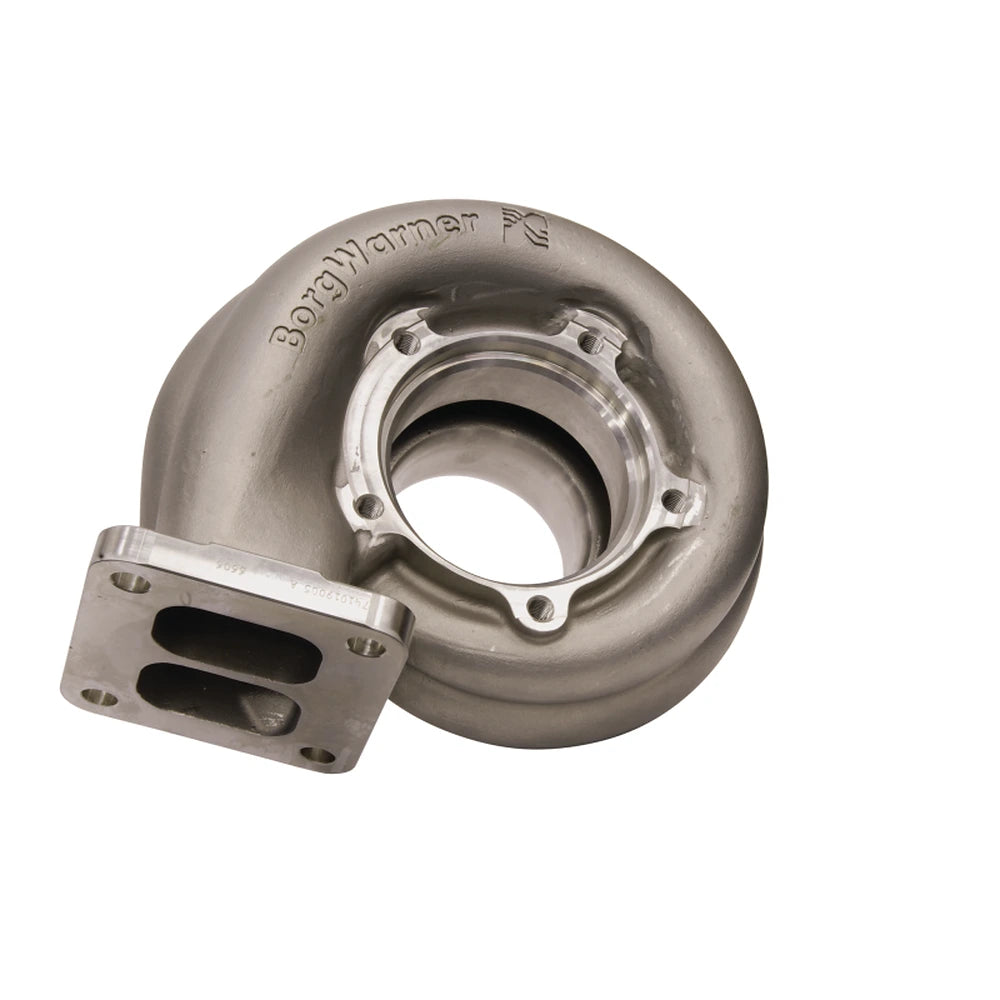

BorgWarner Turbine Housing SX S200 T4 Twin Volute A/R .83 61mm for Dodge Ram 2500/3500 Cummins 1994-2007
The BorgWarner Turbine Housing SX S200 T4 Twin Volute A/R .83 61mm pairs with S200SX-E turbochargers to deliver faster spool-up and stronger mid-range torque on Dodge Ram Cummins trucks from 1994 to 2007. Twin scroll design captures exhaust pulses separately for reduced backpressure and sharper throttle response. This housing unlocks reliable boost levels for daily driving or racing builds.
Key Features
- Twin Volute Design: Separates exhaust pulses to reduce interference and accelerate spool by up to 200 RPM
- T4 Divided Inlet: Bolts directly to common T4 manifolds on Cummins 5.9L engines for easy integration
- A/R .83 Ratio: Balances exhaust flow for strong low-end pull and high-RPM efficiency without choking top-end power
- 61mm Turbine Compatible: Matches S200SX-E 61mm exducer turbine wheel for precise aerodynamics and heat management
- NiResist Casting: High-nickel iron withstands 1700°F+ temperatures for long-term durability under extreme boost
Product Notes
- Requires compatible S200SX-E center housing rotating assembly and compressor housing
- Inspect V-band clamps and gaskets during assembly for leak-free seals
- Standard ground shipping with protective foam inserts to prevent damage
Installation Notes
- Professional installation recommended.
- Tune ECU after install to match increased airflow and boost targets
- V-band outlet compatible with 3-inch downpipes and external wastegates
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1994-1998 | Dodge | Ram 2500 | 5.9L Cummins Diesel |
| 1994-1998 | Dodge | Ram 3500 | 5.9L Cummins Diesel |
| 1998.5-2002 | Dodge | Ram 2500 | 5.9L Cummins HO Diesel |
| 1998.5-2002 | Dodge | Ram 3500 | 5.9L Cummins HO Diesel |
| 2003-2007 | Dodge | Ram 2500 | 5.9L Cummins Diesel |
| 2003-2007 | Dodge | Ram 3500 | 5.9L Cummins Diesel |
Why Choose BorgWarner?
- Global leader supplying turbos to Ford GM and Dodge OEMs
- Proven in 1000+hp Cummins drag trucks and sled pulls
- CNC-machined volutes ensure consistent flow every unit
Frequently Asked Questions
-
Q: Which turbo cores does this housing fit?
A: Designed for BorgWarner S200SX-E CHRA with 61mm turbine wheel exducer including EFR-style internals -
Q: What material resists turbine housing wear?
A: NiResist ductile iron casting handles repeated heat cycles and EGT spikes over 1600°F -
Q: Does it need custom tuning post-install?
A: Yes recalibrate fuel maps and boost control for safe operation above 35 psi
Shipping & Handling
- Method: Standard Ground
- Availability: In stock - ships same or next business day
- Packaging: Foam-wrapped in 14 x 12 x 10 inch box
- Weight: 19.5 lbs
