BorgWarner Turbine Housing SX S300SX3 A/R .88 68mm - Black Ops Auto Works
Click to zoom in

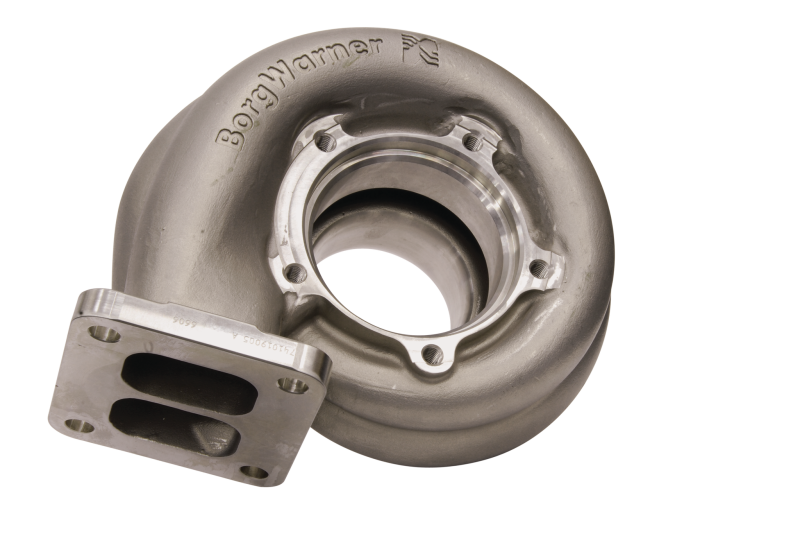

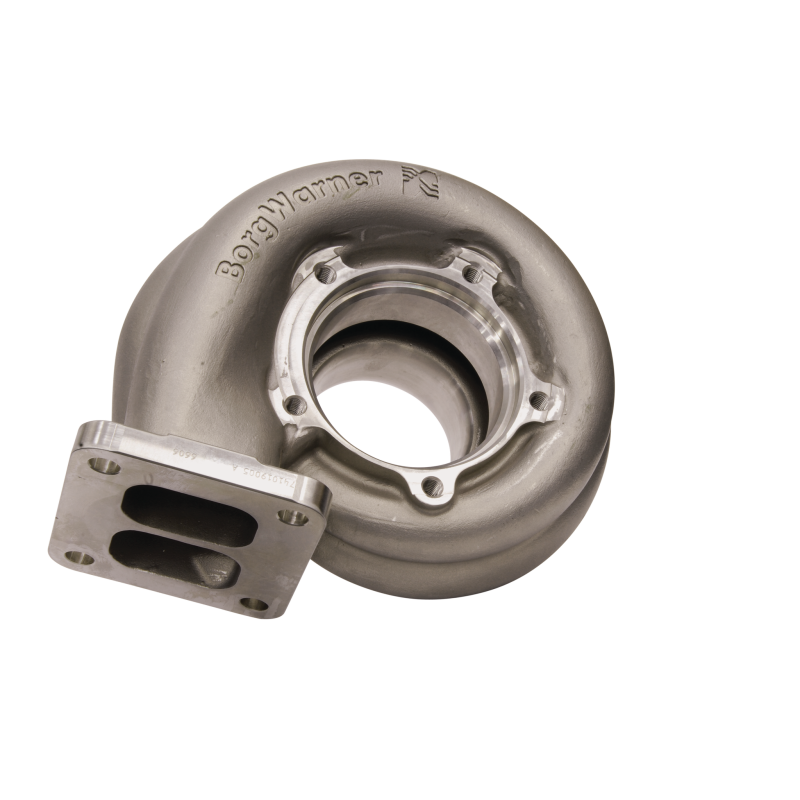

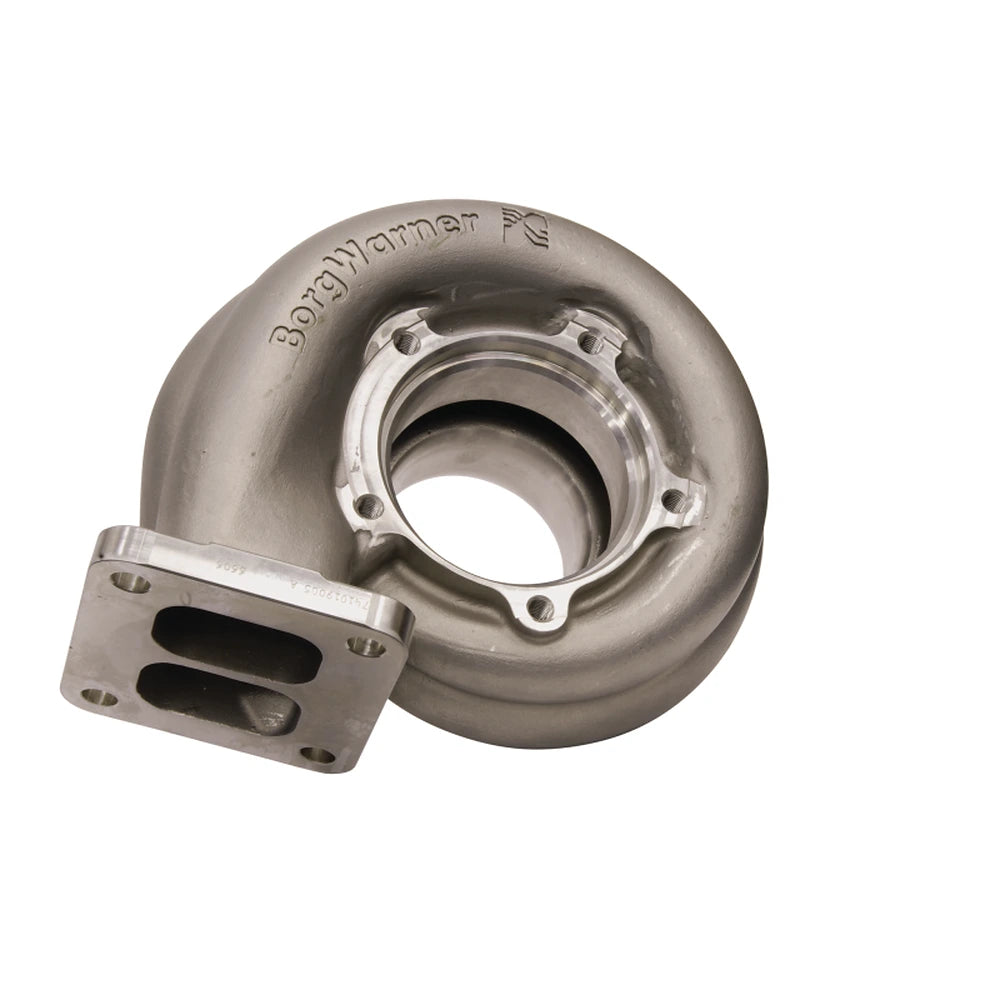

BorgWarner Turbine Housing SX S300SX3 A/R .88 68mm

BorgWarner
BWA177210
840232708851
Turbine Housings
6 Units In Stock - Ships Next Business Day
$ 287.64 $ 230.11
$ 230.11

SKU: 177210 | UPC: 840232708851

BorgWarner Turbine Housing SX S300SX3 A/R .88 68mm for 2003-2018 Dodge Ram Cummins

This BorgWarner turbine housing fits SX S300SX3 frame turbochargers with 68mm turbine wheels used in 2003-2018 Dodge Ram Cummins 5.9L and 6.7L trucks. The T4 divided inlet and .88 A/R design capture exhaust pulses for faster spool-up while supporting high horsepower levels. Pair it with matching S300SX3 compressor housings and CHRA for complete turbo assemblies in diesel performance upgrades.

Key Features

  • A/R .88 Ratio: Delivers balanced exhaust flow for strong low-end torque and top-end power in 500-900 HP builds
  • T4 Divided Inlet: Channels exhaust pulses separately to reduce backpressure and improve turbine response
  • 68mm Turbine Wheel Compatible: Matches S300SX3 and SX-E series cores for direct bolt-on replacement
  • V-Band Outlet: Simplifies installation with reusable clamp and gasket system
  • High-Temp Ductile Iron: Withstands extreme heat and pressure in demanding diesel applications

Product Notes

  • Requires S300SX3 CHRA and matching compressor housing for full assembly
  • Inspect turbine wheel for damage before installation
  • Standard ground shipping with protective packaging

Installation Notes

  • Professional installation recommended.
  • T4 divided flange requires matching manifold gasket and bolts
  • V-band outlet clamp torque to 15-20 ft-lbs with new gasket

This Part Fits

Year Make Model Submodel
2003-2007 Dodge Ram 2500 5.9L L6 Diesel
2003-2007 Dodge Ram 3500 5.9L L6 Diesel
2007-2009 Dodge Ram 2500 6.7L L6 Diesel
2007-2009 Dodge Ram 3500 6.7L L6 Diesel
2010-2018 Ram 2500 6.7L L6 Diesel
2010-2018 Ram 3500 6.7L L6 Diesel
2011-2016 Ford F-250 Super Duty 6.7L V8 Diesel
2006-2010 Chevrolet Silverado 2500 HD 6.6L V8 Duramax

Why Choose BorgWarner?

  • Supplies OEM turbos for major diesel truck manufacturers
  • Proven in racing and high-horsepower street applications
  • Precision CNC-machined ports for consistent flow

Frequently Asked Questions

  • Q: Will this housing fit my existing S300SX3 turbo?
    A: Yes it bolts directly to S300SX3 and SX-E frames with 68mm turbine wheels including S366 S467 models
  • Q: What material is the housing made from?
    A: Cast high-temperature ductile iron for durability under boost levels over 50 psi
  • Q: What is the warranty on this part?
    A: 1-year limited manufacturer warranty against defects when installed properly

Shipping & Handling

  • Method: Standard Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Foam inserts in heavy-duty box 14 x 14 x 14 inches
  • Weight: 20 lbs
