SKU: 177207 | UPC: 840232708585

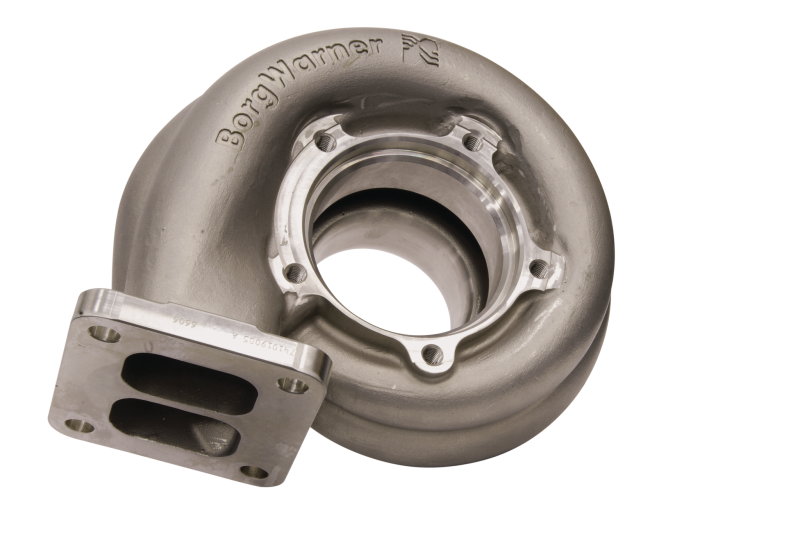

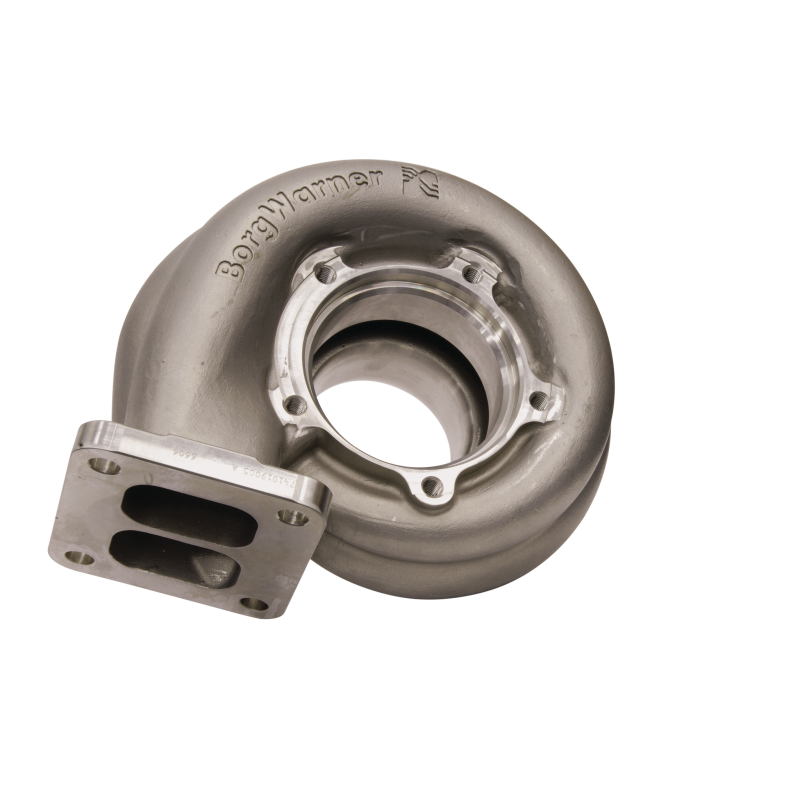

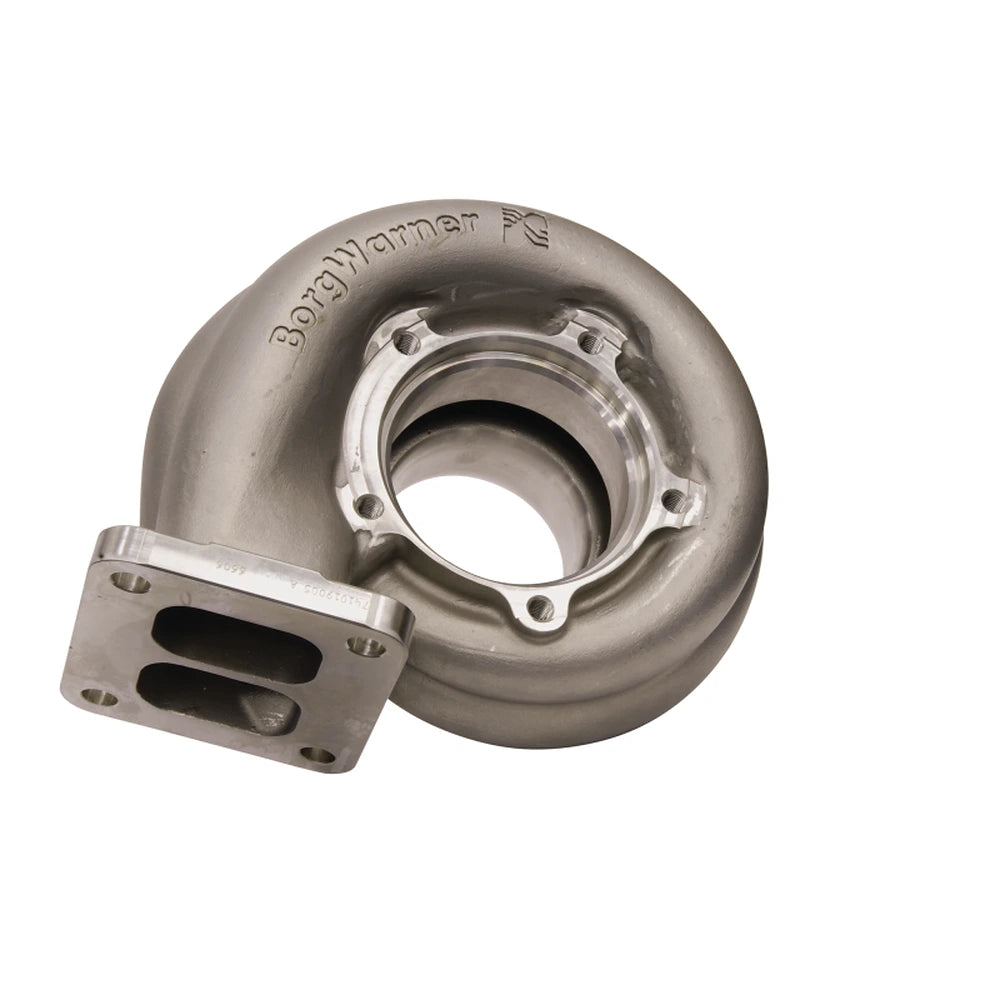

BorgWarner Turbine Housing SX S300SX3 A/R .91 68mm for 1998-2023 Dodge Ram Cummins Ford Powerstroke GM Duramax
This BorgWarner turbine housing fits S300SX3 frame turbochargers with 68mm turbine exducer enhancing performance in high-horsepower diesel applications. Designed for popular trucks like Dodge Ram 5.9L and 6.7L Cummins Ford Super Duty Powerstroke and GM HD Duramax it balances quick spool-up with strong top-end power. Cast iron construction handles extreme boost levels up to 900HP reliably.
Key Features
- T4 Divided Inlet: Directs exhaust pulses separately for reduced backpressure and faster turbine response
- 0.91 A/R Ratio: Provides responsive low-end torque while supporting high RPM flow in 800-1100HP setups
- 68mm Turbine Wheel Compatible: Matches S300SX3 series for seamless integration in upgraded turbo systems
- 4-inch V-Band Outlet: Allows clamp-style connection for simple removal and leak-free seals
- High-Flow Cast Iron: Resists heat cycling and corrosion for long-term durability in demanding conditions
Product Notes
- Pair with matching S300SX3 compressor cover and 68mm turbine wheel for complete assembly
- Inspect manifold flange for flatness before installation
- Standard ground shipping use protective padding during transport
Installation Notes
- Professional installation recommended.
- Torque housing bolts to 25-30 ft-lbs in crisscross pattern using anti-seize
- Requires T4 divided turbo manifold and V-band clamp kit
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1998-2002 | Dodge | Ram 2500 | 5.9L Cummins 24V |
| 1998-2002 | Dodge | Ram 3500 | 5.9L Cummins 24V |
| 2003-2007 | Dodge | Ram 2500 | 5.9L Cummins CR |
| 2003-2007 | Dodge | Ram 3500 | 5.9L Cummins CR |
| 2007-2023 | Dodge/Ram | 2500/3500 | 6.7L Cummins |
| 2003-2007 | Ford | F-250 Super Duty | 6.0L Powerstroke |
| 2008-2010 | Ford | F-250 Super Duty | 6.4L Powerstroke |
| 2006-2007 | Chevrolet | Silverado 2500HD | Duramax LBZ |
| 2006-2007 | GMC | Sierra 2500HD | Duramax LBZ |
Why Choose BorgWarner?
- Supplies OEM turbos for Cummins and heavy-duty engines worldwide
- Backed by dyno testing for consistent power gains
- Machined to tight tolerances for perfect wheel clearance
Frequently Asked Questions
-
Q: Will this housing bolt up to my stock Cummins manifold?
A: Yes it uses standard T4 divided flange common on aftermarket manifolds for 5.9L and 6.7L Cummins -
Q: What is the housing material and finish?
A: Durable cast iron with heat-resistant black paint finish for corrosion protection -
Q: What warranty applies and installation tips?
A: BorgWarner 1-year limited warranty verify turbo series match use thread locker on V-band clamp
Shipping & Handling
- Method: Standard ground
- Availability: In stock - ships same or next business day
- Packaging: Sturdy cardboard box 16 x 14 x 14 inches with foam inserts
- Weight: 22 lbs
