SKU: 177280 | UPC: 840232711288

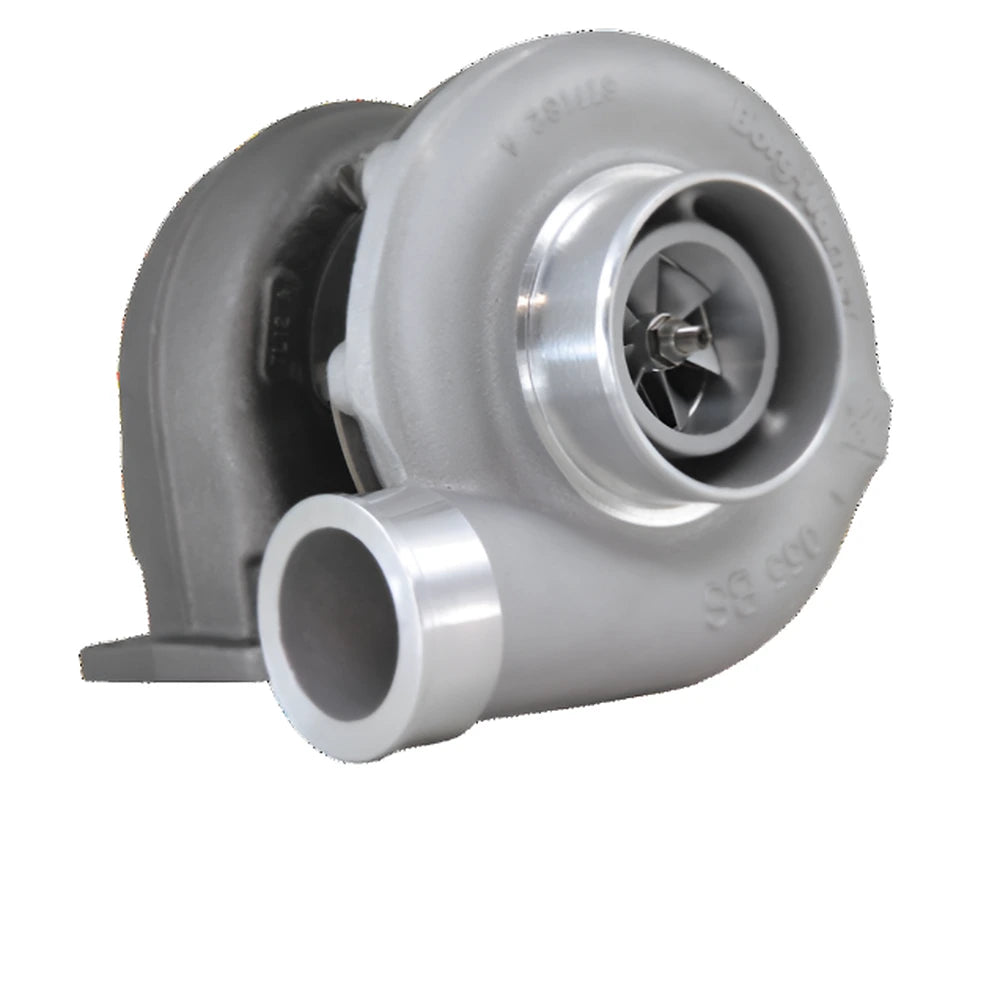

BorgWarner Turbocharger SX S300SX3 T4 A/R .88 60mm Inducer for Dodge Ram Cummins 2003-2018
This BorgWarner S300SX3 turbocharger delivers high-performance forced induction with a 60mm billet compressor inducer and T4 divided A/R .88 turbine housing. It fits Dodge Ram trucks with 5.9L and 6.7L Cummins engines from 2003-2018 supporting 650-950 HP builds. Quick spool supports street drivability while handling drag strip power levels.
Key Features
- 60mm Billet Compressor Wheel: 60mm inducer/83mm exducer design flows 60+ lb/min for fast response and high boost across RPM range
- T4 Divided A/R .88 Turbine Housing: Optimized exhaust flow reduces backpressure for broad powerband and quicker spool on diesel applications
- Water/Oil Cooled CHRA: 360-degree thrust bearing and dual cooling extend bearing life under extreme heat and boost
- 76/67.5mm Turbine Wheel: Forged Inconel wheel handles EGTs over 1600°F for sustained high-power operation
- S300SX3 Frame: Lightweight investment cast compressor cover with SuperCore assembly for easy installation and maintenance
Product Notes
- Designed for off-road and racing use only
- No core charge required
- Securely packaged for protection during transit
Installation Notes
- Professional installation recommended.
- Requires T4 divided exhaust manifold and custom intake/outlet piping
- Use restricted oil feed line with -4AN fitting and unrestricted return
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003-2007 | Dodge | Ram 2500 | 5.9L Cummins |
| 2003-2007 | Dodge | Ram 3500 | 5.9L Cummins |
| 2007-2012 | Dodge | Ram 2500 | 6.7L Cummins |
| 2007-2012 | Dodge | Ram 3500 | 6.7L Cummins |
| 2013-2018 | Ram | 2500/3500 | 6.7L Cummins |
Why Choose BorgWarner?
- Supplier to leading diesel OEMs with decades of turbo expertise
- Engineered for racing wins and daily driven trucks
- Balanced for efficiency durability and power delivery
Frequently Asked Questions
-
Q: Will this turbo fit my 2005 Dodge Ram 5.9L Cummins?
A: Yes it bolts to T4 divided manifolds common on 2003-2007 5.9L Cummins with adapters for stock drop pipe -
Q: What materials are used in construction?
A: Billet aluminum compressor wheel Inconel turbine wheel NiResist housing and steel CHRA for heat resistance -
Q: What warranty coverage applies?
A: 12-month unlimited mileage warranty when installed by certified shop with proper oiling
Shipping & Handling
- Method: Standard Ground
- Availability: In stock - ships same or next business day
- Packaging: Original box 20 x 18 x 18 inches
- Weight: 28 lbs
