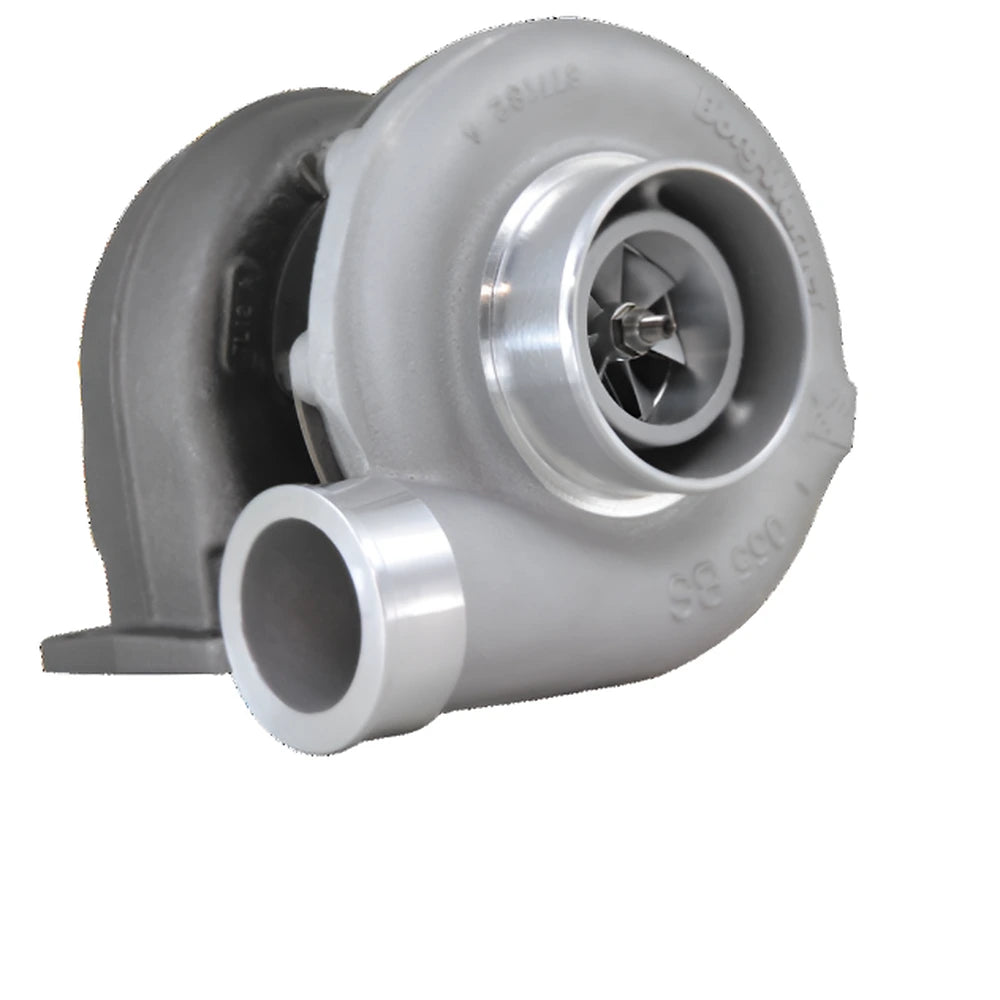

This BorgWarner turbocharger is selected by exact manufacturer part number 177283 and complete turbo-system specifications. Confirm every wheel, housing, flange, A/R, connection, orientation, and wastegate requirement before ordering.
Key Features
- 63mm Forged Billet Compressor Wheel: Extended tip 9-blade design with 84mm exducer flows 110+ lb/min supports 900 HP quick response across RPM range.
- T4 Divided A/R.88 Turbine Housing: Ni-Resist cast iron optimizes exhaust flow reduces backpressure for low-end torque and top-end power.
- Mar-M Turbine Wheel: 83mm inducer 76mm exducer super alloy withstands 1050°C EGT for long life in high-boost diesel applications.
- 360-Degree Thrust Bearing CHRA: Oil-cooled center section with 60% larger thrust area handles 100+ psi drive pressure reliably.
- High-Flow Compressor Housing: 4" inlet 2.5" outlet machined ported design minimizes restrictions boosts efficiency 10% over stock.
- Race-proven in NHRA PDRA drag trucks over 2000 HP.
Fitment
| Fitment Basis | Universal by exact BorgWarner dimensions and turbo-system interface |
|---|---|
| Required Check | Confirm turbo family, wheel sizes, housing A/R, flanges, inlet and outlet geometry, bearing housing, wastegate configuration, oil and coolant connections, rotation, and clearance |
Specifications
| Manufacturer | BorgWarner |
|---|---|
| Manufacturer Part Number | 177283 |
| Product Type | Turbochargers |
| Turbo Family | S300SX3 |
| Flange | T4 |
| Wheel Size | 63mm |
| Fitment Type | Universal by exact dimensions and turbo-system interface |
What's Included
One new BorgWarner product in the exact configuration identified by manufacturer part number 177283. Gaskets, lines, clamps, housings, actuators, sensors, hardware, and companion components are included only when expressly stated for this part number.
About BorgWarner
BorgWarner develops original-equipment and performance turbocharging systems, including EFR, AirWerks, S-Series, K-Series, SuperCore assemblies, housings, cartridges, actuators, and service components.
Related BorgWarner Products
- BorgWarner Turbocharger SX S300SX3 T4 A/R .88 60mm Inducer
- BorgWarner Turbocharger SX S300SX3 T4 A/R .88 66mm Inducer
- BorgWarner Turbocharger SX S300SX3 T4 A/R .91 60mm Inducer
Browse the BorgWarner collection for related turbochargers, housings, assemblies, actuators, and service components.
Frequently Asked Questions
How do I confirm this BorgWarner part matches my turbo system?
Match the exact BorgWarner part number, turbo family, compressor and turbine wheel sizes, housing A/R, flange, inlet and outlet geometry, bearing housing, wastegate configuration, and every connection before ordering.
Is this BorgWarner turbocharger a direct replacement?
Only when the exact part number, dimensions, housings, flanges, rotation, wastegate configuration, oil and coolant connections, and vehicle or system application all match. Similar turbo families are not automatically interchangeable.
What supporting parts should be inspected during installation?
Inspect or replace the oil feed and drain, coolant lines, gaskets, fasteners, intake and charge piping, intercooler, exhaust connections, wastegate hardware, and filtration components. Correct the cause of the previous turbo failure before startup.
Installation Instructions
Follow BorgWarner's current instructions and the vehicle or system service information for this exact part number. Verify every interface before disassembly, correct the cause of any prior turbo failure, prime the oil system, keep debris out of all passages, use new required seals and fasteners, confirm free rotation and line routing, and check for leaks before load. Professional turbo-system installation and calibration are recommended.
