BorgWarner Turbocharger SX S400 T6 A/R 1.32 74.7mm Inducer - Black Ops Auto Works
Click to zoom in

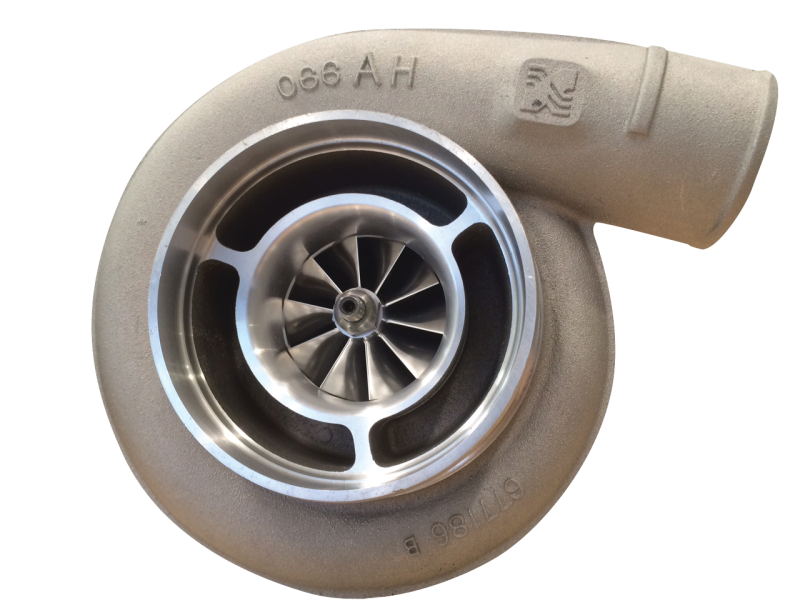

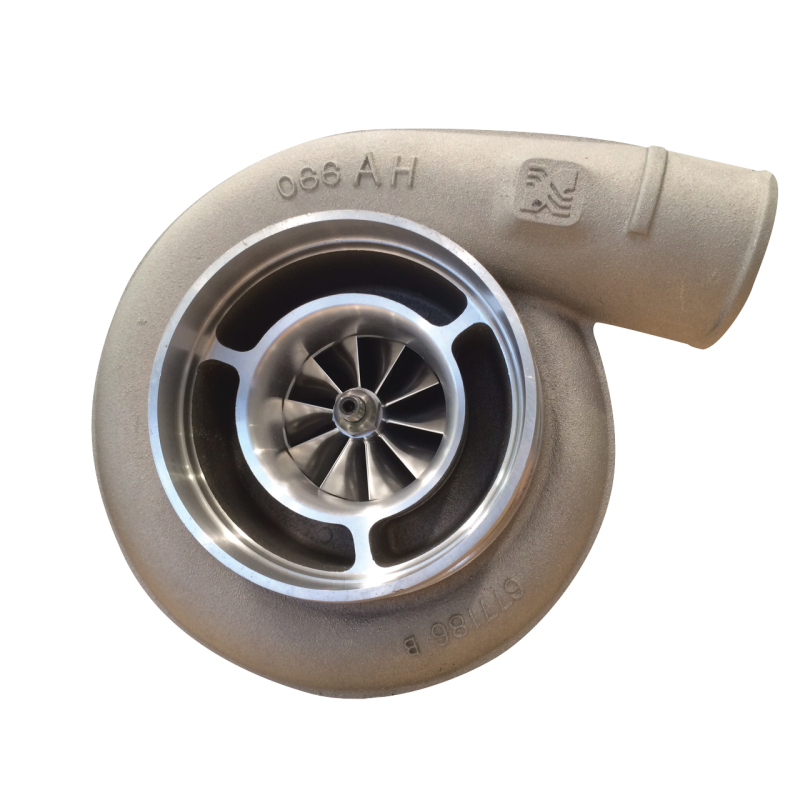

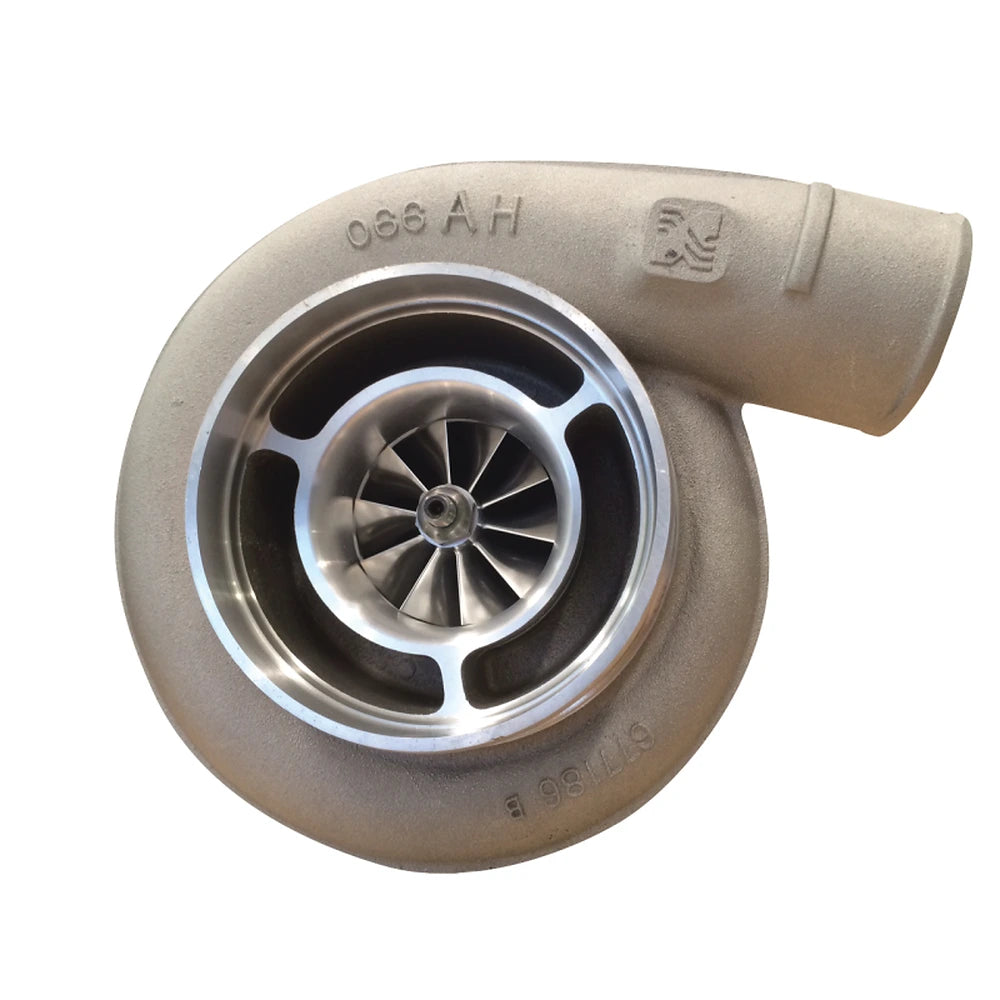

BorgWarner Turbocharger SX S400 T6 A/R 1.32 74.7mm Inducer

BorgWarner
BWA171702
840232708660
Turbochargers
20+ Units In Stock - Ships Next Business Day
$ 1,340.96 $ 1,072.77
$ 1,072.77

SKU: 171702 | UPC: 840232708660

BorgWarner Turbocharger SX S400 T6 A/R 1.32 74.7mm Inducer for 2003-2007 Dodge Ram Cummins 5.9L

This BorgWarner SX S400 turbocharger features a T6 A/R 1.32 turbine housing and 74.7mm compressor inducer designed specifically for 2003-2007 Dodge Ram 2500 and 3500 trucks with 5.9L Cummins diesel engines. It supports power levels from 750 to 900 horsepower with efficient airflow and responsive boost. Direct bolt-on fitment to T6 manifolds makes it ideal for high-performance diesel builds.

Key Features

  • Compressor Wheel: 74.7mm inducer 100mm exducer forged billet design delivers rapid spool-up and supports up to 110 lbs/min airflow for strong mid-range torque.
  • Turbine Housing: T6 divided A/R 1.32 provides balanced exhaust flow for quick response and high top-end power in 5.9L Cummins applications.
  • Center Housing: Oil-cooled CHRA with 360-degree thrust bearing ensures durability under extreme boost pressures and heat cycles.
  • Turbine Wheel: 83mm inducer 74mm exducer Mar-M alloy wheel withstands EGTs over 1700°F for reliable long-term performance.
  • Extended Tip Technology: SX series aerodynamics improve efficiency and surge resistance for consistent power delivery across RPM range.

Product Notes

  • Requires T6 manifold setup common on 3rd gen Cummins trucks.
  • Pair with upgraded injectors and tuning for full potential.
  • Ships fully assembled ready for installation no core charge required.

Installation Notes

  • Professional installation recommended.
  • Uses factory-style V-band clamps for secure T6 flange mounting.
  • Compatible with stock oil feed and drain lines on 5.9L Cummins.

This Part Fits

Year Make Model Submodel
2003-2007 Dodge Ram 2500 5.9L Cummins Diesel
2003-2007 Dodge Ram 3500 5.9L Cummins Diesel
2004.5-2007 Dodge Ram 2500 5.9L Cummins Diesel
2004.5-2007 Dodge Ram 3500 5.9L Cummins Diesel

Why Choose BorgWarner?

  • Trusted OEM supplier for major diesel manufacturers with decades of turbo expertise.
  • Proven in drag racing and sled pulling with consistent championship wins.
  • Precision CNC-machined components for exact tolerances and leak-free operation.

Frequently Asked Questions

  • Q: Does this fit 2003-2007 5.9L Cummins with stock manifold?
    A: Yes it bolts directly to T6 manifolds found on most modified 3rd gen Rams requires no adapter.
  • Q: What materials are used in construction?
    A: Billet aluminum compressor 360 aluminum housing Mar-M turbine wheel and high-temp NiResist housing for extreme durability.
  • Q: What warranty coverage applies?
    A: 12-month unlimited mileage warranty when installed by certified shop with proof of tuning.

Shipping & Handling

  • Method: Standard ground shipping
  • Availability: In stock - ships same or next business day
  • Packaging: Securely boxed dimensions 20 x 16 x 16 inches
  • Weight: 29 lbs
