SKU: 177248 | UPC: 840232709216

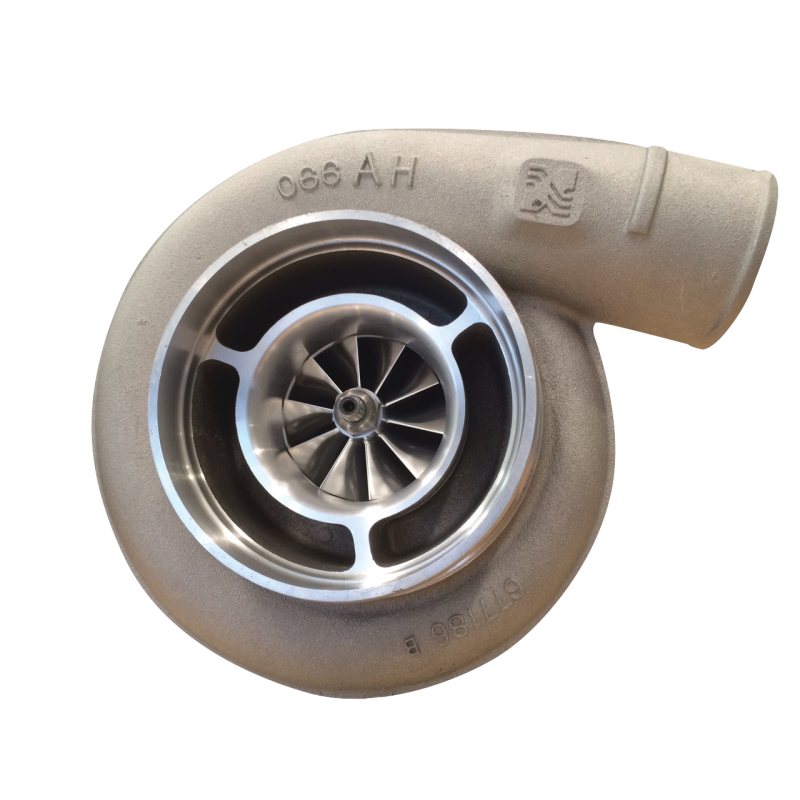

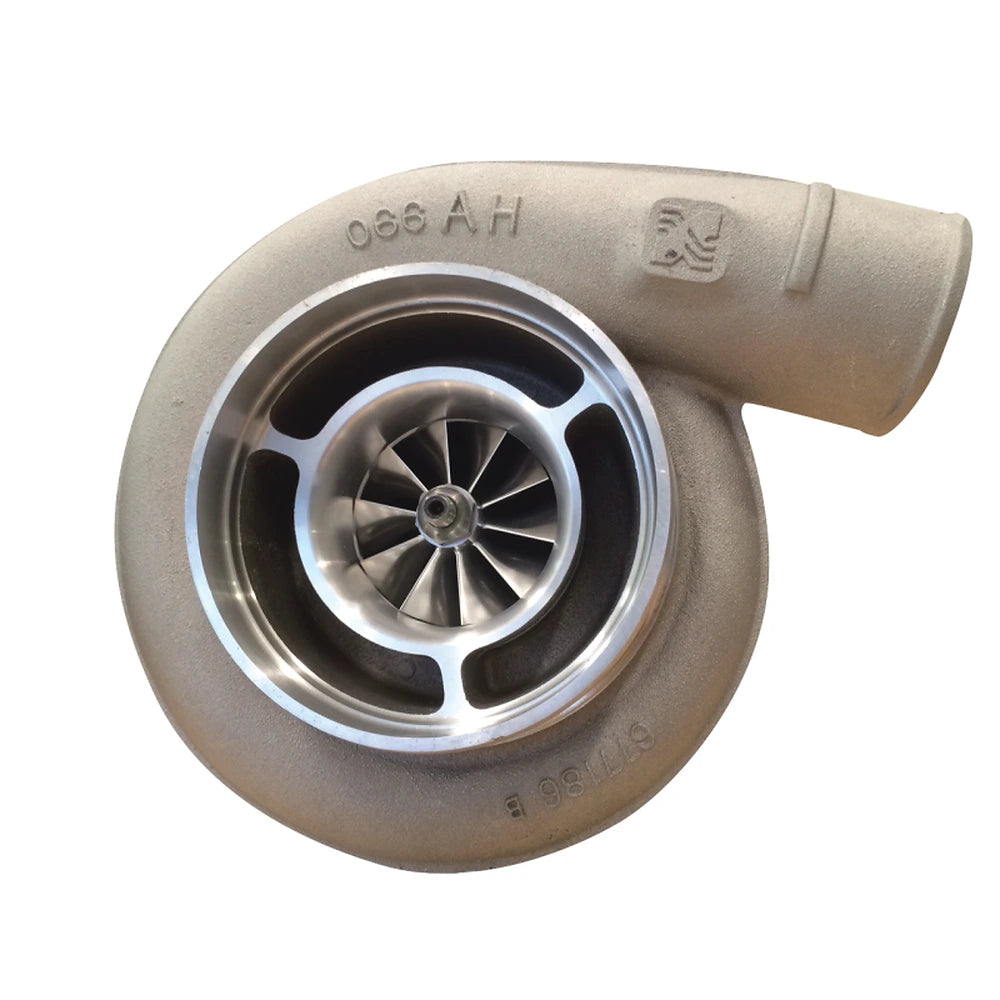

BorgWarner Turbocharger SX S400SX3 T4 A/R 1.10 71.4mm Inducer for 2003-2023 Cummins 5.9L/6.7L Ram Trucks
BorgWarner SX S400SX3 turbocharger delivers massive airflow through its 71.4mm billet compressor inducer and T4 A/R 1.10 turbine housing for engines pushing 900-1200 HP. Designed for high-performance diesel trucks including Cummins 5.9L and 6.7L in Ram 2500/3500 this unit features dual ball bearings and water/oil cooling for reliability under extreme boost. Perfect upgrade for drag racing street trucks and towing applications needing quick spool and sustained power.
Key Features
- 71.4mm Billet Compressor Inducer: Paired with 99mm exducer moves 110+ lbs/min of air for dyno-proven 900-1200 HP potential in 2.6L-9.0L engines
- Dual Ball Bearing CHRA: Reduces friction for 25% faster spool-up compared to journal bearings supports up to 200000 RPM
- T4 Divided A/R 1.10 Turbine Housing: Cast iron construction with V-band outlet handles high exhaust flow from large diesel engines without choking
- 83.7mm Turbine Exducer / 74.65mm Inducer: Inconel wheel withstands EGTs over 1700°F for long-term durability in competition use
- Water and Oil Cooled Center Section: Prevents heat soak maintains oil pressure for consistent performance in daily driven or race trucks
Product Notes
- Special order item allow 3-5 business days for processing from BorgWarner
- Requires matching T4 manifold oil drain kit and custom intercooler piping
- Ships freight or ground based on location heavy item requires lift gate for delivery
Installation Notes
- Professional installation recommended.
- Upgrade fuel system injectors and tuning before install to support airflow gains
- Compatible with T4 flanged manifolds V-band turbine outlet uses standard clamps
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003-2007 | Dodge/Ram | 2500/3500 | 5.9L Cummins |
| 2007-2023 | Dodge/Ram | 2500/3500 | 6.7L Cummins |
| 2011-2023 | Ford | F-250/F-350/F-450 | 6.7L Powerstroke |
| 2006-2010 | Chevrolet/GMC | 2500HD/3500HD | 6.6L Duramax LBZ/LMM |
| 2011-2016 | Chevrolet/GMC | 2500HD/3500HD | 6.6L Duramax LML |
Why Choose BorgWarner?
- Supplies OEM turbos to Ford GM and Ram for proven diesel reliability
- Precision machined billet wheels and housings from race-winning designs
- 1-year unlimited mileage warranty backs every performance turbo
Frequently Asked Questions
-
Q: Does this turbo fit stock Cummins manifolds?
A: No requires aftermarket T4 divided manifold for proper fitment on 5.9L/6.7L engines popular kits from HSP or Wehrli -
Q: What materials are used in construction?
A: Billet 2618 aluminum compressor wheel Inconel turbine wheel cast iron T4 housing for heat resistance -
Q: What warranty coverage applies?
A: BorgWarner 1-year warranty covers defects in materials/workmanship when installed by certified shop with proof
Shipping & Handling
- Method: UPS/FedEx Ground or Freight for residential
- Availability: Special order ships 3-5 business days
- Packaging: Original BorgWarner box 24in x 18in x 18in
- Weight: 41 lbs
