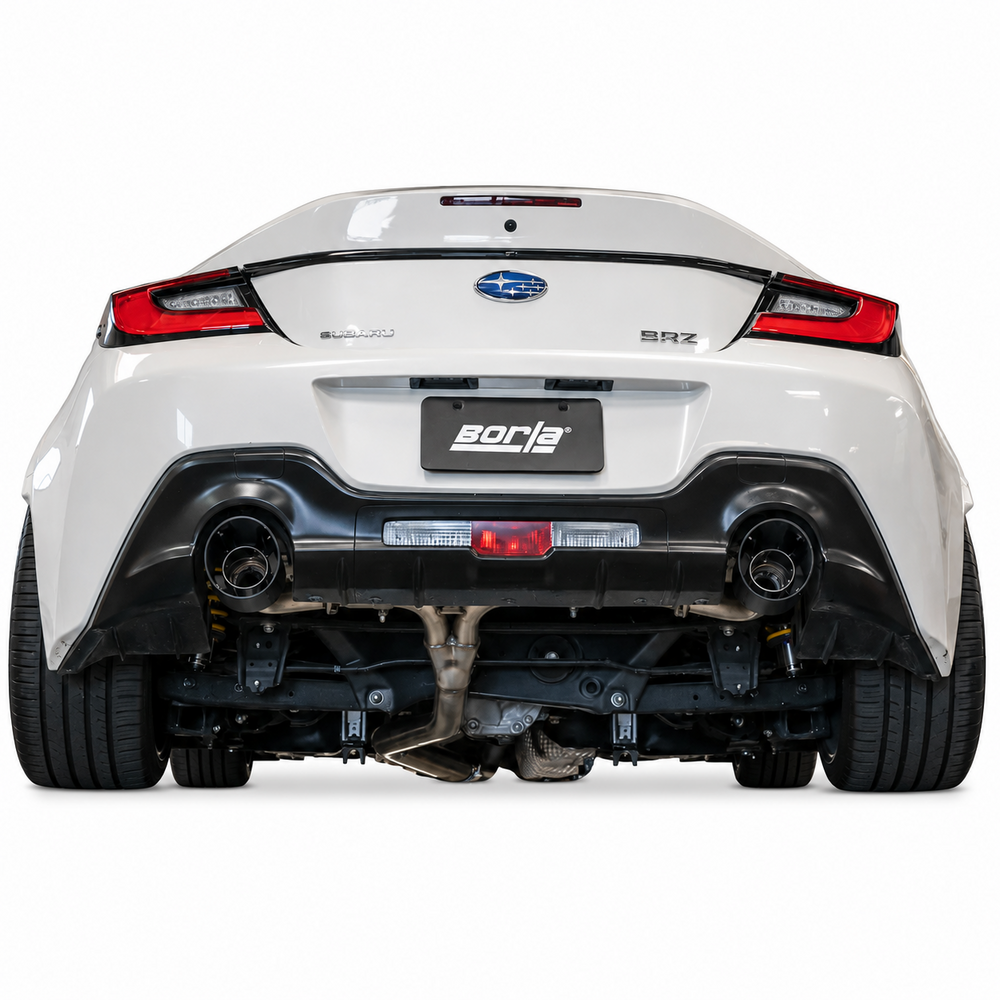

Give the second-generation BRZ or GR86 Borla's most aggressive sound
The Borla 140910CFBA ATAK Cat-Back exhaust combines vehicle-specific 2.5-inch into dual 2-inch tubing with two 5-inch carbon-fiber tips. It is engineered for the 2022-2026 Subaru BRZ and Toyota GR86 with the 2.4L engine, rear-wheel drive, and either an automatic or manual transmission.
Key Features
- ATAK sound level delivers Borla's most aggressive street-exhaust volume without cruising drone.
- Single 2.5-inch pipe transitions into dual 2-inch tailpipes.

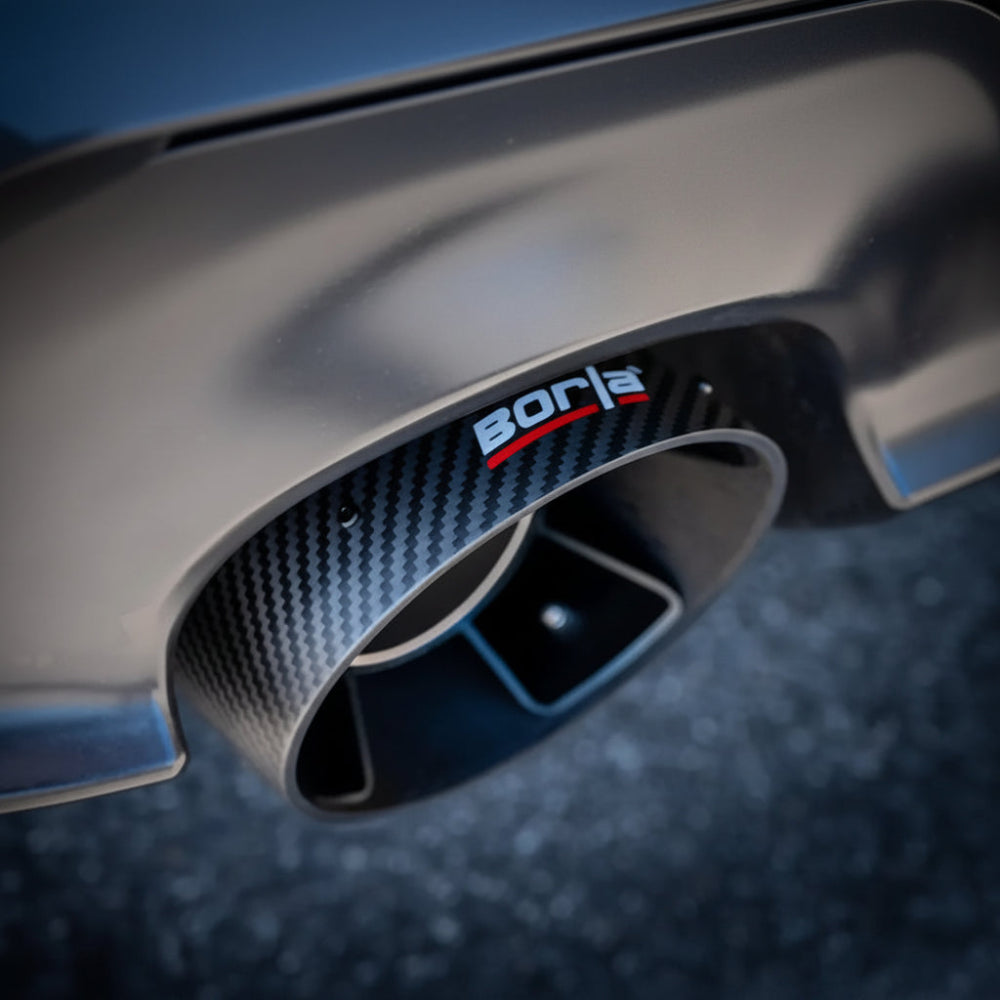

- Two 5-inch carbon-fiber tips with black anodized inner cores.
- Premium T-304 austenitic stainless-steel system construction.
- Ultra-smooth mandrel bends and CNC manufacturing support consistent flow and fit.
- Direct bolt-on installation requires no cutting.
- Handmade in the USA and backed by Borla's Million-Mile Warranty for the stainless-steel system; verify current finish coverage separately.
- Borla 140910CFBA is the carbon-fiber-tip configuration shown in the product images.
Fitment
| Vehicle | Years / Requirements |
|---|---|
| Subaru BRZ | 2022-2026, 2.4L four-cylinder, automatic or manual transmission, RWD |
| Toyota GR86 | 2022-2026, 2.4L four-cylinder, automatic or manual transmission, RWD |
Confirm the 2.4L engine and rear-wheel-drive configuration before ordering Borla 140910CFBA.
Specifications
| Detail | Value |
|---|---|
| Brand | Borla |
| MPN | 140910CFBA |
| System type | Cat-Back exhaust |
| Sound level | ATAK |
| Engine | 2.4L four-cylinder |
| Transmission | Automatic or manual |
| Drivetrain | RWD |
| Pipe configuration | Single 2.5-inch into dual 2-inch |
| Tips | Two 5-inch carbon-fiber tips with black anodized inner cores |
| Exit | Single split rear exit |
| System material | T-304 austenitic stainless steel |
| Clamp torque | 32-35 ft-lbs |
| Installation | Direct bolt-on; no cutting |

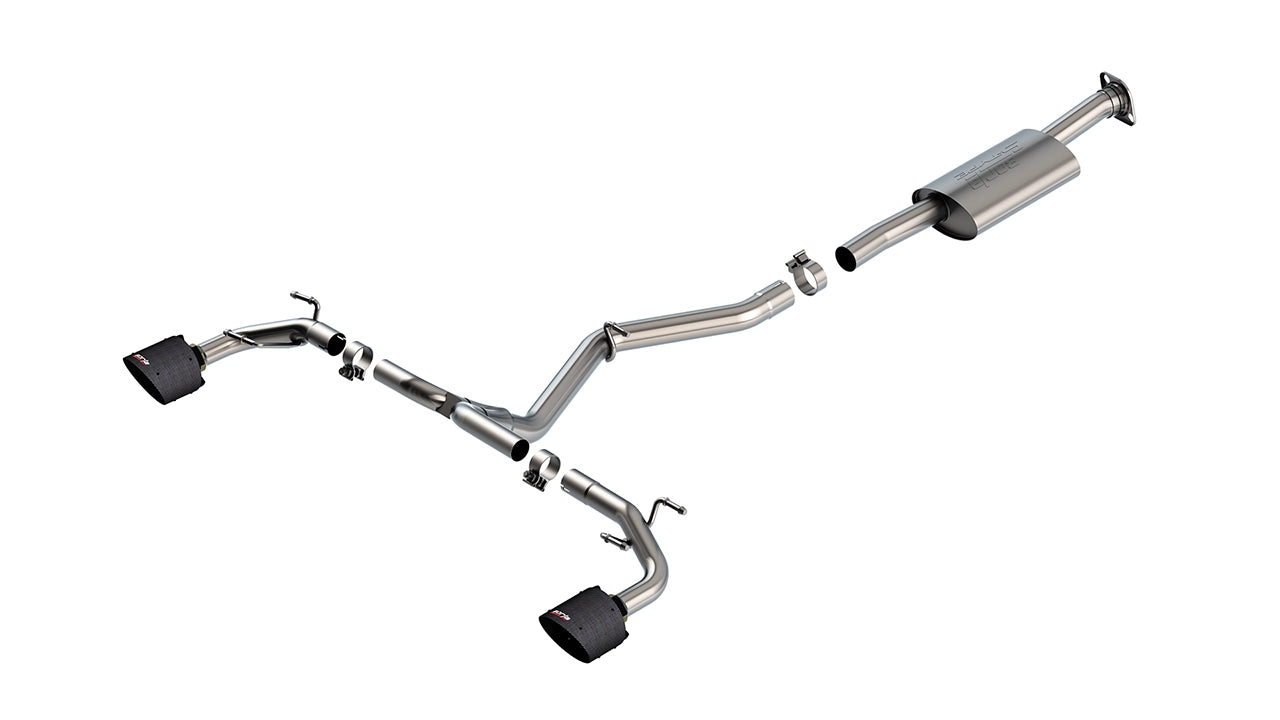

What's Included
- Borla 140910CFBA ATAK Cat-Back exhaust system
- Muffler Assembly
- Y-Pipe Assembly
- Right-hand Tailpipe Assembly
- Left-hand Tailpipe Assembly
- Accuseal clamps
About Borla
Borla engineers vehicle-specific exhaust systems around the intended engine, chassis, and sound target. The Borla 140910CFBA configuration combines ATAK tuning, mandrel-bent T-304 tubing, direct-fit hangers, and carbon-fiber tips for the second-generation BRZ and GR86.
FAQ
What is the 140910CFBA?It is a direct-fit ATAK Cat-Back exhaust system with carbon-fiber tips for the compatible Subaru BRZ and Toyota GR86 applications.
Which vehicles does it fit?It fits 2022-2026 Subaru BRZ and Toyota GR86 models with the 2.4L engine and rear-wheel drive.
Does it fit automatic and manual transmissions?Yes. Borla lists both automatic and manual RWD applications.
What does ATAK mean for the sound?ATAK is Borla's most aggressive street sound level, tuned for strong engine character without cruising drone.
What size is the tubing?The system uses a single 2.5-inch inlet path that transitions into dual 2-inch tailpipes.
What tips are included?This configuration has two 5-inch carbon-fiber tips with black anodized inner cores.
Does installation require cutting?No. Borla identifies the system as a direct bolt-on installation with no cutting required.
How tight should the clamps be?The installation guide specifies 32-35 ft-lbs for the Accuseal clamps after the system is aligned.
Installation Instructions
- Allow the exhaust to cool for at least one hour, raise the vehicle securely, wear eye protection, and lubricate the hangers, isolators, bolts, and nuts.
- Remove the factory exhaust while retaining the original flange hardware and rubber isolators required for the Borla system.
- Mate the Muffler Assembly flange to the vehicle and loosely install the original flange hardware.
- Place a clamp over the Y-Pipe Assembly, connect it to the muffler outlet, and seat its hanger in the original isolator.
- Install the right-hand and left-hand tailpipe assemblies into the Y-pipe with clamps and seat their hangers in the original isolators.
- Align both carbon-fiber tips and the complete exhaust for safe body and undercarriage clearance.
- Tighten the flange hardware, torque the Accuseal clamps to 32-35 ft-lbs without impact tools, and inspect for leaks after starting the vehicle.
