Add a moderate, drone-free Borla sound to the BRZ or GR86

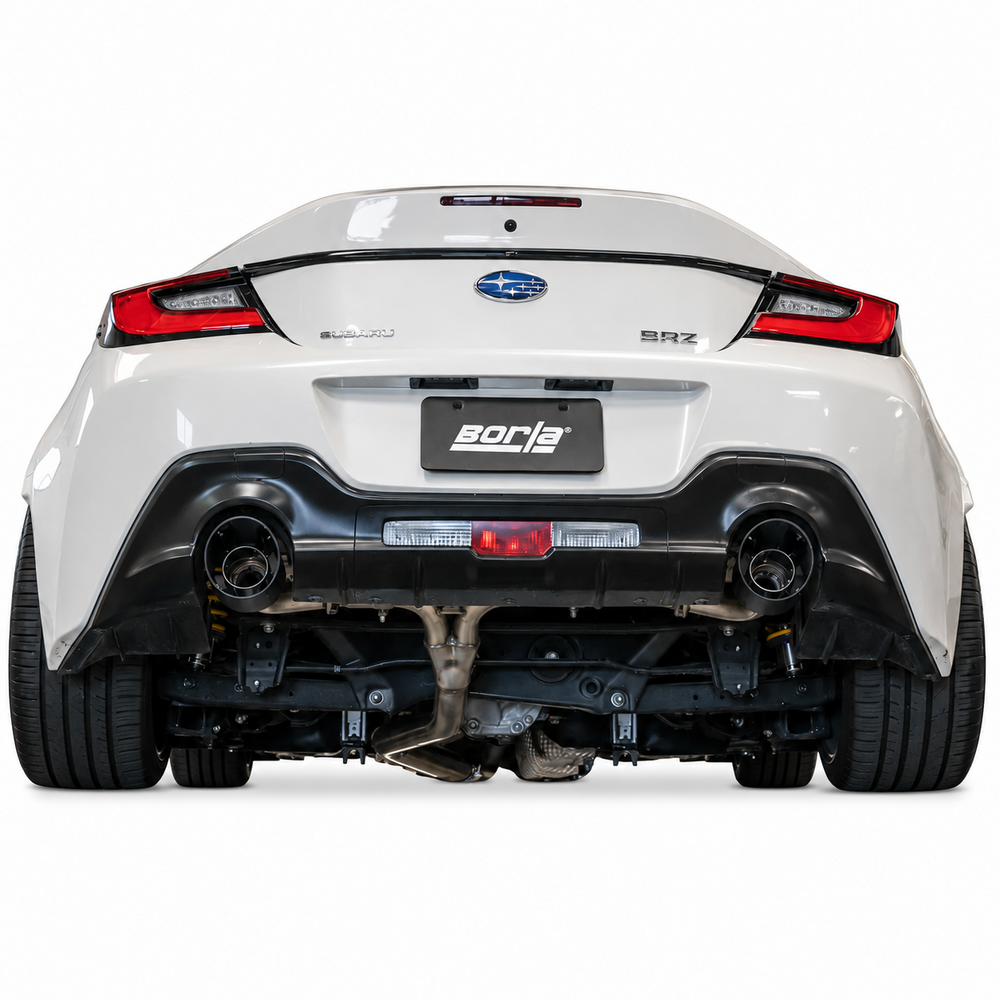

The Borla 140909CFBA S-Type Cat-Back exhaust combines vehicle-specific 2.5-inch into dual 2-inch tubing with two 5-inch carbon-fiber tips. It is engineered for the 2022-2026 Subaru BRZ and Toyota GR86 with the 2.4L engine, rear-wheel drive, and either an automatic or manual transmission.
Key Features
- S-Type tuning adds a moderate exhaust note that brings out the boxer-engine rumble without cruising drone.
- Single 2.5-inch pipe transitions into dual 2-inch tailpipes.

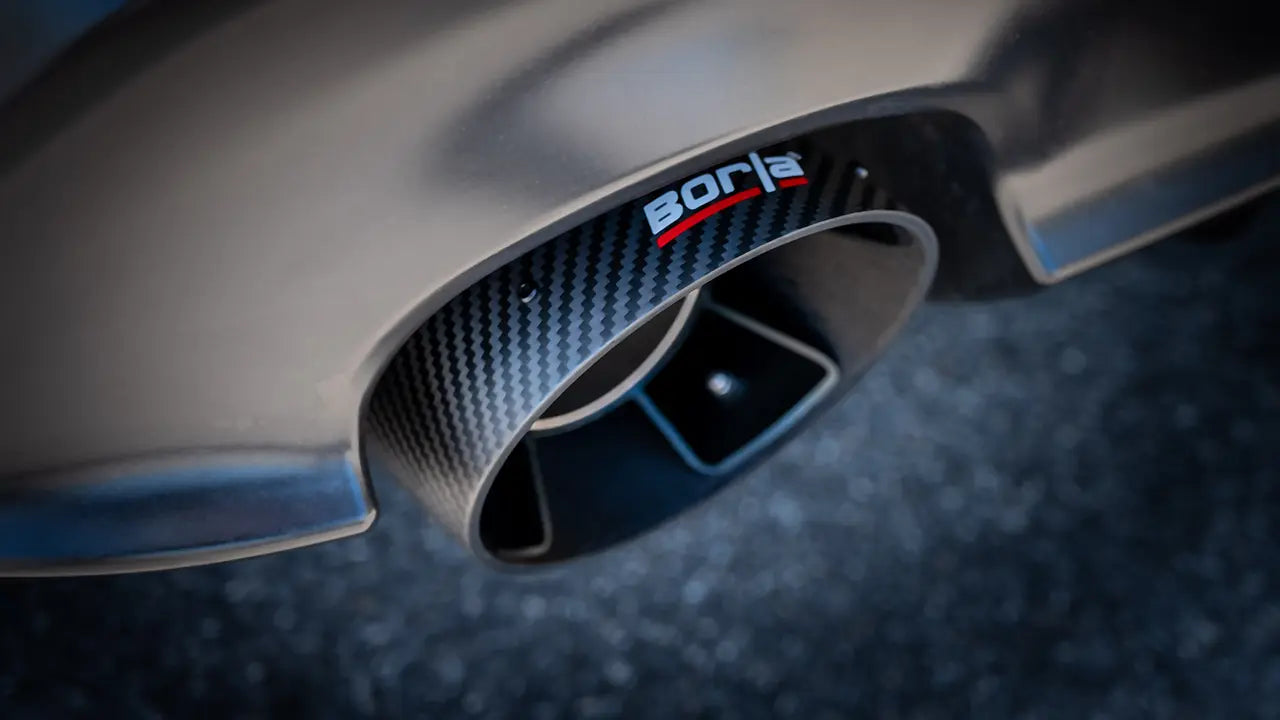

- Two 5-inch carbon-fiber tips with black anodized inner cores.
- Premium T-304 austenitic stainless-steel system construction.
- Ultra-smooth mandrel bends and CNC manufacturing support consistent flow and fit.
- Direct bolt-on installation requires no cutting.
- Handmade in the USA and backed by Borla's Million-Mile Warranty for the stainless-steel system; verify current finish coverage separately.
- Borla 140909CFBA is the carbon-fiber-tip configuration shown in the product images.
Fitment
| Vehicle | Years / Requirements |
|---|---|
| Subaru BRZ | 2022-2026, 2.4L four-cylinder, automatic or manual transmission, RWD |
| Toyota GR86 | 2022-2026, 2.4L four-cylinder, automatic or manual transmission, RWD |
Confirm the 2.4L engine and rear-wheel-drive configuration before ordering Borla 140909CFBA.
Specifications
| Detail | Value |
|---|---|
| Brand | Borla |
| MPN | 140909CFBA |
| System type | Cat-Back exhaust |
| Sound level | S-Type |
| Engine | 2.4L four-cylinder |
| Transmission | Automatic or manual |
| Drivetrain | RWD |
| Pipe configuration | Single 2.5-inch into dual 2-inch |
| Tips | Two 5-inch carbon-fiber tips with black anodized inner cores |
| Exit | Single split rear exit |
| System material | T-304 austenitic stainless steel |
| Clamp torque | 32-35 ft-lbs |
| Installation | Direct bolt-on; no cutting |

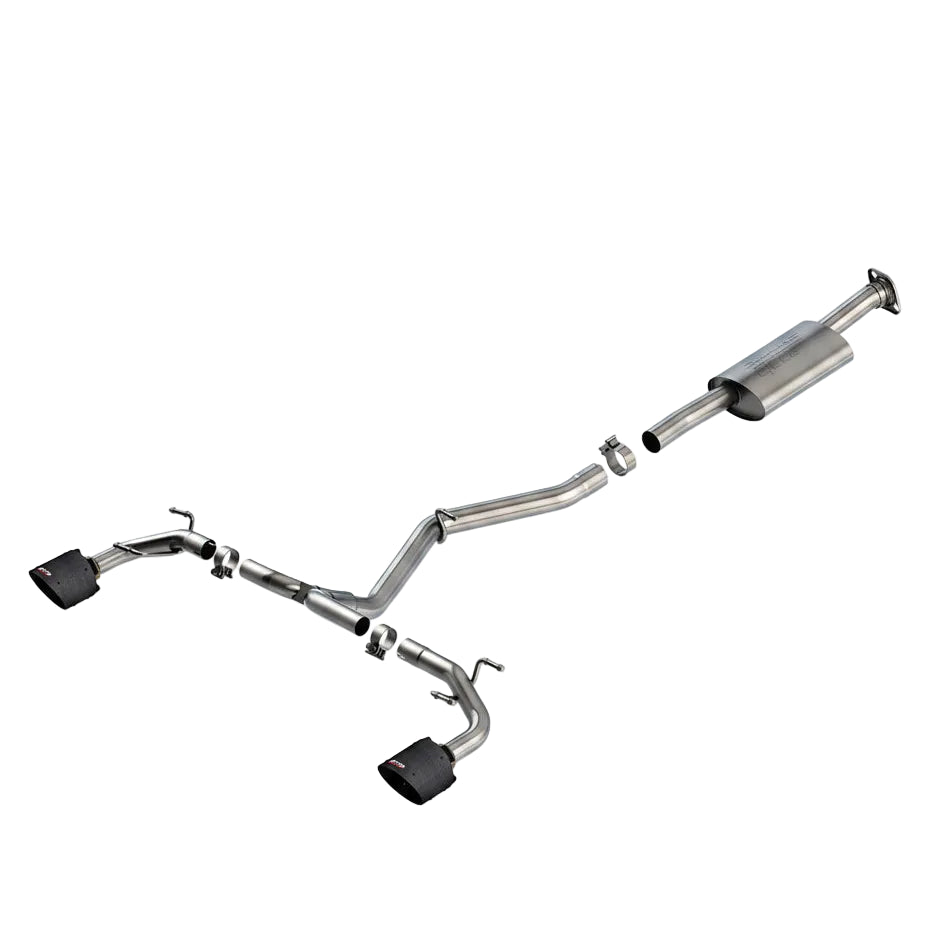

What's Included
- Borla 140909CFBA S-Type Cat-Back exhaust system
- Muffler Assembly
- Y-Pipe Assembly
- Right-hand Tailpipe Assembly
- Left-hand Tailpipe Assembly
- Accuseal clamps
About Borla
Borla engineers vehicle-specific exhaust systems around the intended engine, chassis, and sound target. The Borla 140909CFBA configuration combines S-Type tuning, mandrel-bent T-304 tubing, direct-fit hangers, and carbon-fiber tips for the second-generation BRZ and GR86.
FAQ
What is the 140909CFBA?It is a direct-fit S-Type Cat-Back exhaust system with carbon-fiber tips for the compatible Subaru BRZ and Toyota GR86 applications.
Which vehicles does it fit?It fits 2022-2026 Subaru BRZ and Toyota GR86 models with the 2.4L engine and rear-wheel drive.
Does it fit automatic and manual transmissions?Yes. Borla lists both automatic and manual RWD applications.
What does S-Type mean for the sound?S-Type provides a moderate performance sound designed to bring out the boxer-engine rumble without cruising drone.
What size is the tubing?The system uses a single 2.5-inch inlet path that transitions into dual 2-inch tailpipes.
What tips are included?This configuration has two 5-inch carbon-fiber tips with black anodized inner cores.
Does installation require cutting?No. Borla identifies the system as a direct bolt-on installation with no cutting required.
How tight should the clamps be?The installation guide specifies 32-35 ft-lbs for the Accuseal clamps after the system is aligned.
Installation Instructions
- Allow the exhaust to cool for at least one hour, raise the vehicle securely, wear eye protection, and lubricate the hangers, isolators, bolts, and nuts.
- Remove the factory exhaust while retaining the original flange hardware and rubber isolators required for the Borla system.
- Mate the Muffler Assembly flange to the vehicle and loosely install the original flange hardware.
- Place a clamp over the Y-Pipe Assembly, connect it to the muffler outlet, and seat its hanger in the original isolator.
- Install the right-hand and left-hand tailpipe assemblies into the Y-pipe with clamps and seat their hangers in the original isolators.
- Align both carbon-fiber tips and the complete exhaust for safe body and undercarriage clearance.
- Tighten the flange hardware, torque the Accuseal clamps to 32-35 ft-lbs without impact tools, and inspect for leaks after starting the vehicle.
