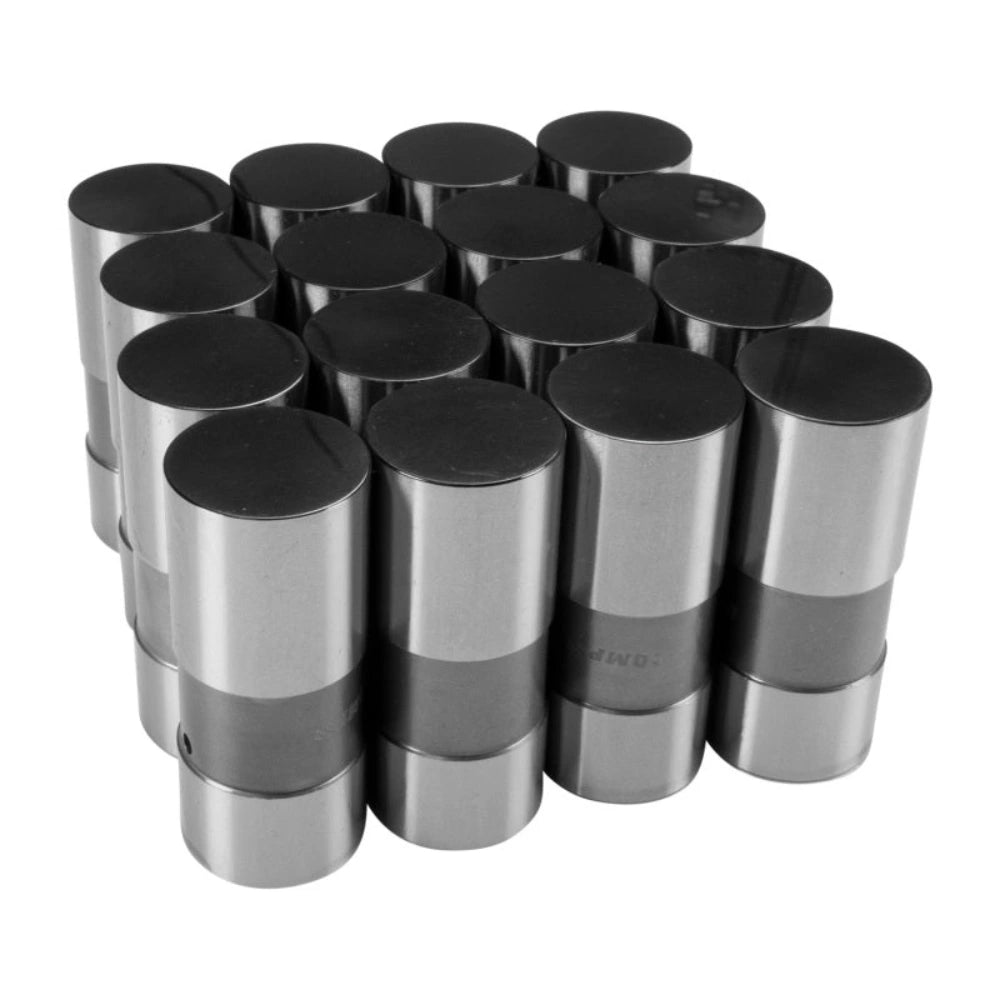

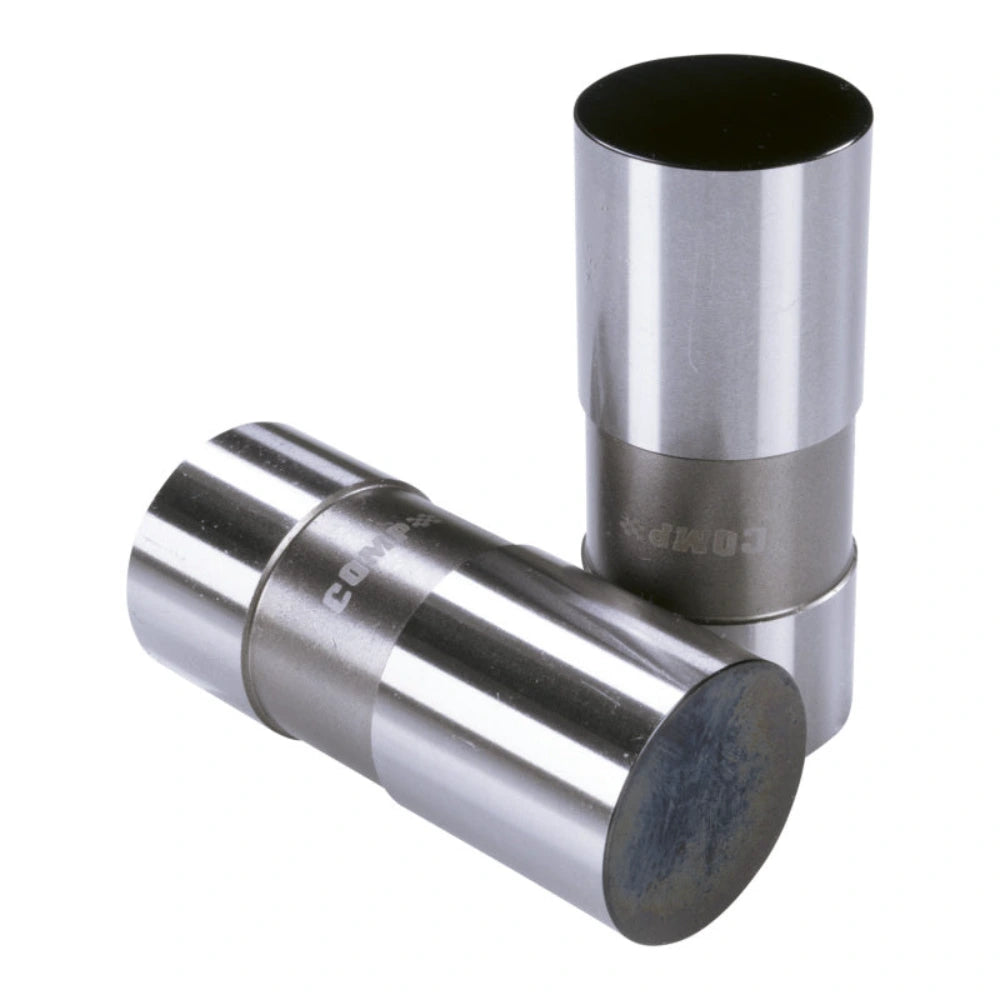

COMP Cams 310103016 is a set of 16 Xtreme Energy hydraulic flat tappet lifters for compatible Chevrolet small-block and big-block V8 engines. A Diamond-Like Carbon face reduces friction at the cam lobe and lifter interface. Match the engine family, camshaft type, lifter diameter, seat height, and exact manufacturer part number before assembly.
Key Features
- DLC-coated lifters are compatible with all steel and cast-iron camshafts and have been durability tested on a Spintron, simulating entire racing seasons with outstanding results.
- The new Xtreme Energy™ Diamond-Like Carbon (DLC) coated flat-tappet lifters feature a DLC surface treatment, producing a flat-tappet lifter with an extremely hard, tough, and slick face that reduces friction at the cam lobe.
- This coating also extends the life of the lifter and camshaft, significantly reducing the likelihood of a flattened cam lobe.
Fitment
This is an engine-application component selected by the exact Chevrolet engine family and valvetrain specifications rather than by vehicle year, make, and model. Confirm camshaft material, lifter bore diameter, preload, oiling, spring pressure, and all current COMP Cams requirements.
Specifications
| Brand | COMP Cams |
|---|---|
| Manufacturer Part Number | 310103016 |
| Lifter Type | Hydraulic flat tappet |
| Body Diameter | 0.842 inch |
| Seat Height | 1.99 inches |
| Quantity | 16 lifters |
| Face Finish | Diamond-Like Carbon |
| Engine Families | Chevrolet small-block 265-400 and big-block 396-454 V8 |
| UPC or GTIN | 00036584038627 |
What's Included
Sixteen COMP Cams 310103016 hydraulic flat tappet lifters. Camshaft, pushrods, rocker arms, valve springs, retainers, locks, gaskets, lubricants, and other valvetrain components are not included.
About COMP Cams
COMP Cams manufactures automotive performance and replacement components. Match the exact manufacturer part number and published application details before installation.
Related COMP Cams Products
Frequently Asked Questions
How many lifters are included with COMP Cams 310103016?
This exact part number contains a complete set of 16 lifters.
Can these lifters be used with a roller camshaft?
No. They are hydraulic flat tappet lifters and must be matched to a compatible flat tappet camshaft.
Does the vehicle model alone confirm compatibility?
No. Confirm the exact engine family, camshaft design, lifter diameter, seat height, and complete valvetrain combination.
Installation Instructions
Installation should be completed by a qualified technician using the current manufacturer instructions. Verify the vehicle or system application, inspect every supplied component, follow the specified fastener and torque procedures, check clearances and routing, and confirm safe operation before driving.
