Single Side Exit Sport Sound Tuned for the EcoBoost F-150

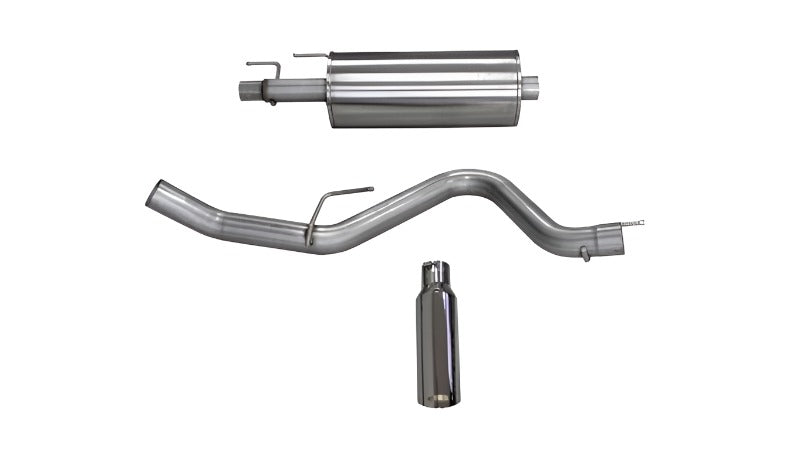

The Corsa COR24836 Sport Cat-Back Exhaust System is engineered for the 2015-2020 Ford F-150 equipped with the 2.7L or 3.5L EcoBoost engine in SuperCrew and SuperCab configurations. Using Corsa's patented Reflective Sound Cancellation (RSC) technology, the COR24836 eliminates highway drone completely while producing a sport-tuned exhaust note under acceleration. The 3.0-inch mandrel-bent 304 stainless steel piping routes cleanly to a single side exit with a polished 4.0-inch slash-cut tip, adding a subtle but purposeful performance presence to any EcoBoost F-150 build.
Key Features
- Corsa COR24836 Sport 3.0-inch Cat-Back Single Side Exit with 4.0-inch Polished Slash Cut Tip
- Fits 2015-2020 Ford F-150 2.7L and 3.5L EcoBoost SuperCrew and SuperCab
- Patented RSC (Reflective Sound Cancellation) technology eliminates cruise drone
- Sport sound level with aggressive tone under acceleration
- 3.0-inch mandrel-bent 304 stainless steel piping throughout
- Single side exit layout with laser-engraved polished 4.0-inch slash-cut tip
- Solid stainless steel hangers CNC bent to exact OEM hanger locations
- Completely bolt-on installation with no welding required
- Limited lifetime warranty
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2015-2020 | Ford | F-150 | SuperCrew, 2.7L EcoBoost |
| 2015-2020 | Ford | F-150 | SuperCrew, 3.5L EcoBoost |
| 2015-2020 | Ford | F-150 | SuperCab, 2.7L EcoBoost |
| 2015-2020 | Ford | F-150 | SuperCab, 3.5L EcoBoost |
Specifications
| Detail | Value |
|---|---|
| MPN | COR24836 |
| Brand | Corsa Performance |
| System Type | Cat-Back |
| Sound Level | Sport |
| Pipe Diameter | 3.0 in |
| Exit Style | Single Side Exit |
| Tip Style | Single Wall Slash Cut |
| Tip Size | 4.0 in Polished |
| Material | 304 Stainless Steel |
| Installation | Bolt-On, No Welding |
| Warranty | Limited Lifetime |
What's Included
- Corsa COR24836 Cat-Back exhaust assembly
- Single 4.0-inch polished slash-cut tip
- All band clamps and mounting hardware
- Installation instructions
About Corsa Performance
Corsa Performance is an Ohio-based exhaust manufacturer specializing in vehicle-specific exhaust systems built with 304 stainless steel and their patented RSC technology. Every Corsa system is engineered to produce a sport or touring exhaust note while completely eliminating drone at cruise, backed by a limited lifetime warranty.
Related Parts on Our Site
Frequently Asked Questions
What is the Corsa COR24836?The Corsa COR24836 is a Sport-level 3.0-inch Cat-Back Single Side Exit exhaust system for the 2015-2020 Ford F-150 with the 2.7L or 3.5L EcoBoost V6 engine in SuperCrew and SuperCab configurations. It uses Corsa's patented RSC technology for a sport sound with zero highway drone.
Does the COR24836 fit the F-150 PowerBoost hybrid?No. The COR24836 is not compatible with the F-150 PowerBoost hybrid configuration. The PowerBoost has an additional component on the head pipe that prevents Corsa systems from fitting. A PowerBoost-specific exhaust would be required.
Does the COR24836 fit the 3.5L EcoBoost High Output Raptor engine?No. The Raptor's 3.5L High Output EcoBoost has a different exhaust routing than the standard F-150 EcoBoost. The COR24836 is not compatible with the Raptor variant.
Is the COR24836 a drone-free exhaust at highway speeds?Yes. Corsa's patented Reflective Sound Cancellation technology is tuned into the muffler specifically for the 2.7L and 3.5L EcoBoost F-150, canceling the resonant frequencies that cause drone at cruise while preserving sport tone under acceleration.
What tip size comes with the Corsa COR24836?The COR24836 includes a single 4.0-inch outer diameter polished single-wall slash-cut stainless steel tip with a laser-engraved Corsa Performance logo.
Does the COR24836 require any cutting or welding?No. The COR24836 is a completely bolt-on system that attaches to the factory resonator connection point. No cutting, drilling, or welding is required for a standard installation.
What is the warranty on the Corsa COR24836?Corsa backs the COR24836 with a limited lifetime warranty covering defects in materials and workmanship for the life of the original purchaser's vehicle.
Will the COR24836 fit wheel-to-wheel running boards?Verify your specific bed and cab configuration before purchasing. Certain single side exit systems may have clearance limitations with full cab-length running boards. Contact Corsa Performance with your exact build details to confirm fitment.
Installation Instructions
- Raise and safely support the vehicle on jack stands or a lift
- Loosen the factory clamp connection after the stock resonator using a 15mm deep socket
- Loosen the two 13mm flange bolts at the resonator connection without fully removing them
- Support the factory exhaust system with a jack stand under the resonator outlet
- For the 5.0L only, use grommet pullers to remove the front muffler hanger from its grommet
- Slide the entire factory system rearward to free all hangers and separate the front pipe from the resonator
- Lower the factory system clear of the vehicle
- Position the Corsa muffler assembly inlet over the resonator outlet and insert hangers into their grommets
- Rotate the resonator so the drain hole faces downward before snugging the factory clamp to 45 ft-lbs
- Route the tailpipe assembly over the rear axle and seat all hangers into their grommets
- Insert muffler outlet into tailpipe inlet, position the supplied band clamp, and snug to 35 ft-lbs
- Align the tip assembly with the bumper cutout and torque the tip bolt to 16-20 ft-lbs
- Visually inspect all clearances and clamp positions before road testing
- After road test allow system to cool and re-torque all clamps
This product can expose you to chemicals including nickel compounds, which are known to the State of California to cause cancer, and carbon monoxide, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
