Dodge Durango 2011-2026 Front Stainless Steel Brake Lines

Upgrade Your Dodge Durango Braking Performance with Rotora Front Stainless Steel Braided Brake Lines

The Rotora L.58030 delivers a direct-fit front brake line upgrade engineered specifically for the 2011-2026 Dodge Durango. These Rotora L.58030 front stainless steel brake lines replace the factory rubber hoses with a PTFE-lined, braided stainless construction that eliminates hose expansion under hard braking, translating to a firmer, more responsive pedal. Whether you are pushing your Durango through mountain curves or towing a heavy load in stop-and-go traffic, the L.58030 provides consistent hydraulic pressure delivery from master cylinder to caliper. Fitment covers all non-SRT Durango trims from 2011 through 2026 -- the Durango SRT 392 and SRT Hellcat are excluded because those models come factory-equipped with Brembo multi-piston calipers that use a different brake line interface.

Key Features

• PTFE inner core: Teflon-lined tubing resists brake fluid degradation and withstands high-pressure cycles without expansion, ensuring repeatable pedal feel over the life of the line
• Stainless steel braid: The woven stainless jacket supports the PTFE core and provides superior abrasion resistance against road debris and chafing against chassis components
• Blue abrasion-resistant PVC jacket: Outer coating protects the braid from environmental damage and chafing; strain relief devices reinforce end fittings to prevent flex-point fatigue
• 3,500 PSI pressure tested: Every Rotora L.58030 line is 100% individually tested in-house to 3,500 PSI before shipment
• DOT compliant and FMVSS 106 certified: Manufactured to meet and exceed DOT compliance and Federal Motor Vehicle Safety Standard 106 requirements
• Direct bolt-on installation: Engineered fittings match OEM attachment points for a no-modification installation on compatible Durango trims
• M10 x 1.0 thread die note: The Durango front brake line ports use M10 x 1.0 banjo bolt threads; if threads are stripped from previous service, chase them before installation (see note below)

Fitment Chart

Does not fit: Durango SRT 392 or SRT Hellcat. Those trims come from the factory with Brembo multi-piston front calipers that use a different brake line port configuration. If you have an SRT model, contact us for the correct Rotora SRT brake line kit.

Product Specifications

What's Included

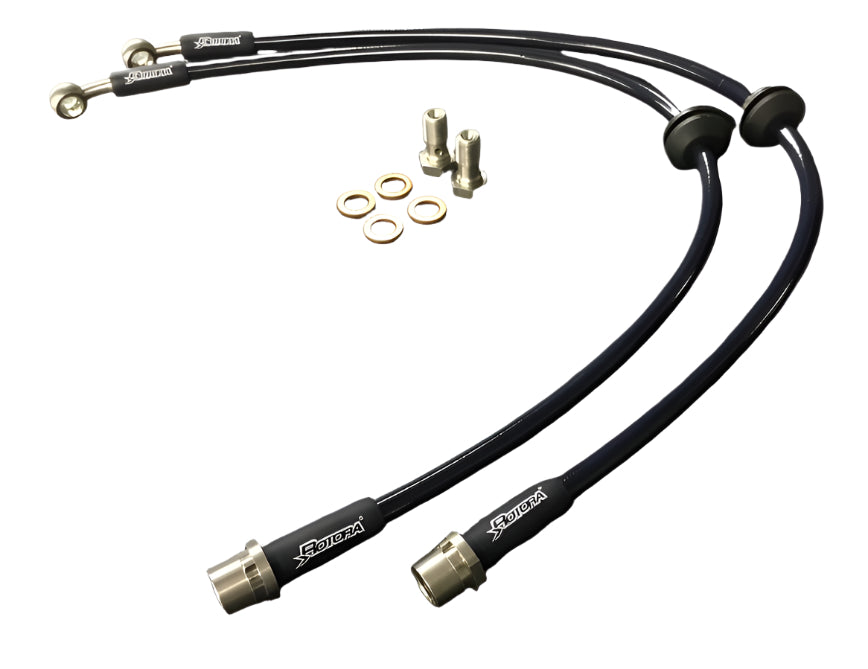

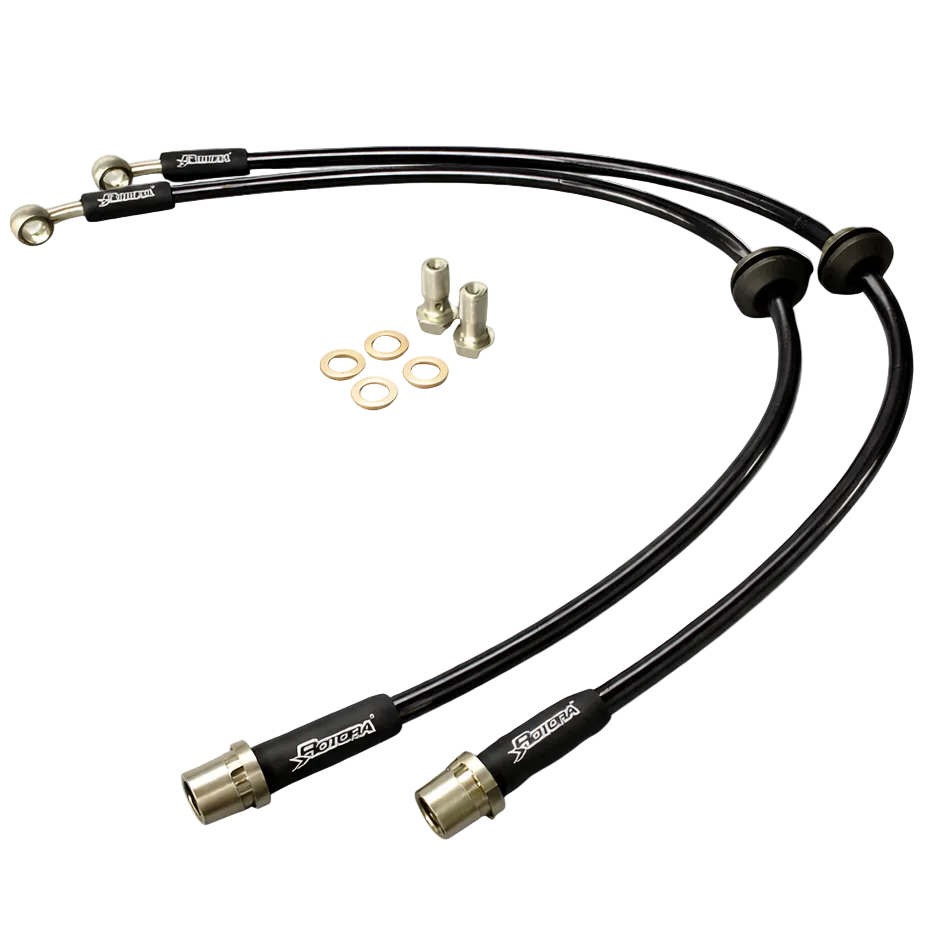

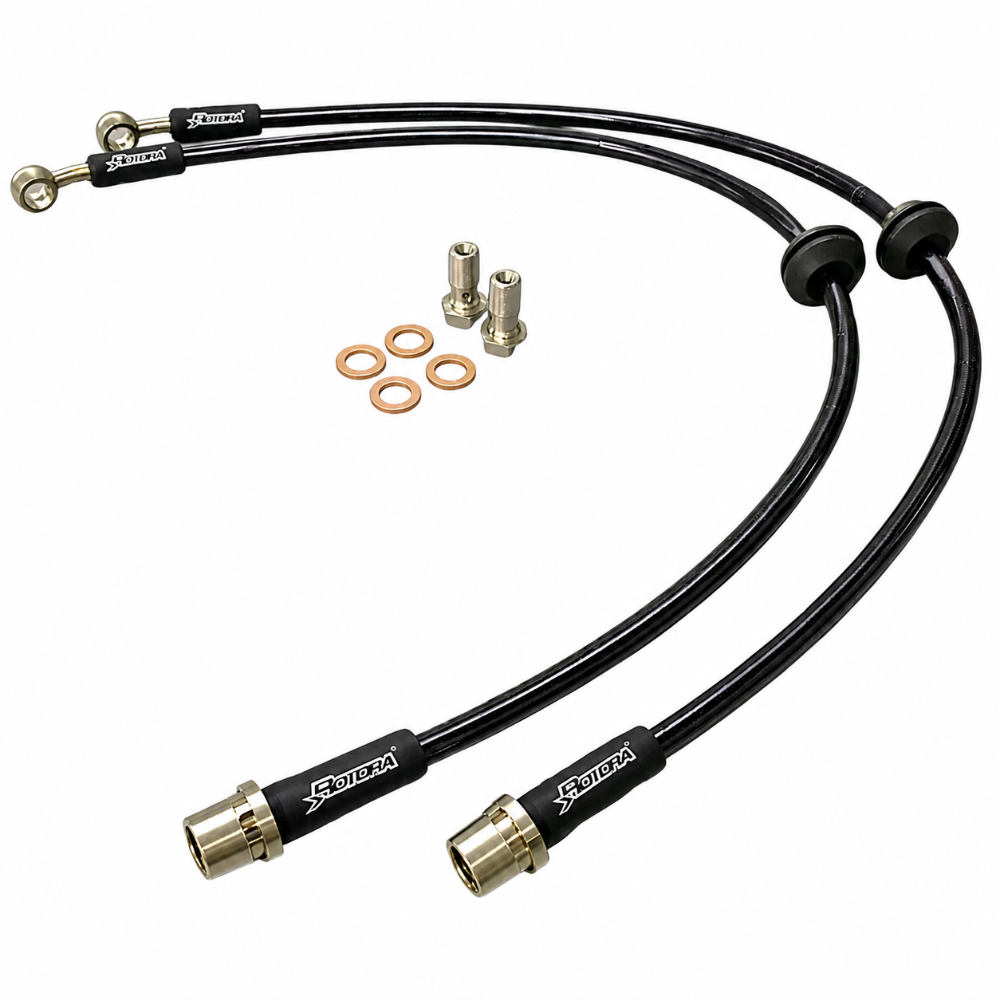

• Two (2) front stainless steel braided brake hoses (driver and passenger side)
• All necessary fittings and hardware for direct bolt-on installation
• Strain relief devices at end fittings

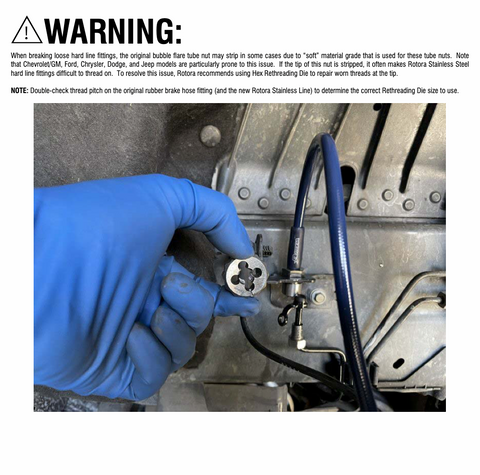

If threads are stripped (a common issue on these vehicles), chase them with an M10 x 1.0 die before installation. Die available here.

Frequently Asked Questions

Q: What is the part number and how do I confirm I am ordering the right lines?
A: The Rotora L.58030 is the front brake line kit specifically engineered for 2011-2026 Dodge Durango non-SRT trims. Verify your trim level against the fitment chart above before ordering. The L.58030 replaces both the driver-side and passenger-side front flexible hoses.

Q: Will the L.58030 fit my Durango SRT 392 or SRT Hellcat?
A: No. The Dodge Durango SRT 392 (2018 and newer) and SRT Hellcat come factory-equipped with Brembo six-piston front calipers. These Brembo calipers use a different banjo bolt port orientation and line routing compared to the standard sliding caliper setup. The L.58030 is designed for standard (non-Brembo) front calipers only. If your Durango has Brembo front calipers whether factory SRT or an aftermarket conversion do not order this kit.

Q: Will I notice a difference in pedal feel after installing the Rotora L.58030?
A: Yes. The factory rubber hoses on the Durango flex and expand slightly under pressure, which introduces a soft, spongy sensation at the pedal. The PTFE-lined stainless construction of the L.58030 resists that expansion almost entirely. Most owners report a noticeably firmer, more direct pedal response immediately after bleeding. This improvement is most obvious during trail braking from highway speeds and during repeated hard stops.

Q: Are these lines DOT compliant?
A: Yes. The Rotora L.58030 is manufactured to meet and exceed DOT compliance standards and is FMVSS 106 certified. They are street-legal on public roads in all 50 states.

Q: Will the L.58030 void my vehicle warranty under Magnuson-Moss?
A: Under the Magnuson-Moss Warranty Act, a dealer cannot void your factory powertrain or vehicle warranty solely because you installed an aftermarket part. The dealer would need to demonstrate that the Rotora L.58030 directly caused a specific failure to deny a warranty claim on that system. Installing DOT-compliant stainless brake lines does not void your entire warranty. Consult your dealer or a qualified attorney if you have specific concerns.

Q: Are the Rotora L.58030 lines compatible with ABS and traction control systems?
A: Yes. The L.58030 lines are fully compatible with the Durango's standard ABS and Electronic Stability Control systems. The lines connect at the same OEM attachment points and do not alter hydraulic system geometry, so ABS and ESC function normally.

Q: How long does installation take?
A: For someone comfortable with basic brake work, installation typically runs 1.5 to 2.5 hours for both front hoses, plus bleeding time. A professional shop can usually complete the job in under two hours. Allow additional time if you need to chase stripped threads with the M10 x 1.0 die.

Q: What thread size do the Durango front brake line fittings use?
A: The standard Dodge Durango front brake line banjo fittings use M10 x 1.0 metric threads. If the ports in your caliper or hardline fitting show signs of thread damage from previous service, use an M10 x 1.0 die to clean and restore the threads before installing the Rotora L.58030. Forcing fittings onto damaged threads can cause leaks. A link to the appropriate die is provided above.

Q: What brake fluid should I use after installing the L.58030?
A: The Durango uses DOT 3 or DOT 4 brake fluid. Check the cap on your master cylinder reservoir for the factory specification. DOT 4 is compatible and provides a slightly higher dry boiling point. Never use DOT 5 (silicone-based) fluid in systems designed for glycol-based fluid. Always use fresh fluid from a sealed container when bleeding, as brake fluid absorbs moisture over time.

Q: Do I need to bleed all four corners after installing just the front lines?
A: At minimum you must bleed the two front calipers after replacing the front hoses. Best practice is to do a full four-corner bleed sequence starting at the corner farthest from the master cylinder (typically right rear) and working toward the closest (left front or right front depending on your bleed sequence). This ensures any air introduced during the line swap is fully purged.

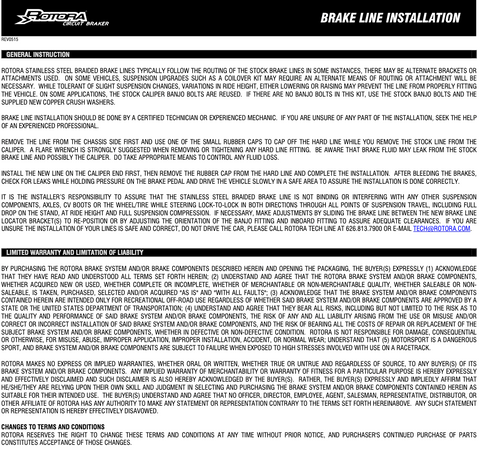

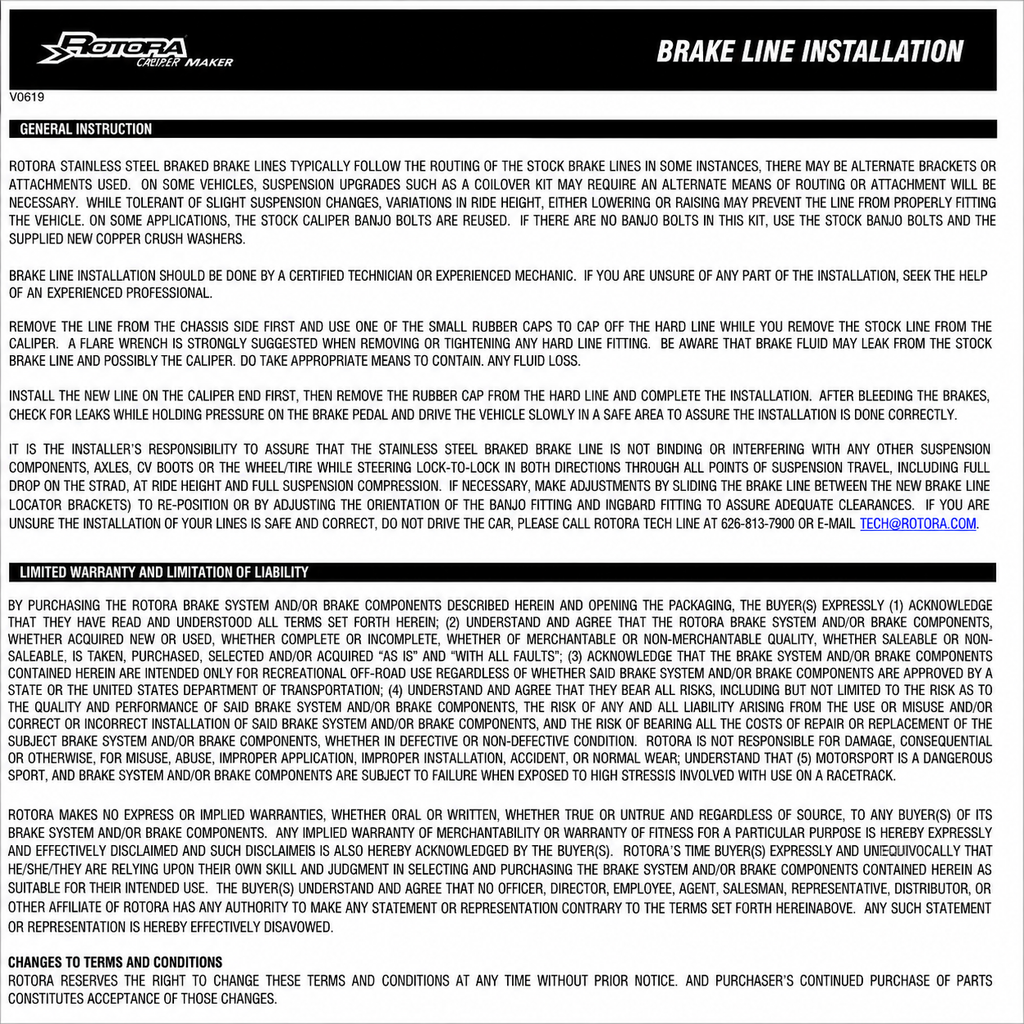

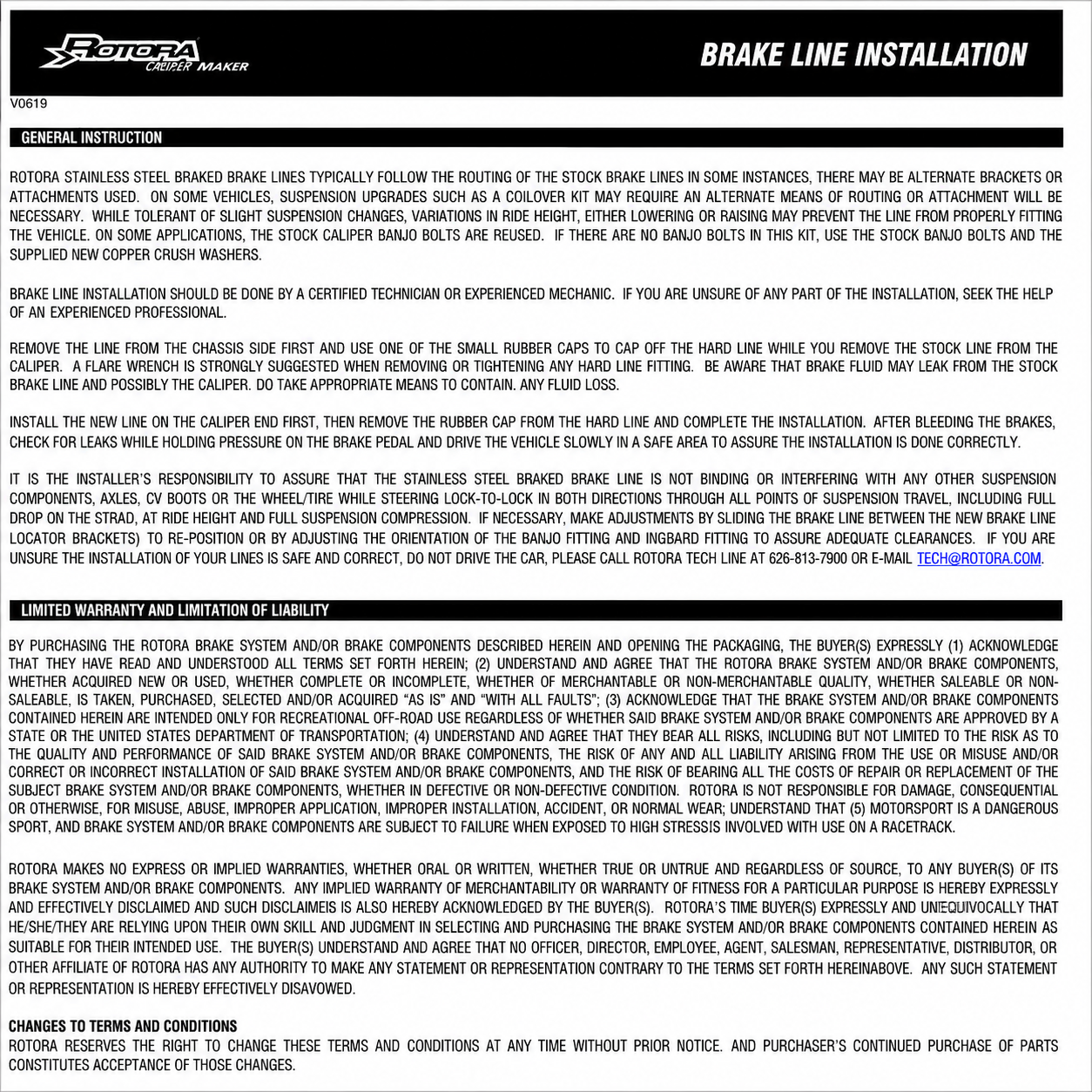

Installation Instructions

1. Park the vehicle on a flat, level surface. Engage the parking brake and chock the rear wheels. Place the transmission in Park.
2. Loosen the front lug nuts slightly before lifting the vehicle. Raise the front of the Durango with a floor jack at the manufacturer-approved jacking point and support it on quality jack stands rated for the vehicle weight. Never work under a vehicle supported only by a floor jack.
3. Remove both front wheels and set them aside.
4. Open the hood and locate the brake fluid reservoir on the master cylinder. Place a clean rag around the reservoir base to absorb any overflow. Do not remove the cap yet.
5. Inspect the existing front brake line threads and the receiving ports on each front caliper. If any threads show corrosion or damage, stop and chase them with an M10 x 1.0 die before continuing. See the link provided above for the correct die.
6. Using a line wrench (flare nut wrench) sized for the existing fitting, loosen the hardline fitting where the rubber hose attaches to the metal brake line at the frame bracket. Have a small container and rags ready to catch brake fluid. Loosen only -- do not fully remove yet.
7. Using the appropriate wrench (typically 15 mm), loosen and remove the banjo bolt or fitting at the caliper end of the existing rubber hose. Allow residual fluid to drain into your container. Remove the old hose and discard.
8. Fully remove the hardline end of the old hose from the frame bracket fitting.
9. Unpack the Rotora L.58030 front lines and verify you have both sides plus all included hardware. Do not cross-thread fittings -- always start by hand.
10. Connect the hardline end of the Rotora L.58030 to the metal brake line at the frame bracket. Thread in by hand first, then snug with a line wrench. Do not overtighten.
11. Route the new stainless line to the caliper, following the factory routing path and keeping the line clear of any moving suspension or steering components throughout the full suspension travel range. Verify the line does not contact the rotor, wheel, or caliper at full lock.
12. Install the banjo bolt or fitting at the caliper end per the included hardware. Use new sealing washers if provided. Torque to the manufacturer specification (typically 11-14 ft-lbs for M10 banjo bolts -- confirm with a torque reference for your specific application).
13. Repeat steps 6 through 12 on the opposite front corner.
14. Reinstall both front wheels, torquing lug nuts to spec in a star pattern (Durango spec: 130 ft-lbs / 176 Nm).
15. Lower the vehicle from the jack stands.
16. Top off the brake fluid reservoir to the MAX line with fresh DOT 3 or DOT 4 fluid from a sealed container.
17. Bleed the braking system. Begin at the right rear, then left rear, then right front, then left front. For each corner: attach a clear bleed tube to the bleeder screw, have a helper slowly pump the brake pedal three times and hold pressure, crack the bleeder screw open until fluid flows without bubbles, close the bleeder, and have the helper slowly release the pedal. Repeat until no air bubbles are visible in the clear tube. Keep the reservoir topped off throughout the bleed procedure.
18. After bleeding all four corners, pump the brake pedal firmly several times and hold. The pedal should be hard and not travel toward the floor. If it feels soft or spongy, repeat the bleed procedure.
19. With the vehicle still on the ground, verify no fluid leaks at either front line connection point. Start the engine and perform a low-speed brake test in a safe area before returning to normal driving.
