Dodge Durango 2018-2023 HD Challenge Front Brake System

SRT-Grade Front Braking for the Durango That Never Backs Down

The Rotora HDDurango-405x38 HD Challenge Front Brake System is purpose-built for the high-output demands of the Dodge Durango SRT 392 and SRT Hellcat. Featuring massive 405x38mm oversize directional disc rings clamped by ductile iron calipers with stainless steel pistons, this front axle system delivers the thermal capacity and braking torque needed to match the SRT platform's power under sustained heavy use. Whether you're towing at maximum capacity, descending steep grades loaded down, or pushing your Hellcat-powered Durango through demanding off-road terrain, the HDDurango-405x38 is engineered to hold its performance without fade. The system is 100% compatible with the stock SRT master cylinder, ABS, and traction control with no electronic modifications required.

Key Features

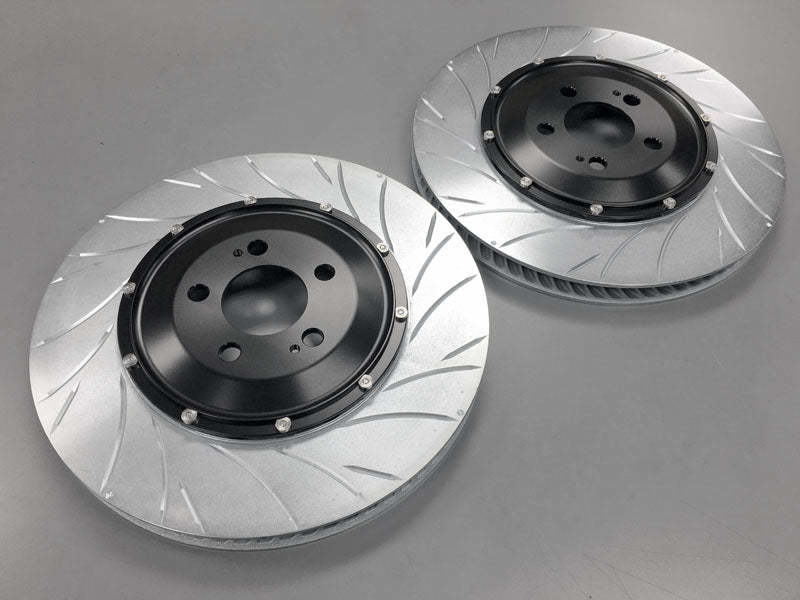

• 405x38mm oversize airfoil slotted or drilled directional disc rings, heat-treated and zinc plated for corrosion resistance

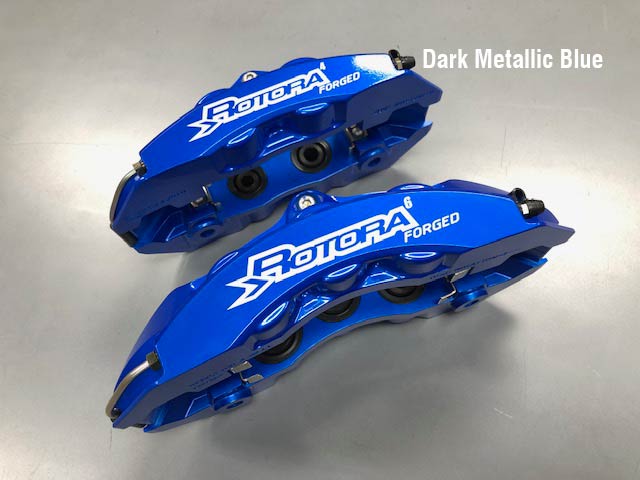

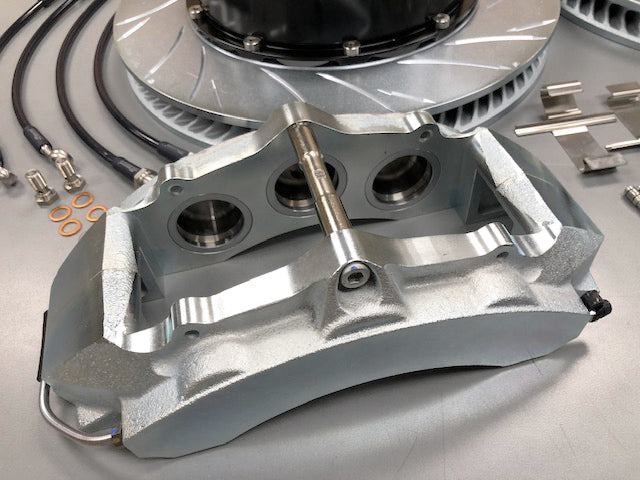

• Ductile iron calipers built for maximum structural stiffness under the sustained braking loads of high-horsepower SRT platforms
• Stainless steel pistons and dust boot seals for long-term durability and consistent caliper operation

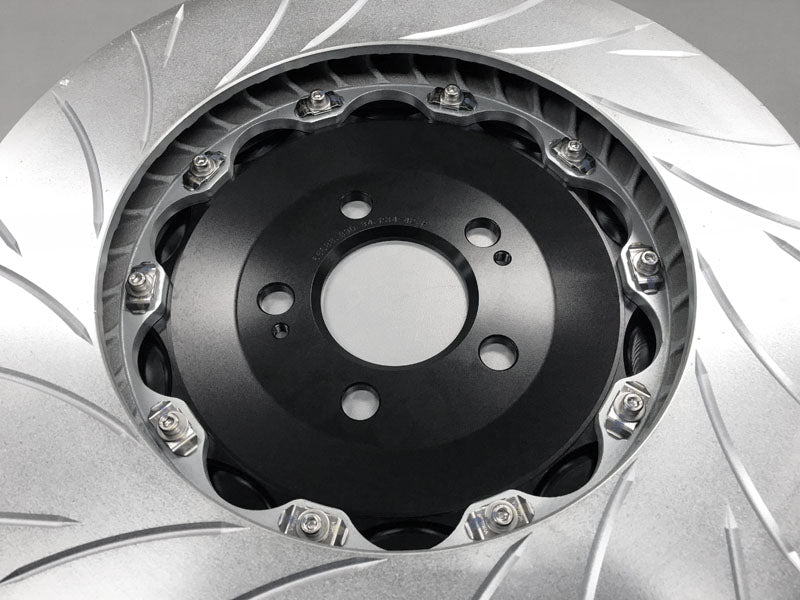

• S45C steel bell hats with stainless steel HD float drive hardware for controlled disc expansion in 2-piece systems
• S45C carbon steel caliper brackets with all required mounting hardware included
• HD graphite-metallic brake pads with enlarged friction area for high thermal capacity and extended pad life
• 100% bolt-on compatibility with OEM master cylinder, ABS, and traction control systems on SRT trim levels
• Engineered specifically for light-duty and medium-duty extreme hauling, towing, and off-road applications

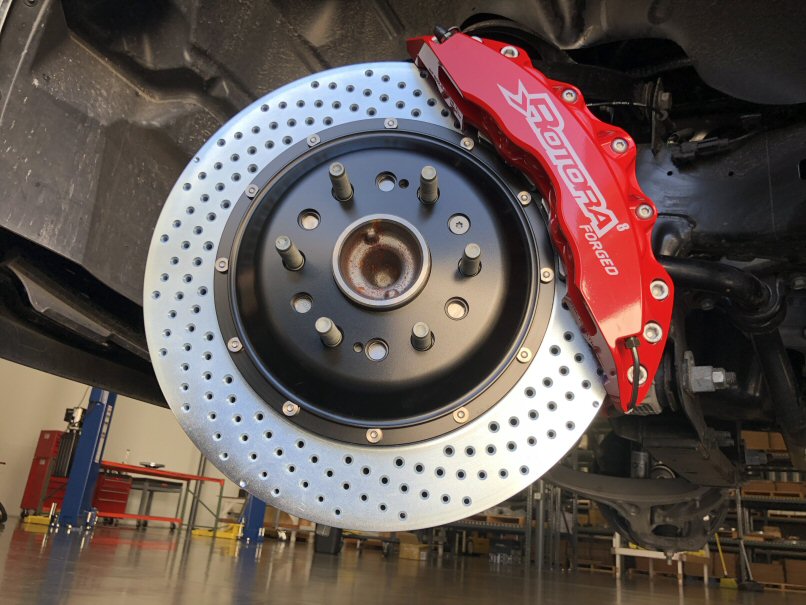

• Available in slotted or drilled disc finish
• Rotora HD Challenge engineering derived from global armored and military vehicle brake supply programs

Vehicle Fitment

For non-SRT Durango trim levels (R/T, GT, SXT, Citadel, Crew, Pursuit), see the Rotora HDDurango-355x35 or HDDurango-390x36 Front Brake System.

Specifications

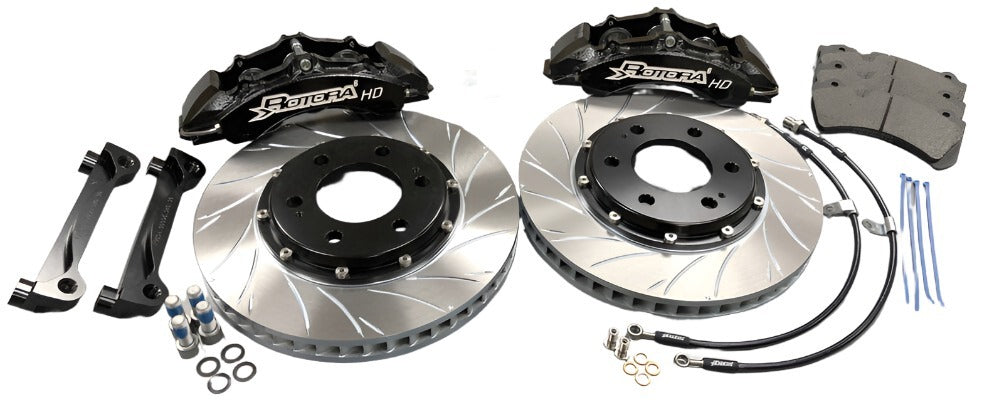

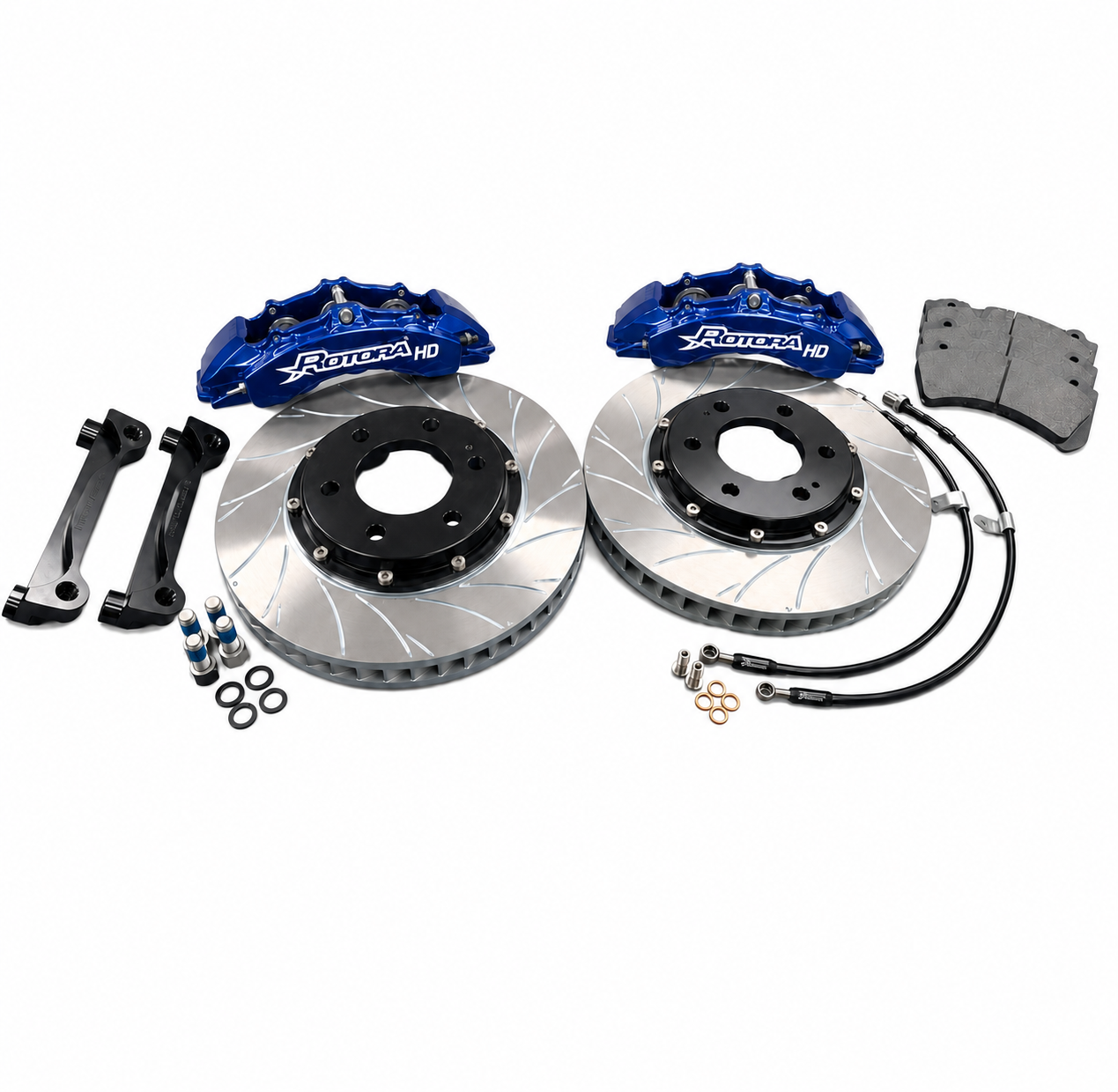

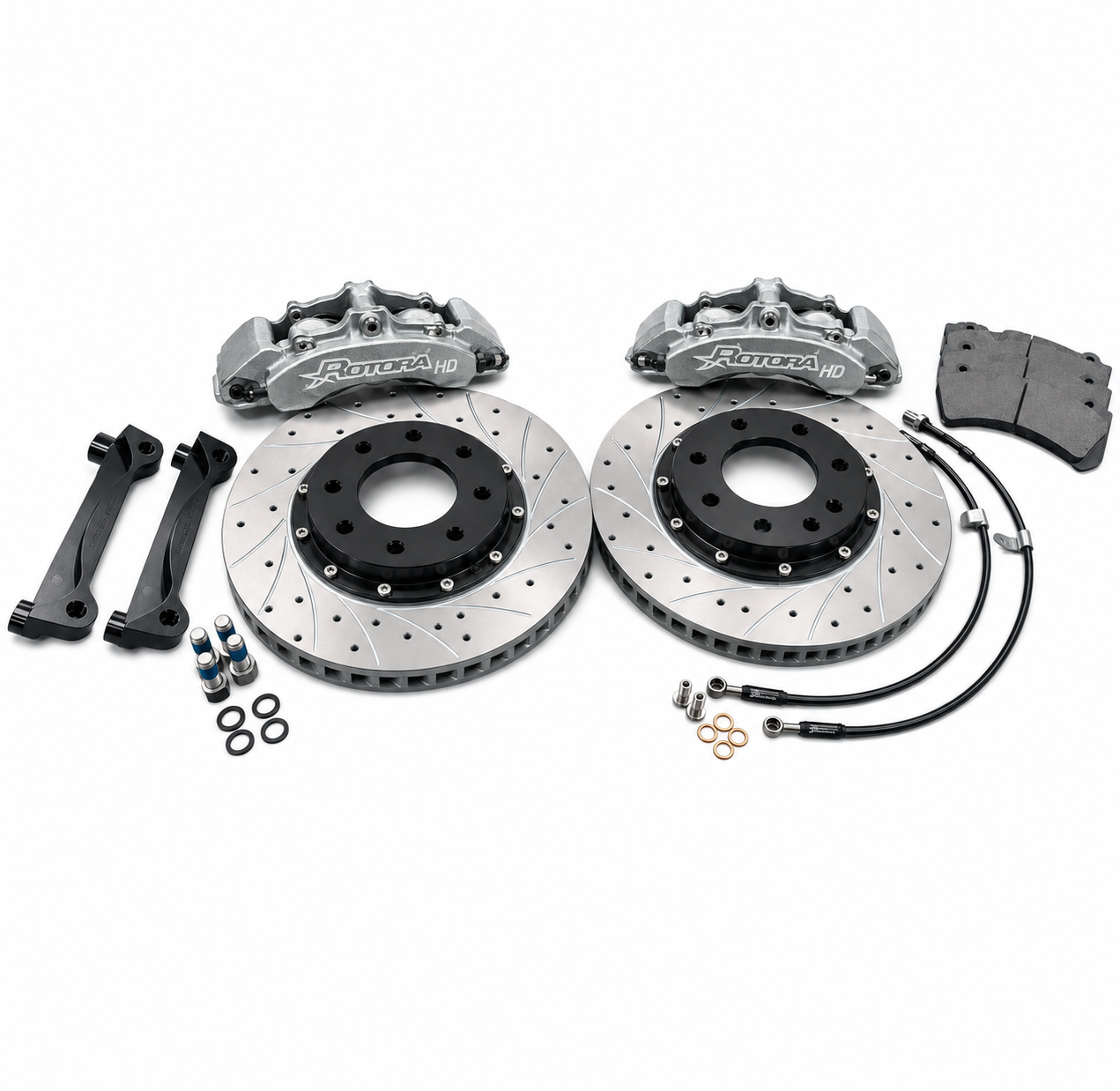

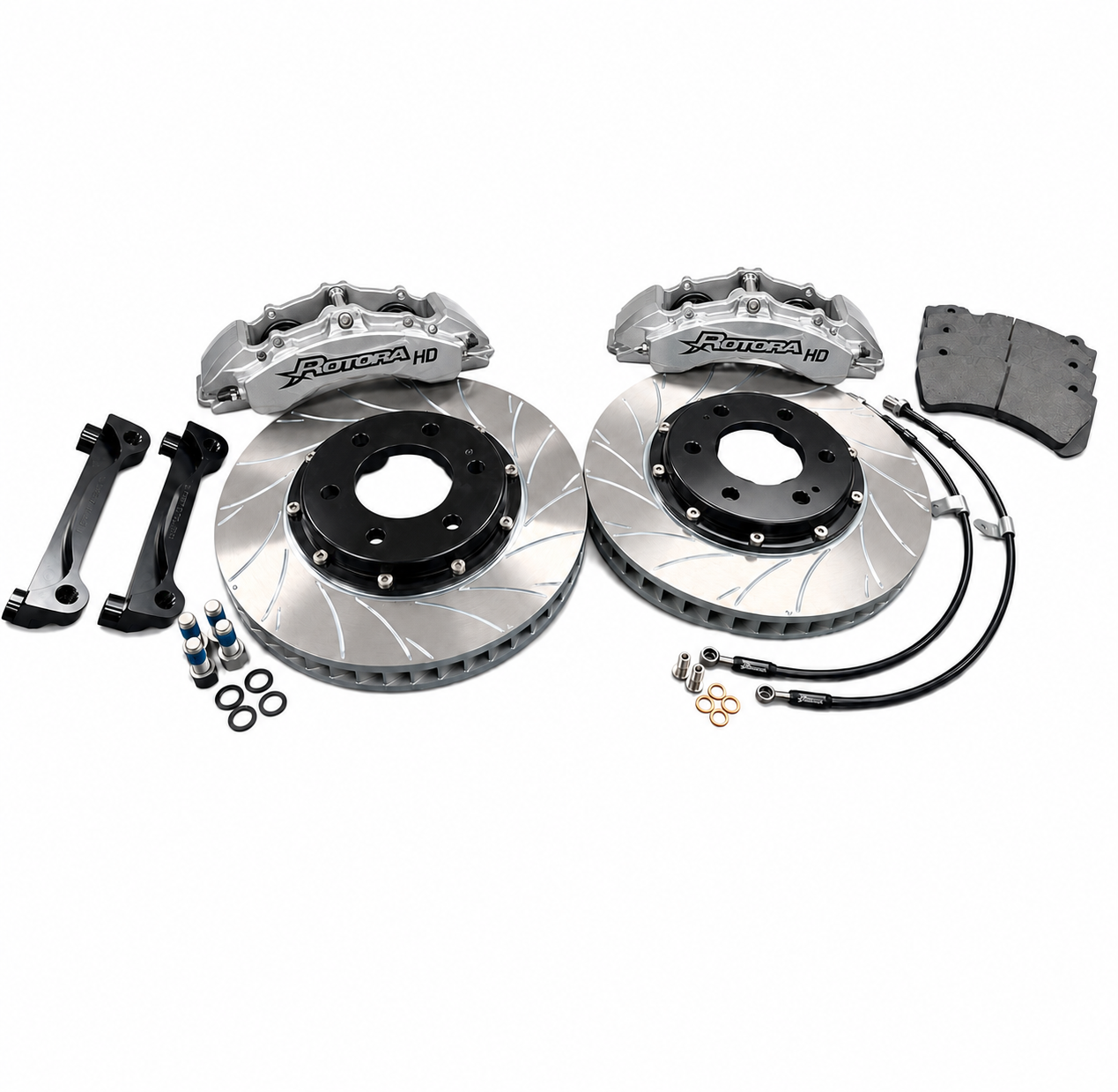

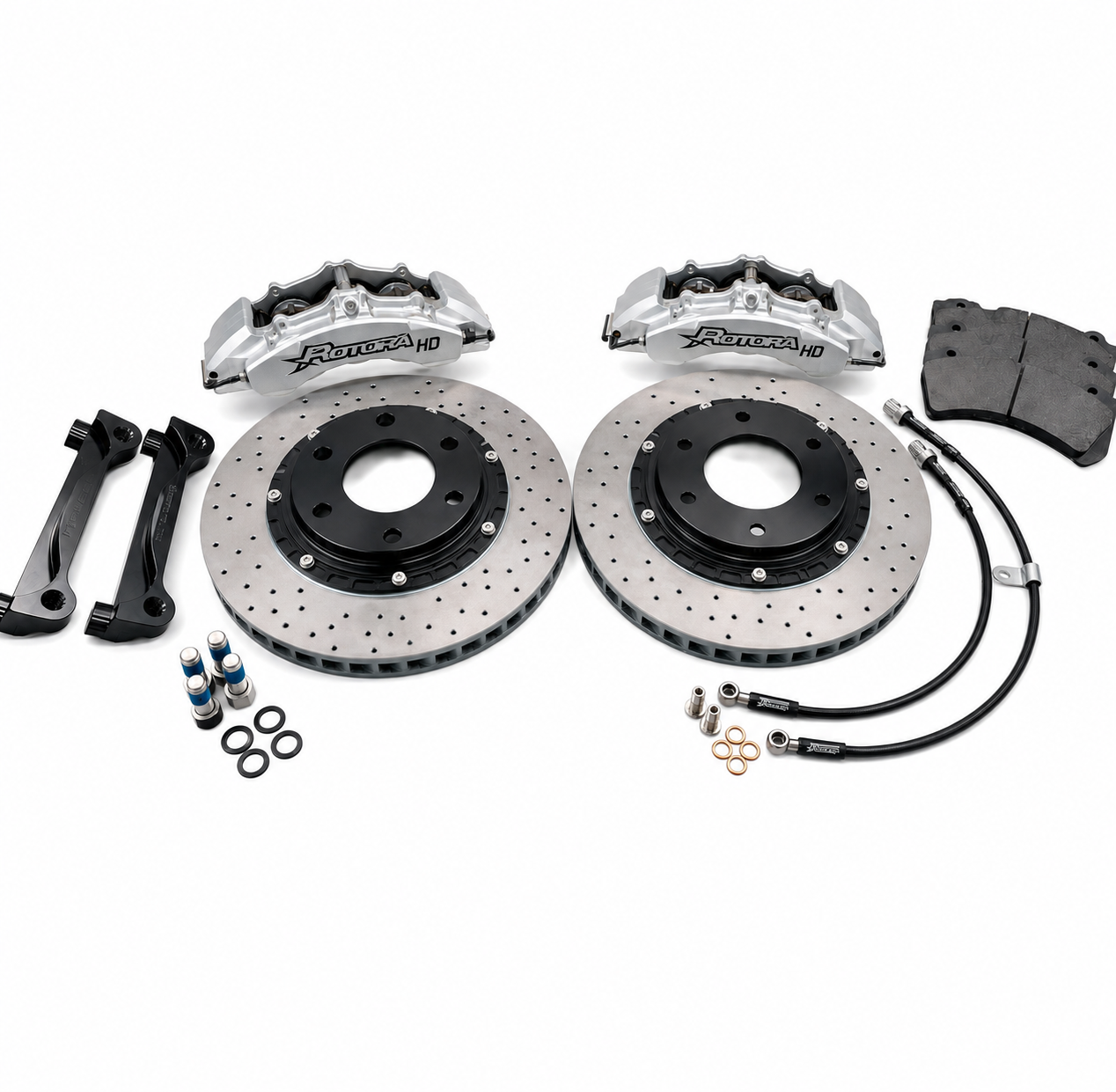

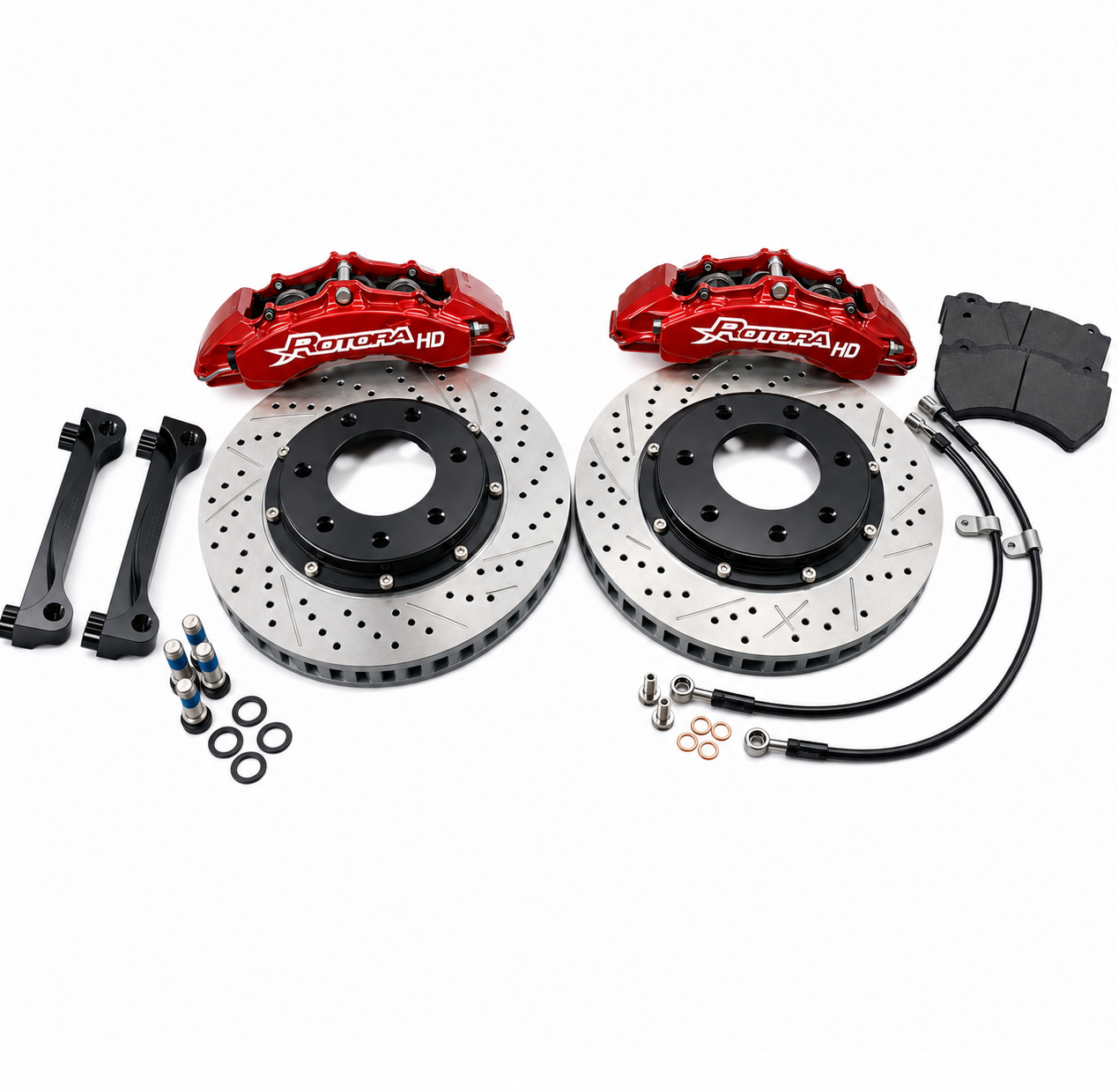

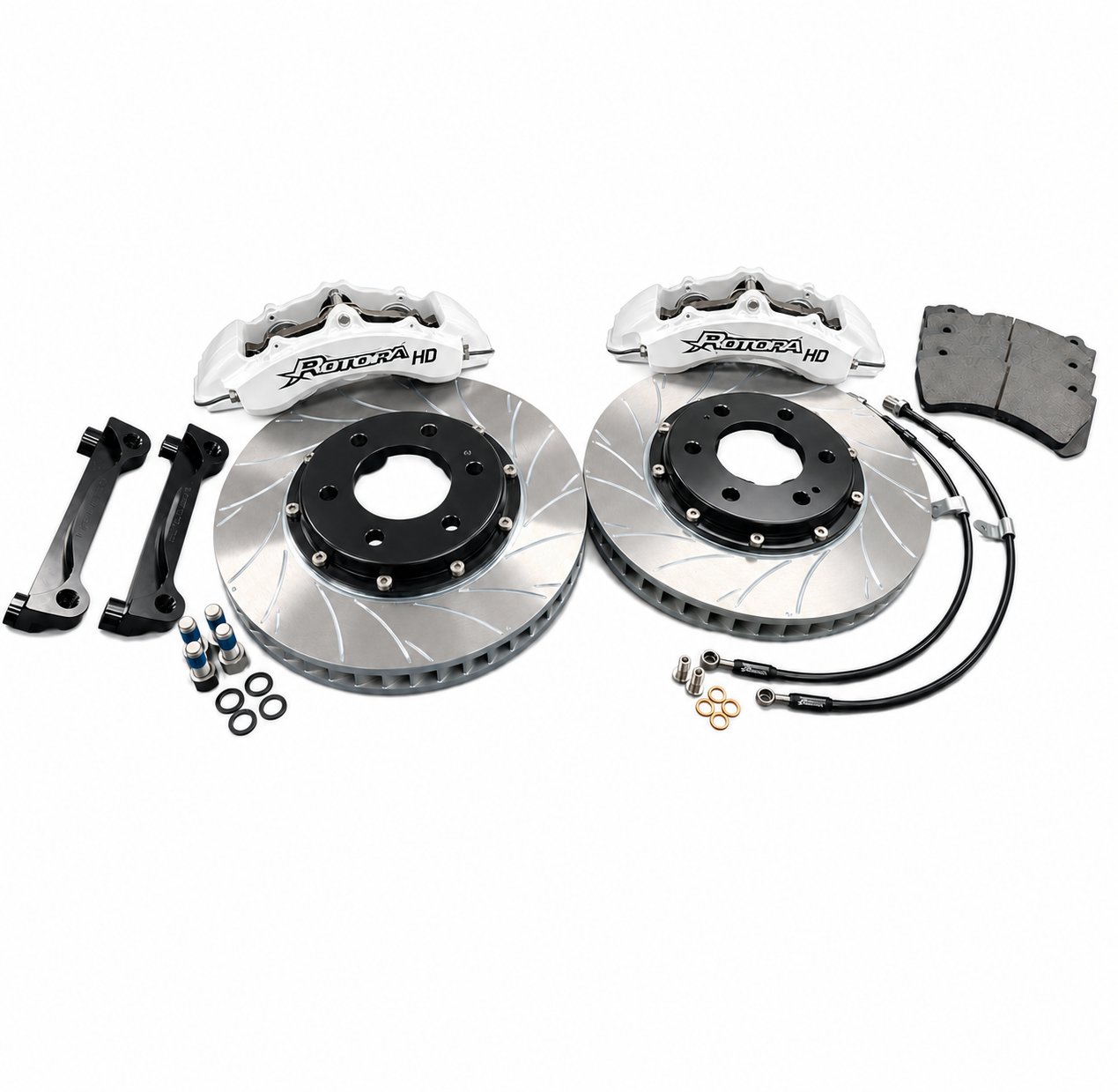

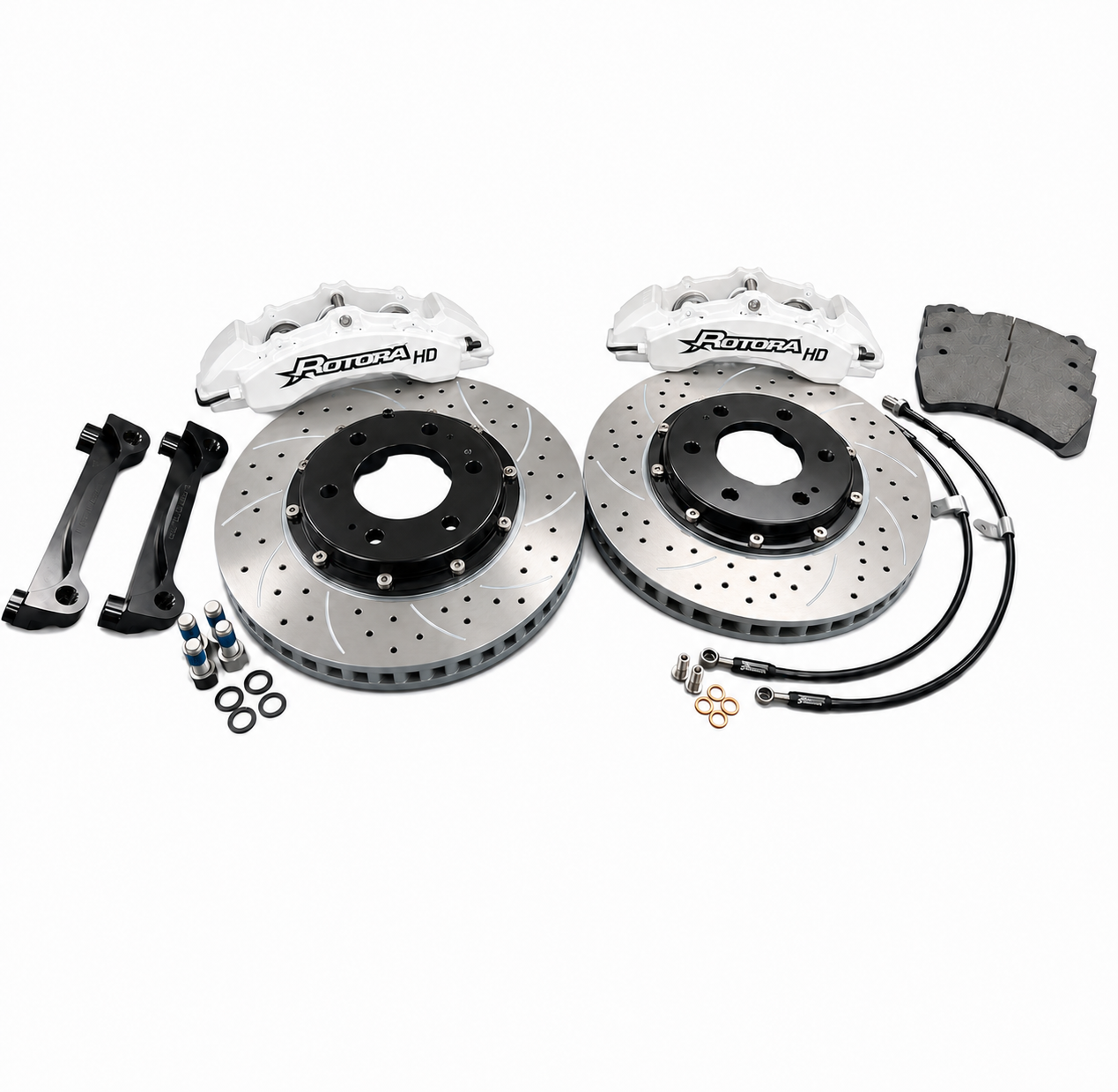

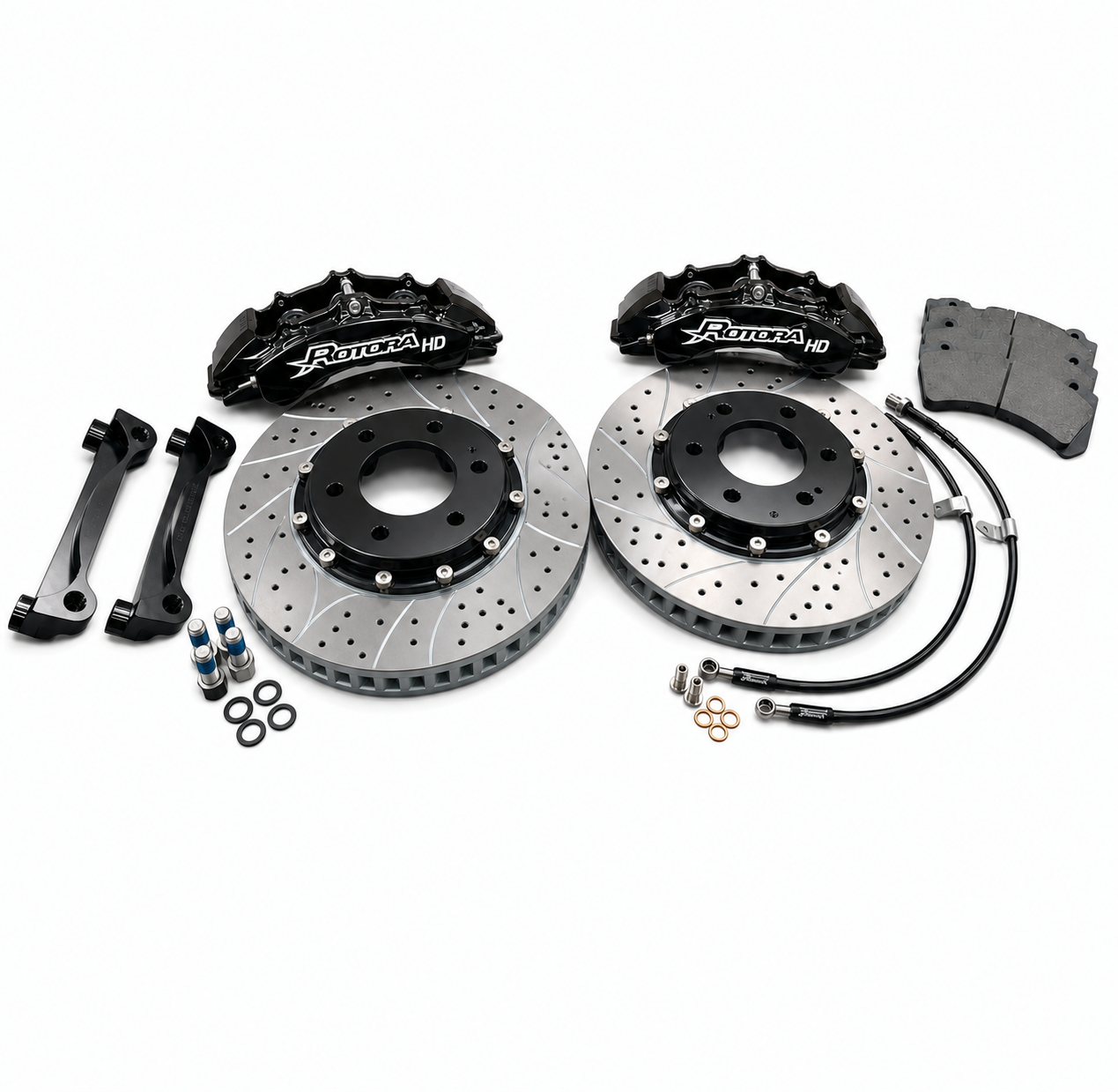

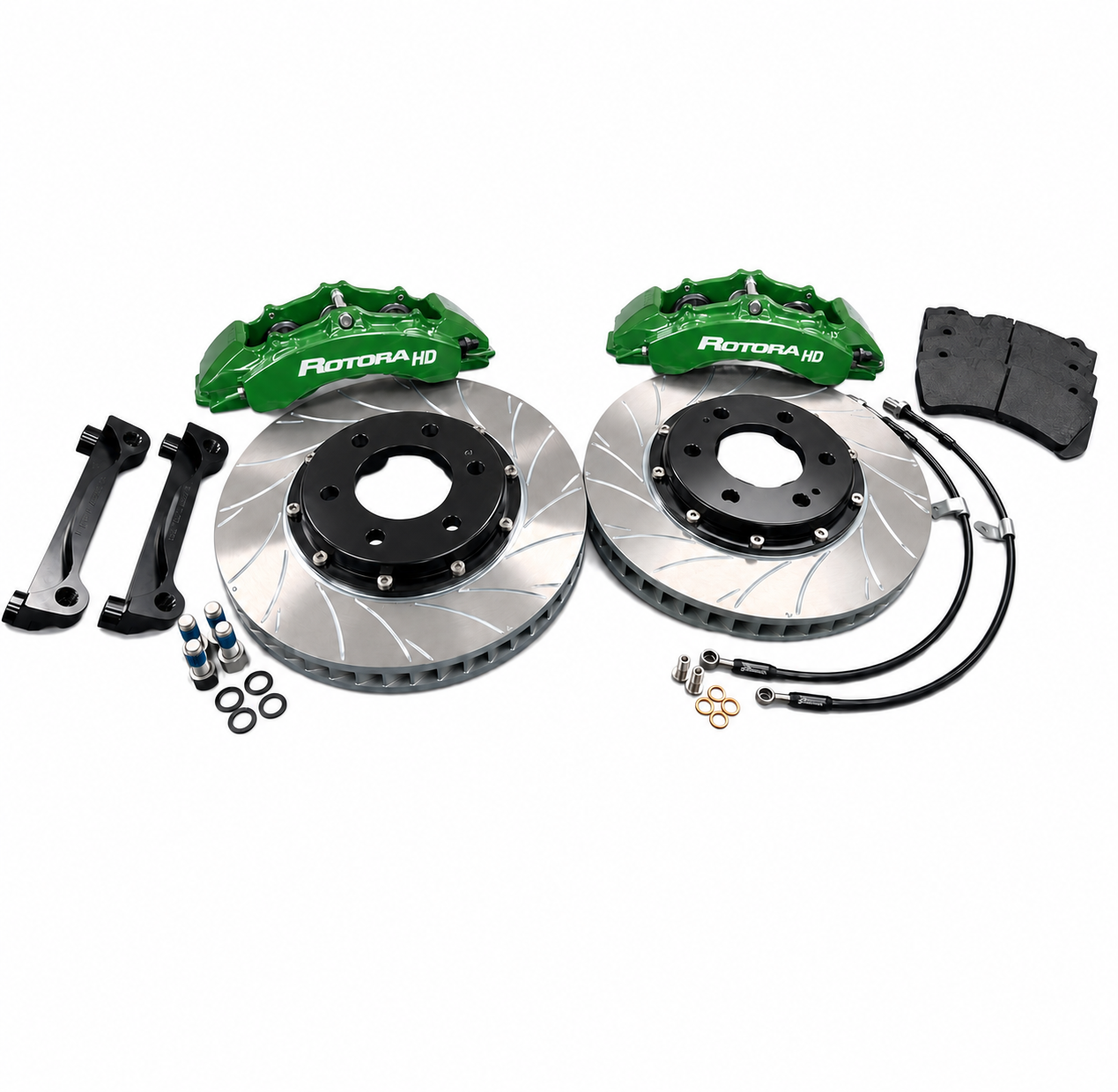

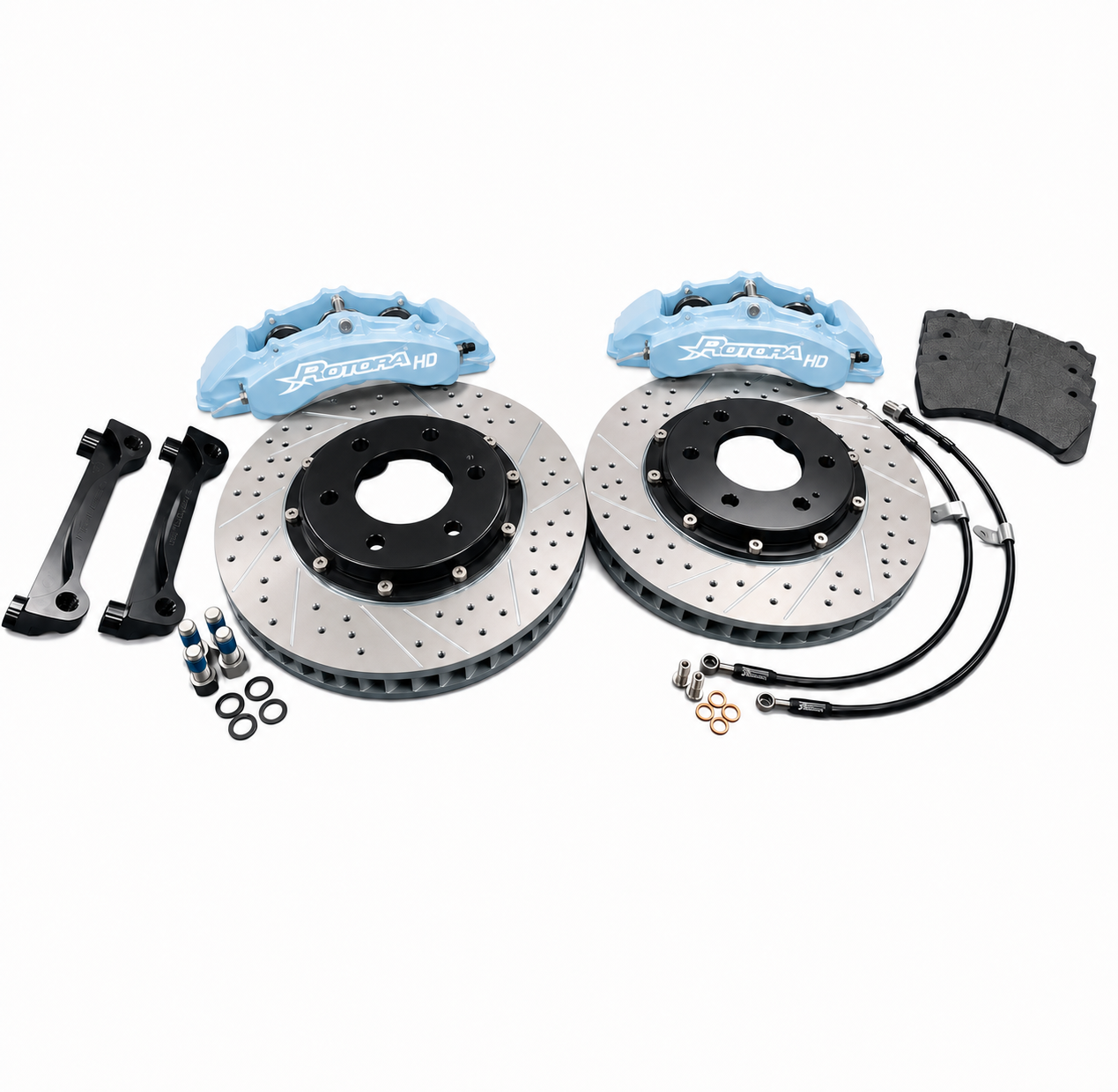

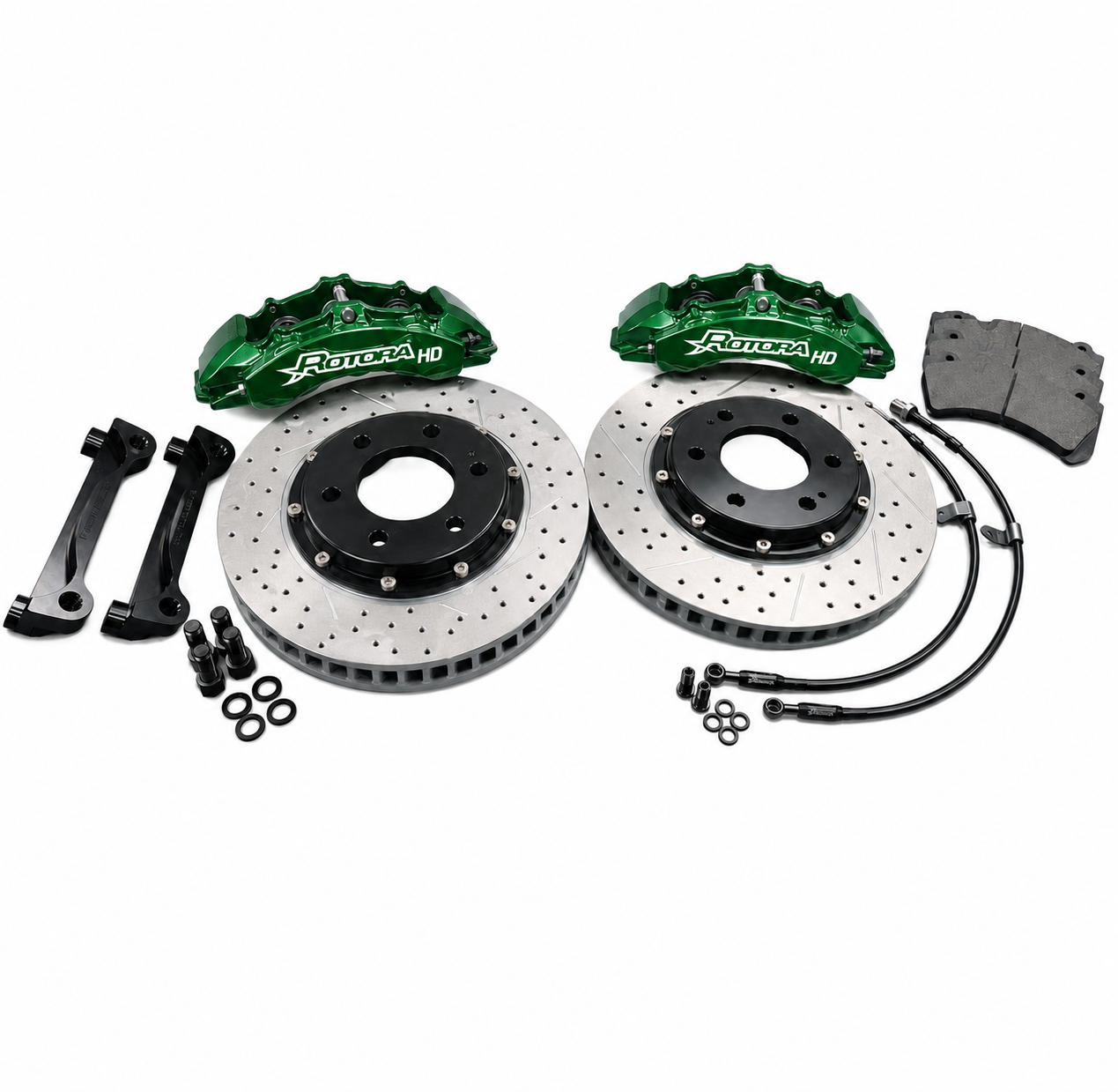

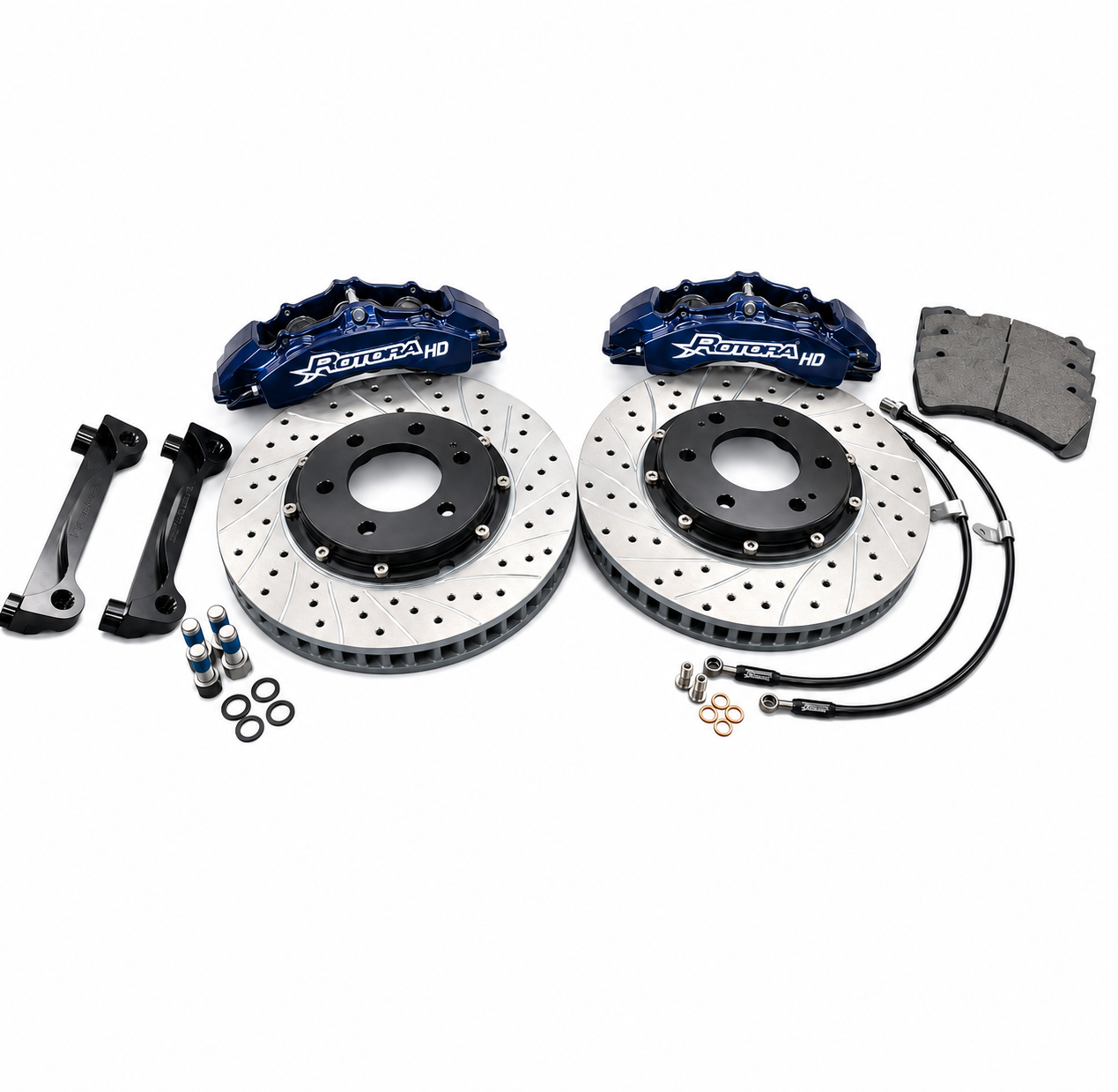

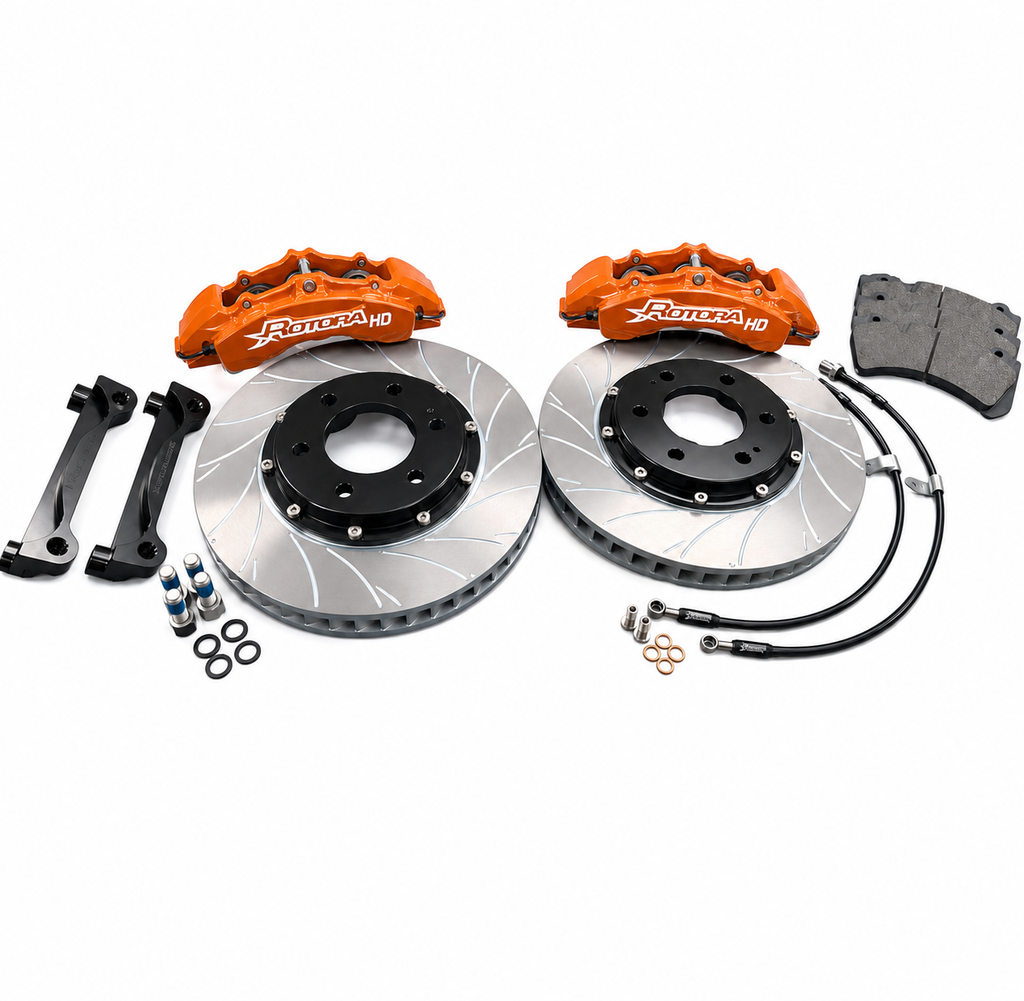

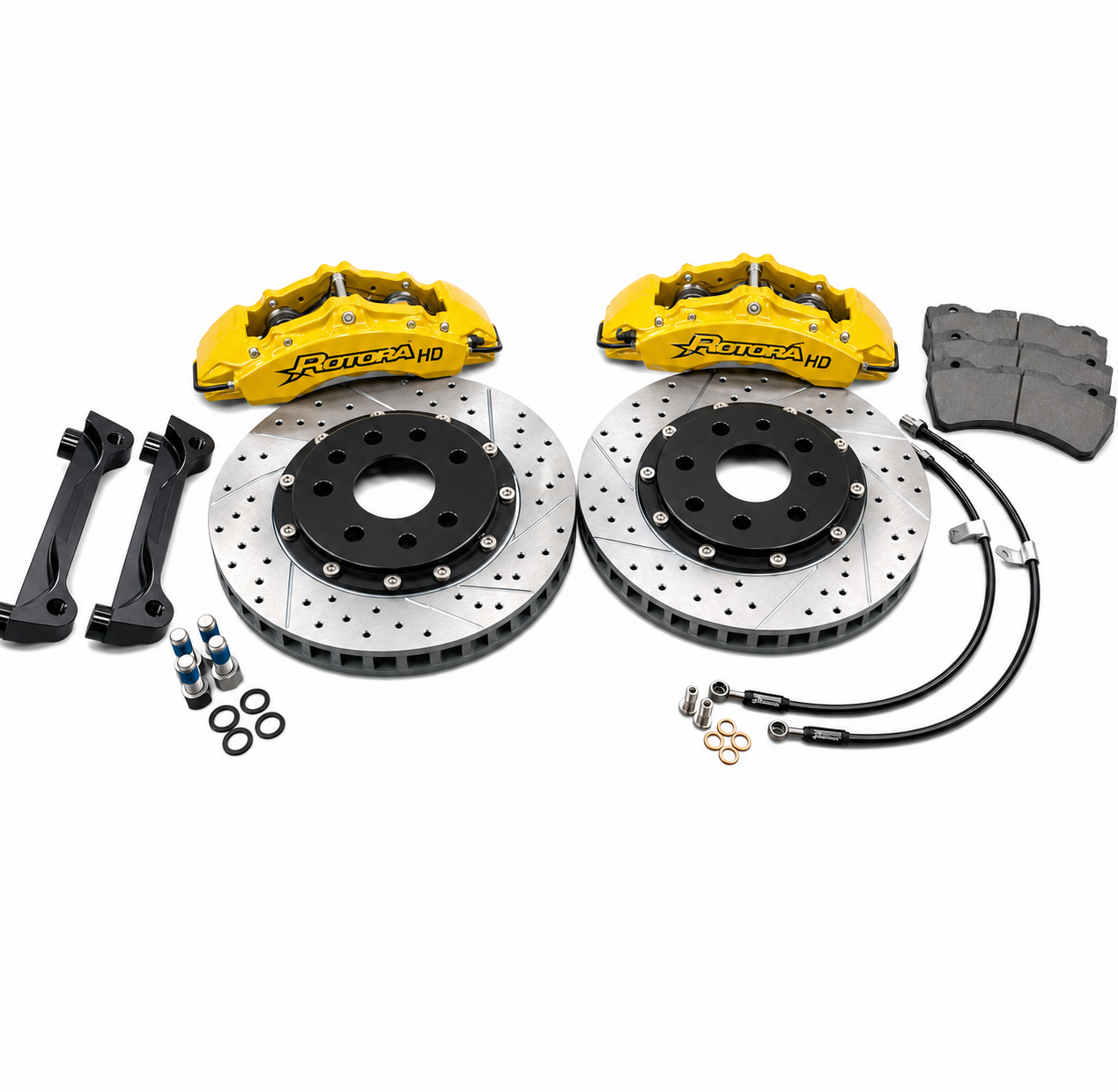

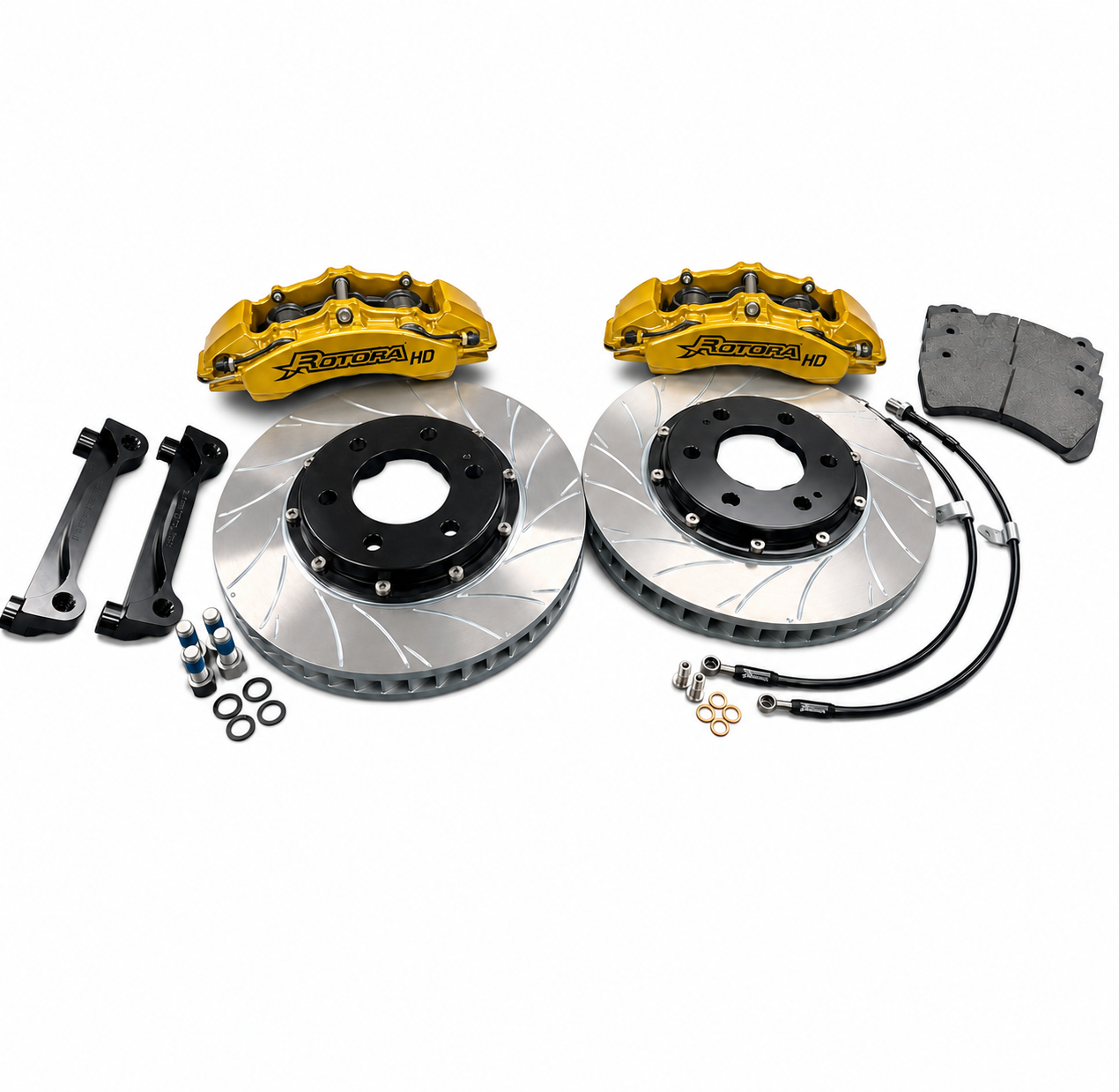

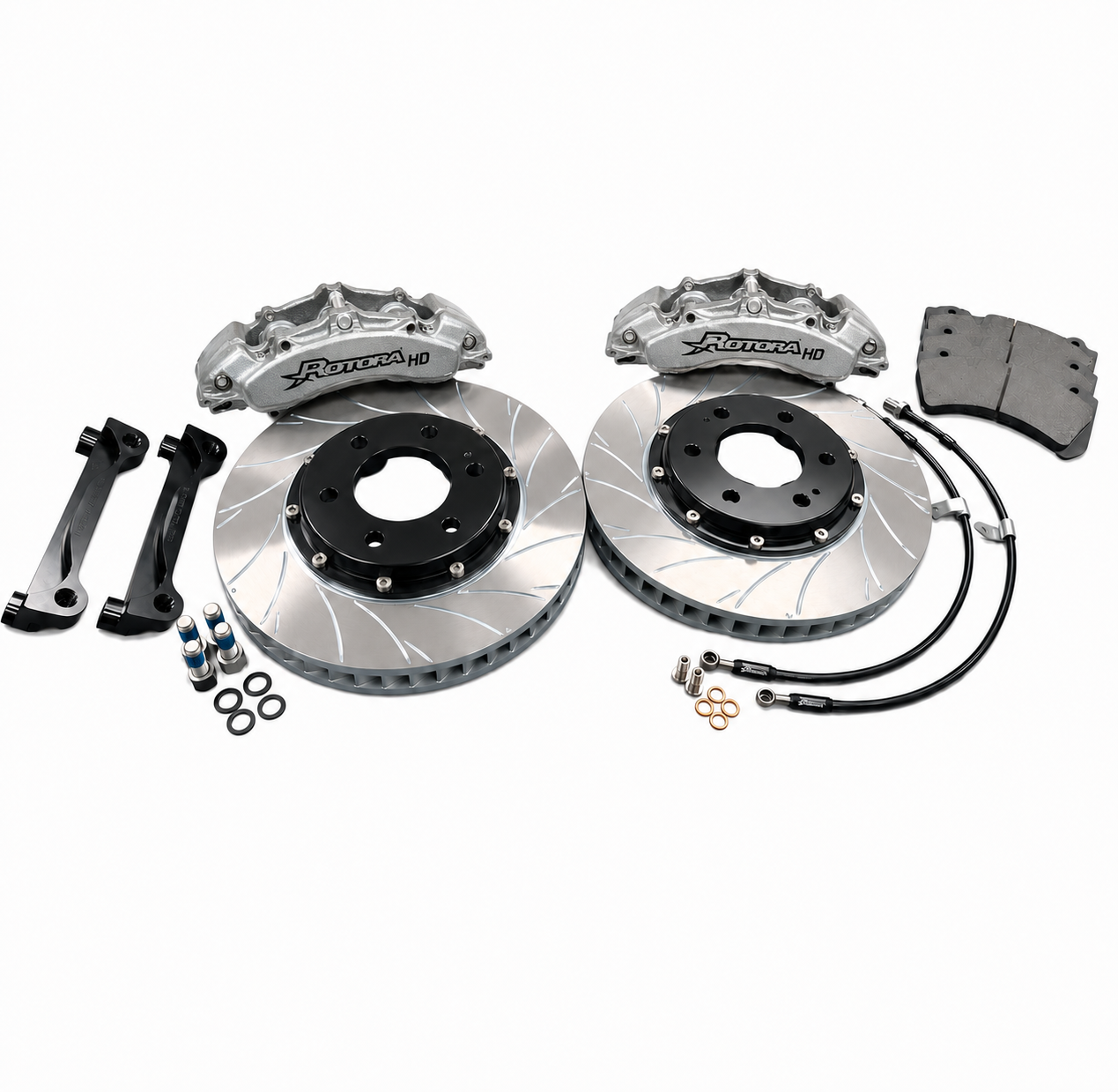

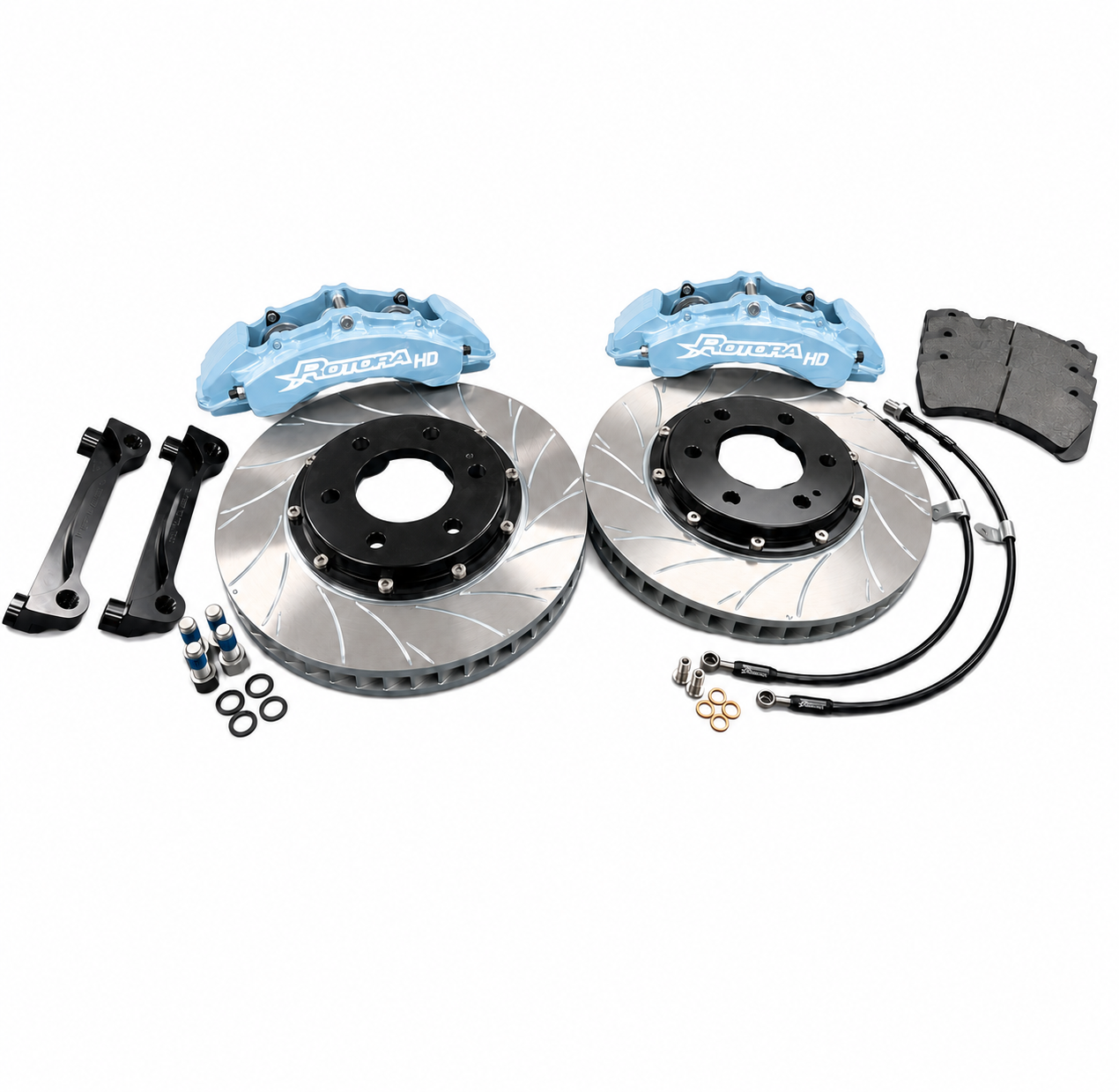

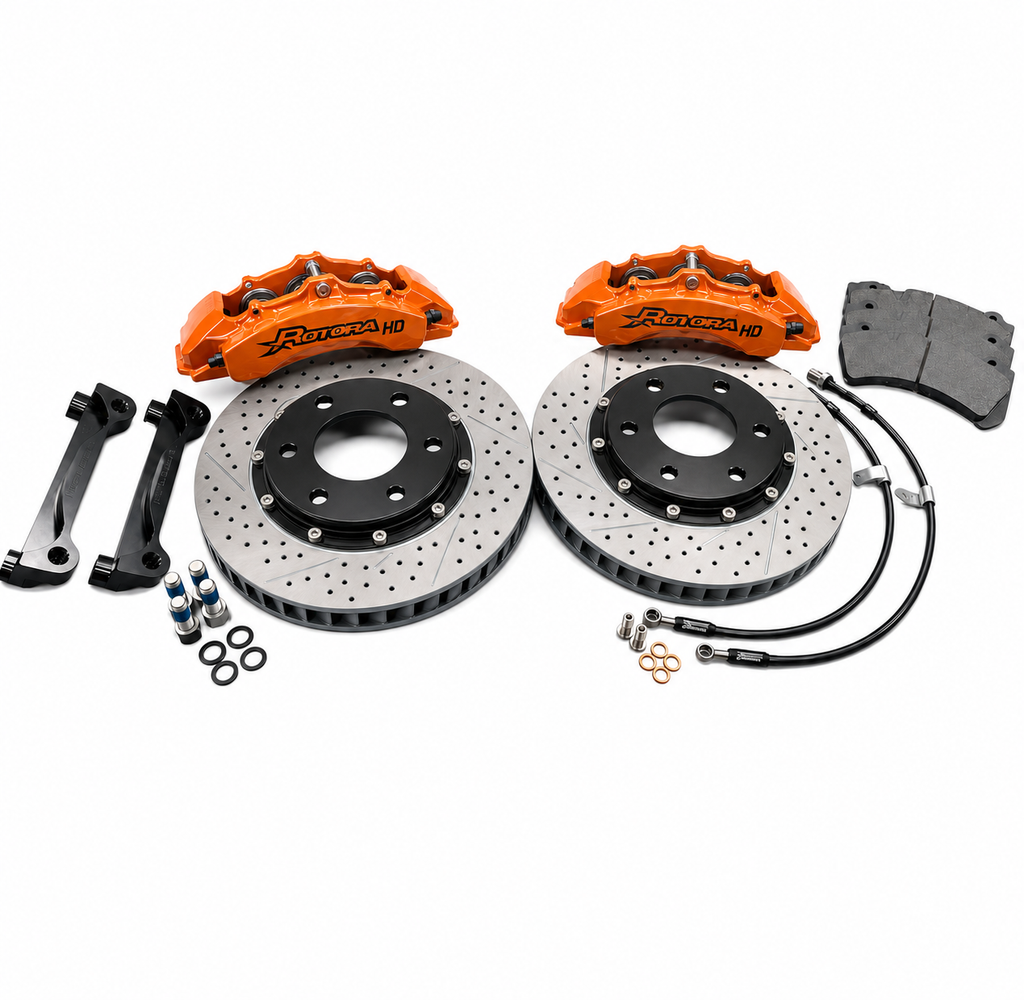

What's Included

• 1 pair of ductile iron calipers with pad retaining hardware
• 1 pair of 405x38mm directional disc rings (slotted or drilled, heat-treated, zinc plated)
• 1 pair of S45C steel bell hats with stainless steel HD float drive hardware (2-piece systems)
• 1 pair of S45C carbon steel caliper brackets with mounting hardware
• 1 set of HD graphite-metallic brake pads (front axle)

About Rotora

Rotora is a global brake system manufacturer recognized for supplying extreme-duty braking solutions to armored vehicle, security, and military vehicle programs worldwide. The HD Challenge series brings that engineering pedigree to production trucks and SUVs that face real-world demands. The HDDurango-405x38 front system represents the top of the Durango HD Challenge front lineup, sized and tuned specifically for the SRT 392 and SRT Hellcat platforms and built to operate within all factory electronic systems without modification.

Frequently Asked Questions

The HDDurango-405x38 fits the Dodge Durango SRT 392 (2018-2023) and SRT Hellcat (2021 and 2023 model years). It does not fit non-SRT Durango trim levels including the R/T, GT, SXT, Citadel, Crew, or Pursuit.

Yes. The HDDurango-405x38 is designed for 100% compatibility with the factory master cylinder, ABS, and traction control on the Durango SRT 392 and SRT Hellcat. No electronic bypasses or additional modules are required.

The Durango SRT 392 and SRT Hellcat use a different front suspension and brake carrier geometry than the non-SRT models. The HDDurango-405x38 is application-specific to the SRT platform, with bracket geometry, caliper position, and disc sizing calibrated for the SRT front axle. Using the non-SRT system on an SRT Durango is not supported.

Slotted discs are the preferred choice for sustained high-load use such as repeated hard stops, mountain towing, or heavy off-road work, as they resist thermal cracking better than drilled discs under extreme cycling. Drilled discs provide improved initial bite and wet-weather performance for mixed street use. Both options use the same caliper and pad hardware.

Rotora's general guidance indicates that 20-inch wheels are typically needed for 405mm disc diameter systems. Wheel offset is equally critical for inner spoke clearance against the caliper face. Rotora provides vehicle-specific wheel clearance charts. Confirm compatibility with your specific wheel and offset before ordering or installing.

Yes. Rotora offers multiple HD pad compound upgrades beyond the included HD graphite-metallic pads. Higher-duty compounds are available for extreme towing, repeated mountain descents, or off-road track use. Contact Rotora or your authorized reseller for compound options available for the HDDurango-405x38 application.

The HDDurango-405x38 requires confirmation of wheel clearance before installing with any aftermarket wheel. The caliper body and disc diameter on 405mm systems require significant inner barrel clearance. Wheel offset, spoke design, and barrel depth all factor into clearance. A positive offset is generally more favorable. Consult Rotora's wheel clearance chart or technical support before selecting wheels.

Yes. The HDDurango-405x38 operates on the front axle independently of the rear brake setup. However, for best front-to-rear brake balance under heavy loads, Rotora recommends pairing the front HD Challenge system with the Rotora HDDurango-380x32 HD Challenge Rear Brake System for the SRT Durango, which is tuned to complement this front kit.

Begin by making light stops from 25 mph to wear away the disc zinc plating without generating heat. Follow with several moderate stops from 45 mph to bring the system up to operating temperature. Then perform 10 near-stops from 60 mph down to 5 mph to fully transfer and seat the pad compound to the disc surface. Allow the system to cool completely to ambient temperature before resuming normal driving.

Rotora HD Challenge brake systems are backed by Rotora's manufacturer warranty covering defects in materials and workmanship. Contact Rotora or your authorized reseller for full warranty terms applicable to your purchase and region.

Installation Overview

1. Confirm wheel clearance for 405mm disc systems using Rotora's clearance chart before beginning
2. Raise vehicle, engage parking brake, and remove both front wheels
3. Remove the OEM caliper, bracket, and rotor assembly from each side
4. Clean the hub face thoroughly and mount the new S45C caliper bracket using original mounting bolts torqued to specification
5. Mount the new 405x38mm disc assembly ensuring directional orientation is correct for each side of the vehicle
6. Insert brake pads into the caliper and install guide pins through both pad mounting ears
7. Mount the caliper onto the bracket and torque caliper bolts to 100 ft-lbs (136 Nm)
8. Connect brake lines and bleed the system starting from the caliper farthest from the master cylinder
9. Reinstall wheels torqued to factory specification
10. Complete the full break-in procedure before returning to normal use
