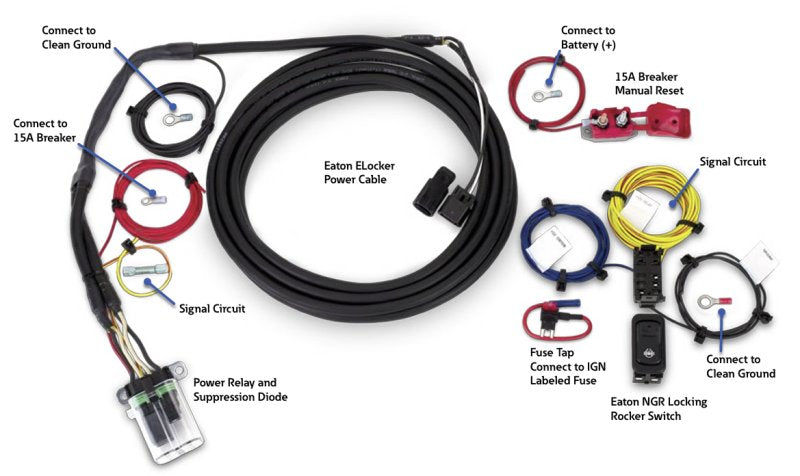

This Eaton ELocker universal wiring service kit replaces the electrical service components used to control a compatible Eaton ELocker differential. Match Eaton part number 23249-00S to the locker, switch, harness, connector, and vehicle electrical configuration before ordering.
Key Features
- Universal electrical service kit for compatible Eaton ELocker installations
- Supports repair or replacement of the ELocker control wiring
- Exact switch, harness, connector, and locker compatibility must be verified
Fitment
| Application | Universal, specification-matched Eaton ELocker wiring service application |
|---|---|
| Compatibility | Confirm Eaton ELocker model, wiring configuration, voltage, connectors, and required service components |
Specifications
| Brand | Eaton |
|---|---|
| Manufacturer Part Number | 23249-00S |
| Product Type | ELocker Wiring Service Kit |
| Condition | New |
| Application | Universal |
| Package Dimensions | 11 x 10.5 x 10.5 inches |
| Shipping Weight | 2.2 lb |
| Availability | Special order |
What's Included
One new Eaton ELocker universal wiring service kit in the exact configuration supplied under manufacturer part number 23249-00S. Only the wiring service components packaged by Eaton are included. The differential, compressor, axle installation parts, and unrelated accessories are separate.
About Eaton
Eaton develops traction-control and differential products for automotive and off-road applications, including selectable ELocker differentials and service components. Differential and electrical compatibility remains exact-part specific.
Related Parts
Frequently Asked Questions
Will this kit work with every Eaton ELocker?
No. Confirm part number 23249-00S against the exact ELocker model, harness, switch, connector, voltage, and Eaton service information before ordering.
Does this kit include an ELocker differential or compressor?
No. This listing is for the universal wiring service kit only. The differential, compressor, and axle installation components are separate unless Eaton expressly packages them with this part.
Can this repair damaged ELocker control wiring?
It is intended as an ELocker wiring service kit, but the failure should be diagnosed first. Inspect power, grounds, fuse protection, switch operation, connectors, harness routing, and the locker circuit before replacing components.
Installation Instructions
- Confirm Eaton part number 23249-00S and the complete ELocker wiring configuration before disconnecting existing components.
- Disconnect vehicle power as directed, document the original harness routing and connections, and inspect the circuit for damaged terminals, grounds, fuses, or wiring.
- Install the supplied service components using Eaton's current wiring diagram, correct fuse protection, secure grounds, weather-protected connections, and routing away from heat, abrasion, and moving parts.
- Restore power and test switch operation, indicator behavior, and locker engagement safely before driving.
