-6%

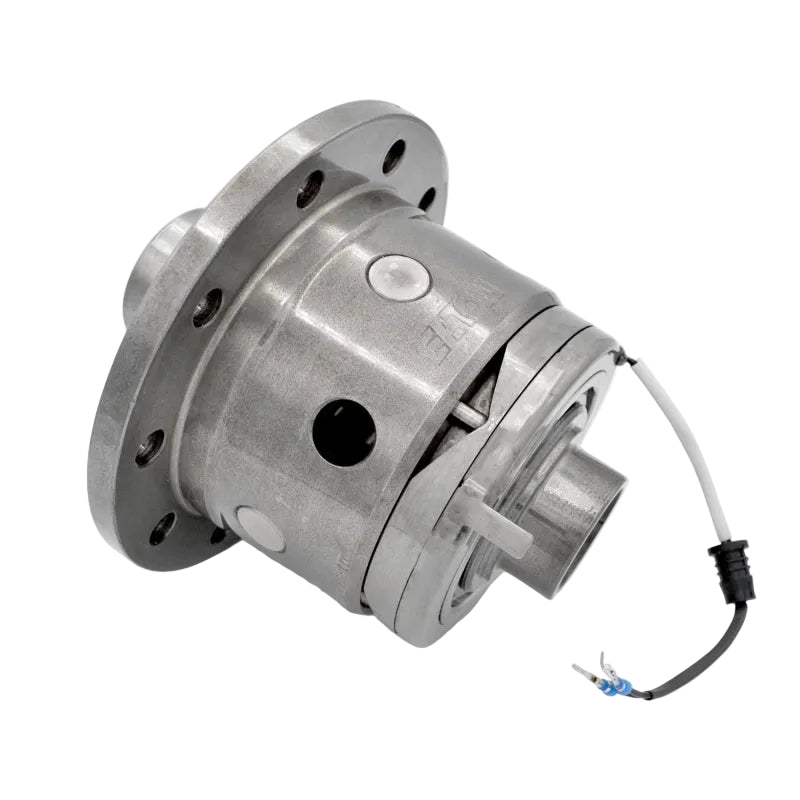

Eaton ELocker Dana 44 M220 35 spline full view

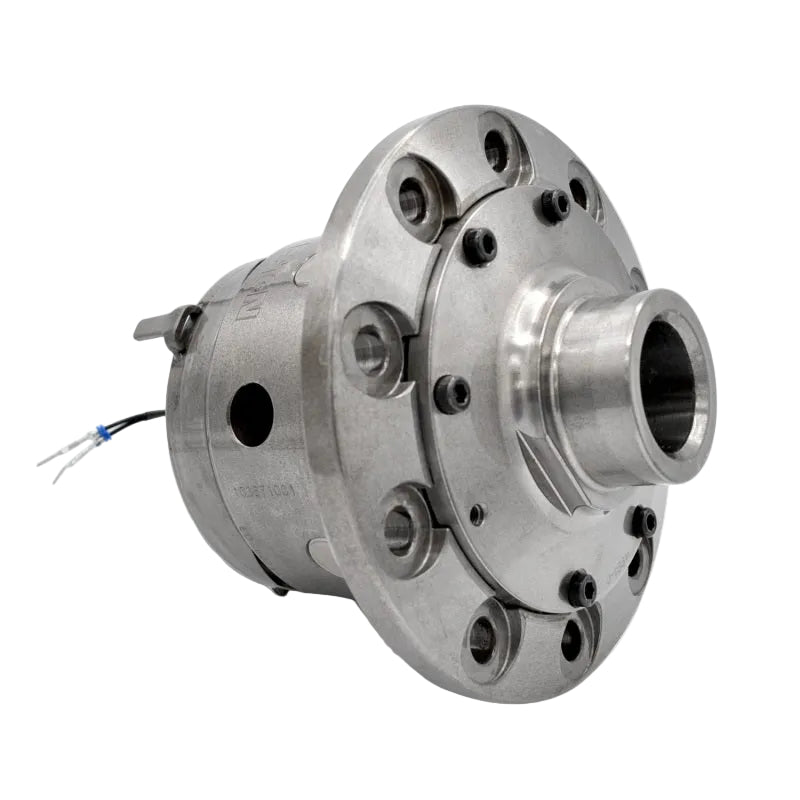

Close-up of net-forged gears and mechanism
Click to zoom in

Eaton ELocker Differential Dana 44 (M220) 35 Spline

Eaton
EAT14313-2
Differentials
20+ Units In Stock - Ships Next Business Day
$ 1,710.63 $ 1,607.99
$ 1,607.99

SKU: 14313-2   |   UPC: 801279529267

Eaton ELocker Dana 44 (M220) 35 Spline Electronic Selectable Differential for Jeep Wrangler JL & Gladiator JT

The Eaton 14313-2 ELocker is the ultimate on-demand traction solution for the Dana 44 M220 rear axle found in 2018-2023 Jeep Wrangler JL and 2020-2023 Gladiator JT models. At the flip of a dash-mounted switch, instantly transform from an open differential to a 100% locked unit for maximum traction in mud, sand, rocks, or snow. A second flip returns the unit to open for normal street driving. Featuring net-forged gears for superior strength and reliability, this electronic selectable locker is the most advanced and dependable on-demand differential available perfect for serious off-roaders who need traction when it counts without the daily drawbacks of a full-time locker.

Key Features

  • Electronic Selectable Operation: Open or 100% locked at the flip of a dash switch
  • Net-Forged Gears: Significantly stronger than cast or powdered metal for extreme duty
  • Reliable On-Demand Traction: No compromise full lock when you need it, open when you don’t
  • 35 Spline Carrier: Accepts aftermarket 35 spline axle shafts for high-horsepower builds
  • Dana 44 M220 Specific: Direct fit for 2018+ Wrangler JL and 2020+ Gladiator JT rear axle
  • Eaton Quality: Trusted by off-road enthusiasts and professional racers worldwide

Specifications

Specification Detail
Part Number 14313-2
Type ELocker Electronic Selectable Differential
Axle Dana 44 M220 Rear
Spline Count 35
Operation Open / 100% Locked via dash switch
Gears Net-Forged for Maximum Strength
Compatibility 2018-2023 Jeep Wrangler JL & 2020-2023 Gladiator JT (All Ratios)
Installation Professional Ring Gear Install Required
Country of Origin United States
Warranty Limited (Eaton)
Shipping Weight Approx. 45 to 55 lbs

What's Included

  • One Eaton ELocker Dana 44 M220 35 Spline Differential Assembly
  • Installation Hardware
  • Full Installation Instructions

Product Notes

  • Requires aftermarket 35 spline axle shafts (stock axles are 30 spline)
  • Requires aftermarket locker control harness to integrate with factory locker switch
  • During ring gear installation: Stator MUST be removed for clearance then reinstalled in correct order (Ring Gear → Stator → Bearing)
  • Does NOT fit standard Cherokee or non-M220 axle models
  • Professional installation by a qualified axle builder is highly recommended

Installation Notes

  • Estimated time: 6 to 10 hours (full axle disassembly required), advanced difficulty
  • Requires ring gear setup, bearing preload, and backlash adjustment
  • Aftermarket harness and 35 spline axles must be installed at the same time
  • Professional shop installation with proper tools and expertise is required

This Part Fits

Year Make Model Notes
2018 to 2023 Jeep Wrangler JL All Trims with Dana 44 M220 Rear Axle – All Ratios
2020 to 2023 Jeep Gladiator JT All Trims with Dana 44 M220 Rear Axle – All Ratios

Why Choose the Eaton ELocker Dana 44 M220?

  • True on-demand 100% lock at the flip of a switch – no daily compromise
  • Net-forged gears provide unmatched strength for serious off-roading
  • Proven reliability trusted by Jeep enthusiasts and professional builders

Frequently Asked Questions

  • Q: Will this fit my 2022 Jeep Gladiator Rubicon?
    A: Yes, it is a direct fit for all 2020-2023 Gladiator JT models with the Dana 44 M220 rear axle.
  • Q: Do I need aftermarket axles?
    A: Yes, this ELocker requires 35 spline aftermarket axle shafts (stock are 30 spline).
  • Q: Do I need a special wiring harness?
    A: Yes, an aftermarket locker control harness is required to integrate with the factory switch.
  • Q: What is the warranty?
    A: Covered by Eaton’s limited warranty.

Shipping & Handling

  • Method: UPS / FedEx Ground (Oversize / Freight)
  • Availability: In stock ships same or next business day
  • Packaging: Secure protective packaging with foam reinforcement
  • Weight: Approx. 45 to 55 lbs
