SKU: S90-6-15-033 | UPC: 803050444745

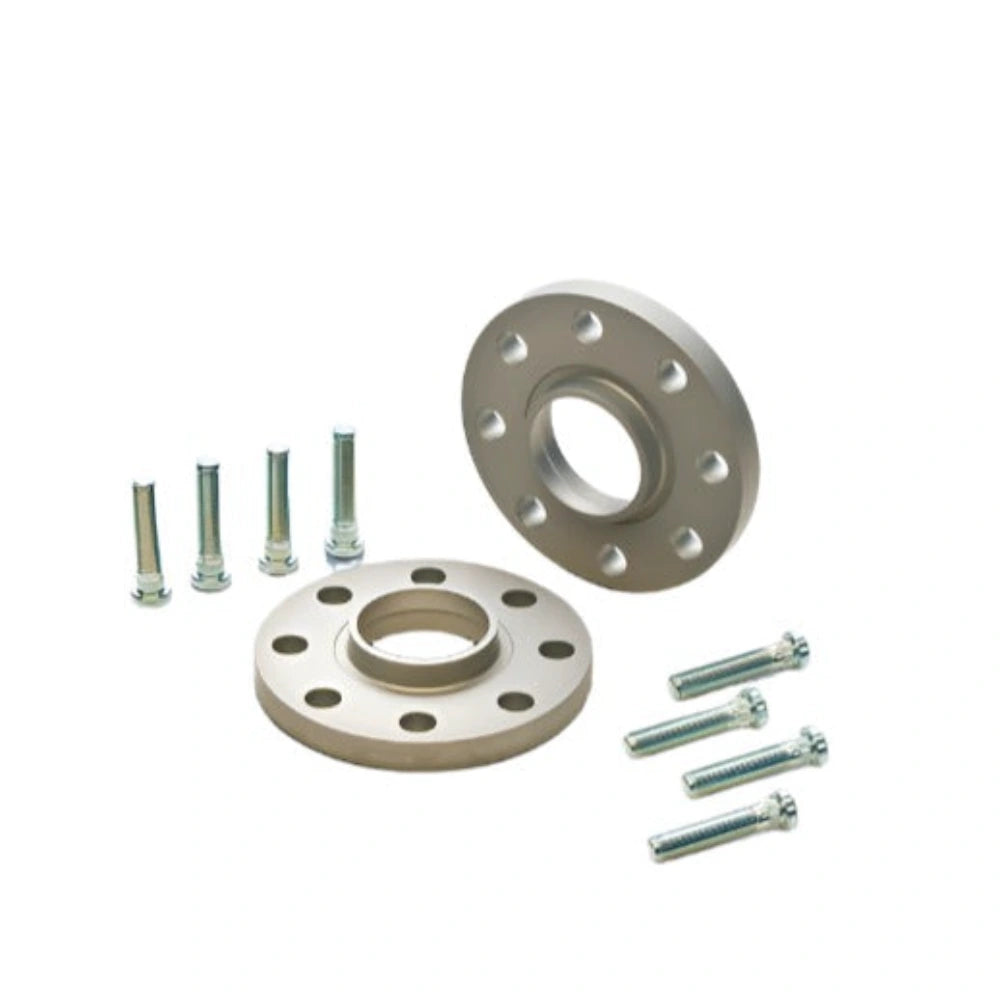

Eibach Pro-Spacer System - 15mm Spacer / 5x120.65 BP / Hub 70.1 for 2005-2013 Chevrolet Corvette
Eibach Pro-Spacer S90-6-15-033 delivers 15mm hubcentric wheel spacers designed specifically for 2005-2013 Chevrolet Corvette C6 models. This system widens the track by 15mm per side for sharper handling, aggressive stance, and clearance for wider wheels or brakes. Engineered for direct bolt-on fitment with no modifications needed.
Key Features
- Hub-Centric Design: 70.1mm bore centers wheels precisely on the hub for vibration-free performance and even load distribution.
- 15mm Thickness: Increases track width by 30mm total, enhancing cornering stability and visual appeal without altering suspension geometry.
- High-Strength Aluminum: Forged 6061-T6 alloy construction resists corrosion and withstands high loads, tested to 40,000+ lbs clamping force.
- Included Hardware: Comes with 14x2mm high-grade bolts (grade 10.9) pre-installed at correct extended length for secure wheel mounting.
- Precision Machining: CNC-milled for flawless fit, TÜV and ADAC certified for road and track reliability.
Product Notes
- As the diameter of the center stud can vary, the wheel spacers center by the stud bolts/nuts.
- Pair quantity: Set of two spacers for one axle (front or rear).
- Ships via standard ground in protective foam-lined box.
Installation Notes
- Professional installation recommended.
- Clean hub and spacer mating surfaces thoroughly before install.
- Torque bolts to 110 ft-lbs (150 Nm); uses included extended bolts, no wheel studs required.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013 | Chevrolet | Corvette | 427 |
| 2008 | Chevrolet | Corvette | 427 Limited Edition Z06 |
| 2005-2013 | Chevrolet | Corvette | Base |
| 2010-2013 | Chevrolet | Corvette | Grand Sport |
| 2006-2013 | Chevrolet | Corvette | Z06 |
| 2011 | Chevrolet | Corvette | Z06 Carbon |
| 2009-2013 | Chevrolet | Corvette | ZR1 |
Why Choose Eibach?
- Motorsport heritage with wins in Formula Drift, GT3, and rally.
- Direct from German factory with strict quality controls.
- Hubcentric engineering eliminates play for long-term durability.
Frequently Asked Questions
-
Q: Will this fit my 2008 Corvette Z06?
A: Yes, confirmed direct fit for all 2006-2013 Z06 models including 427 Limited Edition; 5x120.65 bolt pattern and 70.1mm hub bore match exactly. -
Q: What material and finish is used?
A: Forged 6061-T6 aluminum alloy with black anodized finish for corrosion resistance and OEM-like appearance. -
Q: What is the warranty and install process?
A: Eibach offers limited lifetime warranty against manufacturing defects. Install takes 30-60 minutes per axle with basic tools; torque included bolts properly.
Shipping & Handling
- Method: Standard ground shipping
- Availability: In stock - ships same or next business day
- Packaging: Compact box 7 x 5 x 3 inches with foam protection
- Weight: 1.98 lbs
