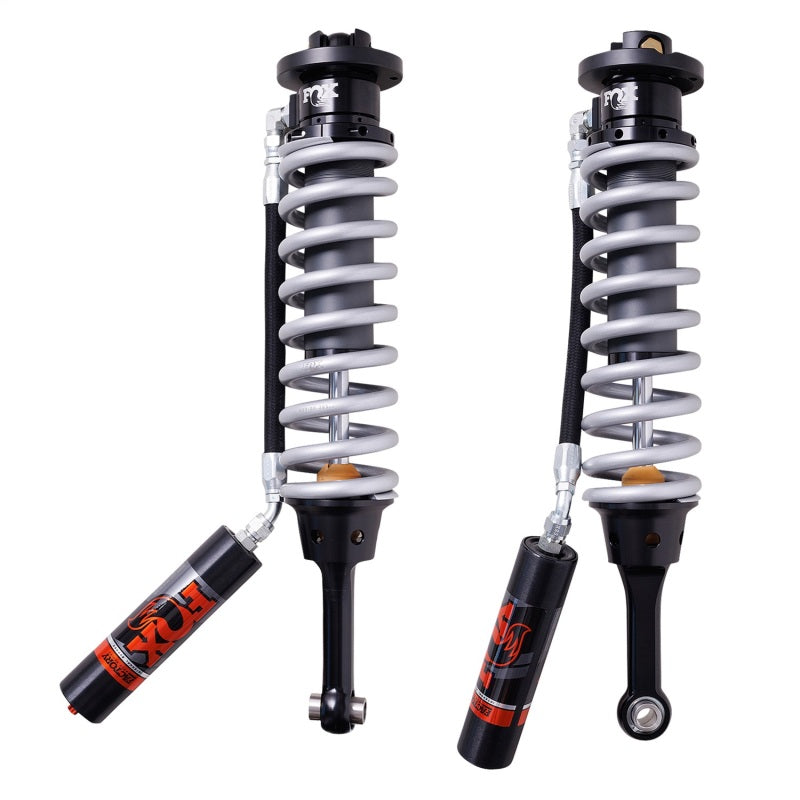

At FOX, racing has always been the cornerstone of our product development. Our 3.0 Factory Race Series Coil-over Internal Bypass, position-sensitive shocks maximize the entire wheel travel, increases oil capacity, and adds 60% more damping area over the stock FOX SVT shocks. They allow for a plush predictable ride over normal off-road driving conditions and also have the ability to ramp up damping force for extreme use.
Key Features
- FOX suspension fluid identified by exact manufacturer part number 883-02-233
- Configuration and dimensions are specific to the listed part number
- Suspension position, travel, mounts, lift range, and supporting parts must match
- Series: Factory Race
- Shock Type: Coil-Over Internal Bypass
- Body Diameter: 3
- Position: Front
- Travel Length: 7.53
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2010-2014 | Ford | F-150 | Trim: SVT Raptor | Position: Front | Lift height: 2" |
Specifications
| Brand | FOX |
|---|---|
| Manufacturer Part Number | 883-02-233 |
| Product Type | Coilovers |
| Condition | New |
| Fitment State | Vehicle Specific |
| Body Diameter | 3 |
| Bottom Mount Type | Eyelet |
| Compressed Length | 20.44 |
| Extended Length | 27.97 |
| Lifetime Warranty | No |
| Lift Height | 0-2" |
| Position | Front |
| Series | Factory Race |
| Shock Type | Coil-Over Internal Bypass |
| Top Mount Type | TM |
| Travel Length | 7.53 |
What's Included
One new FOX product package identified by manufacturer part number 883-02-233. Only components expressly supplied for this exact part number are included.
About FOX
FOX develops performance suspension products for street, off-road, racing, and specialty vehicle applications. Correct selection remains exact-application and exact-part-number specific.
Related FOX Products
- FOX 10-14 Ford Raptor 3.0 Series Front Coilover w/ Internal Bypass - 2in Lift
- Fox 3.0 Factory Race Series Live Valve Internal Bypass Coilover Shock 2019+ Ford Raptor - Front
- Fox Ford Raptor 3.0 Factory Series 7.9in Int. Bypass Remote Res. Front Coilover Set DSC Adj. - Blk
Browse the FOX collection for related suspension and service components.
Frequently Asked Questions
Will FOX 883-02-233 fit my 2010-2014 Ford F-150?
That year-make-model is listed, but the trim, drivetrain, suspension package, position, lift height, production split, and every application note must also match.
Which FOX shocks can use fluid 883-02-233?
Use it only when the current FOX service specification calls for this exact fluid, weight, and quantity. Shock family, damper design, operating temperature, and service procedure must match.
What is included with FOX 883-02-233?
The package includes only the components supplied by FOX for this exact part number. Springs, reservoirs, brackets, clamps, hardware, companion shocks, service fluid, and installation tools are separate unless expressly listed.
Installation Instructions
Follow the current FOX instructions and vehicle service information for this exact part number. Support the vehicle safely, use the specified tools and torque values, inspect all mounts and hardware, verify brake-line, steering, driveline, reservoir, wheel, and tire clearance, settle the suspension, and complete an alignment whenever geometry or ride height changes. Professional installation is recommended.
