SKU: 883-06-233

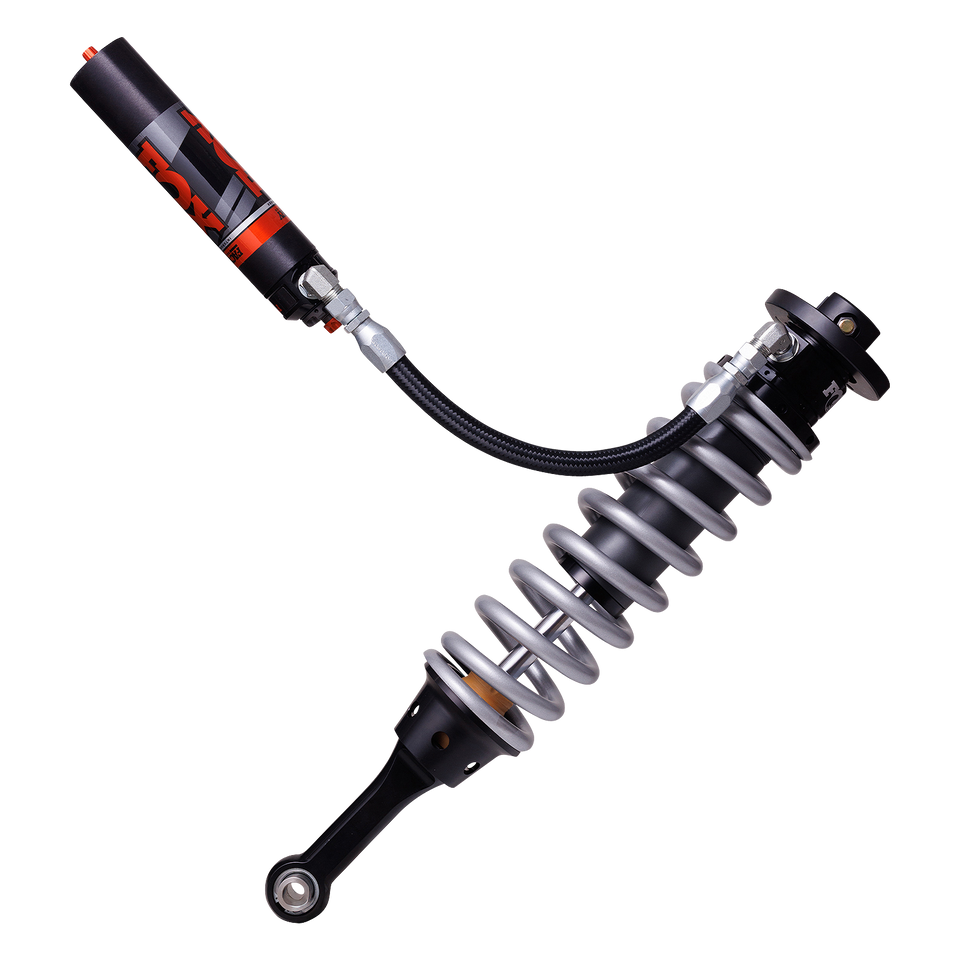

Fox Factory Race Series 3.0 Internal Bypass Front Coilovers with DSC (Pair) - 2010-2014 Ford F-150 SVT Raptor - 0-2" Lift
The Fox Factory Race Series 3.0 internal bypass front coilovers with Dual Speed Compression (DSC) adjusters deliver position-sensitive damping that combines compliant street ride quality with race-level high-speed control and hydraulic bottom-out protection. Built with a 3.0" hard-anodized aluminum body, remote reservoirs, 7/8" NitroSteel shafts, and Raptor-specific valving, these coilovers provide consistent fade-free performance for desert running, rock crawling, or daily driving while allowing a 0-2" lift adjustment to level the truck or clear larger tires.
Key Features
- Internal Bypass Technology: Position-sensitive ports create multiple damping zones soft for small impacts, progressive mid-stroke, and firm bottom-out control.
- 3.0" Shock Body: Massive diameter increases oil capacity and heat dissipation for long-duration performance.

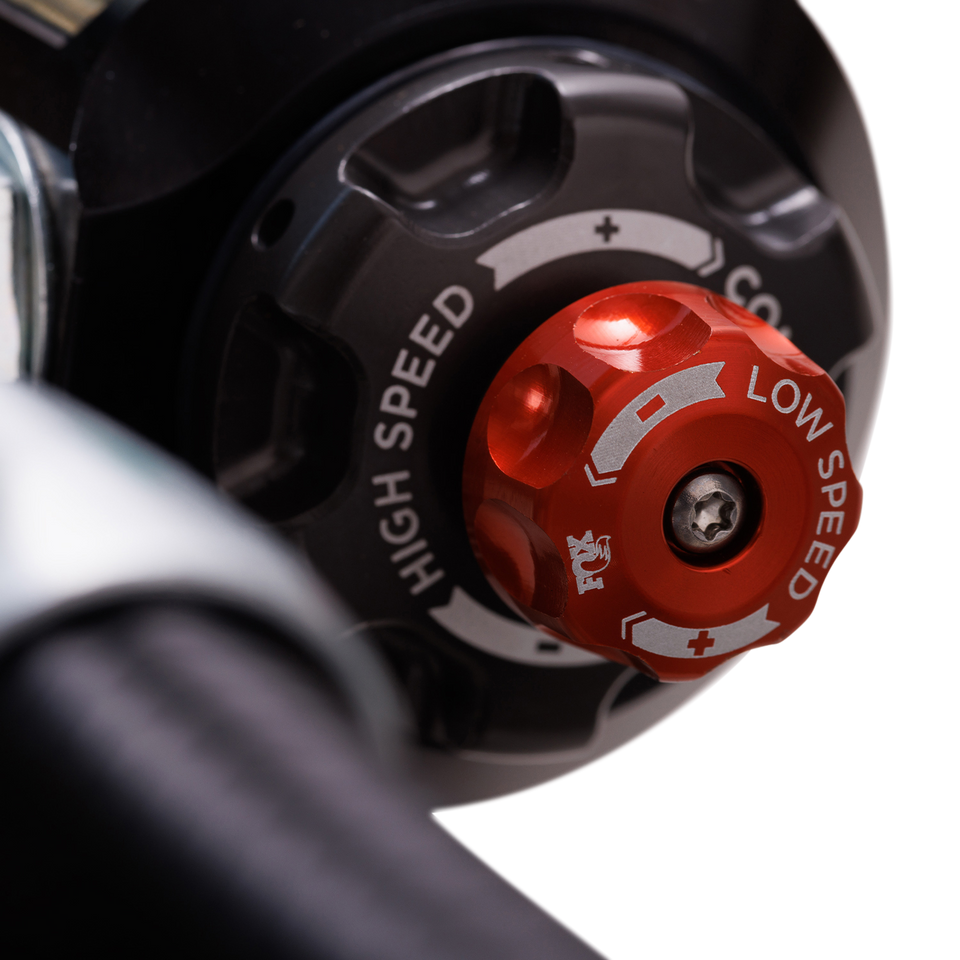

- Remote Reservoirs with DSC: Dual-Speed Compression (high & low speed) adjusters plus rebound adjustment for full tuning capability.
- 0-2" Lift Range: Threaded preload collar and spring perch allow precise height setting.
- 7/8" Hardened Shafts: NitroSteel coating with redundant seals for durability and smooth operation.
- Raptor-Specific Tuning: Valved for Gen 1 Raptor weight, geometry, and factory travel.
- Rebuildable Design: Fully serviceable and revalvable at any authorized Fox center.
- High-Temp JM92 Fluid: Maintains viscosity in extreme conditions.
Product Notes

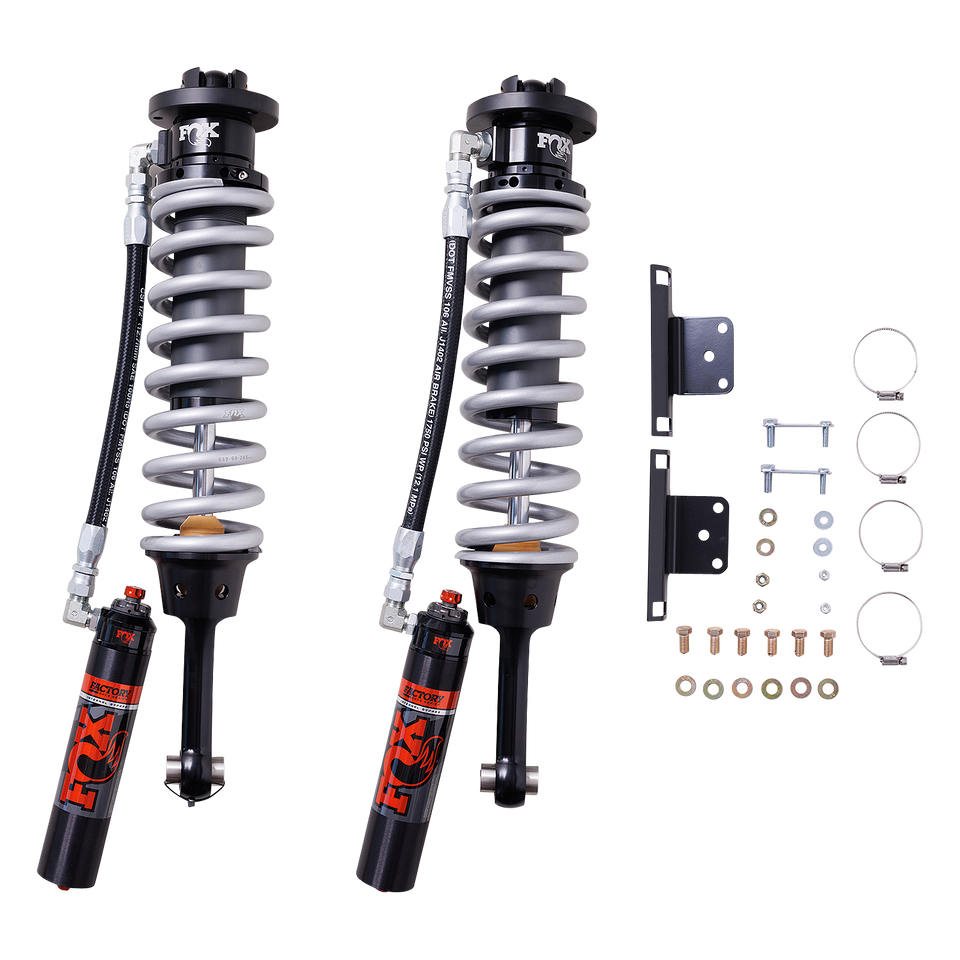

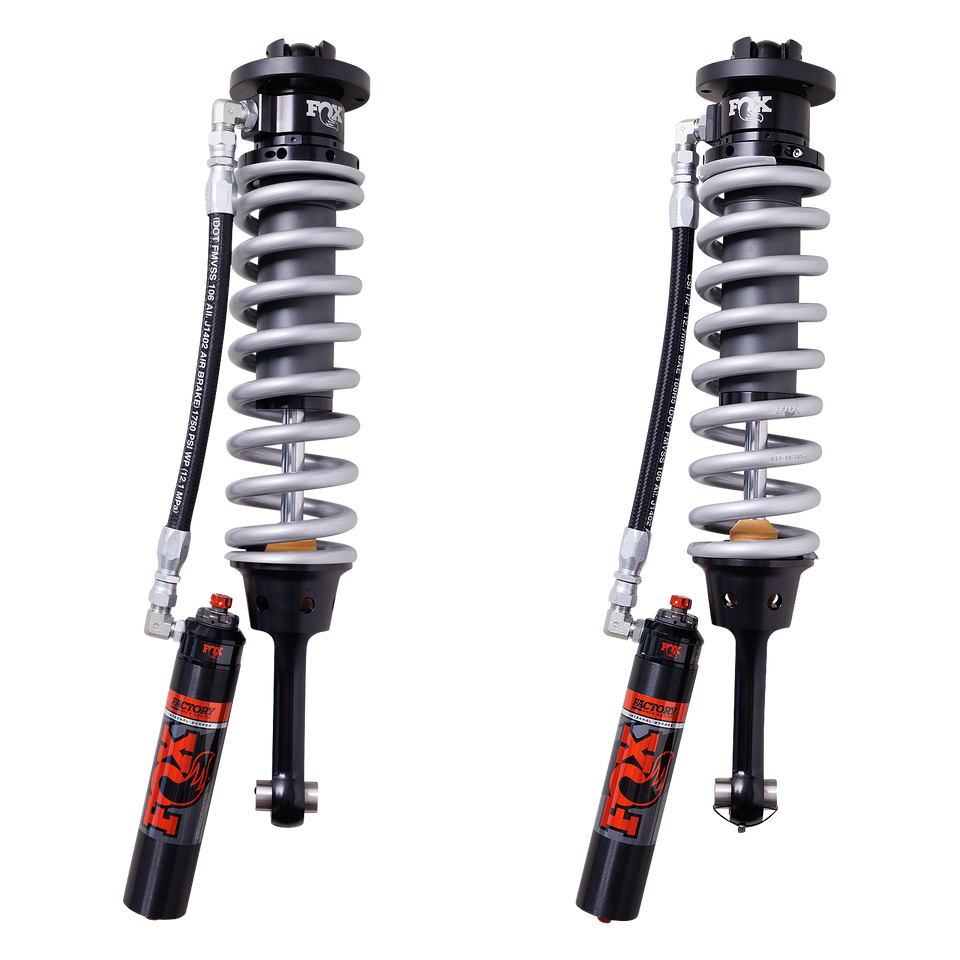

- Sold as a matched left/right pair.
- Part number: 883-06-233 (DSC-equipped version).
- Replaces factory Fox 3.0 coilovers with upgraded internal bypass and full adjustability.
- Includes Eibach coils preset for 0-2" lift (fine adjustment via preload).
- Approximate weight per coilover: 38-40 lbs.
Installation Notes
- Direct bolt-on replacement for factory mounts.
- Professional installation and alignment required.
- Torque top mount nuts to factory spec (35 ft-lbs).
- Typical install time 2-3 hours per side.
This Part Fits
| Year | Make | Model | Notes |
|---|---|---|---|
| 2010-2014 | Ford | F-150 SVT Raptor | All cab/bed configurations, 4WD |
Why Choose Fox?
- Factory supplier for every Ford Raptor since 2010 OEM race technology.
- 3.0 Internal Bypass shocks dominate Baja 1000, Best in the Desert, and Ultra4 racing.
- 2-year limited warranty with global service network.
Frequently Asked Questions
- Q: Does this include rebound adjustment?
- A: Yes, rebound is adjustable on the shaft; DSC provides high/low-speed compression tuning.
- Q: How much lift does it provide?
- A: Adjustable 0-2" front lift, preset near 2" out of the box for level stance.
- Q: Is this the same as factory Raptor shocks?
- A: Upgraded version, adds full DSC adjustability and refined valving over OEM.
Shipping & Handling
- Method: Freight truck (oversized heavy packaging).
- Package Weight: Approximately 95–100 lbs (pair + protective foam/crating).
- Box Dimensions (approx): 40" × 16" × 16" double-boxed.
