Mount Any 2.0 Or 2.5 Reservoir To A Flat Surface
Piggyback reservoirs need a secure, vibration-free mount to protect the shock from damage and keep hose routing clean. The Fox 803-02-042-KIT is a universal reservoir mount hardware service set that lets you attach any 2.0 inch or 2.5 inch diameter reservoir to any flat metal surface.
Key Features
- Fox 803-02-042-KIT universal reservoir mount hardware service set
- Fits both 2.0 inch and 2.5 inch diameter reservoirs
- Mounts to any flat metal surface
- Includes brackets, clamps, and fasteners needed for a complete install
- Heavy duty hose clamps hold the reservoir securely under vibration
Specifications
| Detail | Value |
|---|---|
| Brand | Fox |
| MPN | 803-02-042-KIT |
| UPC | N/A |
| Reservoir Diameter | 2.0 inch or 2.5 inch |
| Mounting Surface | Any flat metal surface |
| Fitment | Universal |

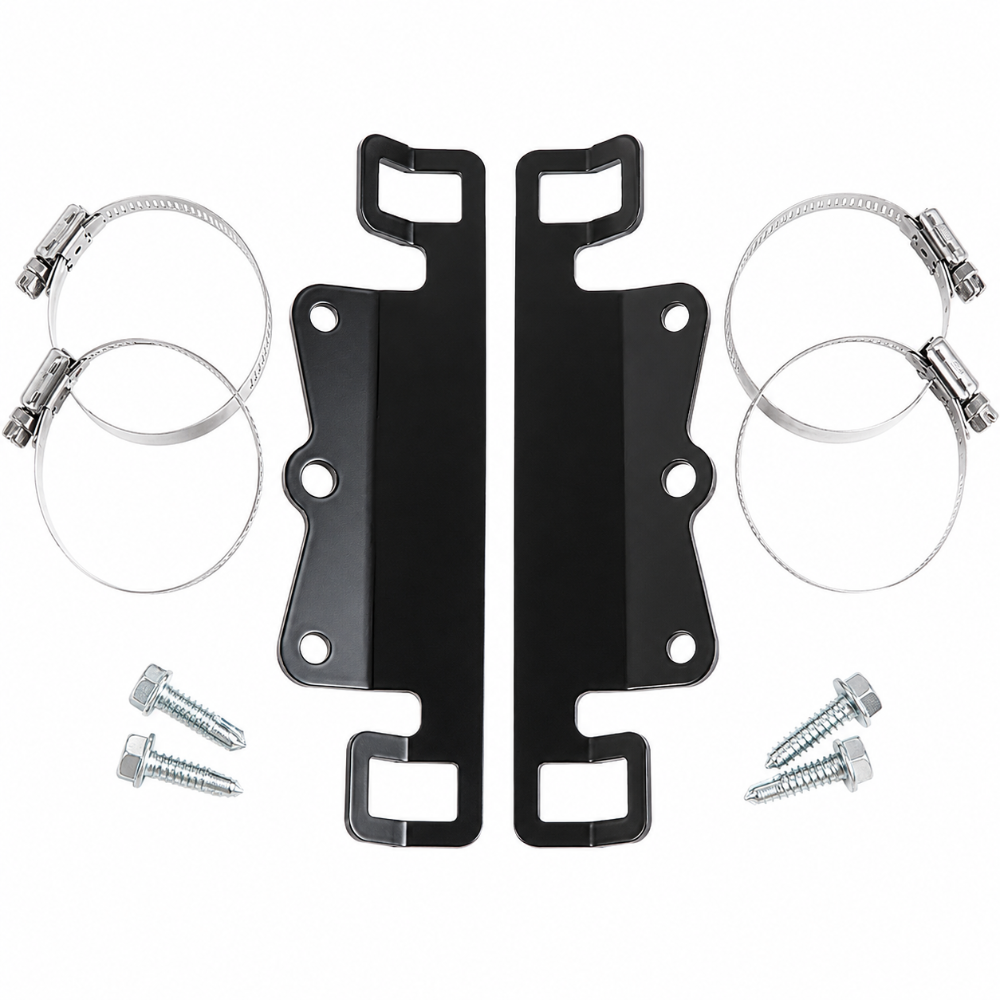

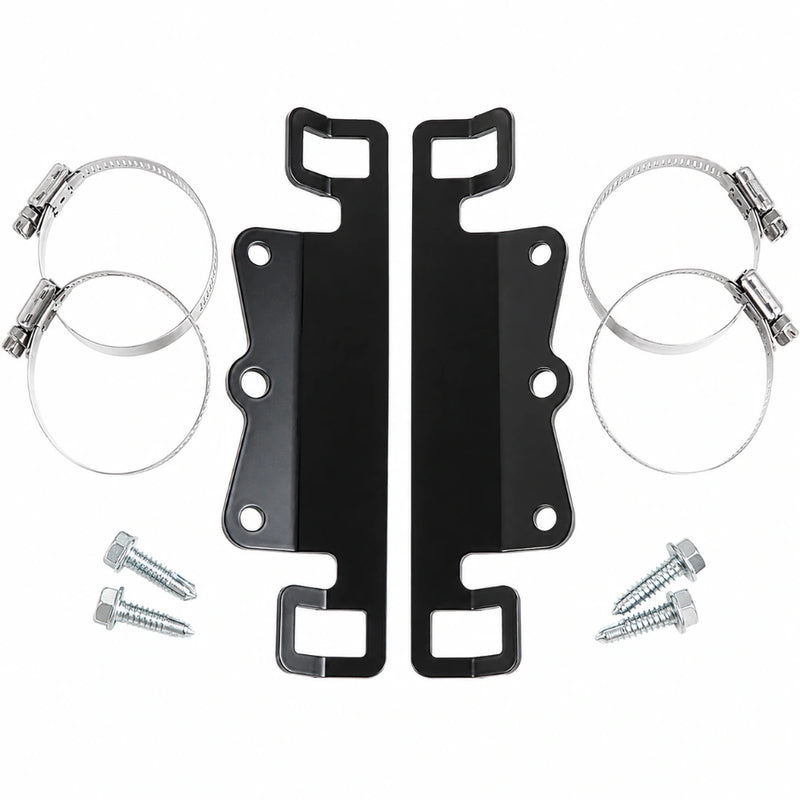

What's Included
- Mounting brackets
- Reservoir clamps
- Mounting fasteners
About Fox
Fox Factory has designed and manufactured performance suspension products for off-road trucks, UTVs, and powersports applications for decades, supplying both aftermarket shocks and factory-fit suspension for leading vehicle brands.
FAQ
What is the 803-02-042-KIT?The 803-02-042-KIT is a Fox universal reservoir mount hardware service set that includes the brackets, clamps, and fasteners needed to mount a 2.0 or 2.5 inch diameter remote reservoir to any flat metal surface.
What reservoir sizes does this kit fit?This kit is designed to work with both 2.0 inch and 2.5 inch diameter Fox remote reservoirs.
Can I mount the reservoir to a custom fabricated bracket?Yes, this kit is designed to mount to any flat metal surface, including custom fabricated brackets or factory mounting points.
How many reservoirs does one kit mount?One kit contains the hardware to mount a single reservoir. Order one kit per reservoir being mounted.
Does this kit include the mounting bracket itself?Yes, the service set includes the brackets along with the clamps and fasteners required for a complete installation.
Is this kit compatible with non-Fox reservoirs?This kit is designed for Fox 2.0 and 2.5 inch diameter reservoirs; fitment with other brands is not guaranteed.
What tools are needed to install this kit?Basic hand tools are sufficient, including a wrench or socket set and a screwdriver for the hose clamps.
Is a UPC available for this part?A UPC is not published by the manufacturer for this part; the MPN 803-02-042-KIT is the primary identifier used for ordering.
Install Instructions
- Determine the desired reservoir mounting location on the vehicle or fabricated chassis tubing.
- Attach the mounting bracket to the flat metal surface using the supplied fasteners.
- Position the reservoir in the bracket with the hose fitting oriented per the shock manufacturer's routing guidance.
- Secure the reservoir using the supplied clamps, tightening evenly on both sides.
- Route the reservoir hose to avoid contact with suspension or moving components.
- Cycle the suspension through full travel to confirm clearance before driving.
