Gen-Y 2in Shank 4500 KG Australian Tounge/Ball Mount 32mm Hole Articulating Trailer Hitch

GEN-Y's 2-Inch Shank Australian Tongue Ball Mount with 32mm DO35 Hole and 4,500 KG Capacity for Articulating Trailer Connections

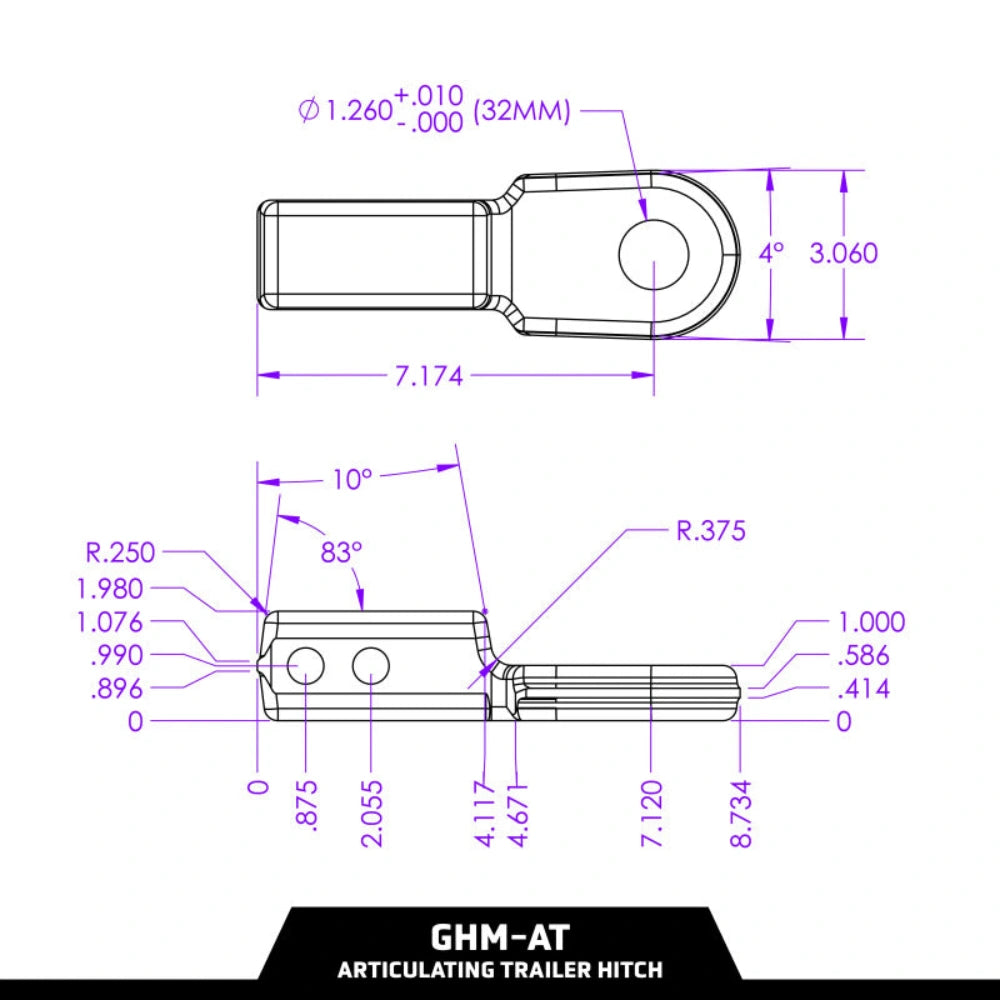

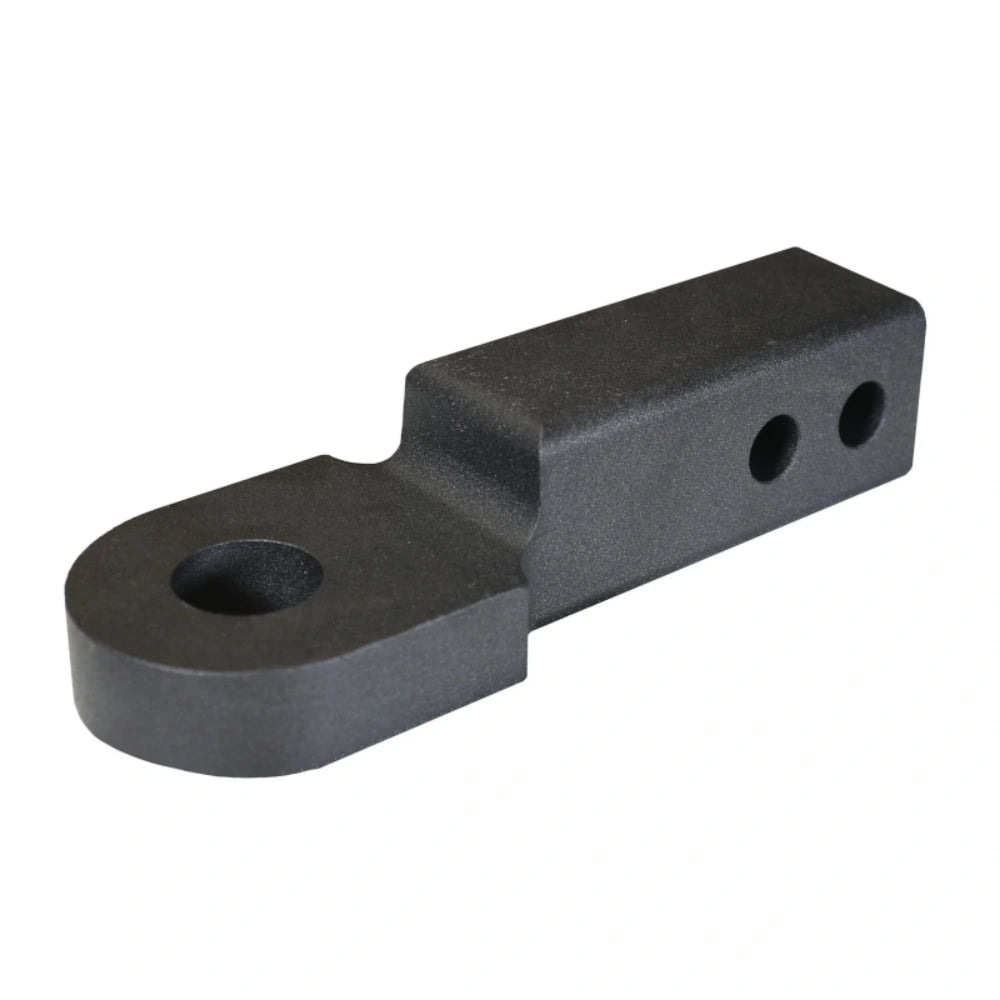

The GEN-Y GHM-AT is a 2-inch shank ball mount designed specifically for the Australian towing market, providing a DO35-compatible 32mm coupler hole with articulating geometry to absorb pitch and roll movement between the tow vehicle and trailer. Rated at 4,500 KG gross towing weight, the GENGHM-AT accommodates both 50mm and 70mm balls with the supplied reducer bush, and two pinnable holes allow the tongue to be repositioned closer or further from the vehicle to accommodate different trailer setups. Made from heavy-duty steel with a powder coat finish, it ships direct to your door for use with any 2-inch receiver hitch equipped tow vehicle.

Key Features

• 2-inch shank slides into any standard 2-inch receiver hitch
• 32mm hole for DO35 and compatible Australian coupler systems
• 4,500 KG gross towing weight capacity for heavy trailer applications
• Two pinnable positions adjust the tongue distance from the receiver for versatile fitment
• Includes reducer bush for compatibility with both 50mm and 70mm balls
• Articulating design absorbs pitch and roll between tow vehicle and trailer
• Heavy-duty steel construction with corrosion-resistant powder coat finish
• Made in the USA; backed by GEN-Y's 100% satisfaction guarantee

Specifications

What's Included

• 1x GEN-Y GHM-AT Australian tongue ball mount assembly
• Reducer bush for 50mm and 70mm ball compatibility
• Stainless steel pin

About GEN-Y Hitch

GEN-Y Hitch is a US-based manufacturer of towing and hitch accessories that designs products for demanding real-world applications. Every GEN-Y product is manufactured in America from domestic materials, tested to exceed SAE-J684 weight testing requirements, and covered by a 100% satisfaction guarantee. The company's engineering focus is providing the right connection, load capacity, and adjustability for every towing scenario from standard US ball mounts to Australian tongue systems.

Frequently Asked Questions

The GEN-Y GHM-AT is a 2-inch shank articulating tongue ball mount with a 32mm DO35-compatible hole, rated at 4,500 KG gross towing weight. It fits any standard 2-inch receiver hitch and accepts both 50mm and 70mm balls using the included reducer bush. Two pinnable positions allow the tongue to be adjusted closer or further from the receiver to suit different trailer configurations.

The GHM-AT uses a standard 2-inch shank and is compatible with any tow vehicle equipped with a 2-inch receiver hitch. It does not require a specific vehicle bracket or adapter beyond the receiver hitch itself.

Yes. The GHM-AT includes a reducer bush that allows the mount to work with both 50mm and 70mm balls. Without the reducer bush the 32mm hole accepts 70mm ball configurations; with the reducer bush installed it accepts the smaller 50mm ball shank size.

The GHM-AT is rated at 4,500 KG gross towing weight, which is approximately 9,920 lbs. This is the maximum trailer weight when using this mount. Always verify that the rating of this mount does not exceed the tow rating of your specific vehicle.

The articulating design on the GHM-AT allows the tongue to pivot and flex in response to pitch and roll movement between the tow vehicle and the trailer. This reduces shock transfer and allows the connection to accommodate uneven terrain without binding, which is particularly important for heavy trailers on rough ground.

The standard GHM-AT is designed for DO35 couplers with its 32mm hole. For DO45 compatibility, check with Gen-Y Hitch directly at genyhitch.com for the correct part number and reducer bush configuration.

All GEN-Y Hitch products are backed by a 100% satisfaction guarantee. Contact GEN-Y Hitch directly through genyhitch.com for specific warranty terms and claims.

Yes. The GEN-Y GHM-AT is manufactured in the USA from domestic materials, consistent with all GEN-Y Hitch products. All GEN-Y products are tested to exceed SAE-J684 weight testing requirements.

Installation Instructions

1. Insert the GHM-AT 2-inch shank into your vehicle's 2-inch receiver hitch.
2. Align the pin hole on the shank with the pin hole on the receiver hitch.
3. Insert the hitch pin through both holes and secure with the clip.
4. Determine which pinnable position (close or far) provides the best tongue-to-trailer alignment for your specific application.
5. If using a 50mm ball, install the supplied reducer bush in the 32mm hole before fitting the ball.
6. Install the appropriate ball (50mm or 70mm) and torque to the ball manufacturer's specification.
7. Lower the trailer tongue coupler onto the ball and confirm full engagement per the trailer coupler manufacturer's instructions.
8. Connect safety chains, breakaway cable, and trailer wiring per applicable safety standards before towing.
