Hand-Laid Wet Carbon Fiber That Sharpens the GV70's Front End Without a Single Compromise to the OEM Body Line

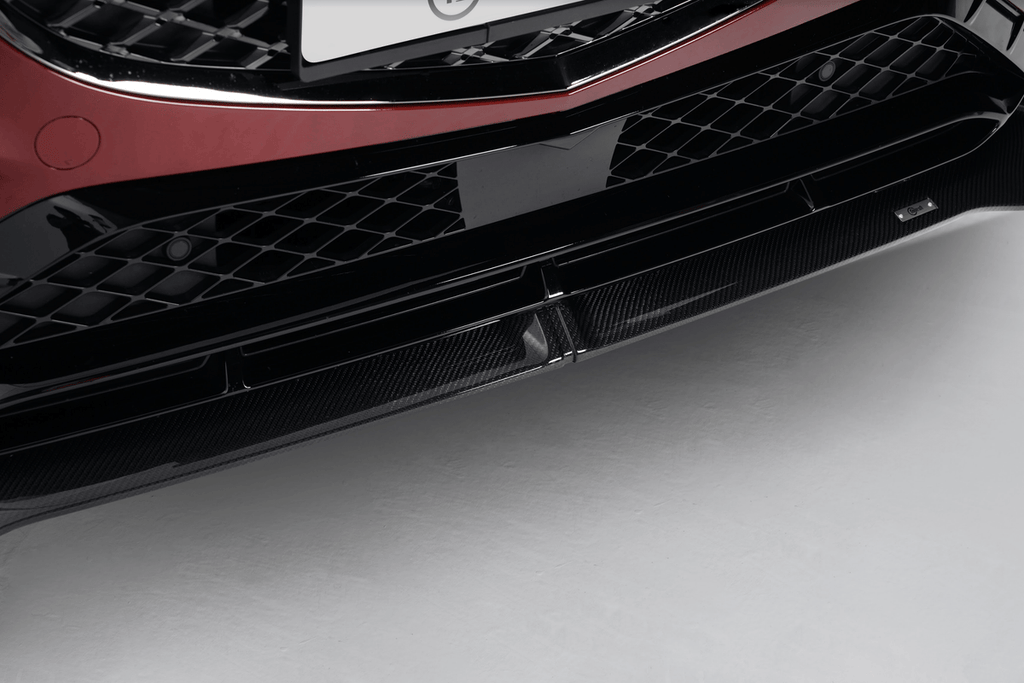

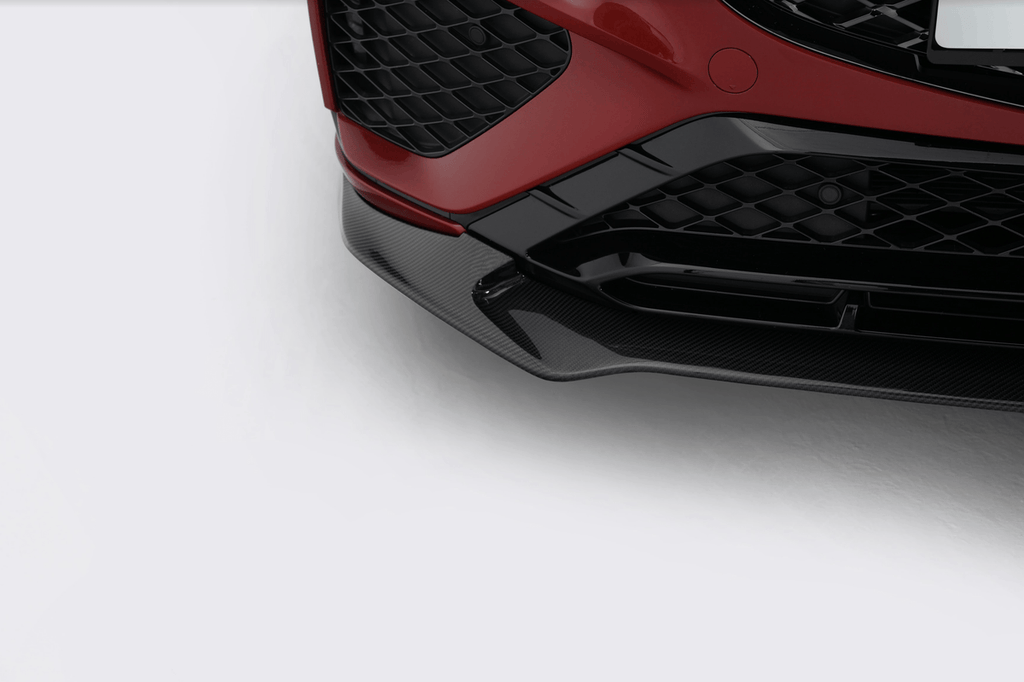

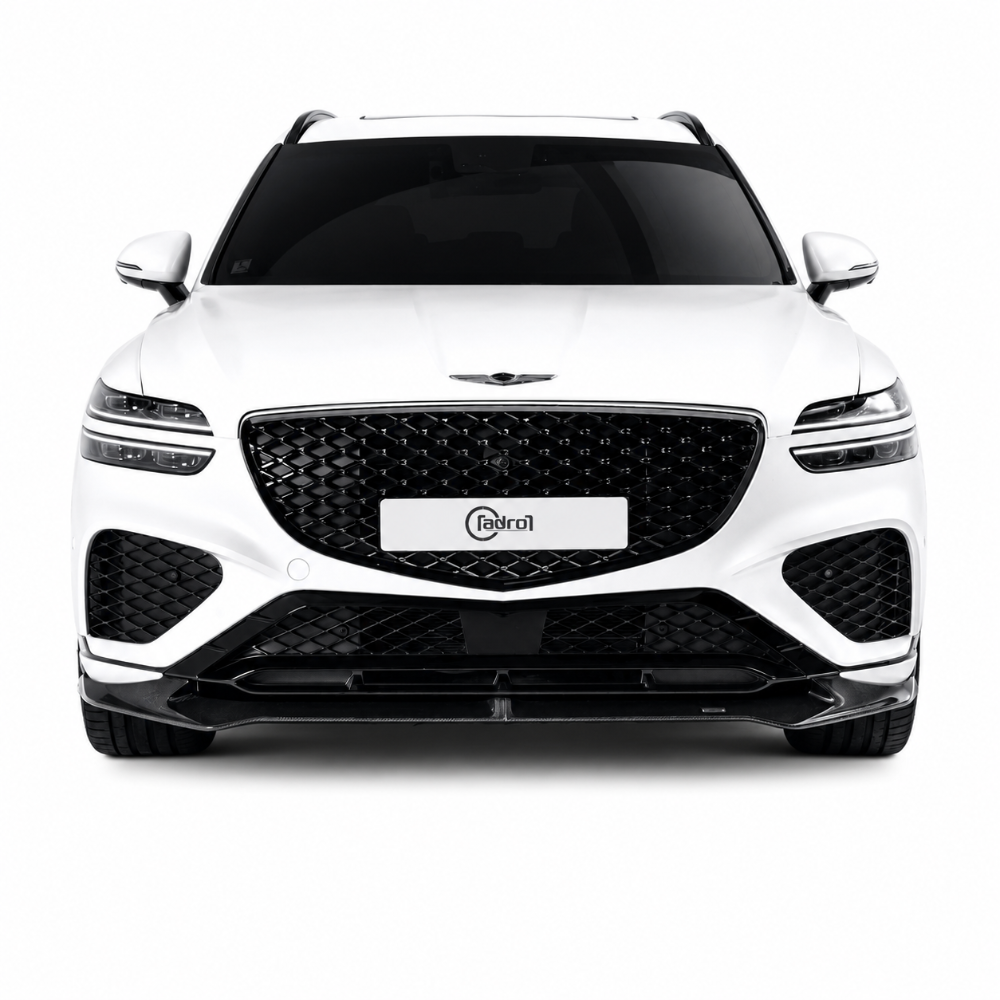

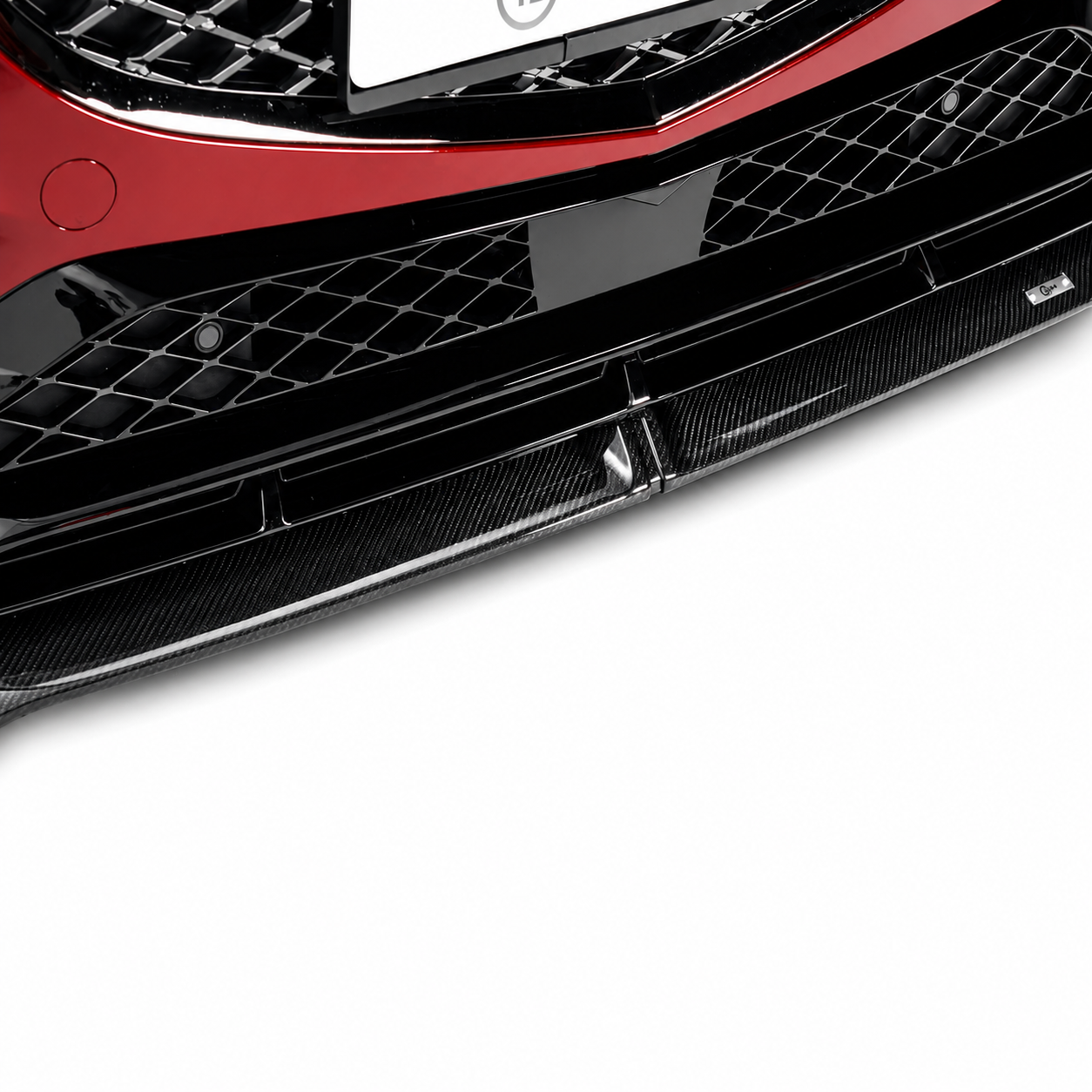

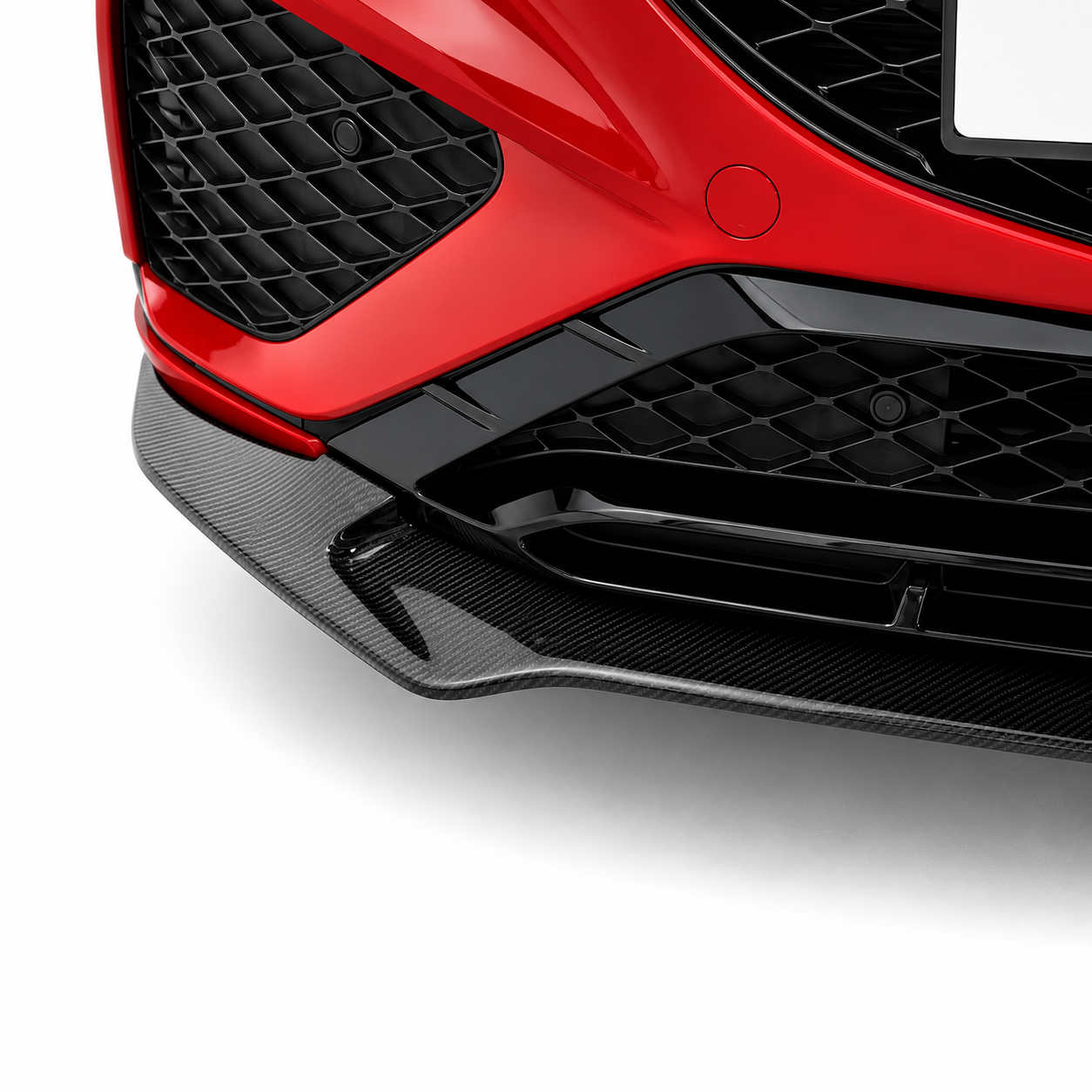

The ADRO A11A40-1201 is a hand-crafted wet carbon fiber front lip for the 2022-2023 Genesis GV70, precision-molded to follow the lower center grille contour and flow continuously around the entire front fascia. Unlike bolt-on plastic lips that fight the OEM body lines, the A11A40-1201 was developed specifically to trace the exact geometry of the GV70's lower front bumper, producing a clean integration that lowers the visual stance of the SUV without requiring any bumper modification.
The wet layup carbon fiber construction delivers a deep gloss 2x2 twill weave finish with structural rigidity well beyond what polyurethane or ABS alternatives can achieve at this price point. Compatible with all 2022-2023 Genesis GV70 trim levels from the base 2.5T through the 3.5T Sport Prestige, the A11A40-1201 is one of the earliest and most-recognized exterior upgrades for the first-generation GV70 platform.
Key Features
- ADRO A11A40-1201 hand-crafted wet carbon fiber front lip for 2022-2023 Genesis GV70 all trim levels
- Precision-molded to follow the OEM lower front bumper contour for seamless visual integration with zero gapping
- Wet carbon fiber construction with 2x2 twill weave pattern for deep gloss finish and structural rigidity
- Compatible with all GV70 configurations: 2.5T, 2.5T Select, 2.5T Advanced, 2.5T Sport Prestige, 3.5T, 3.5T Sport Advanced, and 3.5T Sport Prestige
- Lowers the visual front stance and adds aerodynamic presence without sacrificing ground clearance
- Attaches using provided hardware, self-tapping screws, and 3M tape no permanent bumper modification required
- Ships from ADRO's Gardena, CA warehouse via UPS Ground or Pilot Freight
- Oversize item ships via freight; see shipping notes below
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2022-2023 | Genesis | GV70 | 2.5T |
| 2022-2023 | Genesis | GV70 | 2.5T Select |
| 2022-2023 | Genesis | GV70 | 2.5T Advanced |
| 2022-2023 | Genesis | GV70 | 2.5T Sport Prestige |
| 2022-2023 | Genesis | GV70 | 3.5T |
| 2022-2023 | Genesis | GV70 | 3.5T Sport Advanced |
| 2022-2023 | Genesis | GV70 | 3.5T Sport Prestige |
Specifications
| Detail | Value |
|---|---|
| Part Number (MPN) | A11A40-1201 |
| Brand | ADRO |
| Version | V1 |
| Type | Front Lip / Front Splitter |
| Material | Wet carbon fiber, 2x2 twill weave |
| Finish | High-gloss clear coat |
| Construction | Hand-laid, hand-crafted |
| Fitment | 2022-2023 Genesis GV70 (all trim levels) |
| Dimensions | TBA (oversize item, ships via freight) |
| Country of Origin | South Korea |
| Prop 65 | No |
| UPC | N/A |
What's Included
- 1 wet carbon fiber front lip
- Hardware kit (bolts, nuts)
- 3M tape for supplemental adhesion
About ADRO
ADRO is a South Korean carbon fiber aerodynamics manufacturer specializing in hand-crafted wet carbon fiber exterior components for premium and performance vehicles. Known for tight OEM fitment tolerances and clean twill weave finishes, ADRO designs each product to integrate with the factory body line rather than overlay it. Their Genesis GV70 lineup was among the first aftermarket carbon fiber aero packages available for the platform and remains one of the most widely recognized among GV70 owners globally. ADRO products are distributed in the US from their Gardena, California warehouse.
Frequently Asked Questions
What is the ADRO A11A40-1201?
The ADRO A11A40-1201 is a hand-crafted wet carbon fiber front lip for the 2022-2023 Genesis GV70 in all trim levels. It is precision-molded to follow the OEM lower front bumper contour, attaches with provided hardware and 3M tape, and delivers a gloss 2x2 twill weave carbon fiber finish that lowers the front visual stance and sharpens the front end appearance of the first-generation GV70.
What GV70 years and trims does the A11A40-1201 fit?
The A11A40-1201 fits all 2022 and 2023 Genesis GV70 configurations including the 2.5T, 2.5T Select, 2.5T Advanced, 2.5T Sport Prestige, 3.5T, 3.5T Sport Advanced, and 3.5T Sport Prestige. It is not confirmed for 2024 and newer GV70 models, which received an updated front fascia. If you have a 2024 or newer GV70, confirm bumper part number compatibility before ordering.
Does the A11A40-1201 require drilling or permanent bumper modification?
The primary attachment method uses the provided hardware (bolts and nuts) with pre-drilled or self-tapped holes in the lower bumper, supplemented by 3M tape along the upper contact surface. The drilling is done through the lower plastic bumper valance, not through the bumper skin itself. The lip can be removed, but the drill holes would remain. If you are concerned about permanent modification, review the installation guide on the ADRO website before purchasing.
What tools are needed to install the ADRO GV70 front lip?
Installation requires a drill with a 1/4-inch pilot bit, a 10mm socket, an open-end wrench, a Phillips screwdriver, and a pry tool for removing existing lower bumper clips. A floor jack and jack stands are helpful for underbody access but not strictly required. ADRO recommends starting from the center and working outward when positioning the lip. The full installation guide is available via the link on the ADRO website.
Is the A11A40-1201 wet carbon fiber or dry carbon fiber?
The A11A40-1201 is wet carbon fiber, meaning the carbon weave is hand-laid in a mold with resin applied wet during the layup process. This produces the deep gloss 2x2 twill pattern visible on the finished piece. Dry carbon fiber (autoclave-cured prepreg) is a different and more expensive process typically reserved for motorsport applications. Wet carbon fiber is the standard for automotive cosmetic aero at this price range and provides the same visual finish with excellent structural rigidity for street use.
Does the GV70 front lip scratch easily on dips or speed bumps?
Carbon fiber front lips do have lower ground clearance than the stock bumper and will contact aggressive dips, steep parking lot entrances, and tall speed bumps. ADRO designs the A11A40-1201 to match the GV70's OEM front ride height, so the ground clearance reduction is minimal compared to aggressive track-style lips. Approach steep inclines at an angle to reduce contact risk. Minor scuffs on the underside are common with any front lip on a street-driven vehicle.
Can the A11A40-1201 be paired with ADRO's GV70 side skirts, rear diffuser, or spoiler?
Yes. ADRO offers a complete GV70 carbon fiber body kit that includes the A11A40-1201 front lip, matching carbon fiber side skirts, a rear diffuser, and a trunk spoiler, all engineered to the same fitment standard and visual language. Each piece can also be purchased individually. The complete body kit is available through Black Ops Auto Works as well.
How is the A11A40-1201 shipped and how long does delivery take?
The ADRO GV70 front lip is an oversize item and ships via UPS Ground or Pilot Freight from ADRO's Gardena, California warehouse. Please allow 3 to 5 business days for order processing before shipment. You will receive an email with a tracking number once your order ships. ADRO only ships to the continental United States (48 states). For Hawaii or Alaska orders, contact us directly before purchasing.
Installation Instructions
- Clean the lower front bumper surface thoroughly with isopropyl alcohol to remove all wax, grease, and dirt before fitment. Allow to fully dry.
- Dry-fit the A11A40-1201 front lip against the bumper without hardware to confirm alignment and identify any high spots that need adjustment.
- Using a 1/4-inch pilot drill bit, pre-drill pilot holes through the lower bumper valance at the center and corner positions per the installation manual. Do not drill through the bumper cover skin.
- Apply the provided 3M tape strips to the inner upper contact surface of the front lip where it meets the bumper.
- Position the front lip starting at center, press firmly against the bumper, and thread in the center Phillips self-tapping screws by hand first to hold position.
- Work outward from center to each corner, installing the corner Phillips screws to establish the lip's seating position.
- Drill pilot holes for the bolt-and-nut hardware positions (approximately 5 to 6 inches apart along each side), using a 1/4-inch bit, then dremel each hole slightly round for clearance.
- Install each bolt from the underside, threading the nut from above using a 10mm socket and open-end wrench. Do not overtighten on carbon fiber.
- Confirm the 3M tape is fully adhered along the top contact edge and press firmly along the full length.
- Inspect alignment from the front and each corner before driving. The lip should sit flush with no visible gaps or tilting relative to the bumper.
