Extra Reach for Spacers Without Sacrificing Clamp Load

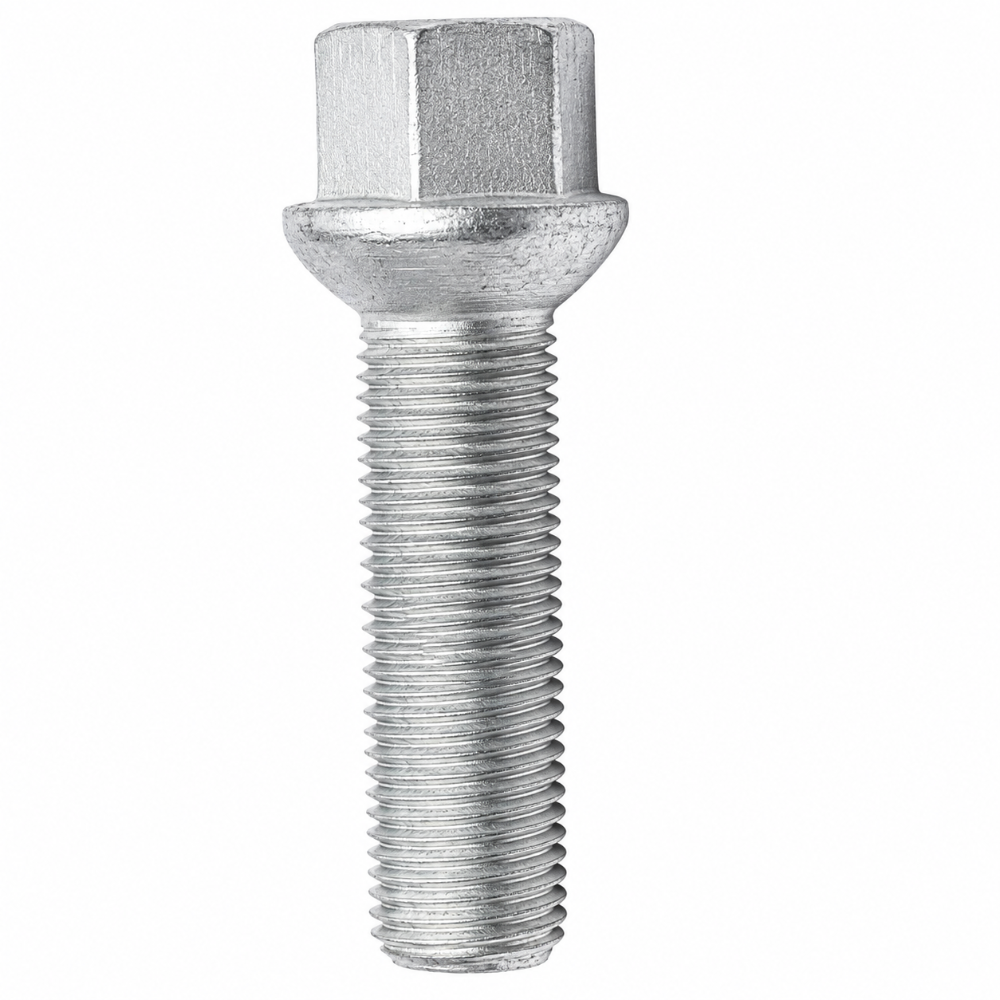

The H&R 1455502 wheel bolt is a German-made M14x1.5 ball seat bolt built to Grade 10.9 strength, offering 55mm of thread length for Mercedes-Benz applications running slightly thicker wheel spacers or wheels with a deeper bolt pocket. The 17mm head and factory-style ball seat keep installation straightforward with standard shop tools. MPN 1455502 is the length step up from the 50mm version when your spacer setup calls for more thread.
Key Features
- M14 x 1.5 right-hand thread, precision rolled for consistent clamping force
- Mercedes-Benz ball seat design matches factory wheel bolt holes
- 17mm hex head works with standard lug wrenches and impact sockets
- 55mm thread length, suited to moderate-thickness wheel spacers
- Grade 10.9 steel construction, made in Germany
- Sold individually so you can match exact quantity needs, MPN 1455502
Specifications
| Detail | Value |
|---|---|
| MPN | 1455502 |
| UPC | Not publicly listed by manufacturer |
| Thread Size | M14 x 1.5 |
| Thread Length | 55mm |
| Seat Type | Mercedes-Benz Ball Seat |
| Head Size | 17mm |
| Grade | 10.9 |
| Finish | Silver |
| Country of Origin | Germany |
| Brand | H&R |
What's Included
- (1) H&R M14x1.5 55mm Mercedes ball seat wheel bolt, MPN 1455502
About H&R
H&R has manufactured wheel fitment hardware and suspension components in Germany for decades, supplying precision wheel bolts, spacers, and lowering springs to enthusiasts and shops worldwide. Every H&R wheel bolt is built to the same tolerances the company applies to its spacer and suspension lines, ensuring safe, repeatable wheel retention.
FAQ
What is the 1455502?The 1455502 is an H&R M14x1.5 wheel bolt with a Mercedes-Benz ball seat, 55mm thread length, and 17mm head, sold individually for factory-style or spacer-compatible wheel installations.
How do I know if I need the 50mm or 55mm bolt?Bolt length should equal the factory length plus the thickness of any spacer used, while staying within H&R's minimum and maximum thread engagement guidelines. If your spacer requires a bit more reach than the 50mm version allows, the 55mm bolt is the next length up.
Can I use this bolt with wheel spacers?Yes. The 55mm length is commonly chosen when adding a moderate-thickness spacer, but always confirm exact bolt length against the spacer manufacturer's specification.
How many bolts should I order?Order a full set for the vehicle plus one or two spares. Most passenger vehicles use five bolts per wheel, so a typical set is 20 bolts with 2 extra for service needs.
What torque should these bolts be tightened to?Always torque to the vehicle manufacturer's specification, since torque values vary by chassis and wheel material. Overtightening a ball seat bolt can damage the seat and undertightening risks wheel separation.
Is a 17mm socket the correct size for installation?Yes. These bolts use a 17mm hex head, which is compatible with standard lug wrenches and most impact sockets used in automotive service.
Will these bolts fit non-Mercedes vehicles?Only if the vehicle uses the same M14x1.5 thread and ball seat design as Mercedes-Benz factory hardware. Always verify thread pitch and seat type before ordering for a non-Mercedes application.
Is a too-long bolt dangerous?Yes. A bolt that is too long can bottom out in the stud hole before fully clamping the wheel, or interfere with brake components, so always verify screw-in depth after installation by turning the wheel by hand before lowering the vehicle.
Install Instructions
- Confirm the wheel uses a Mercedes-Benz ball seat and the correct M14x1.5 thread before installing.
- Hand thread the bolt into the wheel stud to avoid cross-threading.
- Snug each bolt in a star pattern before final torque.
- Torque to the vehicle manufacturer's specification using a calibrated torque wrench.
- Spin the wheel by hand while the vehicle is still raised to confirm the bolts are not bottoming out or binding.
- After driving a short distance, recheck torque on all wheel bolts.
