Wheel Bolts collection banner

Shop wheel bolts and locking bolt sets by thread size, seat type and required length. Match the vehicle hub and wheel design, including any spacer-specific hardware requirements. Check thread engagement and inner clearance using the applicable wheel and vehicle instructions before selecting extended or replacement bolts.

  • Thread and bolt-seat matching
  • Required length and clearance checks
  • Locking-key and set quantities

Questions about Wheel Bolts? Ask our team before ordering or call (855) 221-9728.

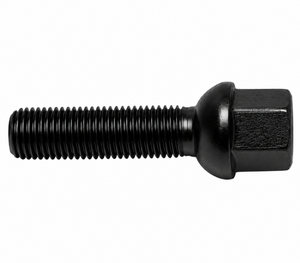

Wheel bolts and extended wheel hardware for aftermarket wheels and spacers

Shop wheel bolts, lug bolts and locking-bolt options at Black Ops Auto Works. Compare H&R, APR, Dinan and other current references by thread, seat profile and usable length. Choose the wheel-and-hub interface before the finish, especially when replacing factory wheels or adding a supported spacer system.

Ball Seats, Cone Seats and Bolt Length

The selection includes H&R Mercedes-ball, VW/Audi-ball and tapered-seat references. These descriptions identify different seating arrangements; match the wheel’s exact required profile and radius rather than treating every ball seat as identical.

Bolt length must provide the required thread engagement without bottoming or interfering with components behind the hub. Compare the manufacturer’s length measurement and exact part number. The same thread diameter and pitch can be offered in several lengths and seat designs.

Spacer-Compatible Hardware and Package Counts

The APR 45 mm bolt set is listed for its specified 15–17 mm spacer arrangement. That pairing is application-specific, not a universal formula for every original wheel, hub and seat. Use the exact spacer and wheel requirements to establish the correct bolt.

H&R ten-bolt packs and other package sizes should be counted against the wheels being serviced. A locking-bolt set has its own key and quantity. Follow the hardware, wheel and spacer instructions for tightening and subsequent checks; do not borrow a torque value from an unrelated vehicle.

Choose Your Part

  • Match complete hub thread and exact wheel-seat profile.
  • Determine the required bolt length with the actual wheel/spacer system.
  • Count bolts and locks, then check key/socket access and installation procedure.

Frequently Asked Questions

Are all ball-seat wheel bolts interchangeable?

No. Match the required seat radius/profile as well as thread and length. A Mercedes-ball label and a VW/Audi-ball label should not be treated as the same interface.

Can I choose longer bolts just by spacer thickness?

Use the exact spacer, wheel and bolt instructions. Original bolt length, seat and required engagement must be established before selecting the replacement.

Can a wheel bolt be too long?

Yes. A bolt can bottom or interfere behind the hub before correctly clamping the wheel. Check both minimum engagement and maximum allowable projection.

Does a ten-bolt set cover the whole vehicle?

Count the fasteners required by the actual wheel pattern and number of wheels being serviced. Do not assume a ten-piece package is a full-vehicle set.

Related Collections

Wheel Spacers & Adapters · Lug Nuts · Ask Our Team
