A Complete Bolt-On Turbo System Built Specifically for the FA24
HKS engineered its GTIII-RS Bolt-On Turbo Kit as a comprehensive forced induction package for the FA24 engine used in the 2022 and newer Toyota GR86 and Subaru BRZ. Using the stock clutch and injectors, the kit raises peak output to approximately 269kW (366PS), a gain of about 92kW (125PS) over stock, and peak torque to about 391N-m, a gain of about 130N-m over stock, all while remaining a true bolt-on installation with no cutting, welding, or fabrication required.
Key Features

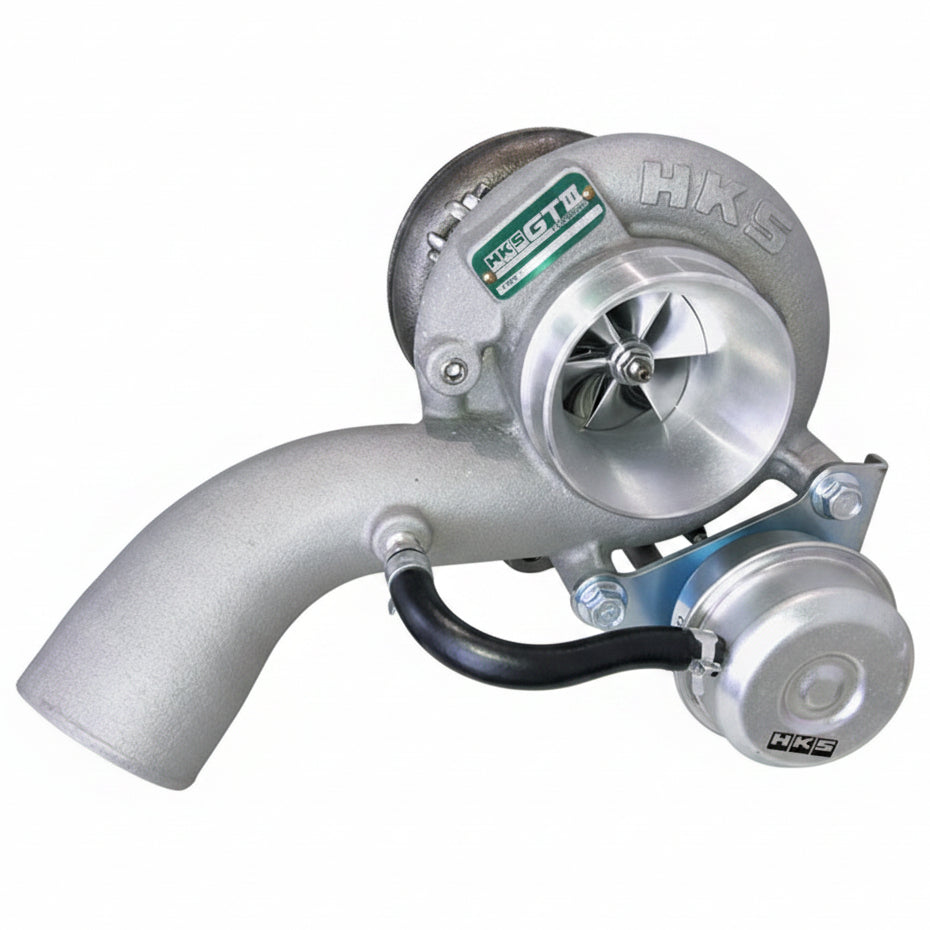

- HKS GTIII-RS ball-bearing turbocharger with 0.60 A/R turbine housing
- Internal wastegate set to approximately 65kPa boost pressure
- Raises peak output to approximately 269kW (366PS) using the stock clutch and injectors
- Cast exhaust manifold with integrated wastegate flange

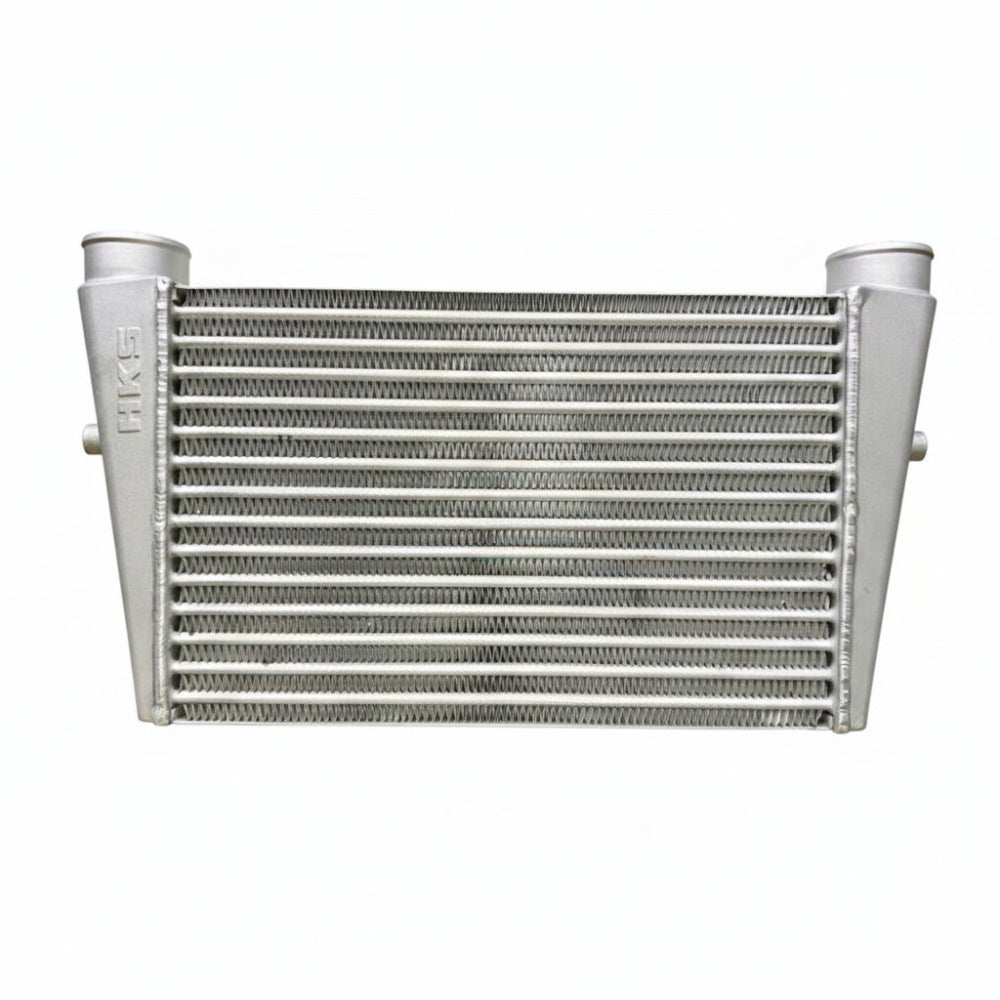

- Front-mount intercooler with piping and turbo inlet/outlet piping
- Includes oil feed and return lines and coolant lines for the water-cooled turbo bearings
- True bolt-on design, no cutting, welding, or fabrication required
Fitment
| Year | Make | Model | Engine |
|---|---|---|---|
| 2021-2025 | Toyota | GR86 | FA24 |
| 2021-2025 | Subaru | BRZ | FA24 |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 11001-AT011 |
| Turbocharger model | HKS GTIII-RS |
| Turbine A/R | 0.60 |
| Wastegate | Internal, approximately 65kPa |
| Peak power (stock clutch/injectors) | Approximately 269kW / 366PS |
| Peak torque (stock clutch/injectors) | Approximately 391N-m |
| Engine internals required | No change, stock internals compatible |
What's Included
- HKS GTIII-RS turbocharger assembly
- Cast exhaust manifold with integrated wastegate flange
- Front-mount intercooler and piping
- Turbo inlet and outlet piping
- Oil feed and return lines
- Coolant lines for turbo bearings
- Blow-off valve
- Gaskets, hardware, and mounting brackets
About HKS
HKS has engineered turbochargers, suspension, exhaust, and engine management products in Japan since 1973, developing OEM-collaborative and aftermarket performance systems used across circuit racing, drifting, and street performance builds worldwide.
FAQ
Do I need to upgrade the clutch or injectors to run this kit?No, HKS's published output figures are achieved using the stock clutch and stock injectors, though owners pursuing higher power may choose to upgrade these components separately.
Does this kit require cutting or welding to install?No, HKS designed this as a true bolt-on kit requiring no cutting, welding, or fabrication.
What turbine size does this kit use?The HKS GTIII-RS turbocharger with a 0.60 A/R turbine housing.
Does this kit include an intercooler?Yes, a front-mount intercooler and piping are included.
Is a tune required after installing this kit?Yes, engine management calibration is required to safely run the increased boost and airflow this turbo kit provides.
What is the wastegate pressure setting?Approximately 65kPa internal wastegate pressure as set by HKS.
Will this kit work with a manual or automatic transmission?Verify the exact transmission compatibility and any exhaust gas certification notes for your specific MT or AT GR86/BRZ configuration before ordering.
Does this kit include a blow-off valve?Yes, a blow-off valve is included as part of the complete kit.
Installation Instructions
- Remove the factory exhaust manifold, turbo-related components, and intercooler piping per the HKS installation manual.
- Install the HKS cast exhaust manifold with integrated wastegate flange.
- Mount the HKS GTIII-RS turbocharger assembly to the new manifold.
- Install the front-mount intercooler and connect all inlet and outlet piping.
- Connect the oil feed and return lines and coolant lines for the turbo bearings.
- Install the blow-off valve and complete all vacuum and boost line connections.
- Perform final engine management calibration before extended driving at elevated boost.
Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
