ICON 2024+ Tacoma IIC Install Kit

ICON
ICO53509
Suspension Controllers
20+ Units In Stock - Ships Next Business Day
$ 808.00
$ 808.00

The Wiring and Mounting Kit Behind ICON's App-Controlled Damping

ICON's Intelligent Control (IIC) Install Kit provides the application-specific mounting bracket, controller, wire harnesses, and hardware needed to run ICON's Intelligent Control app-based damping adjustment system on the 2024+ Tacoma, 2024+ Land Cruiser 250 Series, and 2025+ 4Runner platforms equipped with ICON CDEV coilovers and shocks. It mounts cleanly to the factory fender area and routes dedicated wiring to each Compression Damping Electronic Valve (CDEV) shock.

Key Features

  • Includes IIC controller, mounting bracket, and full wire harness kit
  • Vehicle-specific wire lengths for clean, factory-style routing to all 4 corners
  • Compatible with ICON CDEV front coilovers and CDEV rear shocks
  • Requires an iOS device to run the ICON Intelligent Control app
  • Not compatible with factory Adaptive Variable Suspension (AVS)-equipped vehicles

Fitment

Year Make Model Submodel
2024-2026 Toyota Land Cruiser Base
2024 Toyota Land Cruiser First Edition
2024-2026 Toyota Land Cruiser 1958
2024 Toyota Tacoma Limited
2024-2026 Toyota Tacoma SR5
2024-2026 Toyota Tacoma TRD Off-Road
2024-2026 Toyota Tacoma TRD Sport
2025-2026 Toyota 4Runner SR5
2025-2026 Toyota 4Runner TRD Off-Road
2025-2026 Toyota 4Runner TRD Off-Road Premium
2025-2026 Toyota 4Runner TRD Sport
2025-2026 Toyota 4Runner TRD Sport Premium

Specifications

Detail Value
Manufacturer part number 53509
Compatible platforms 2024+ Tacoma, 2024+ Land Cruiser 250, 2025+ 4Runner
Requires ICON CDEV front coilovers and CDEV rear shocks
App requirement iOS device required to run ICON Intelligent Control app
Not compatible with Factory AVS-equipped vehicles, Tacoma submodels with rear leaf springs

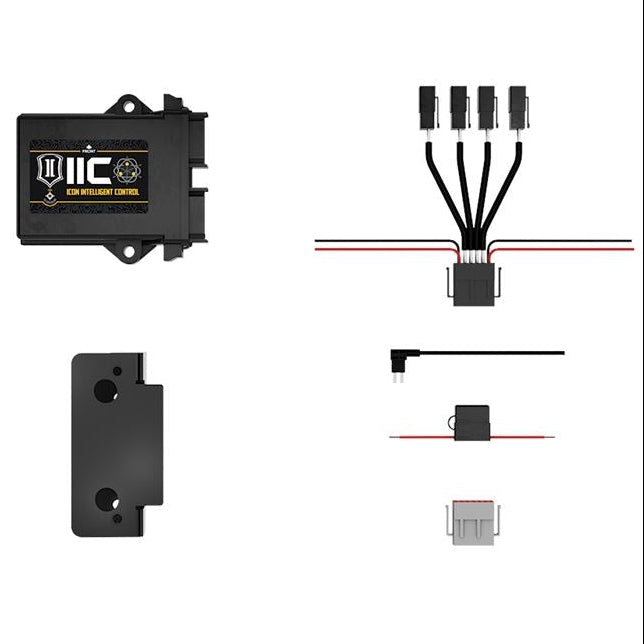

What's Included

  • 1 IIC controller
  • 1 vehicle-specific mounting bracket
  • 4 CDEV shock wire harnesses (vehicle-specific lengths)
  • Fuse taps and low-profile mini fuses
  • Wire loom, cable ties, and connectors
  • Mounting hardware

About the Brand

ICON Vehicle Dynamics engineers coilover suspension systems, control arms, and now app-controlled electronic damping for trucks, SUVs, and overland platforms, based in Riverside, California.

FAQ

Do I need other ICON parts for this kit to work?

Yes, this install kit requires ICON CDEV front coilovers and CDEV rear shocks to be installed, it does not adjust damping on its own.

What vehicles does this kit support?

2024+ Toyota Tacoma, 2024+ Toyota Land Cruiser 250 Series, and 2025+ Toyota 4Runner models equipped with compatible CDEV shocks.

Does this work with factory Adaptive Variable Suspension (AVS)?

No, this kit is not compatible with vehicles equipped with factory AVS.

What app do I need to control the system?

The ICON Intelligent Control app, which currently requires an iOS operated device.

Will this fit a 2024 Tacoma TRD PreRunner or Limited AWD?

No, ICON notes this kit will not fit the 2024 Tacoma TRD PreRunner or Limited AWD submodels.

Does this kit include the coilovers and shocks?

No, this is the mounting and wiring kit only, CDEV coilovers and shocks are sold separately.

Is professional installation recommended?

Yes, wiring and mounting the IIC system correctly requires care, professional installation or an experienced DIYer following ICON's instructions is recommended.

What is ICON's warranty on this kit?

Contact ICON Vehicle Dynamics or your retailer for specific warranty terms on electronic components.

Installation Instructions

  1. Disconnect the vehicle battery.
  2. Apply the supplied adhesive strips to the IIC mount and attach the IIC controller.
  3. Mount the IIC assembly in the designated location near the fuse box using the factory bolts.
  4. Connect the main wire harness and block-off plug to the controller ports.
  5. Route the ground wires to the fender ground connection and crimp on terminal connectors.
  6. Route the red accessory and main power wires to the fuse box and install the supplied fuse taps.
  7. Route the 4 shock wires (front and rear, driver and passenger) along the frame rail to each CDEV shock.
  8. Reconnect the battery and download the ICON Intelligent Control app to complete setup and pairing.
