Give Your Edge's EcoBoost Intake Cleaner Air, Not Oily Mist

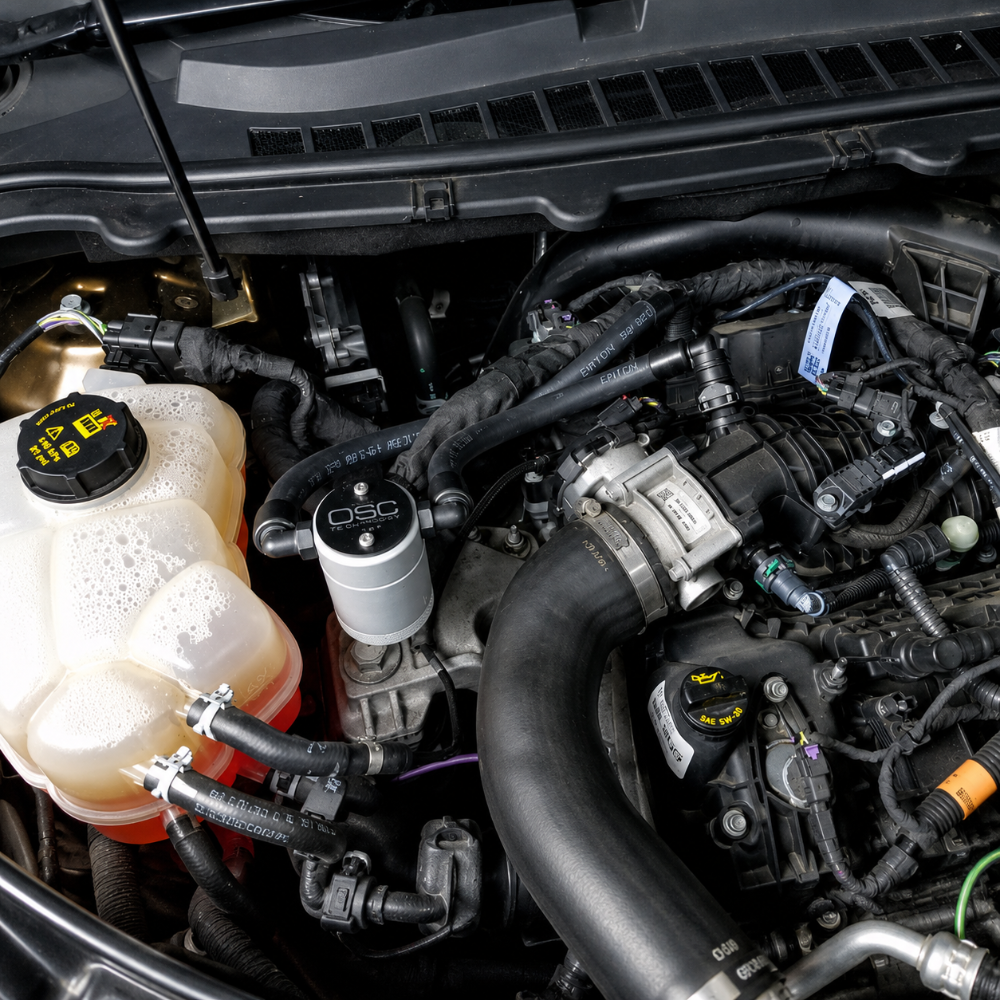

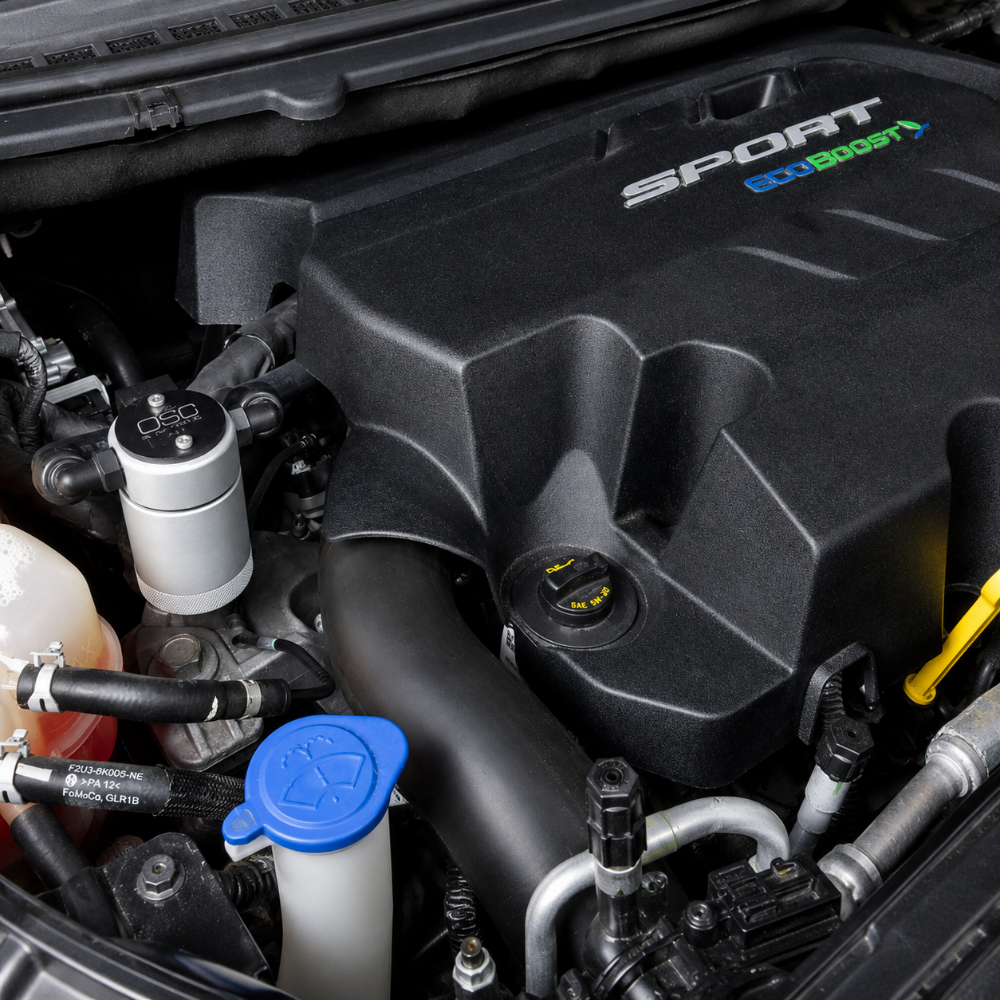

The 2.7L EcoBoost in your Edge Sport or ST pushes a lot of crankcase pressure through the PCV system, and that means oil vapor working its way into the intake tract, throttle body, and intercooler over time. The J&L 3031P-C passenger side oil separator captures that vapor with a stainless mesh screen and aluminum honeycomb filter, dropping condensed oil into a 3 oz canister instead of letting it collect on your intake components and dilute fuel octane.
Key Features
- Solid billet aluminum canister machined and assembled in the USA
- Fine mesh stainless steel screen combined with a 1/2 inch thick aluminum honeycomb filter
- 3 oz fluid capacity built into a compact passenger side canister
- OEM style quick connect PCV fittings for a plug and play install
- Knurled tank base for quick, tool free draining
- O-ring sealed canister to prevent leaks
- Clear anodized finish for corrosion resistance and easy fluid level checks
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2015-2018 | Ford | Edge | Sport |
| 2019-2023 | Ford | Edge | ST |
| 2016-2018 | Lincoln | MKX | Premiere |
| 2016-2018 | Lincoln | MKX | Select |
| 2016-2018 | Lincoln | MKX | Reserve |
| 2016-2018 | Lincoln | MKX | Black Label |
| 2019-2023 | Lincoln | Nautilus | Reserve |
| 2019-2023 | Lincoln | Nautilus | Black Label |
Covers 2.7L EcoBoost V6 applications across Edge Sport/ST and Lincoln MKX/Nautilus twin turbo trims.
Specifications
| Detail | Value |
|---|---|
| MPN | 3031P-C |
| UPC | 887753721648 |
| Brand | J&L Oil Separator Co. |
| Position | Passenger Side |
| Finish | Clear Anodized |
| Capacity | 3 oz |
| Material | Solid Billet Aluminum |
| Filter Media | Stainless Steel Mesh with Aluminum Honeycomb |
| Country of Manufacture | United States |
| Warranty | Limited Lifetime |
| CARB Status | Not CARB Exempt |

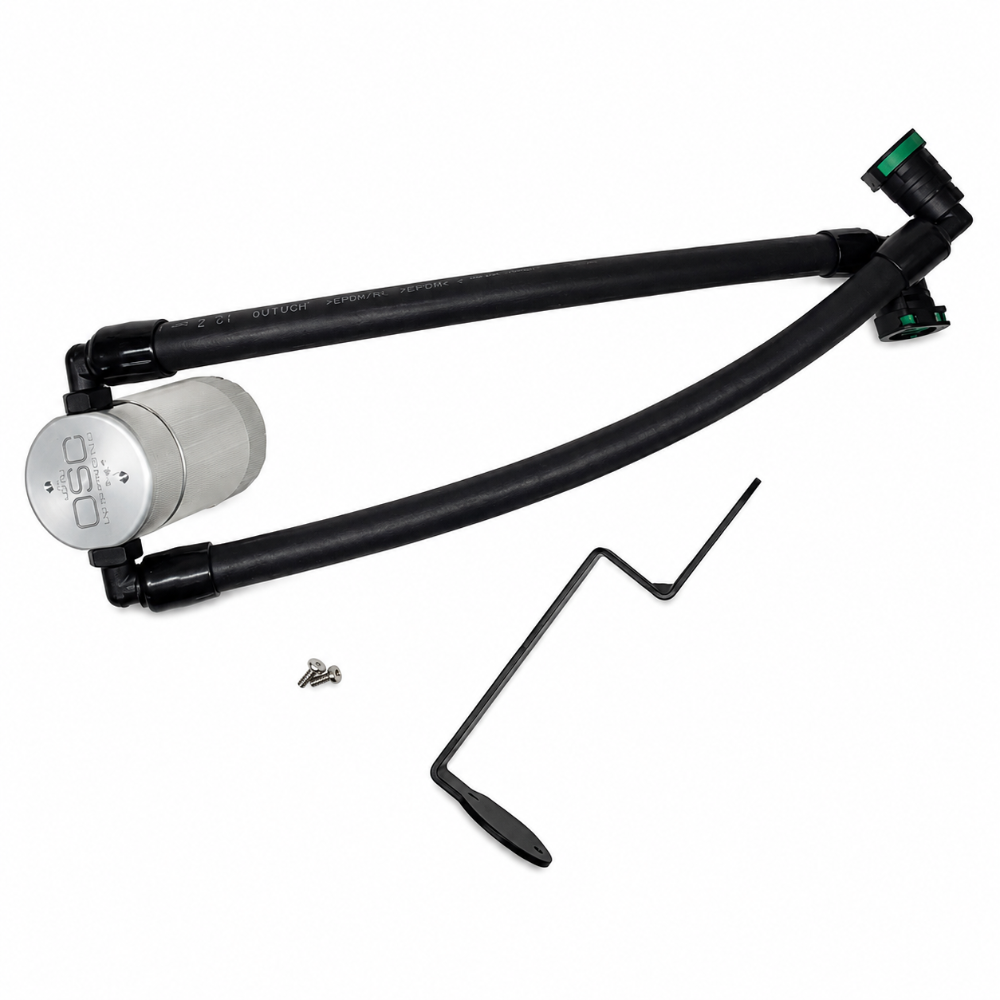

What's Included
- J&L 3031P-C oil separator canister with mounting bracket
- OEM style quick connect PCV hose fittings
- All mounting hardware
- Printed installation instructions
About J&L Oil Separator Co.
J&L Oil Separator Co., formerly known as JLT, builds oil separators for domestic and import platforms from its Chesapeake, Virginia facility. Each unit is machined from solid billet aluminum in the USA and backed by a limited lifetime warranty on materials and workmanship, giving Edge and MKX/Nautilus owners a durable, direct fit way to protect their EcoBoost intake system.
Related Parts on Our Site
- J&L Oil Separator 3.0 Base Kit - Black Anodized
- J&L 2011-2023 Ford F-150 2.7L/3.5L/5.0L Passenger Side Oil Separator 3.0
FAQ
What is the 3031P-C?The 3031P-C is a passenger side, clear anodized J&L 3.0 oil separator built to trap crankcase oil vapor before it reaches the intake tract on 2.7L EcoBoost Edge and Lincoln MKX/Nautilus applications.
Does the 3031P-C fit my Ford Edge ST?Yes, it is a direct fit for 2019-2023 Ford Edge ST models equipped with the 2.7L EcoBoost V6.
Will this oil separator fit a Lincoln Nautilus?Yes, the 3031P-C covers 2019-2023 Lincoln Nautilus Reserve and Black Label trims with the 2.7L EcoBoost engine.
How often should I drain the canister?Check the canister within the first 500 to 1,000 miles to see how quickly it fills, then most owners settle into draining it every 2,000 to 3,000 miles depending on driving style.
Does installing an oil separator void my Ford or Lincoln factory warranty?No. Under the Magnuson Moss Warranty Act, the manufacturer must prove the separator directly caused a failure before denying warranty coverage, and this kit does not alter factory calibration.
Is the 3031P-C legal in California?No. This product is not CARB exempt and is not legal for sale or use in California or any other state that has adopted California emissions standards requiring a CA Executive Order number.
Can I add extra capacity to this oil separator?This passenger side Edge/MKX/Nautilus application is not compatible with the optional reservoir extension, so plan on draining the standard 3 oz canister on a routine schedule.
What is the difference between this and the driver side unit?The 3031P-C is the passenger side oil separator for the 2.7L EcoBoost V6, while a separate driver side unit is available for owners who want to catch blow-by from both cylinder banks.
Does this oil separator require permanent modifications to install?No, it uses OEM style quick connect fittings and factory mounting locations, so no cutting, drilling, or permanent changes are required.
Install Instructions
- Disconnect the battery and allow the engine to cool completely before starting.
- Remove the factory engine cover to access the passenger side PCV line.
- Locate and disconnect the factory PCV hose at the intake manifold and valve cover connections.
- Mount the J&L 3031P-C canister bracket to the factory mounting point using the supplied hardware.
- Connect the included quick connect hoses between the canister, intake manifold, and valve cover, trimming hose length as needed.
- Secure all hose clamps and verify a tight, leak free connection at each fitting.
- Reinstall the engine cover and reconnect the battery.
- Start the engine and inspect all connections for leaks before returning the vehicle to normal use.
