37% More Airflow for the Jeep Wrangler JK 3.6L Pentastar

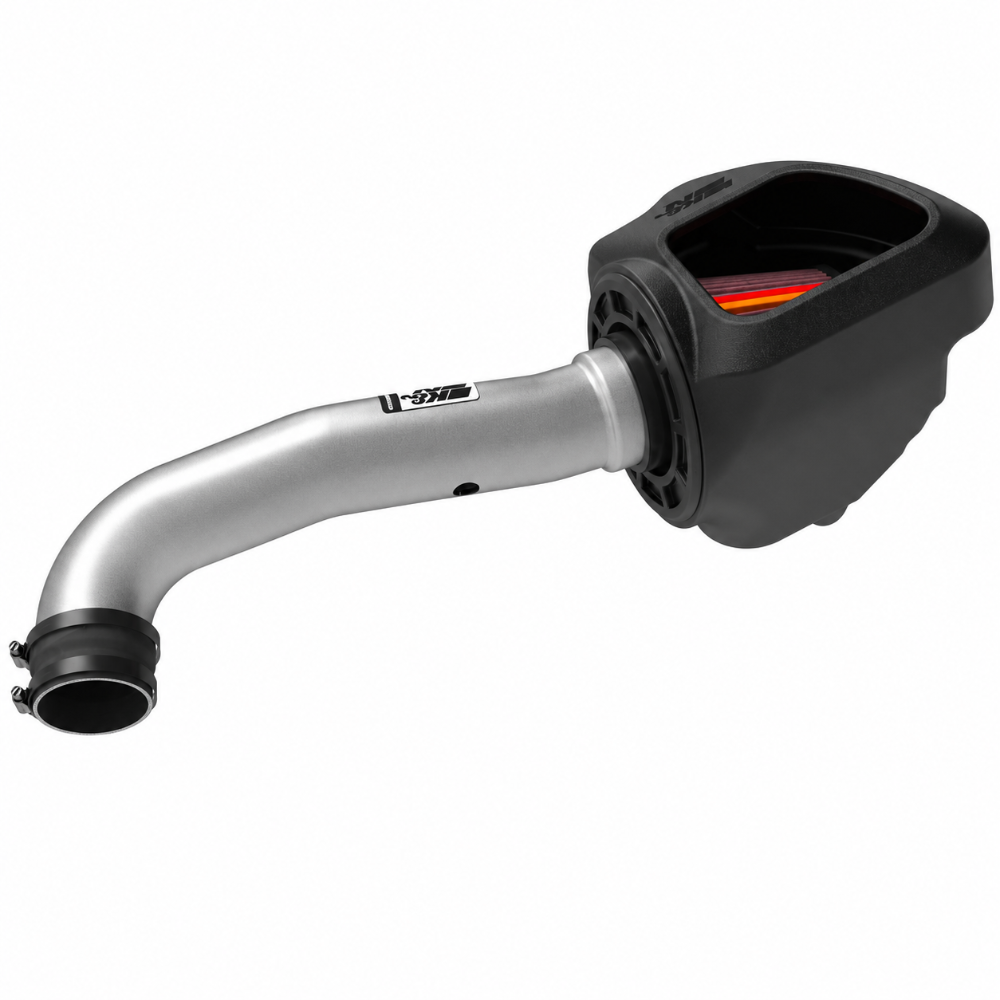

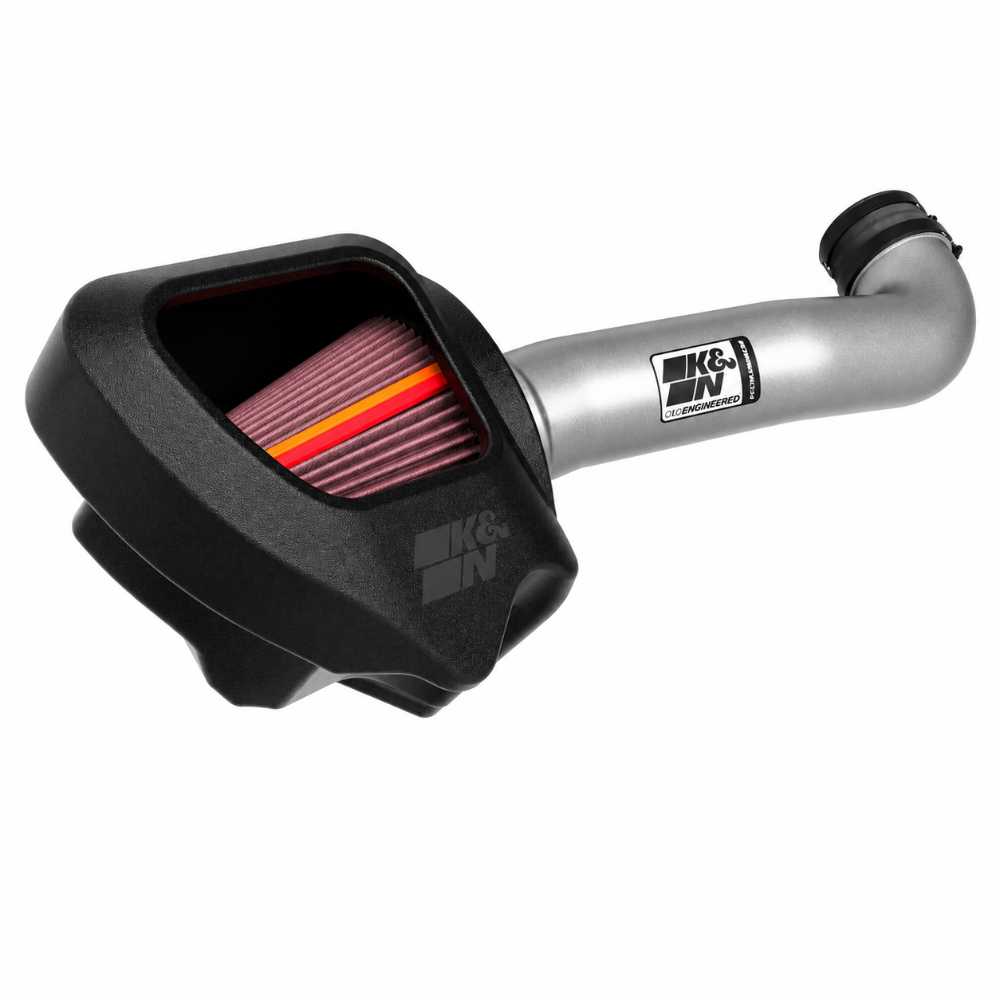

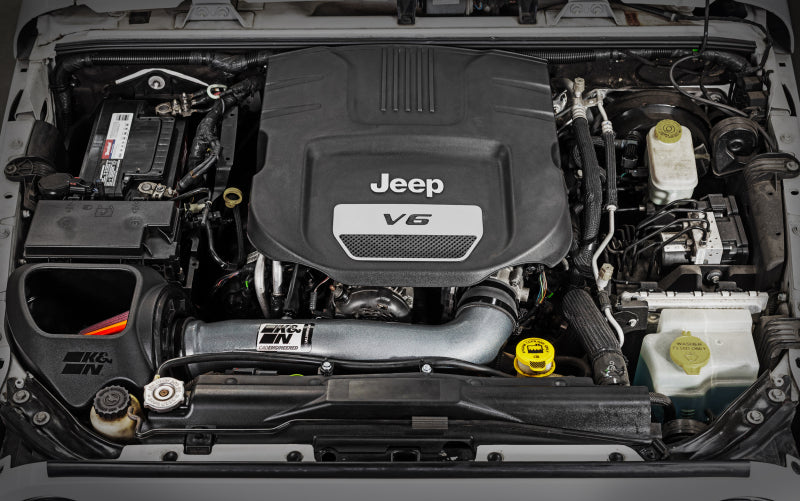

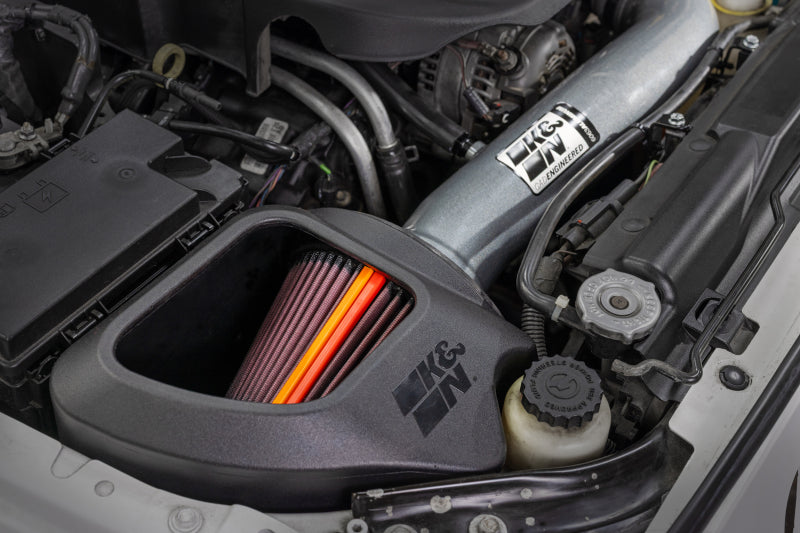

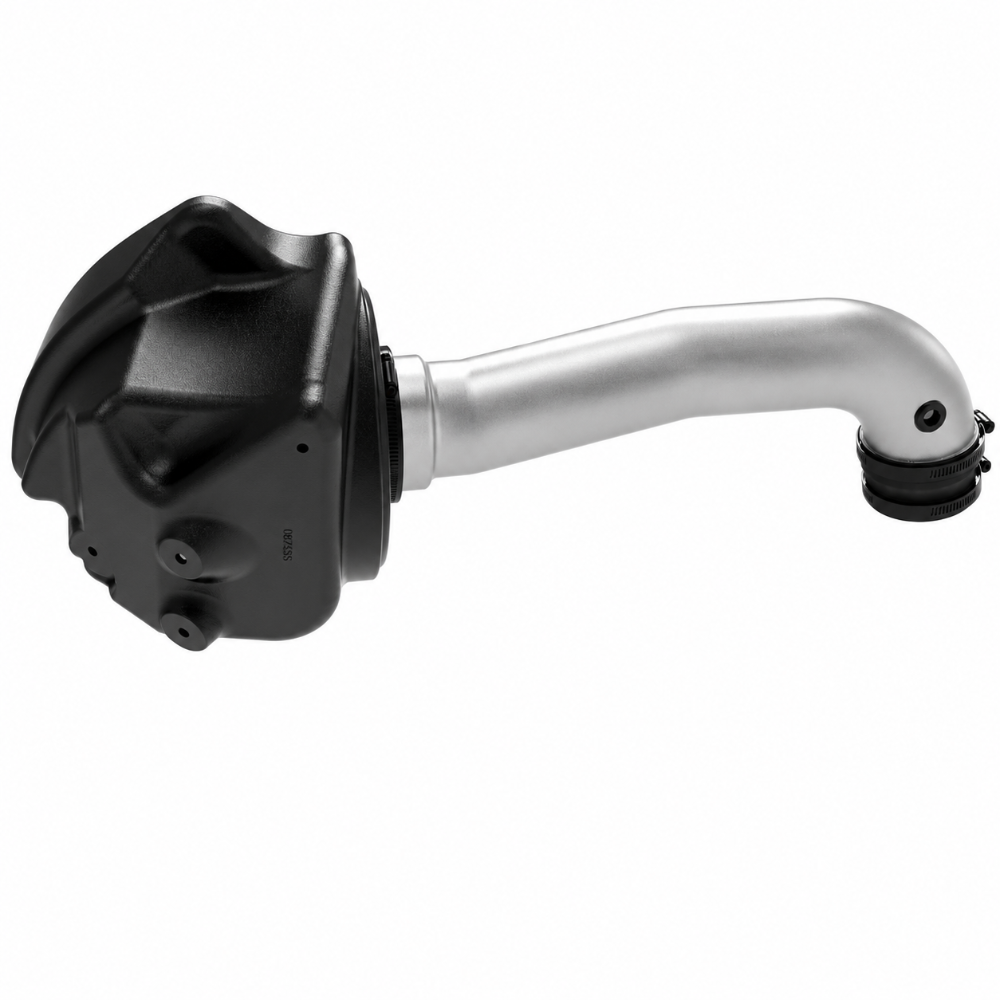

The K&N KNN70-1566 NextGen Aluminum Cold Air Intake is purpose-built for the 2012-2018 Jeep Wrangler JK equipped with the V6 3.6L Pentastar engine. Replacing the factory plastic airbox with a mandrel-bent 6063 aluminum tube, the KNN70-1566 increases measured airflow up to 37% and delivers dyno-verified gains of up to 17 horsepower and 28 lb-ft of torque without any tuning or ECU changes required.
Key Features
- KNN70-1566 increases airflow up to 37% over the factory intake system on the 2012-2018 Wrangler JK
- Dyno-tested gains up to 17 HP and 28 lb-ft of torque with no tune required
- American-made 6063 aluminum intake tube for durability on and off the trail
- Includes washable, reusable K&N High-Flow Lifetime Air Filter with oiled cotton media
- NextGen aluminum air box protects intake air from underhood heat
- Full OEM sensor compatibility for seamless plug-and-play installation
- Serviceable up to 100,000 miles under normal highway conditions
- Typical installation time under 60 minutes with basic hand tools
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2012-2018 | Jeep | Wrangler | Sport |
| 2012-2018 | Jeep | Wrangler | Sahara |
| 2012-2018 | Jeep | Wrangler | Rubicon |
| 2012-2018 | Jeep | Wrangler | Unlimited Sport |
| 2012-2018 | Jeep | Wrangler | Unlimited Sahara |
| 2012-2018 | Jeep | Wrangler | Unlimited Rubicon |
Specifications
| Detail | Value |
|---|---|
| Part Number | KNN70-1566 |
| Brand | K&N Engineering |
| Application | 2012-2018 Jeep Wrangler JK V6 3.6L F/I |
| Airflow Increase | Up to 37% |
| Horsepower Gain | Up to 17 HP |
| Torque Gain | Up to 28 lb-ft |
| Tube Material | 6063 Aluminum |
| Filter Media | Oiled Cotton Gauze (Washable/Reusable) |
| Filter Service Interval | Up to 100,000 miles |
| Tune Required | No |
| UPC | 024844469007 |
What's Included

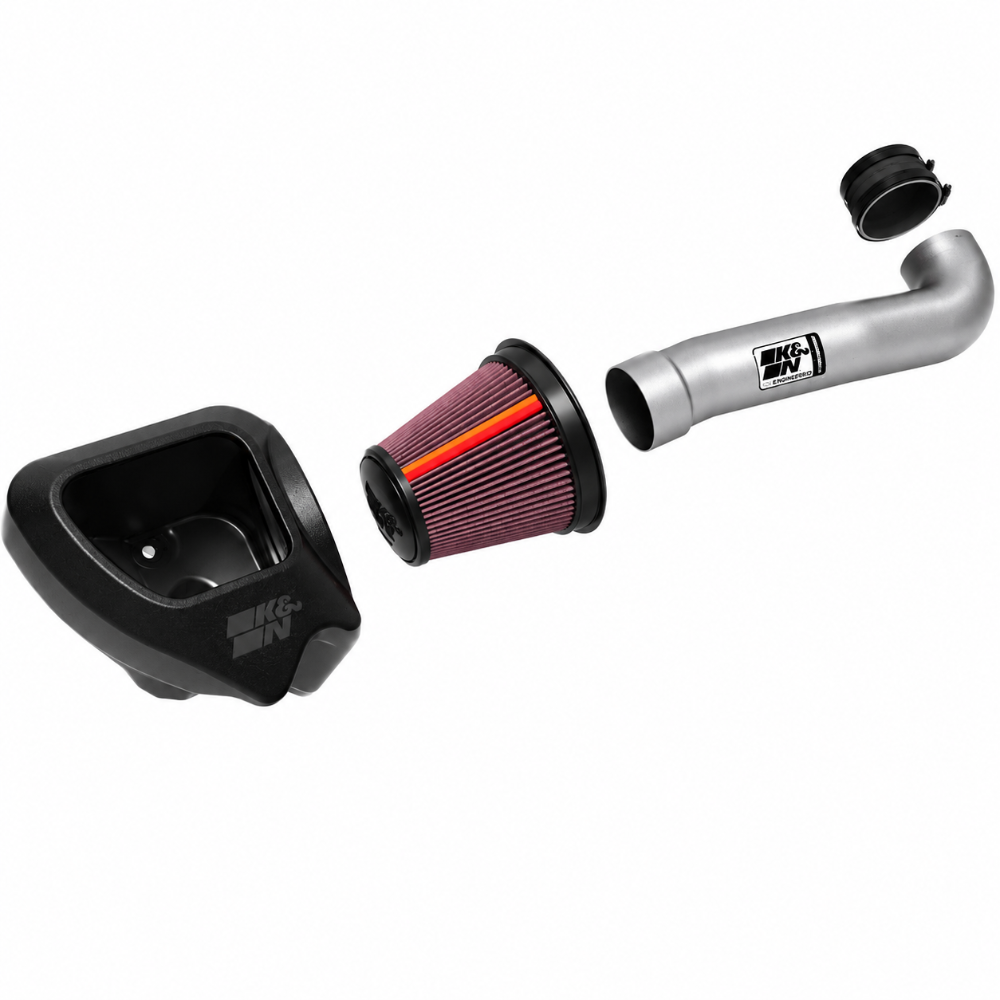

- K&N KNN70-1566 aluminum intake tube
- K&N High-Flow Lifetime Air Filter (oiled, reusable)
- NextGen aluminum air box with heat shield
- All mounting hardware and factory sensor adapters
- Installation instructions
About K&N Engineering
K&N Engineering has been at the forefront of performance air filtration since 1969. Their washable, reusable filter technology has been proven in NASCAR, Formula 1, off-road racing, and street driving globally. The NextGen Aluminum intake series is K&N's premium cold air intake line, combining aluminum construction with the latest air box heat management technology.
Frequently Asked Questions
Does the KNN70-1566 require a tune on the 2012-2018 Jeep Wrangler JK?No. The KNN70-1566 is plug-and-play with the factory ECU and all OEM sensors. No tune or recalibration is needed after installation.
How much horsepower does the KNN70-1566 add to the Wrangler JK 3.6L?K&N dyno testing recorded gains of up to 17 horsepower and 28 lb-ft of torque on the 2012-2018 Jeep Wrangler JK V6 3.6L with the KNN70-1566 installed.
Does the KNN70-1566 fit all body styles of the Wrangler JK?Yes. The KNN70-1566 is compatible with all body configurations of the 2012-2018 Jeep Wrangler JK, including 2-door and 4-door Unlimited models, equipped with the V6 3.6L engine.
Will installing the KNN70-1566 void my Jeep factory warranty?Under the Magnuson-Moss Warranty Act, an aftermarket part alone cannot void a factory warranty. The dealer must prove the specific part caused the failure in question. K&N also provides its own warranty on intake components.
How is the K&N filter maintained in the KNN70-1566 kit?Use the K&N Recharger Kit (99-5000). Apply K&N Power Kleen, soak for 10 minutes, rinse gently from the clean side with low-pressure water, allow to fully air dry, then apply K&N Filter Oil lightly and evenly. Do not reinstall until completely dry.
Does the KNN70-1566 affect water fording depth on the Wrangler JK?The KNN70-1566 is installed in the stock airbox position. It is important not to ford deeper than the factory air intake height. As with any aftermarket intake, K&N's warranty does not cover damage caused by water ingestion.
Is the KNN70-1566 legal in California and all 50 states?Check K&N's website or packaging for the current CARB EO status for your specific model year Wrangler JK, as certification can vary by year within the 2012-2018 range.
How long does installation of the KNN70-1566 take on the Wrangler JK?Most installations are completed in under 60 minutes using common hand tools. The kit is designed for removal and reinstallation without any permanent modifications to the vehicle.
Installation Instructions
- Disconnect the negative battery terminal before starting
- Remove the factory air box cover and loosen the throttle body intake boot clamp
- Disconnect all sensor connectors from the factory air box and intake tube
- Remove the factory air box base and plastic intake tube from the engine bay
- Route the KNN70-1566 aluminum tube into position per the included instructions and reconnect all sensors
- Mount the NextGen air box and secure with provided hardware
- Install the K&N filter onto the intake tube end and tighten the clamp
- Reconnect the battery and start the vehicle to confirm no fault codes or air leaks
