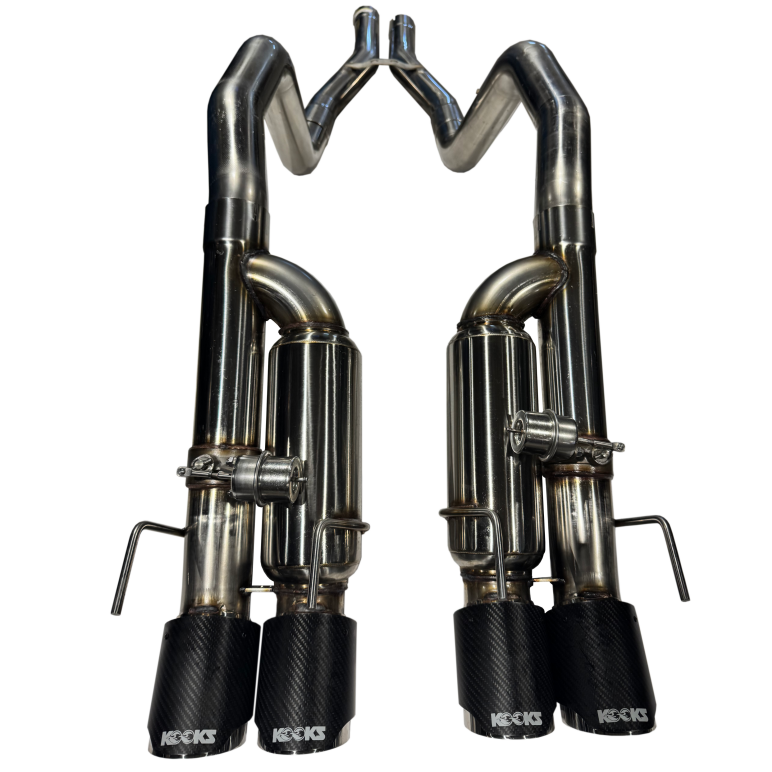

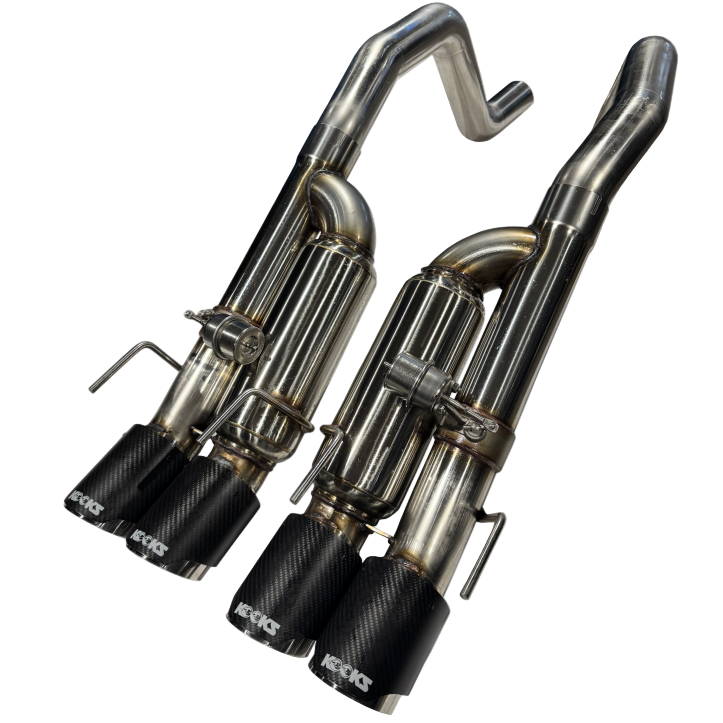

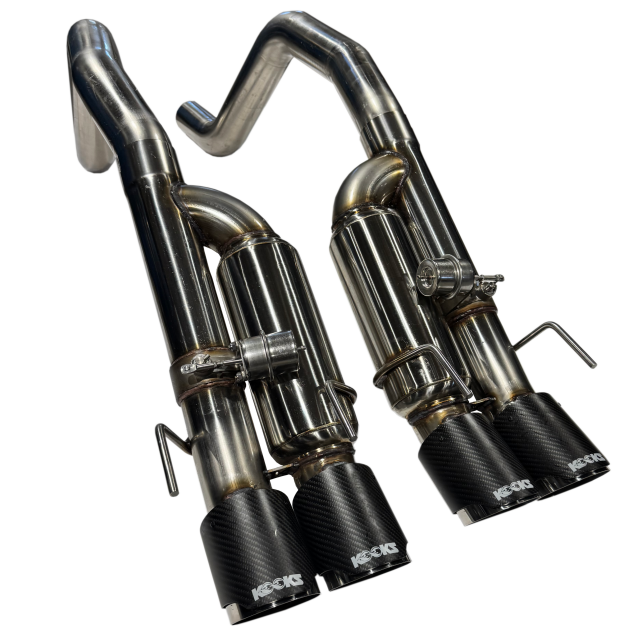

LS7 and LS9 Performance Unleashed: A Valve-Controlled 3-Inch Axle-Back That Transforms the C6 Z06 and ZR1 Sound Profile
The Kooks 21606750 replaces the factory axle-back muffler section on 2009 through 2013 Chevrolet Corvette Z06 and ZR1 models with a 3-inch 304 stainless steel shotgun-style valved system engineered to give the driver full authority over exhaust tone. When the vacuum-actuated valves are closed, the 21606750 routes exhaust through Kooks-designed shotgun muffler cores that produce a refined, deep LS7 or LS9 sound comparable to or louder than a fully modified set of OEM Z06 mufflers. When the valves open, exhaust bypasses the muffler cores entirely for a straight-through shot that unleashes the full, unobstructed voice of a 505-horsepower 7.0L LS7 or a 638-horsepower supercharged 6.2L LS9. The valve system integrates directly with the same vacuum actuation that controls the factory NPP exhaust on Z06 and ZR1 models, so the existing switch or button operates the Kooks 21606750 without additional controllers or wiring.
Kooks built the 21606750 from T304 aircraft-quality stainless steel throughout, including the over-axle pipes, muffler bodies, carbon fiber quad tips, and all connecting hardware. The system connects to the factory mid-section or to Kooks long tube headers and competition X-pipe setups, making it compatible with stock and upgraded configurations. The carbon fiber quad tip design adds a visual statement that complements the carbon fiber body panels standard on ZR1 models and optional on Z06 builds. At 46 pounds and dimensions of 32 inches long by 20 inches wide by 14 inches tall, the 21606750 replaces the factory rear section with a direct-fit system that requires no cutting, welding, or fabrication.
Key Features
- 3-Inch Diameter Throughout: Full 3-inch pipe diameter from OEM connection to tip maintains maximum exhaust flow for both the LS7 7.0L and LS9 6.2L supercharged V8 engines.
- Vacuum-Actuated Valved System: Integrates with the factory NPP exhaust vacuum switch on Z06 and ZR1 models. Closed valves produce an aggressive but controlled tone; open valves deliver a straight-through unrestricted exhaust note.
- Shotgun Muffler Core Design: Kooks-proprietary shotgun muffler geometry produces a louder sound signature than OEM Z06 mufflers even with the valves fully closed, giving a performance character at all times.
- Carbon Fiber Quad Tips: Four carbon fiber-finished exhaust tips complement the carbon fiber bodywork on ZR1 models and deliver a premium visual finish at the rear of the car.
- Bolt-On OEM or Header Fitment: Connects to the factory OEM mid-section or to Kooks long tube headers and 3-inch X-pipe combinations without modification.
- T304 Aircraft-Quality Stainless Steel: Full stainless construction throughout all pipes, muffler bodies, and connections resists corrosion and withstands the thermal demands of both the LS7 and supercharged LS9 applications.
- Compatible with M2 Wild-On-Demand: The valve actuation system is also compatible with aftermarket M2 Wild-On-Demand exhaust control systems for owners who have upgraded their switch mechanism.
- Handcrafted in the USA: Every Kooks 21606750 is built to order in Kooks' Statesville, North Carolina facility.
What's Included
- Pair of Over-Axle 3-Inch T304 Stainless Steel Pipes
- 2 x Kooks Shotgun Valved Muffler Bodies with Vacuum-Actuated Butterfly Valves
- Carbon Fiber Quad Exhaust Tips
- OEM-Compatible Mounting Clamps
- OEM Hanger Hardware
- Installation Manual
Install Instructions
- Raise and support the vehicle on a lift or four jack stands at the factory Corvette jacking points. Do not use a floor jack under the rocker panels or composite body panels.
- Allow the factory exhaust to cool completely before beginning removal. Spray penetrating oil on all clamp hardware and hanger connections if the vehicle has significant mileage.
- Locate the rear factory exhaust clamp at the connection between the mid-section and the axle-back assembly. Loosen and remove the clamp.
- Disconnect the vacuum line from the factory butterfly valve actuator on the OEM muffler assembly. Note the routing of the vacuum line for reconnection to the Kooks 21606750 valve actuators.
- Remove the factory muffler hangers from the body hanger pucks. Slide the OEM axle-back assembly rearward and down to remove from the vehicle.
- Test-fit the Kooks 21606750 over-axle pipes onto the OEM mid-section outlet or Kooks X-pipe outlet. Ensure correct left and right orientation.
- Attach the Kooks muffler bodies to the over-axle pipes. Engage the OEM hanger pucks with the supplied hanger hardware on the Kooks 21606750 muffler bodies.
- Reconnect the factory vacuum line to the Kooks valve actuator ports on each muffler body. The valve actuation system operates at the same vacuum pressure as the OEM NPP system.
- Install and tighten all clamps to the manufacturer-specified torque. Leave clamps slightly loose initially to allow tip alignment adjustment.
- Install the carbon fiber quad tips. Align the tips evenly within the rear bumper cutouts and tighten the tip retention hardware. Final-tighten all clamps once alignment is confirmed.
- Lower the vehicle. Start the engine and test valve operation using the factory NPP switch. Confirm both open and closed valve positions respond correctly. Inspect all connection points for exhaust leaks.
Product Specifications
| Specification | Detail |
|---|---|
| Manufacturer Part Number (MPN) | 21606750 |
| UPC | Verify with supplier |
| System Type | Axle-Back Exhaust |
| Material | T304 Aircraft-Quality Stainless Steel |
| Pipe Diameter | 3 in. Throughout |
| Muffler Style | Shotgun Valved |
| Valve Actuation | Vacuum-Actuated, OEM NPP Compatible |
| Tip Material | Carbon Fiber Quad Tips |
| Connection | OEM Mid-Section or Kooks Headers and X-Pipe |
| Engine Compatibility | LS7 7.0L V8 505 HP; LS9 6.2L Supercharged V8 638 HP |
| Weight | 46 lbs |
| Dimensions | 32 in. L x 20 in. W x 14 in. H |
| Emissions Compliance | Not CARB Compliant; Race and Street Use per State Law |
| Finish | Natural Stainless Steel with Carbon Fiber Tips |
| Country of Manufacture | USA |
| Lead Time | Typically 4 to 6 weeks (built to order) |
| Warranty | Limited Lifetime on Stainless Components to Original Purchaser |
This Part Fits
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2009 | Chevrolet | Corvette | Z06 | 7.0L LS7 V8 |
| 2010 | Chevrolet | Corvette | Z06 | 7.0L LS7 V8 |
| 2011 | Chevrolet | Corvette | Z06 | 7.0L LS7 V8 |
| 2012 | Chevrolet | Corvette | Z06 | 7.0L LS7 V8 |
| 2013 | Chevrolet | Corvette | Z06 | 7.0L LS7 V8 |
| 2011 | Chevrolet | Corvette | Z06 Carbon Edition | 7.0L LS7 V8 |
| 2009 | Chevrolet | Corvette | ZR1 | 6.2L LS9 Supercharged V8 |
| 2010 | Chevrolet | Corvette | ZR1 | 6.2L LS9 Supercharged V8 |
| 2011 | Chevrolet | Corvette | ZR1 | 6.2L LS9 Supercharged V8 |
| 2012 | Chevrolet | Corvette | ZR1 | 6.2L LS9 Supercharged V8 |
| 2013 | Chevrolet | Corvette | ZR1 | 6.2L LS9 Supercharged V8 |
Frequently Asked Questions
Q: Does the Kooks 21606750 fit both the Z06 coupe and a convertible Z06?
A: The Z06 was only offered as a coupe for the 2009 through 2013 model years; no Z06 convertible was produced in this generation. The standard Corvette convertible with the 427 special edition used a different exhaust layout. The 21606750 is designed for the Z06 coupe platform with the LS7 7.0L V8.
Q: Does the 21606750 fit the ZR1 coupe?
A: Yes. The 21606750 fits the 2009 through 2013 ZR1 coupe equipped with the supercharged 6.2L LS9 V8. The ZR1 was only produced as a coupe during this period. The system connects to the OEM ZR1 mid-section directly.
Q: Will the 21606750 fit the base C6 Corvette or Grand Sport?
A: No. The 21606750 is designed exclusively for the Z06 and ZR1 platforms, which use a 3-inch mid-pipe and rear exhaust section. The base Corvette and Grand Sport use a different exhaust layout with smaller diameter mid-pipes and different hanger positions.
Q: How does the valve system work on the 21606750?
A: The butterfly valves inside each muffler body are actuated by the same vacuum signal that operates the factory NPP exhaust system. When the valves are closed, exhaust passes through the Kooks shotgun muffler cores. When the driver activates the valve switch, vacuum opens the butterflies to create a straight-through path past the mufflers for maximum volume. The system is also compatible with aftermarket M2 Wild-On-Demand controllers.
Q: How much louder is the 21606750 compared to stock Z06 mufflers?
A: With valves closed, the 21606750 is louder than fully modified OEM Z06 NPP mufflers, delivering a more aggressive tone at all times. With valves open, the sound is significantly more aggressive than any factory configuration. Kooks describes this as the valves open delivering a straight shot that lets the Corvette scream at full intensity.
Q: Does the 21606750 require Kooks headers and X-pipe to install?
A: No. The 21606750 connects directly to the factory OEM mid-section without requiring Kooks long tube headers or an X-pipe. It can also be paired with Kooks headers and 3-inch X-pipe combinations for maximum performance.
Q: Is the Kooks 21606750 legal in California?
A: No. This product does not meet CARB compliance standards and is not legal for sale, installation, or use on a licensed vehicle registered in California or other CARB-regulated states.
Q: What warranty does the Kooks 21606750 carry?
A: Kooks provides a limited lifetime warranty on all stainless steel components to the original purchaser. Coverage is governed by the Magnuson-Moss Warranty Act, which provides that installing this exhaust component cannot void the vehicle's factory powertrain warranty solely because of the modification. Warranty claims are processed directly through Kooks Custom Headers.
Q: Does the 21606750 require any special tools for installation?
A: No. Installation requires basic hand tools and a lift or jack stands. No cutting, welding, or fabrication is required. The system uses OEM hanger positions and OEM-compatible clamps supplied with the kit.
Why Kooks
- Over 60 years of American-made exhaust excellence with documented wins in the NHRA, IHRA, NMCA, NMRA, NASCAR, NASA, and SCCA.
- Every unit is hand-TIG-welded and inspected before leaving the Statesville, North Carolina facility.
- Limited lifetime warranty backed by six-plus decades of stainless fabrication expertise and race-proven quality.
California Proposition 65 Warning: This product can expose you to chemicals including Chromium and Nickel, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
