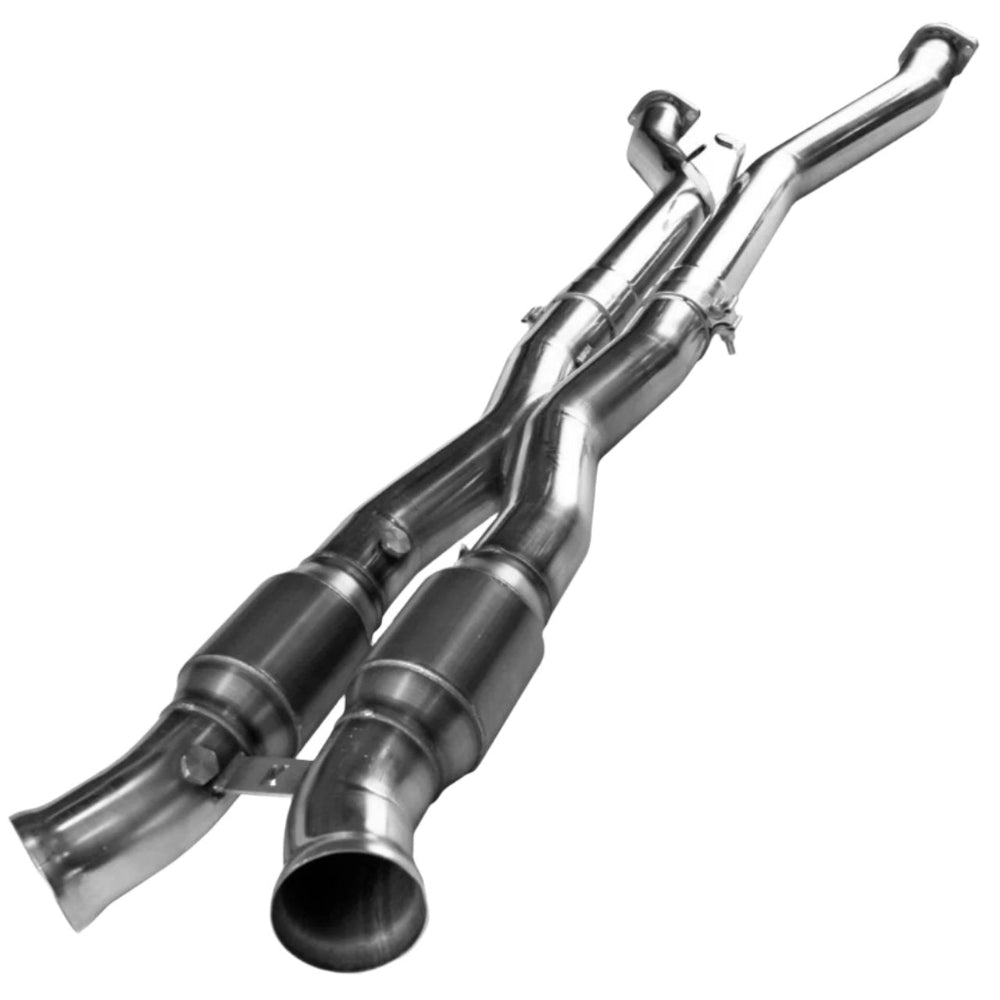

Kooks 3in. x 2-1/2in. SS Catted X-Pipe 97-04 Chevy Corvette

High-Flow Race Catted X-Pipe That Bridges Kooks Long Tube Headers to the OEM Cat-Back on the C5 Corvette

When Kooks long tube headers are bolted to a 1997-2004 Chevrolet Corvette C5, the factory mid-section cannot connect directly to the larger 3-inch collector outlets. The Kooks 21503201 solves that problem with a purpose-built 3-inch inlet by 2.5-inch outlet stainless steel X-pipe that bridges the gap between Kooks 3-inch collector headers and the OEM 2.5-inch cat-back exhaust, completing the system without cutting or welding. The three-piece T304 stainless steel assembly integrates two high-flow race catalytic converters in an X-pipe geometry that balances exhaust pulses across both cylinder banks, sharpening throttle response and broadening the torque curve from low RPM through the top of the rev range on both the LS1 and LS6 5.7L engines.

The X-pipe crossover configuration equalizes exhaust scavenging between banks more effectively than an H-pipe for high-RPM applications, producing a distinctive, even exhaust note with improved upper-RPM power delivery on the C5 platform. Mandrel-bent T304 stainless steel tubing maintains consistent interior diameter through every bend, and the 3-inch OEM-style outlet flanges align precisely with the factory cat-back connection points, retaining the complete downstream exhaust without modification. The Kooks 21503201 is designed for naturally aspirated applications; the included high-flow race catalytic converters are not rated for forced induction use.

Key Features

• 3-Inch Inlet by 2.5-Inch Outlet X-Pipe: Bridges Kooks 3-inch collector headers to the OEM 2.5-inch cat-back with no cutting or custom fabrication.
• High-Flow Race Catalytic Converters: Dual inline race cats reduce backpressure while retaining catalytic function; designed for naturally aspirated applications only.
• X-Pipe Crossover Geometry: Balances exhaust pulses between cylinder banks for improved upper-RPM power and a more even, aggressive exhaust tone.
• T304 Aircraft-Quality Stainless Steel: Mandrel-bent tubing maintains constant interior diameter through every bend for unrestricted exhaust flow.
• Three-Piece Design: Sectioned construction improves fitment in the tight C5 chassis underbody and simplifies installation.
• OEM Outlet Connection: 2.5-inch outlet flanges align directly with the factory OEM cat-back for a clean, leak-free connection.
• Clamps Included: All necessary clamps for installation are supplied with the 21503201 kit.
• Handcrafted in the USA: Built at the Kooks USA facility to the same quality standards as all Kooks race and street exhaust products.

What's Included

• Kooks 21503201 Three-Piece T304 Stainless Steel X-Pipe Assembly with Crossover
• Two High-Flow Race Catalytic Converters
• 3-Inch Inlet Mid-Pipe Sections
• 2.5-Inch OEM-Style Outlet Flanged Connections
• Installation Clamps and Hardware

Installation Instructions

1. Raise the vehicle on a lift or support securely on jack stands with the exhaust system at accessible working height.
2. Allow the existing exhaust system to cool completely before beginning any work.
3. Disconnect and remove the factory catalytic converters and mid-pipes between the header collectors and the OEM cat-back. Retain the OEM cat-back assembly.
4. Inspect all O2 sensor locations on the existing headers and confirm sensor fitment before proceeding. Transfer O2 sensors to the 21503201 bung locations.
5. Test-fit the Kooks 21503201 X-pipe assembly by positioning the 3-inch inlet flanges over the Kooks header collectors and routing the 2.5-inch outlet connections toward the OEM cat-back inlet.
6. Align the X-pipe crossover section to clear all chassis components, steering, and drivetrain elements. Verify minimum clearance of 3/4 inch around all moving components.
7. Slide provided clamps onto the inlet and outlet connection points before finalizing position. Start the inlet flange connections first, then position the outlet at the OEM cat-back.
8. Torque all connection points and clamps to specification with all pipes in final alignment. Do not fully tighten any connection until all sections are positioned and aligned.
9. Lower the vehicle, start the engine, and inspect all connection points for exhaust leaks. Re-torque as needed after the system reaches operating temperature.
10. Professional installation is strongly recommended. This product requires Kooks long tube headers with 3-inch collectors upstream.

Product Specifications

This Part Fits

Frequently Asked Questions

Q: Does the Kooks 21503201 require a tune after installation?
A: A tune is not required for the vehicle to start and run with the 21503201 installed. However, a professional ECU calibration is strongly recommended to fully optimize air-fuel ratios and ignition timing for the improved exhaust flow, particularly on modified LS1 or LS6 builds.

Q: Will the 21503201 work with the factory cat-back exhaust?
A: Yes. The 21503201 is specifically designed to connect Kooks 3-inch collector long tube headers upstream to the OEM 2.5-inch cat-back downstream, allowing you to retain the complete factory cat-back without any modification.

Q: Does the 21503201 fit the C5 Corvette Hardtop?
A: Yes. The 21503201 fits the 1999-2000 Corvette C5 Fixed-Roof Coupe (Hardtop) along with the standard coupe and convertible body styles for all 1997-2004 model years.

Q: Does this X-pipe work with supercharged or turbocharged LS applications?
A: No. The high-flow race catalytic converters included in the Kooks 21503201 are rated for naturally aspirated applications only. Forced induction applications require a different catted pipe or an off-road competition pipe. Use with boosted applications is not covered under warranty.

Q: Is the Kooks 21503201 street legal?
A: The 21503201 is not CARB compliant and cannot be legally installed on vehicles registered in California. Street legality varies by state and local jurisdiction. Check all applicable federal, state, and local regulations before installation. This product does not carry 49-state EPA certification.

Q: What headers are required to use the Kooks 21503201?
A: The 21503201 requires Kooks long tube headers with 3-inch collectors installed upstream. It is not compatible with the OEM exhaust manifolds or aftermarket headers using a different collector diameter or outlet style.

Q: What is the warranty on the Kooks 21503201?
A: Kooks provides a limited lifetime warranty on all stainless steel components to the original purchaser. Coverage is governed by the Magnuson-Moss Warranty Act, which means the installation of an aftermarket exhaust component does not void your vehicle's factory powertrain warranty solely on the basis of that modification. Catalytic converters are excluded from the lifetime warranty and do not carry coverage for forced induction use.

Q: Does the 21503201 fit both the coupe and convertible C5?
A: Yes. The three-piece design accommodates both the coupe and convertible body configurations of the 1997-2004 C5 Corvette platform without modification.

Q: How does the X-pipe differ from an H-pipe for C5 Corvette applications?
A: The X-pipe crossover fully merges exhaust flow from both banks at the crossover point, which is more effective at equalizing pulse scavenging at higher RPM and produces a smoother, more even exhaust note. An H-pipe connects the two exhaust paths side by side with a balance tube, which tends to produce a deeper, choppier exhaust note with slightly more low-RPM character. The 21503201 X-pipe configuration is preferred for high-revving LS1 and LS6 applications seeking maximum top-end performance.

Why Kooks

• Over 60 years of American-made exhaust excellence with documented NHRA, NASCAR, and SCCA race victories.
• Every unit is hand-TIG-welded and inspected before shipping from the Kooks USA facility.
• Limited lifetime warranty backed by more than six decades of stainless fabrication expertise.
